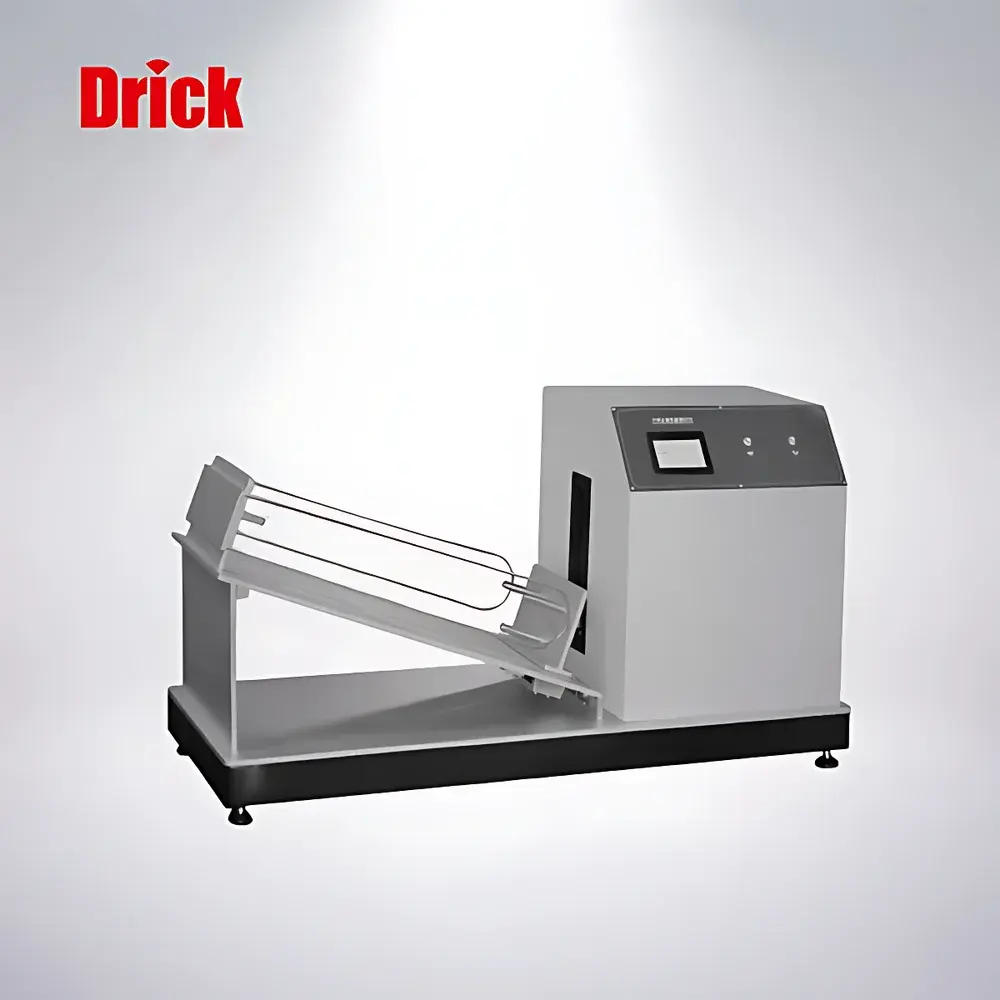

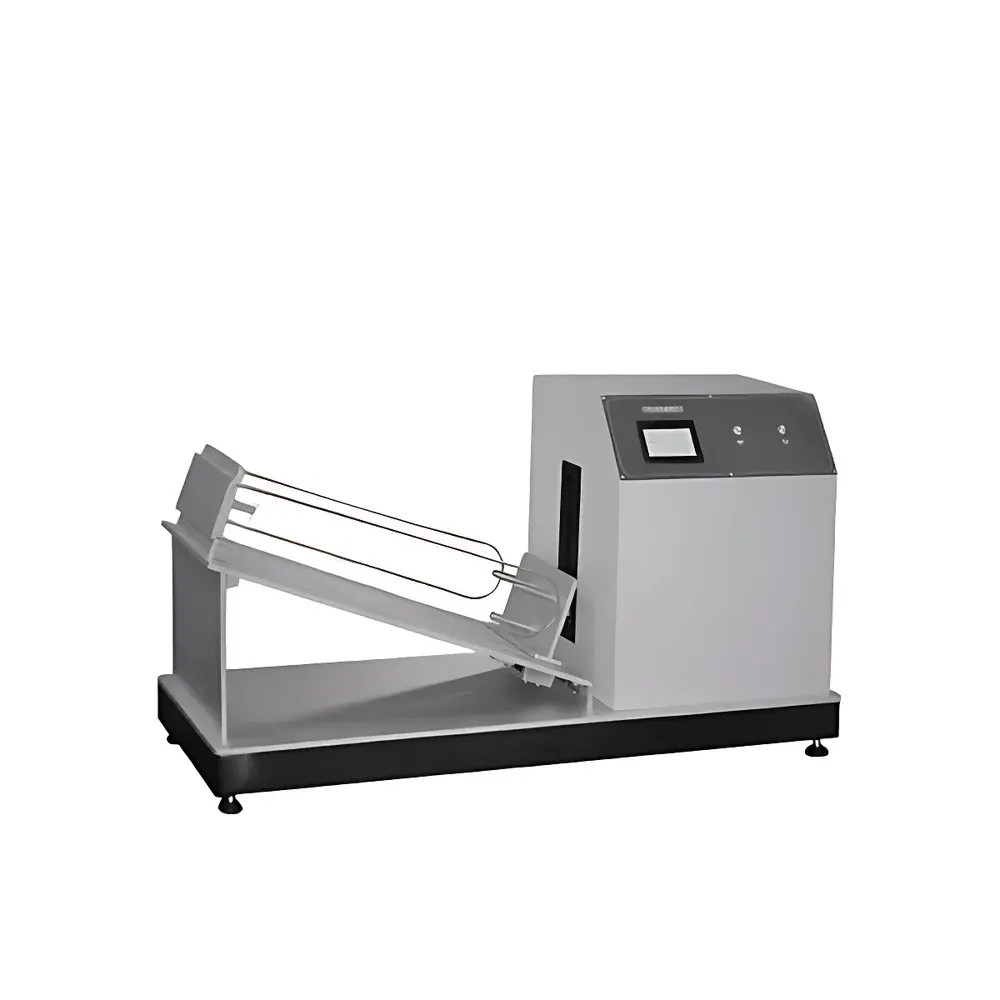

Drick DRK819G Down-Proof Performance Tester

Overview

The Drick DRK819G Down-Proof Performance Tester is a precision-engineered mechanical abrasion and impact simulation instrument designed to evaluate the down-proof integrity of woven and knitted fabrics used in high-performance down-filled apparel, sleeping bags, and outdoor gear. It operates on the principle of controlled mechanical冲击 (impact) via eccentric cam-driven vertical motion, replicating the dynamic stress conditions that cause feather or down fiber migration through fabric interstices during real-world use. Conforming strictly to BS EN 12132-2:2003 — “Textiles — Test methods for down and feathers — Part 2: Determination of down-proof performance of fabrics” — the DRK819G delivers repeatable, standardized test outcomes essential for R&D validation, quality control, and regulatory compliance in textile manufacturing and third-party testing laboratories.

Key Features

• Robust aluminum alloy front panel with tactile metal membrane keys, engineered for long-term operational reliability and resistance to mechanical wear in high-cycle laboratory environments.
• STMicroelectronics 32-bit embedded microcontroller platform, ensuring stable real-time cycle counting, precise frequency regulation, and low-latency response to user input.
• Bilingual (English/Chinese) graphical user interface with intuitive menu navigation, supporting international lab personnel and facilitating audit-ready documentation during cross-border technical evaluations.
• Electrostatic powder-coated steel chassis, providing uniform corrosion resistance, scratch resilience, and consistent surface finish across production units.
• Adjustable and lockable sample clamping mechanism compatible with standard 200 mm × 200 mm fabric specimens, minimizing edge slippage and ensuring uniform stress distribution during impact cycles.
• Non-volatile memory retention for cycle count and parameter settings, preserving test history even after power interruption — critical for GLP-compliant workflows.

Sample Compatibility & Compliance

The DRK819G accommodates a broad spectrum of tightly woven synthetic and natural fiber fabrics, including nylon taffeta, polyester ripstop, and high-thread-count cotton blends, commonly employed in premium down insulation applications. Specimens are mounted tautly between two concentric circular frames under standardized tension (per BS EN 12132-2 Annex A), with a calibrated 15 g steel ball serving as the impact mass. The test endpoint is defined by visual detection of ≥3 down fibers penetrating the fabric surface after a specified number of impacts — a pass/fail criterion directly traceable to the referenced European standard. Full compliance documentation, including factory calibration certificates and conformance statements aligned with ISO/IEC 17025 prerequisite instrumentation requirements, is supplied with each unit.

Software & Data Management

While the DRK819G operates as a standalone electromechanical tester without proprietary PC software, its embedded firmware supports unambiguous digital readout of cumulative impact cycles with six-digit resolution and automatic stop-on-limit functionality. All displayed parameters — current count, preset target, and elapsed runtime — are logged locally in non-volatile memory and can be manually recorded into LIMS or Excel-based QA databases. For laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 requirements, optional RS-232 serial output (available upon request) enables integration with validated data acquisition systems supporting electronic signatures, audit trails, and user access controls.

Applications

• Pre-production validation of down-proof barrier fabrics for outer shells and internal baffles in insulated jackets and sleeping bags.
• Comparative evaluation of finishing treatments (e.g., silicone coating, plasma surface modification) on fabric pore structure and fiber migration resistance.
• Supplier qualification testing per brand-specific technical specifications referencing BS EN 12132-2 or equivalent internal standards.
• Root-cause analysis of field failures related to down leakage, correlating DRK819G test results with SEM imaging of fabric cross-sections and pore size distribution analysis.
• Supporting ISO 9001:2015 clause 8.5.1 (Control of production and service provision) through documented, repeatable physical testing protocols.

FAQ

What standard does the DRK819G comply with?
BS EN 12132-2:2003 — the definitive European standard for quantifying down-proof performance of textile fabrics.
Is calibration certification included with shipment?
Yes — each unit ships with a factory-issued calibration verification report, traceable to national metrology standards, confirming stroke accuracy (500 ± 5 mm) and frequency stability (35 ± 0.5 cycles/min).
Can the instrument be integrated into an automated QA line?
The base model features manual start/stop and digital display only; however, RS-232 or 4–20 mA analog output modules are available as configurable options for PLC interfacing.
What maintenance is required for long-term accuracy?
Biannual inspection of cam follower wear, lubrication of linear guide rails, and verification of impact mass weight (15.0 ± 0.1 g) using Class M1 certified weights are recommended per the maintenance schedule in the operator manual.
Does the DRK819G support ASTM or ISO equivalents?
While BS EN 12132-2:2003 remains the primary reference, test methodology aligns closely with principles in ASTM D737 (air permeability) and ISO 9277 (pore size analysis) when interpreted contextually for down migration mechanisms.
