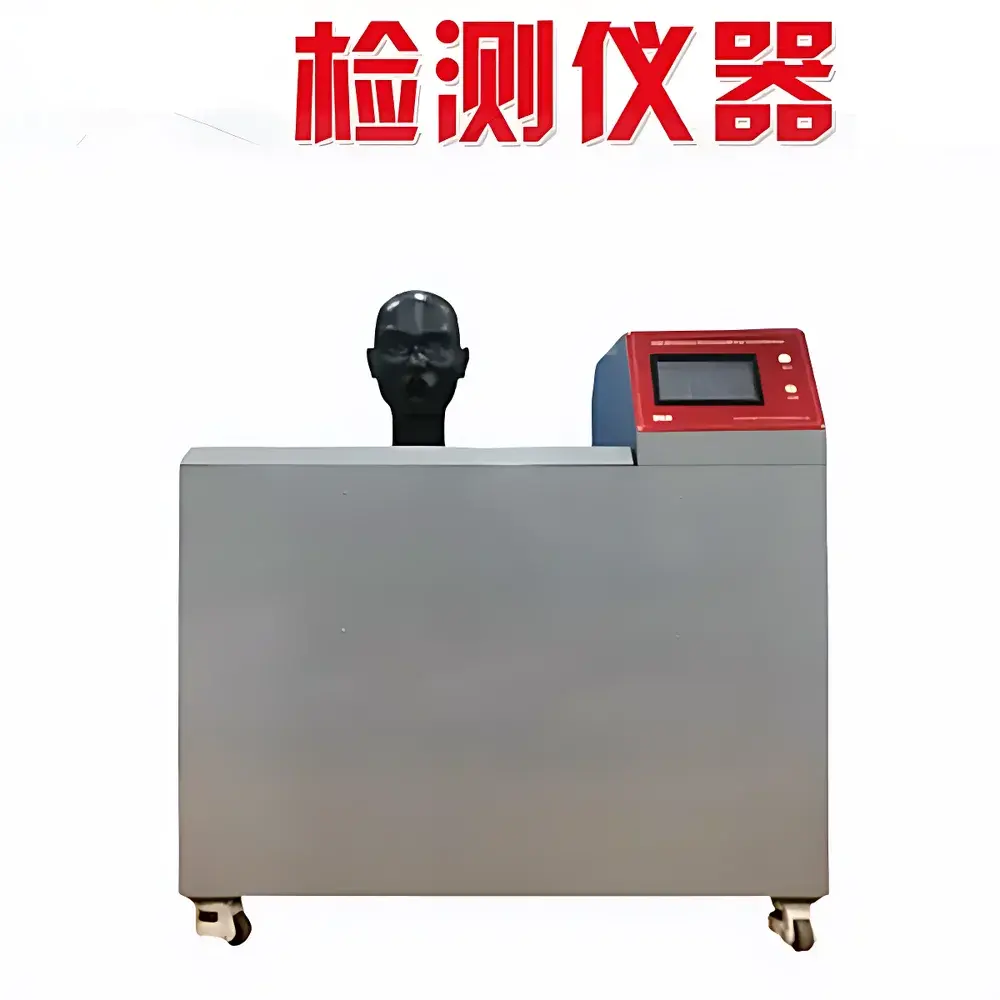

DRK265 Drick Dead Space Tester for Respiratory Protective Devices – CO₂ Retention Quantification System

Overview

The DRK265 Dead Space Tester is an engineered metrology system designed to quantify carbon dioxide (CO₂) rebreathing and anatomical/functional dead space in respiratory protective devices—including N95 respirators, surgical masks, elastomeric half-masks, and powered air-purifying respirators (PAPRs). It operates on the principle of controlled exhalation simulation combined with real-time infrared CO₂ concentration monitoring and volumetric flow integration. By replicating standardized breathing patterns (e.g., ISO 16900-3:2016, ASTM F2299-03), the instrument calculates effective dead space volume (mL) and CO₂ retention percentage under defined tidal volumes (typically 500–800 mL) and respiratory rates (15–30 breaths/min). This measurement directly informs user physiological burden, thermal stress, and potential hypercapnia risk—critical parameters for regulatory evaluation, product development, and occupational health compliance.

Key Features

• Integrated non-dispersive infrared (NDIR) CO₂ sensor with ±2% full-scale accuracy and 10 ppm resolution, calibrated traceably to NIST-certified gas standards.
• Programmable breathing simulator supporting adjustable tidal volume (400–1000 mL), inspiratory/expiratory time ratio (I:E), and respiratory frequency (10–40 bpm).
• Dual-channel mass flow metering (±1% reading) for simultaneous inhalation/exhalation flow profiling and volumetric dead space integration.
• Modular test fixture compatible with flat-fold, cup-style, and duckbill mask geometries; accommodates headforms per ISO 16976-3 and EN 149:2001+A1:2009.
• Rugged industrial enclosure with EMI-shielded electronics, IP54-rated front panel, and ambient temperature/humidity monitoring (20–30°C, 30–70% RH).
• Onboard data logging at 10 Hz sampling rate; exportable CSV and XML formats compliant with 21 CFR Part 11 audit trail requirements.

Sample Compatibility & Compliance

The DRK265 supports testing of all classes of particulate-filtering facepiece respirators certified under NIOSH 42 CFR Part 84, GB 2626–2019, EN 149:2001+A1:2009, and AS/NZS 1716:2012. It enables dead space assessment across multiple fit conditions—including unadjusted, strap-tension-varied, and facial-seal-interrupted configurations—to evaluate design-dependent CO₂ accumulation. The system conforms to test methodologies specified in ISO 16900-3:2016 (Respiratory protective devices — Methods of test — Part 3: Determination of dead space), as well as supplementary guidance from OSHA Technical Manual Section VIII and EU Commission Recommendation 2021/C 242/01 on reusable respirator validation. All calibration procedures follow ISO/IEC 17025:2017 principles, and certificate documentation includes uncertainty budgets per GUM (JCGM 100:2008).

Software & Data Management

The DRK265 Control Suite (v3.2) provides a Windows-based interface for test protocol definition, real-time waveform visualization (flow vs. CO₂ concentration), and automated dead space calculation per ISO 16900-3 Annex B. Software features include user role-based access control (administrator/operator), electronic signature capture, and configurable report templates aligned with GLP and GMP documentation standards. Audit trails record all parameter changes, calibration events, and result exports with timestamp, operator ID, and device serial number. Data integrity is preserved via SHA-256 hashing of raw datasets and optional network backup to secure FTP or local NAS storage. The platform supports direct integration with LIMS environments through HL7 v2.5 and ASTM E1384 interfaces.

Applications

• Regulatory submission support for NIOSH, CE, and CNAS certification of new respirator designs.
• Comparative dead space analysis during R&D of low-resistance filter media, ergonomic nose-bridge structures, and exhalation valve configurations.
• Quality assurance testing for batch release verification against internal specifications and customer technical agreements.
• Ergonomic validation studies assessing CO₂ buildup impact on cognitive performance and thermal comfort in extended-wear scenarios (e.g., healthcare, manufacturing, wildfire response).
• Academic research on ventilatory efficiency, work-of-breathing correlation, and physiological tolerance thresholds in diverse demographic cohorts.

FAQ

What breathing patterns does the DRK265 simulate, and are they customizable?
Yes—the system supports preconfigured protocols per ISO 16900-3 (e.g., 30 bpm / 500 mL tidal volume) and allows full parameter customization including I:E ratio, pause duration, and waveform shape (sinusoidal, square, or trapezoidal).

Does the instrument require external gas cylinders or zero-air supply?
No—CO₂ sensing is performed using factory-calibrated NDIR optics; ambient air serves as the baseline. Optional zero-air generator module available for high-humidity environments.

How is traceability maintained for sensor calibration?
Each unit ships with a calibration certificate referencing NIST-traceable CO₂ gas standards (certified by CNAS-accredited lab); annual recalibration services include uncertainty reporting per ISO/IEC 17025.

Can the DRK265 be used for fit testing validation?
While not a fit tester itself, it quantifies dead space—a key secondary metric influencing fit test pass/fail outcomes under exertion; commonly deployed alongside quantitative fit test systems (e.g., TSI PortaCount) in comprehensive validation workflows.

Is remote diagnostics or firmware update capability supported?
Yes—via secure HTTPS-based web interface; firmware updates are digitally signed and verified prior to installation, with rollback functionality retained for version control.
