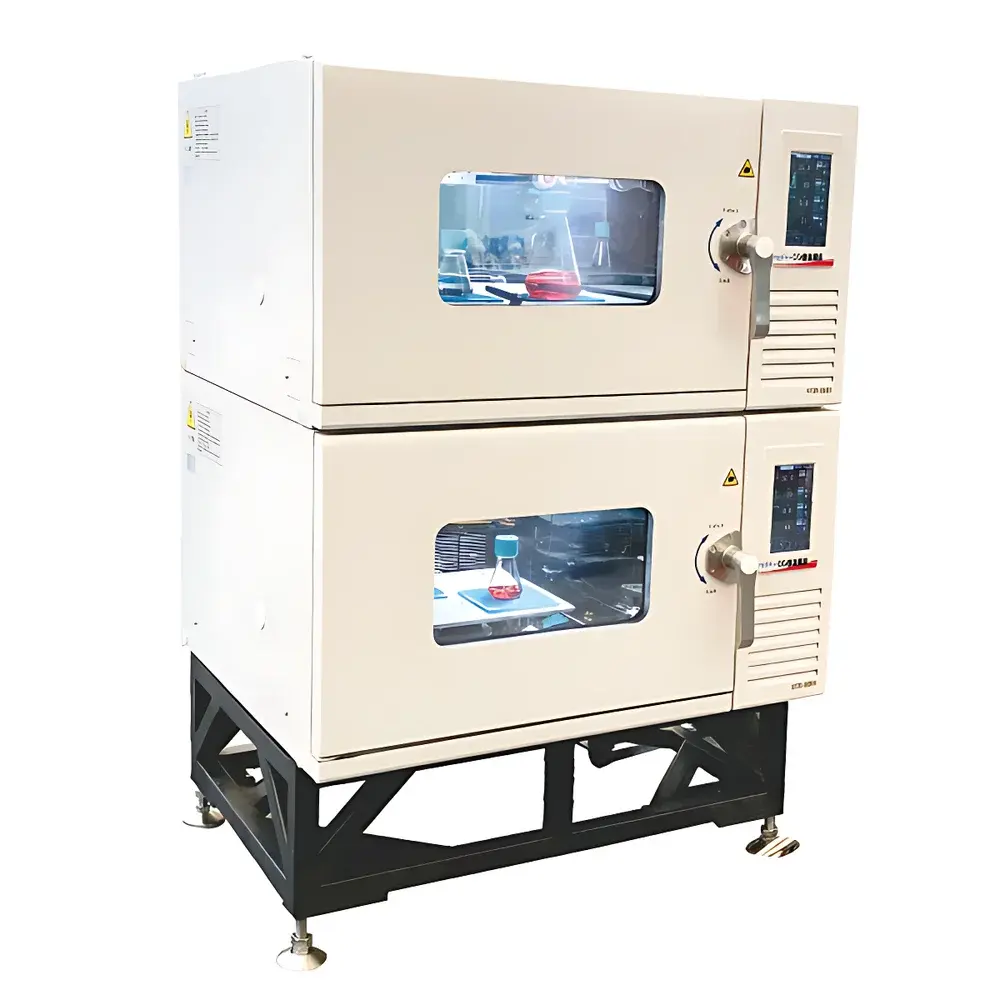

Duoning Bio DUONING-0720-0001 Fully Automated CO₂-Regulated Refrigerated Orbital Shaker

Overview

The Duoning Bio DUONING-0720-0001 is a fully automated, refrigerated orbital shaker engineered specifically for long-term, physiologically relevant mammalian and microbial cell culture under controlled CO₂, temperature, humidity, and agitation conditions. Unlike conventional air-bath shakers, this system integrates real-time infrared (IR) CO₂ sensing, PID-fuzzy hybrid temperature regulation, and brushless magnetic drive technology to maintain stringent environmental fidelity across extended incubation periods—critical for bioprocess development, upstream biomanufacturing, and translational research. Its triple-axis eccentric balanced mechanism ensures mechanical stability at all speeds (0.3–300 rpm), minimizing shear-induced cellular stress during acceleration/deceleration phases. The chamber operates within a validated thermal range of 4°C to 60°C, with active refrigeration enabling sub-ambient operation down to 4°C—essential for cold-adapted strain cultivation or synchronized cell-cycle studies.

Key Features

• Brushless magnetic drive system: Eliminates belt wear, slippage, and speed drift; delivers consistent torque and <1 rpm speed deviation across full load spectrum.
• Triple-axis eccentric balance architecture: Reduces vibration transmission to adjacent equipment and enhances operational longevity (>20,000 hr MTBF).
• Integrated IR-based CO₂ sensor with automatic calibration compensation: Maintains setpoint accuracy within ±0.2% across 0–20% range; supports ISO 13485-aligned validation protocols.
• 12-segment programmable controller: Enables dynamic environmental sequencing—e.g., temperature ramping from 33°C to 37°C over 24 h while modulating CO₂ from 5% to 8% and adjusting rpm in concert with metabolic demand.
• Auto-humidification and condensation-controlled defrost cycle: Prevents desiccation during low-temperature runs and avoids ice accumulation without manual intervention.
• 10-inch capacitive touchscreen with role-based access control: Supports GLP-compliant user authentication (admin/operator/researcher profiles), password-protected parameter locking, and audit-trail-enabled event logging.
• Optional Wi-Fi module with TLS 1.2-secured MQTT communication: Allows concurrent remote monitoring via iOS/Android apps; configurable SMS/email alerts for CO₂ depletion, door-open, or temperature excursion events.

Sample Compatibility & Compliance

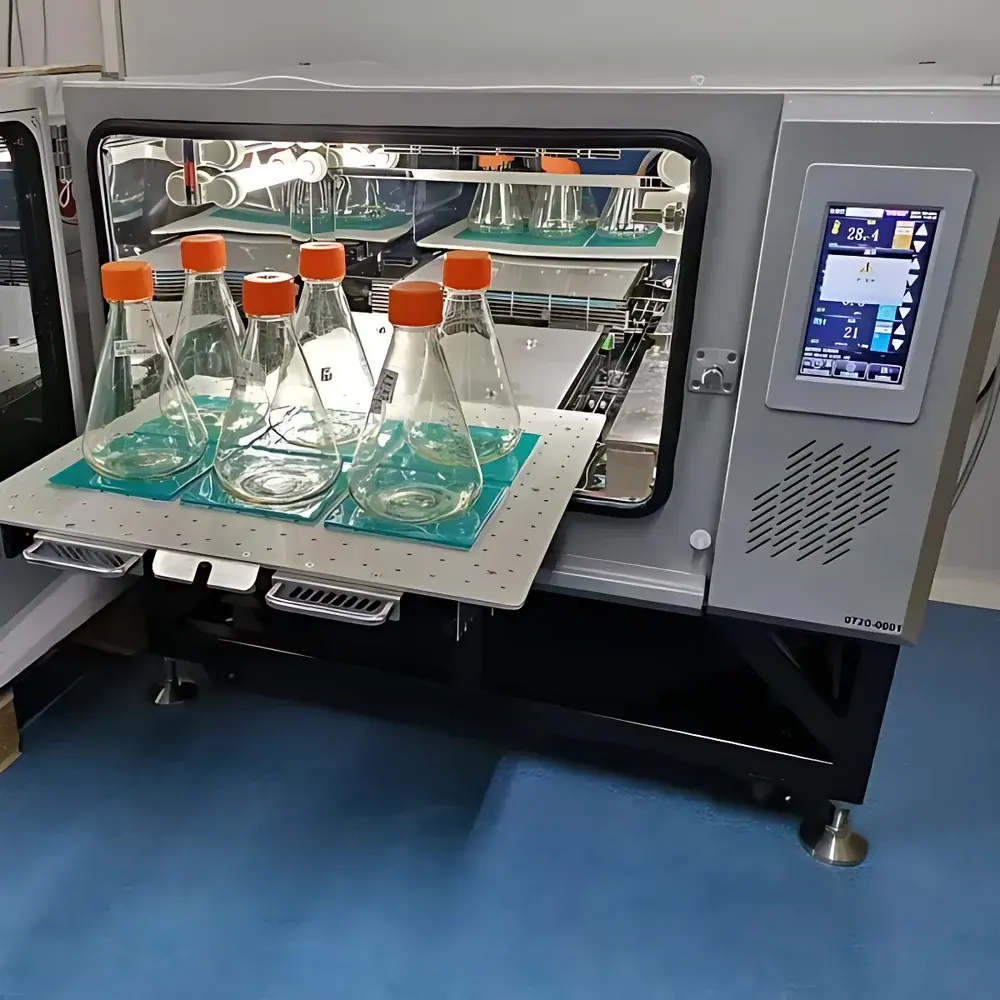

The DUONING-0720-0001 accommodates diverse vessel formats—including Erlenmeyer flasks (50 mL to 5 L), roller bottles, microplates, and custom bioreactor bags—via interchangeable clamping systems and adhesive pads. Its 570 × 470 mm shelf supports up to 15 × 3 L vessels simultaneously, with uniform airflow distribution verified per ASTM E171-22 standards. All materials in contact with the chamber interior comply with USP Class VI biocompatibility requirements. The system meets IEC 61010-1 safety standards for laboratory equipment and supports 21 CFR Part 11 compliance when configured with electronic signature-enabled software and encrypted data storage (USB export includes timestamped, checksum-verified CSV files). It is routinely deployed in GMP-aligned cell banking workflows, vaccine seed train expansion, and monoclonal antibody titer optimization studies.

Software & Data Management

Onboard firmware implements a deterministic real-time operating system (RTOS) with millisecond-level sampling of CO₂, temperature, humidity, and motor feedback signals. Data are stored locally in non-volatile memory with cyclic overwrite protection for critical alarm logs. USB export generates ISO/IEC 17025-compatible reports containing raw sensor values, setpoint deviations, and system status flags—formatted for direct import into LIMS or ELN platforms such as LabVantage or Benchling. Remote Wi-Fi mode enables secure API-based integration with enterprise MES systems using RESTful endpoints. Audit trails include operator ID, timestamp, parameter change value, and reason code—fully traceable for FDA inspection readiness.

Applications

This shaker serves as a core platform for applications requiring precise coordination of gas exchange, thermal regulation, and mechanical stimulation: suspension CHO and HEK293 cell line expansion under fed-batch conditions; anaerobic and microaerophilic bacterial fermentation (e.g., E. coli, Lactobacillus); insect cell culture (Sf9/Sf21) in serum-free media; plant protoplast regeneration assays; and high-density yeast cultivation for recombinant protein expression. Its ability to sustain stable 8% CO₂ at 36.5°C with ±0.24°C temperature fluctuation (ΔT_f) and ±0.278°C uniformity (ΔT_u)—as verified against NIST-traceable reference probes—makes it suitable for comparative bioprocess studies where inter-unit reproducibility is mandated.

FAQ

Does the system support 21 CFR Part 11 compliance?
Yes—when equipped with the optional Data Integrity Package (DIP), it provides electronic signatures, audit trails with immutable timestamps, and role-based access controls required for regulated environments.
Can multiple units be stacked without compromising cooling performance?

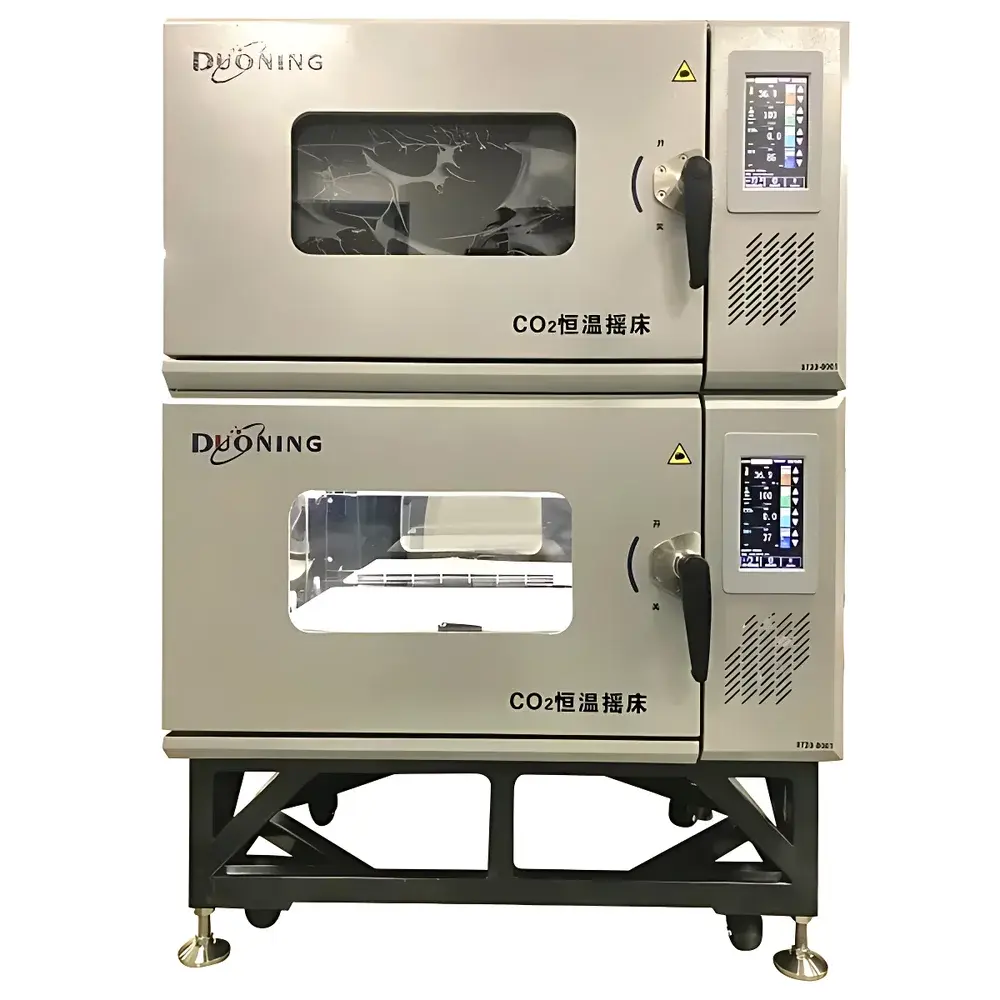

Yes—the modular stackable design incorporates dedicated vertical airflow channels and independent compressor throttling per unit, validated per UL 61010-1 thermal derating tests.
Is UV sterilization validated against ISO 15714:2019?
The 254 nm UV-C lamp delivers ≥10 mJ/cm² surface dose in 30 minutes, exceeding ISO 15714 requirements for non-porous stainless-steel surfaces.
What is the mean time between failures (MTBF) for the magnetic drive system?
Based on accelerated life testing under 100% load at 200 rpm continuous operation, MTBF exceeds 20,000 hours.
How is humidity controlled without introducing contamination risk?
Humidity is generated via Peltier-cooled water vapor injection with HEPA-filtered air supply; no standing water reservoirs are used, eliminating biofilm formation pathways.
