Eijkelkamp 05.02 Root Sampling Auger System

Overview

The Eijkelkamp 05.02 Root Sampling Auger System is a field-deployable, manually operated soil coring instrument engineered for high-fidelity retrieval of intact root–soil cores in ecological, agronomic, and environmental research applications. Designed around the principle of minimally disruptive vertical core extraction, the system employs a precision-machined, threaded auger assembly that preserves structural integrity of the soil matrix—including root architecture, pore continuity, and stratigraphic layering—through controlled penetration and mechanical ejection. Unlike trenching or excavation-based methods, the 05.02 operates with low surface footprint and negligible lateral soil displacement, making it suitable for use in confined urban plots, managed grasslands, forest understories, and long-term monitoring sites where site preservation is mandated by protocol or regulation. Its operational depth range—up to 2 meters via modular extension rods—enables profiling across rhizosphere, subsoil, and transitional horizons without requiring heavy machinery or permitting for ground disturbance.

Key Features

• Threaded coupling interface ensures rigid, torque-resistant connection between auger sections and extension rods, minimizing wobble and core deformation during insertion.
• Dual-drill configuration: Includes both an Edelman-type auger (10 cm diameter) for rapid pilot hole creation and soil loosening, and a Riverside-style auger for bottom leveling and core stabilization prior to extraction.
• Integrated core ejection mechanism: A hand-cranked push-rod system enables clean, non-compressive expulsion of the 8 cm × 15 cm intact soil core directly from the sampling cylinder—preserving root–soil adhesion and minimizing root breakage.

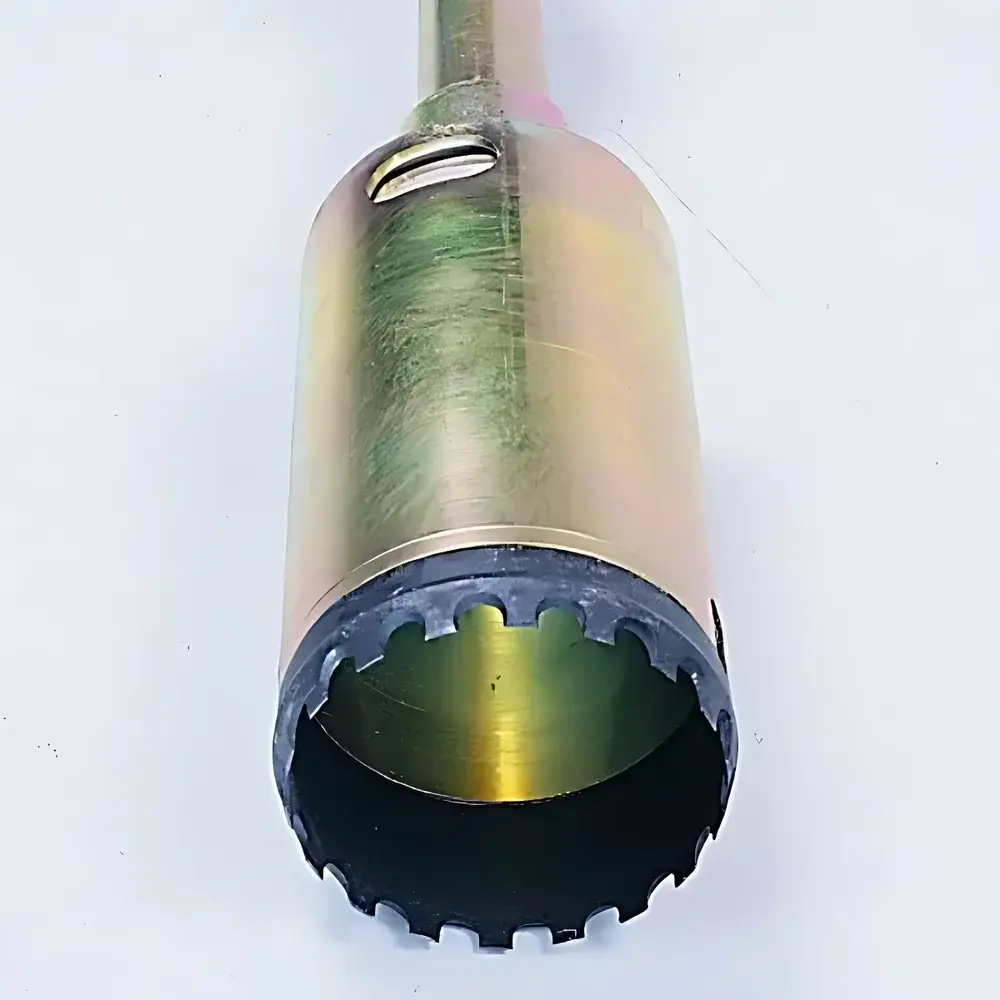

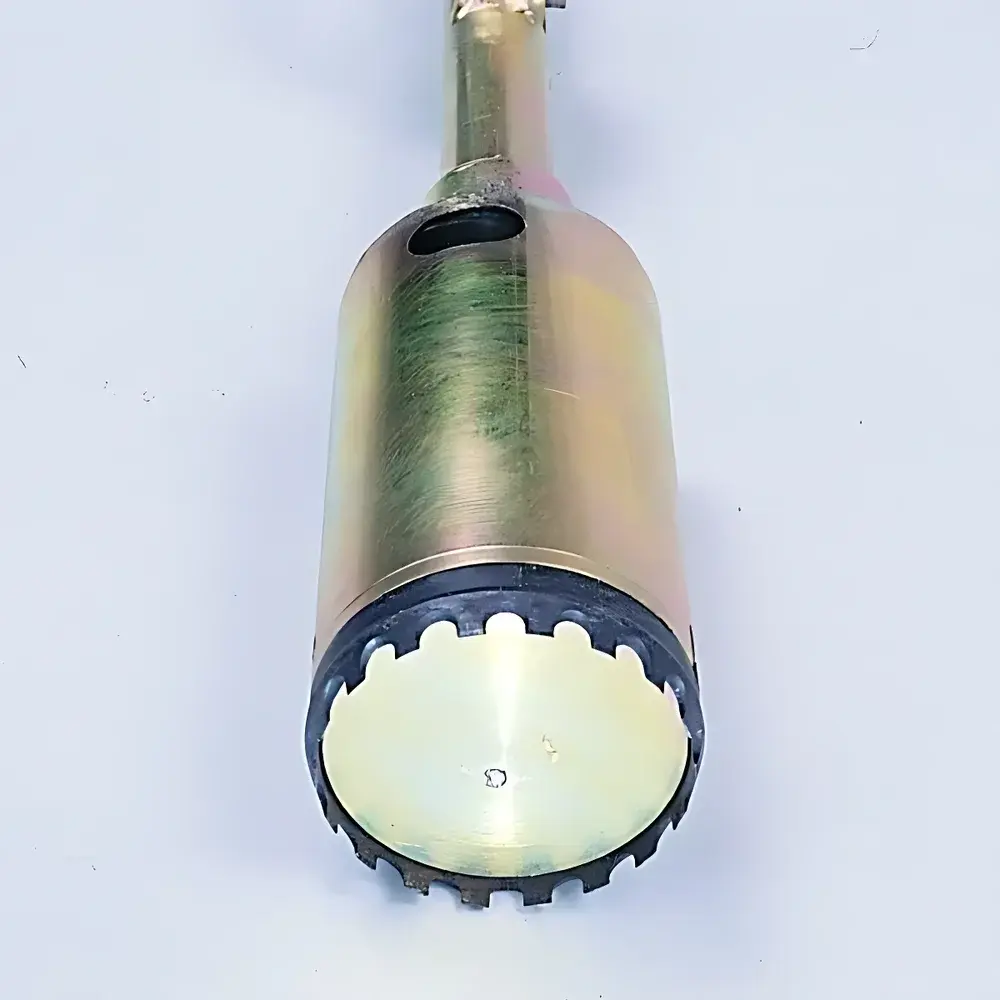

• Robust construction: High-grade stainless steel auger body with replaceable tungsten-carbide-tipped cutting crown ensures durability in compacted, gravel-rich, or clay-dominant soils.
• Low-impact deployment: Requires only localized surface clearance (e.g., removal of surface stones or turf plugs); no excavation, no backfilling, and minimal visual trace post-sampling.

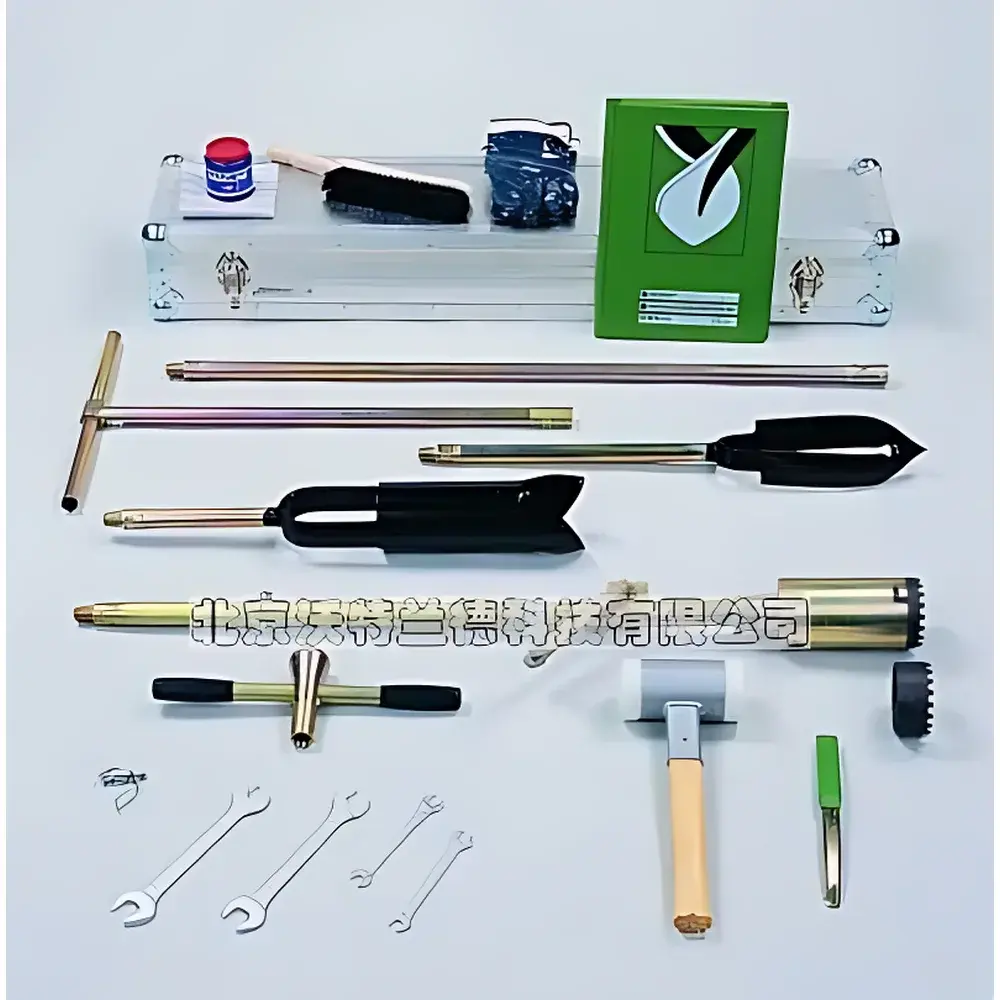

• Complete field-ready package: All components—including extension rods, fiberglass probe for preliminary horizon assessment, scraper for core trimming, maintenance tools, and a durable aluminum transit case—are included and pre-organized for rapid mobilization.

Sample Compatibility & Compliance

The 05.02 is validated for use across USDA texture classes—from sandy loams to heavy clays—and performs reliably in partially saturated, frozen, or seasonally dry conditions. Its 8 cm core diameter meets standard requirements for root length density (RLD) quantification per ISO 21268-2 (Soil quality — Determination of root distribution) and supports morphometric analysis using WinRHIZO or similar image-based root phenotyping platforms. The system complies with GLP-aligned field sampling practices, supporting traceable chain-of-custody documentation through its supplied field logbook. While not an analytical instrument per se, data derived from 05.02 cores are routinely accepted in peer-reviewed publications and regulatory submissions (e.g., EPA Region 10 soil health assessments, EU JRC land-use impact studies) when paired with standardized post-collection handling protocols.

Software & Data Management

The Eijkelkamp 05.02 is a hardware-only sampling platform with no embedded electronics or onboard software. However, its design integrates seamlessly into digital field workflows: GPS-tagged sampling locations can be logged via mobile GIS applications (e.g., ArcGIS Field Maps, QField); core metadata—including depth, soil texture notes, root visibility score, and timestamp—is recorded in the included field logbook and later migrated to LIMS or relational databases (e.g., Microsoft Access, PostgreSQL). For laboratories operating under 21 CFR Part 11 compliance, handwritten entries in the logbook may be supplemented with scanned signatures and audit-trail-enabled electronic forms to satisfy ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).

Applications

• Root system architecture (RSA) characterization in crop breeding trials, including maximum rooting depth, vertical root distribution, and lateral spread under drought or nutrient stress.
• Soil carbon stock estimation in conservation agriculture systems, where intact cores enable bulk density correction and SOC fractionation without compaction artifacts.
• Ecological restoration monitoring: Quantifying native vs. invasive root penetration in riparian buffers or post-mining reclamation sites.
• Urban soil health assessment: Sampling beneath pavement edges, green roofs, or tree pits where conventional coring tools lack access or generate excessive vibration.
• Validation of ground-penetrating radar (GPR) or electromagnetic induction (EMI) root mapping outputs through targeted, geo-referenced ground-truthing.

FAQ

What soil types is the 05.02 auger rated for?

It is validated for all major USDA textural classes—including gravelly sands, silty clays, and organic mucks—provided the cutting crown is maintained and extension rods are used progressively in dense strata.
Can the 8 cm core be subsampled for chemical or microbiological analysis?

Yes. The intact core allows for depth-specific sectioning (e.g., 0–5 cm, 5–10 cm) using the included scraper and stainless steel partitioning tools, maintaining sample integrity for ICP-MS, PLFA, or DNA extraction workflows.
Is the aluminum transport case waterproof or certified for air freight?

The case meets IATA Packing Instruction 950 for general scientific equipment; while not IP-rated, its gasketed lid and reinforced corners provide protection against dust and incidental moisture during field transit.
Does Eijkelkamp supply calibration or verification documentation for the 05.02?

As a mechanical sampling tool, it does not require metrological calibration. However, dimensional verification reports (core diameter tolerance ±0.3 mm, length tolerance ±2 mm) are available upon request for QA/QC audits.
Are replacement cutting crowns and spare O-rings available as consumables?

Yes. Eijkelkamp part numbers EC-0502-CROWN and EC-0502-O-RING are stocked globally through authorized distributors and supported by a 5-year spare parts guarantee.
