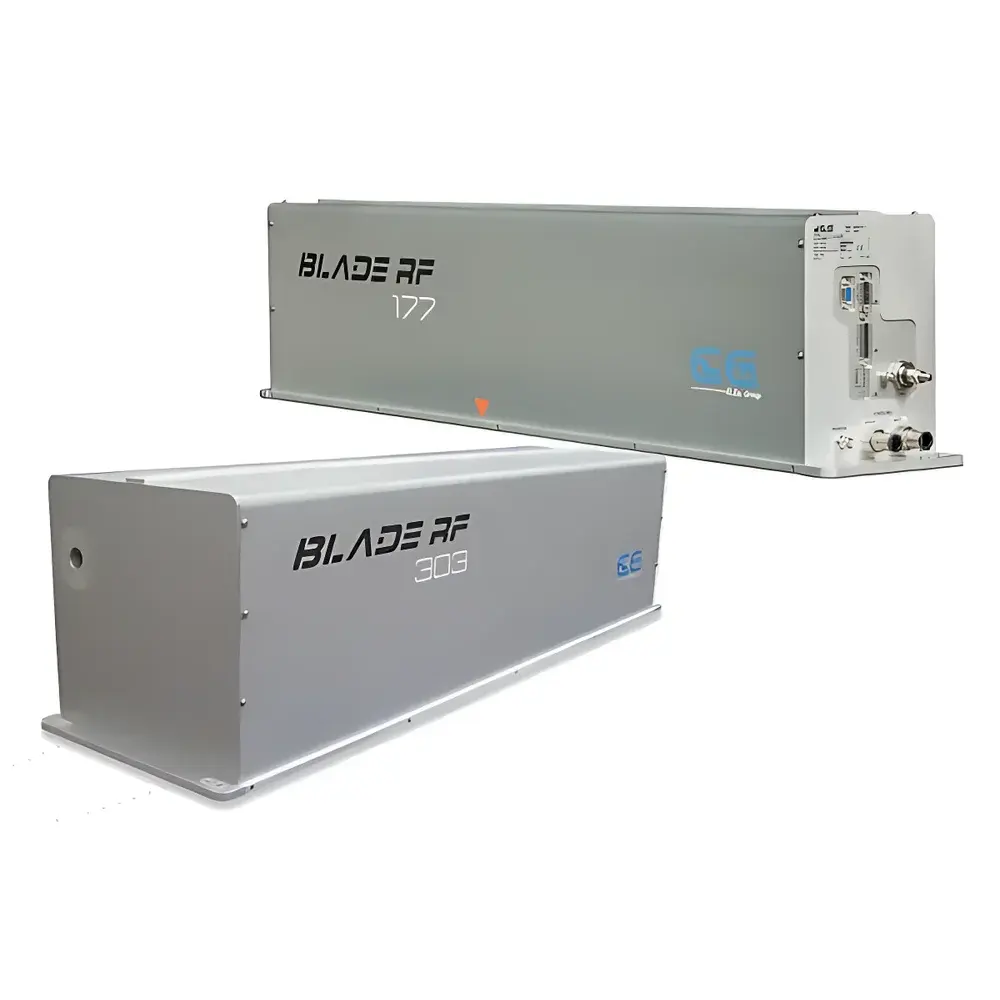

El.En. BLADE RF177G 9.3 µm Sealed RF-Excited CO₂ Laser Source

Overview

The El.En. BLADE RF177G is a high-reliability, sealed-off RF-excited carbon dioxide laser source engineered for industrial and precision manufacturing applications requiring spectral selectivity at 9.3 µm. Unlike conventional 10.6 µm CO₂ lasers, the 9.3 µm emission line corresponds to a stronger absorption peak in polymeric materials—including PET, PI (polyimide), PC (polycarbonate), and certain fluoropolymers—enabling cleaner ablation, reduced thermal damage zones, and improved edge quality during micromachining and thin-film processing. This wavelength-specific advantage stems from fundamental vibrational-rotational transitions in the CO₂ molecule under RF discharge excitation within a hermetically sealed resonator cavity. The BLADE RF177G delivers continuous-wave (CW) output at 150 W with exceptional long-term power stability (<±1.5% over 8 h), achieved through proprietary gas mixture formulation, thermally compensated optics mounting, and active RF impedance matching. Its fully integrated RF power supply eliminates external matching networks, reducing footprint and electromagnetic interference susceptibility—critical for integration into automated production lines and cleanroom-compatible laser workstations.

Key Features

• Integrated RF power supply with digital control interface (RS-485 / analog 0–10 V) for precise power modulation and remote operation
• Hermetically sealed CO₂ gas discharge tube with lifetime-rated gas fill, eliminating routine gas replenishment and ensuring >20,000 hours MTBF
• Optimized thermal management via regulated water cooling (18–25 °C inlet, ΔT < 3 °C), maintaining resonator alignment and beam pointing stability
• TEM₀₀-dominant beam profile (M² < 1.2) with low divergence (<1.5 mrad) and consistent polarization—ideal for focusing through F-theta lenses and galvanometric scanners
• Compact OEM form factor (L × W × H ≈ 620 × 180 × 140 mm) with standardized mechanical interfaces (ISO-KF flanges, M6 mounting holes)
• Bare-platform configuration available for direct integration into custom optical benches or multi-axis laser processing systems
• Compliant with IEC 60825-1:2014 Class 4 laser safety requirements; includes interlock-ready enable circuitry and shutter control input

Sample Compatibility & Compliance

The 9.3 µm emission wavelength exhibits strong absorption coefficients (>10³ cm⁻¹) in organic polymers, elastomers, and composite laminates—making the BLADE RF177G particularly effective for cutting, drilling, and surface structuring of flexible printed circuits (FPCs), LCD polarizer films, medical tubing, and automotive interior trim. It demonstrates minimal interaction with metals and ceramics, enabling selective processing in hybrid material stacks without substrate damage. All units are manufactured under ISO 9001-certified processes and conform to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD). The laser system supports traceable calibration documentation per ISO/IEC 17025 requirements and integrates with factory audit protocols aligned with ISO 13485 (medical device manufacturing) and IATF 16949 (automotive supply chain).

Software & Data Management

The BLADE RF177G supports deterministic analog and digital command protocols for seamless integration into PLC-controlled environments (e.g., Siemens S7, Beckhoff TwinCAT) and motion controller ecosystems (Galil, Aerotech). Optional El.En. LaserLink™ firmware provides real-time monitoring of RF forward/reflected power, coolant temperature, cavity voltage, and internal photodiode feedback—data logged with timestamped metadata for GLP/GMP-compliant process validation. When deployed with third-party MES platforms, operational parameters (power setpoint, runtime, interlock status) can be exported via OPC UA or Modbus TCP for centralized analytics and SPC charting. Audit trail functionality satisfies FDA 21 CFR Part 11 requirements when paired with validated electronic signature modules.

Applications

• Precision cutting of polyimide flex circuits and coverlay films in electronics manufacturing
• High-speed scribing and trenching of OLED encapsulation layers and touch sensor films
• Non-contact cleaning and micro-texturing of marble, granite, and engineered stone surfaces
• Drilling of polymer-based fuel injector nozzles and brake hose components in Tier-1 automotive production
• Contour cutting of biodegradable packaging films (PLA, PHA) with sub-100 µm kerf width
• Surface activation and selective ablation of medical-grade silicone tubing prior to bonding

FAQ

Is the 9.3 µm output tunable across adjacent CO₂ lines?
No—the BLADE RF177G is optimized for fixed-wavelength operation at 9.3 µm using a grating-stabilized resonator; it does not support line selection or broadband tuning.
What is the recommended minimum cooling water flow rate and pressure?
A minimum flow rate of 2.5 L/min at 2–3 bar pressure is required; inlet temperature must be stabilized between 18–25 °C with ≤±0.5 °C fluctuation.
Can this laser be operated in pulsed mode?
The RF177G is specified for CW operation only; for pulsed capability up to 1100 W peak, refer to the RF303 model in the same BLADE series.
Does the bare-platform version include beam delivery optics?
No—OEM versions ship without output collimator or protective window; users must specify beam conditioning requirements separately.
What documentation is provided for regulatory compliance in EU and US markets?
CE Declaration of Conformity, RoHS certificate, REACH SVHC statement, and full EC-type examination report per EN 60825-1 are supplied with each unit.
