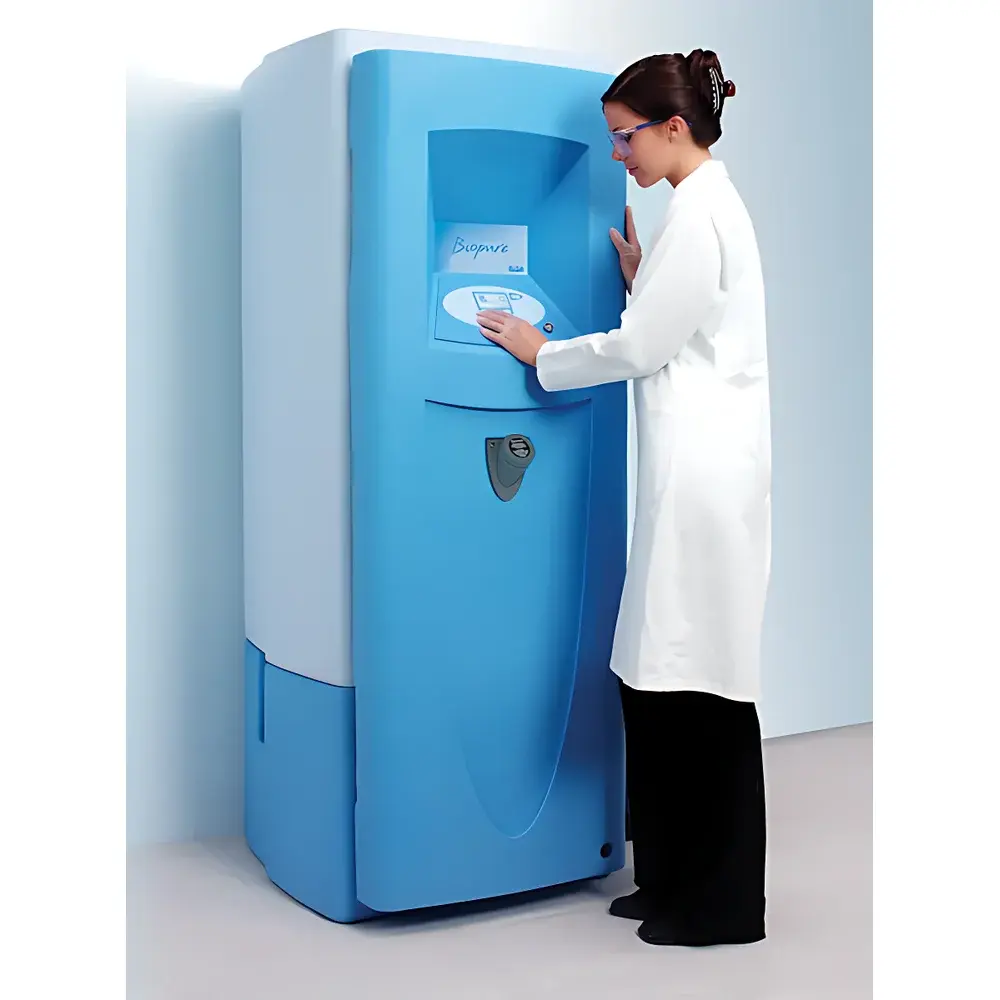

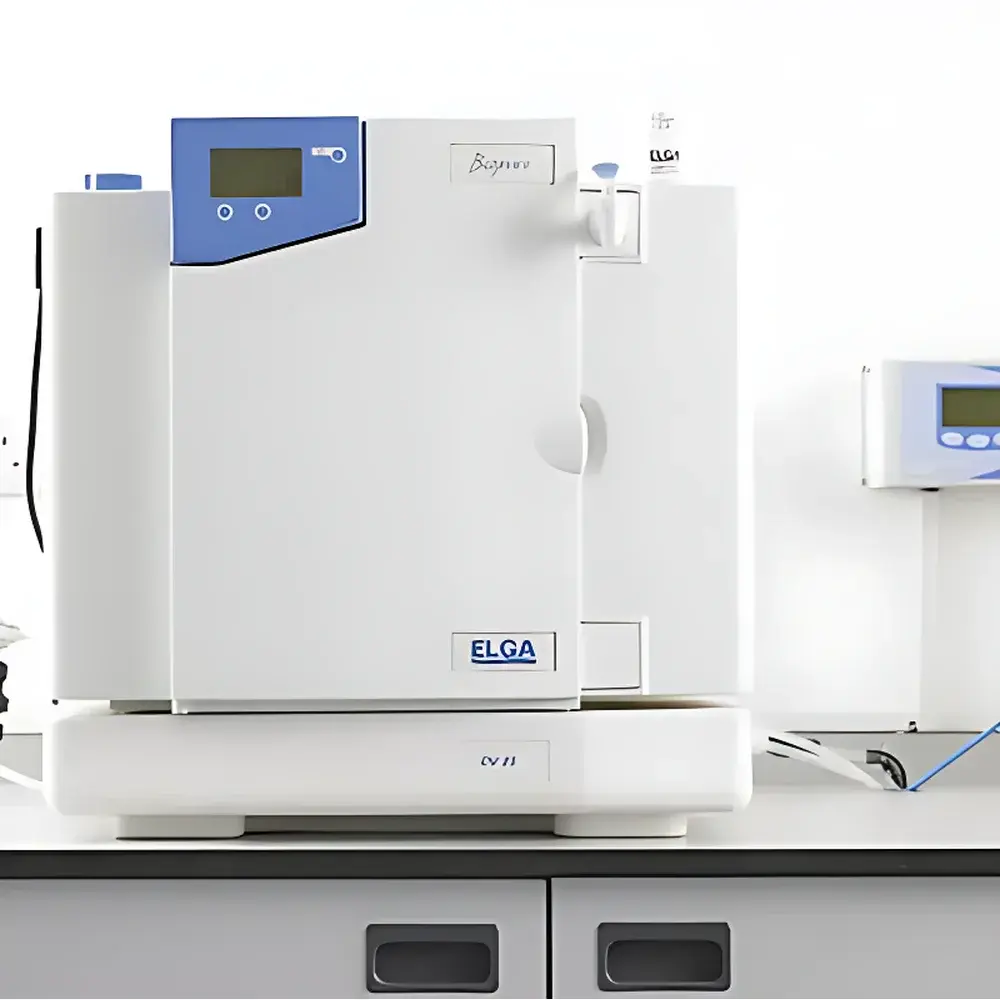

ELGA BIOPURE Series Medical-Grade Ultra Pure Water Systems

Overview

The ELGA BIOPURE Series represents a purpose-engineered line of medical-grade ultra pure water systems designed explicitly for compliance with stringent healthcare infrastructure and sterilization process requirements. These systems employ a multi-stage purification architecture—integrating pretreatment, reverse osmosis (RO), electrodeionization (EDI), dual-wavelength UV photo-oxidation (185/254 nm), ultrafiltration (UF), and final point-of-use polishing—to consistently deliver water meeting or exceeding the specifications defined in prEN 15883 (washer-disinfectors), HTM 2030 (UK NHS decontamination standards), NHS MES C32 (Medical Equipment Services), and MDA/HIS guidance for endoscope reprocessing and steam sterilization support. Unlike general laboratory water systems, the BIOPURE Series is validated for continuous, uninterrupted operation in clinical environments where water quality directly impacts patient safety, device bioburden control, and regulatory audit readiness.

Key Features

• Modular scalability across ten standard flow-rate configurations (7 to 5000 L/hr), enabling precise matching to end-use demand—from benchtop endoscope washer-fill cycles to centralized supply for multiple automated thermal disinfectors and Class B autoclaves.
• Integrated 254 nm UV irradiation combined with optional 185 nm photolysis ensures continuous TOC reduction and microbial inactivation downstream of RO/EDI, minimizing biofilm nucleation in distribution loops.
• Automated sanitization protocols—including thermally validated hot-water (≥80 °C) or ozone-based cycles—execute without operator intervention and generate timestamped, GLP-compliant log records.
• Hygienic design compliant with ASME BPE-2023 surface finish (Ra ≤ 0.4 µm), sanitary tri-clamp connections, and zero-dead-leg piping architecture to prevent microbial stagnation.
• Real-time monitoring of critical parameters: conductivity, TOC, UV transmittance, pressure differentials, and flow rate—with configurable alarms and event-triggered data capture aligned with FDA 21 CFR Part 11 audit trail requirements.

Sample Compatibility & Compliance

The BIOPURE Series delivers water suitable for direct integration into ISO 15883-compliant washer-disinfectors, EN 285-compliant steam sterilizers, and AAMI ST98 endoscope reprocessing systems. Output water conforms to pharmacopoeial limits for purified water (USP , EP 2.2.44, JP XVIII) and supports WFI-equivalent applications when paired with optional vapor-compression distillation backup. All models undergo factory validation per IQ/OQ protocols and include documentation supporting GMP-relevant risk assessments (ICH Q9), including Failure Mode and Effects Analysis (FMEA) for critical process steps. System installation follows ELGA’s site qualification guidelines, requiring feed water analysis, hygienic loop commissioning, and post-installation microbial challenge testing per ISO 14644-1 Class 5 cleanroom sampling methodology.

Software & Data Management

The embedded control system features a CE-marked, IEC 62443-3-3 Level 1 secure HMI with password-protected access tiers (operator, technician, administrator). All operational events—including sanitization start/end timestamps, alarm acknowledgements, calibration entries, and parameter deviations—are stored locally for ≥12 months with SHA-256 hashing and immutable digital signatures. Optional Ethernet/IP or Modbus TCP interfaces enable integration into hospital-wide Building Management Systems (BMS) or centralized Laboratory Information Management Systems (LIMS). Audit trails meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and are exportable in CSV/PDF formats for regulatory submission.

Applications

• Primary feedwater source for automated endoscope reprocessors (AERs), eliminating manual fill errors and ensuring consistent rinse water purity per AAMI ST91.
• Supply to Class B and S steam sterilizers requiring non-pyrogenic, low-conductivity water for jacket and chamber humidification.
• Final rinse water in ISO 13485-certified medical device manufacturing cleanrooms where residual ions or organics may compromise coating adhesion or electrochemical sensor calibration.
• Support utility for hemodialysis water treatment pre-treatment circuits and pharmacy compounding suites requiring USP Purified Water grade input.

FAQ

What regulatory standards does the BIOPURE Series validate against?

The system is designed and verified to support compliance with prEN 15883-4, HTM 2030 Annex D, NHS MES C32 Section 4.2, and ISO 14644-1 for distribution loop air classification.
Can the BIOPURE be integrated into an existing hospital water network?

Yes—provided feed water meets ≤500 ppm TDS and is pre-conditioned per ELGA’s inlet specification sheet; integration requires dedicated stainless-steel distribution manifolds with slope-controlled drainage and periodic loop flushing per ISO 20417.
Is remote diagnostics supported?

Standard Ethernet connectivity enables secure remote firmware updates and diagnostic telemetry via ELGA’s cloud-based AssetLink platform—subject to local IT security policy approval and VLAN segmentation.
How often is preventive maintenance required?

RO membrane replacement every 12–24 months (dependent on feed quality), UV lamp replacement annually, and quarterly verification of TOC/conductivity sensors using NIST-traceable standards.
Does the system provide electronic records for FDA 21 CFR Part 11 compliance?

Yes—full electronic audit trail with user authentication, time-stamped actions, and tamper-evident storage is enabled by default and configurable per institutional SOPs.
