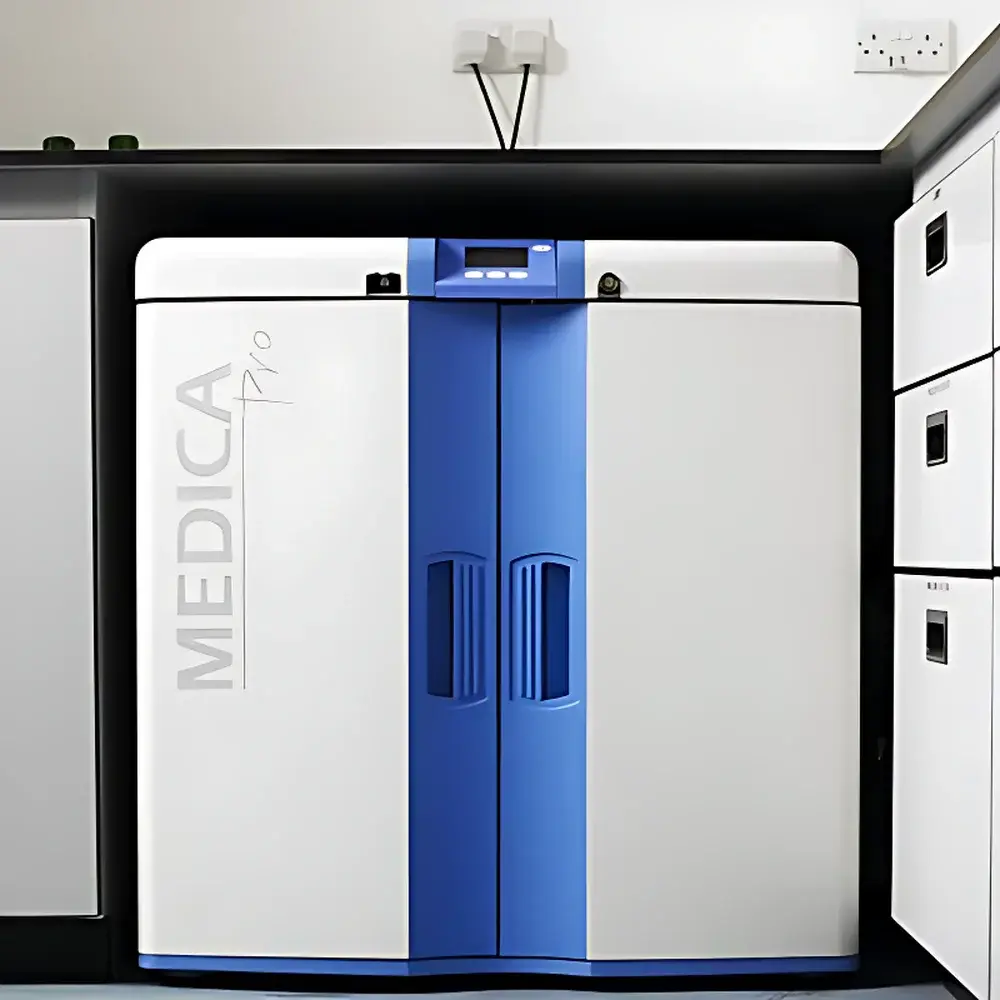

ELGA MEDICA-Pro Ultra Pure Water System

Overview

The ELGA MEDICA-Pro Ultra Pure Water System is an engineered solution designed specifically for clinical diagnostics laboratories requiring continuous, reliable supply of Clinical Laboratory Reagent Water (CLRW) compliant with CLSI C3-A4 standards. It operates on a multi-stage purification architecture integrating high-recovery reverse osmosis (RO), dual-wavelength ultraviolet oxidation (185 nm and 254 nm), electro-deionization (EDI)-enhanced polishing, and closed-loop recirculation to maintain microbiological integrity. Unlike general-purpose laboratory water systems, the MEDICA-Pro is purpose-built for integration into centralized water distribution networks serving one or multiple clinical chemistry analyzers—including automated immunoassay platforms—where consistent flow delivery (up to 4 L/min), low endotoxin burden, and ultra-low organic contamination are non-negotiable for assay accuracy and regulatory compliance.

Key Features

• CLRW-grade output certified to CLSI C3-A4 specifications, including resistivity >10 MΩ·cm at 25 °C, TOC <30 ppb, endotoxin <0.001 EU/mL, and microbial count <1 CFU/mL
• Modular RO capacity options (30 / 60 / 120 L/hr) allow scalable deployment aligned with instrument throughput and lab expansion plans
• Protek™ pre-treatment cartridge provides integrated removal of chlorine, organics, and particulates—eliminating need for external sediment or carbon filters
• Medpure™ high-capacity ion exchange cartridge extends service life up to 12 months under typical clinical load, reducing operational downtime and consumable cost per liter
• E-Column™ technology (standard on MEDICA Pro-RE configuration) actively reduces dissolved CO₂, minimizing carbonate-induced pH drift and conductivity instability in downstream reagent preparation
• Recirculating distribution loop with real-time UV irradiation (254 nm) and periodic thermal or chemical sanitization ensures sustained microbial control without manual intervention

Sample Compatibility & Compliance

The MEDICA-Pro delivers water suitable for critical applications where analytical interference must be minimized—including photometric, enzymatic, and immunochemical assays performed on Roche Cobas®, Siemens Atellica®, Beckman Coulter AU/DxH®, and Ortho Clinical Diagnostics Vitros® platforms. Its performance aligns with international quality frameworks: ISO 15195:2018 (requirements for reference measurement laboratories), CLSI EP21-A (evaluation of water purity for clinical testing), and supports adherence to CAP (College of American Pathologists) and JCI (Joint Commission International) laboratory accreditation standards. While not classified as a medical device under FDA 21 CFR Part 820, the system’s design incorporates audit-ready features such as event logging, user-access controls, and maintenance history tracking compatible with GLP/GMP documentation workflows.

Software & Data Management

The MEDICA-Pro integrates a built-in touchscreen interface with configurable alarm thresholds, real-time water quality monitoring (resistivity, TOC, UV absorbance), and automated calibration reminders. All system events—including cartridge replacement prompts, UV lamp usage hours, sanitization cycles, and pressure differentials across RO membranes—are timestamped and stored locally for ≥12 months. Optional Ethernet or RS-485 connectivity enables integration into facility-wide Building Management Systems (BMS) or Laboratory Information Systems (LIS) via Modbus TCP or ASCII protocol. Data export supports CSV format for trending analysis; full audit trail functionality satisfies requirements for traceability under ISO/IEC 17025 and FDA 21 CFR Part 11 when paired with validated electronic signature modules.

Applications

• Primary water source for clinical chemistry analyzers requiring CLRW-grade input (e.g., reagent dilution, cuvette rinsing, wash buffer preparation)
• Supply to immunoassay platforms where endotoxin-sensitive detection chemistries (e.g., alkaline phosphatase conjugates) demand sub-EU/mL contamination limits
• Support of QC/QA programs requiring documented water purity consistency across shifts and operators
• Enabling traceable water sourcing for ISO 15189-accredited medical laboratories performing quantitative serology or therapeutic drug monitoring
• Integration into hospital central utility plants where redundancy, remote monitoring, and predictive maintenance are essential for uninterrupted diagnostic operations

FAQ

What CLSI standard does the MEDICA-Pro meet for clinical water?

The system produces water conforming to CLSI C3-A4 (Clinical Laboratory Reagent Water), which defines maximum allowable levels for conductivity, TOC, bacteria, endotoxin, and particles—specifically intended for use in clinical analytical instrumentation.
Can the MEDICA-Pro supply multiple analyzers simultaneously?

Yes—it is engineered for networked distribution with a maximum flow rate of 4 L/min and optional loop configurations supporting up to eight concurrent point-of-use connections without compromising water quality.
How often must consumables be replaced?

Protek™ pre-filters typically last 6–12 months depending on feed water quality; Medpure™ polishing cartridges operate for 9–12 months under average clinical load (≈200 L/day); UV lamps are rated for 12,000 hours and monitored continuously.
Is TOC monitoring continuous or periodic?

TOC is measured continuously using integrated UV oxidation + conductivity detection, with real-time values displayed on the control interface and logged at user-defined intervals (default: every 15 minutes).
Does the system support remote diagnostics or service access?

Remote technical support is enabled via secure TLS-encrypted connection upon customer authorization; field service engineers can perform firmware updates, parameter validation, and diagnostic trace capture without physical presence.
