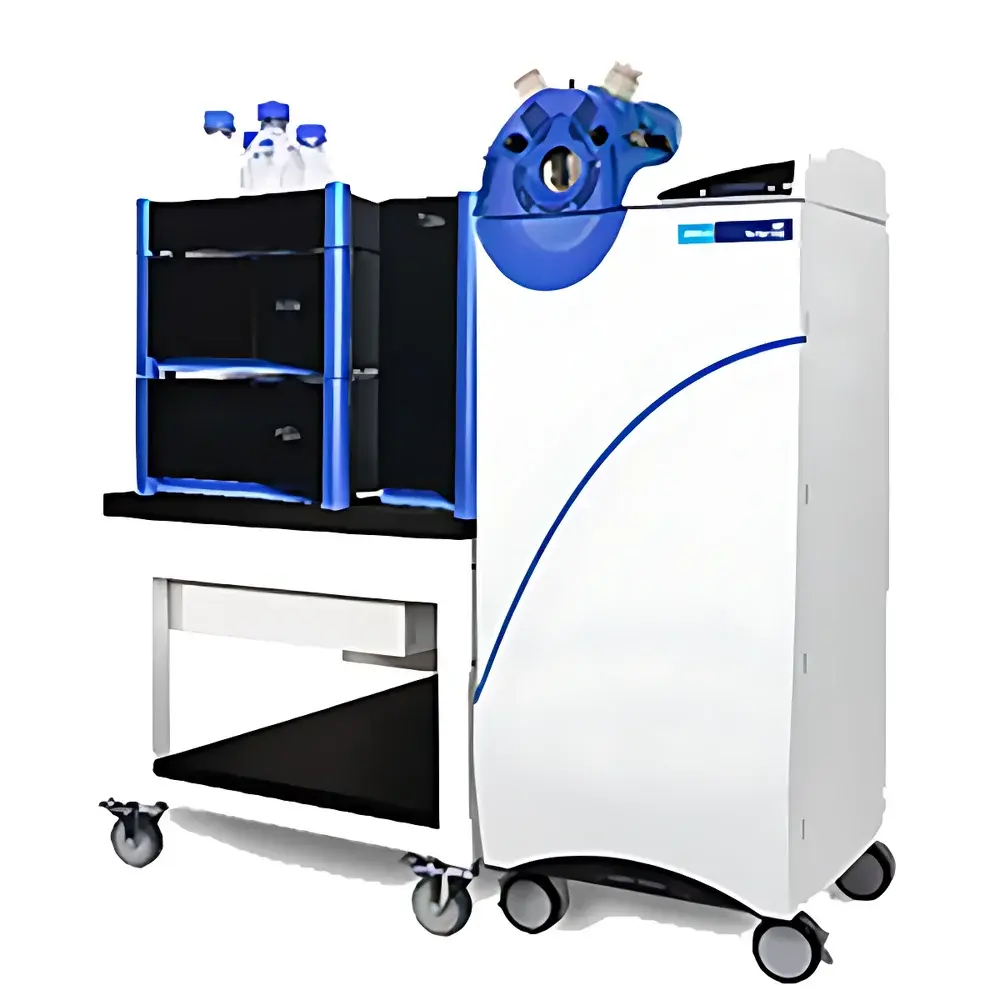

Elite MS2 Vertical 9100 Triple Quadrupole Liquid Chromatography Mass Spectrometer

Overview

The Elite MS2 Vertical 9100 is a high-performance triple quadrupole liquid chromatography mass spectrometer (LC-MS/MS) engineered for robust quantitative and qualitative analysis in regulated and research laboratory environments. Built upon a vertically oriented ion optical architecture, the system integrates a dual-ion-source interface—supporting electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) with tool-free, vacuum-intact source exchange—enabling rapid method adaptation across diverse analyte classes. Its core detection principle relies on tandem mass spectrometry via three quadrupole mass filters (Q1 → q2 → Q3), where Q1 selects precursor ions, q2 acts as a collision cell for controlled fragmentation (CID), and Q3 analyzes product ions in selected reaction monitoring (SRM) or multiple reaction monitoring (MRM) modes. This architecture delivers exceptional specificity, dynamic range (>5 orders), and quantitative reproducibility essential for trace-level analysis in complex matrices.

Key Features

• Vertically aligned ion path design minimizes ion transmission losses and improves duty cycle efficiency, particularly for low-abundance analytes.
• Dual-source capability enables seamless switching between ESI and APCI without breaking vacuum—reducing instrument downtime and preserving calibration stability.
• Thermally assisted desolvation (TAD) interface enhances desolvation efficiency at elevated temperatures while maintaining labile compound integrity, contributing to improved signal-to-noise ratio and inter-run precision (RSD < 8% over 24 h).
• High-pressure LC compatibility up to 130 MPa supports ultra-high-resolution separations using sub-2-µm particles and narrow-bore columns, reducing matrix effects and improving peak capacity.
• Modular hardware architecture allows field-upgradable components including collision gas control, detector gain calibration, and RF voltage stabilization modules.
• Integrated vacuum system with dual-stage turbomolecular pumps ensures stable operating pressure (<5 × 10⁻⁶ mbar in analyzer region) across extended acquisition periods.

Sample Compatibility & Compliance

The MS2 Vertical 9100 accommodates a broad spectrum of sample types—from polar small molecules (e.g., pharmaceuticals, pesticides, mycotoxins) to moderately non-polar compounds (e.g., lipids, steroids)—without requiring derivatization. It meets key regulatory requirements for GLP-compliant laboratories, supporting audit trails, electronic signatures, and user-access controls per FDA 21 CFR Part 11 when deployed with validated software configurations. Method transfer compliance aligns with ICH Q2(R2) guidelines, enabling direct migration of SRM transitions and collision energy parameters between instruments of the same model family without re-optimization. Routine operation adheres to ISO/IEC 17025 documentation standards for accredited testing laboratories.

Software & Data Management

Controlled by EliteChrom LC-MS Workstation v3.2+, the system provides an integrated environment for method development, real-time data acquisition, peak integration, quantitation (internal standard or external calibration), and report generation. The software features automated MRM optimization workflows, spectral library matching (NIST/EPA/WHO), and batch processing with customizable QC flagging (e.g., retention time drift > 0.1 min, response RSD > 15%). Raw data files comply with ANDI/NetCDF format for third-party processing (e.g., Skyline, SimLynx). All audit logs—including parameter changes, sequence modifications, and user logins—are timestamped, immutable, and exportable for regulatory review.

Applications

The MS2 Vertical 9100 serves as a primary analytical platform in food safety (multi-residue pesticide screening per EU SANTE/11312/2021, aflatoxin B1 detection at pg/g levels), clinical toxicology (therapeutic drug monitoring of immunosuppressants, antiepileptics), environmental analysis (PFAS, endocrine disruptors in wastewater), and forensic toxicology (illicit drug metabolite confirmation per SWGTOX standards). Its sensitivity and ruggedness make it suitable for routine QC in pharmaceutical manufacturing (residual solvent analysis per ICH Q3C) and biopharmaceutical characterization (peptide mapping, glycan profiling).

FAQ

Is the MS2 Vertical 9100 compliant with 21 CFR Part 11 for electronic records?
Yes—when configured with EliteChrom LC-MS Workstation v3.2+ in validated mode, including role-based access, electronic signatures, and full audit trail functionality.
Can I use both ESI and APCI sources simultaneously during one run?
No—dual-source support is sequential; however, source switching takes under 90 seconds with no vacuum break required.
What is the typical mass accuracy for calibration verification?
With daily lock-mass calibration using infused sodium formate cluster ions, mass accuracy remains within ±0.2 Da across the m/z 5–1500 range.
Does the system support scheduled MRM acquisition?
Yes—retention time-based MRM scheduling reduces dwell time overhead and improves multi-analyte quantitation precision without sacrificing sensitivity.
Is remote monitoring and diagnostics available?
Standard Ethernet/IP connectivity enables secure remote access via TLS-encrypted VNC for preventive maintenance alerts and real-time status checks.
