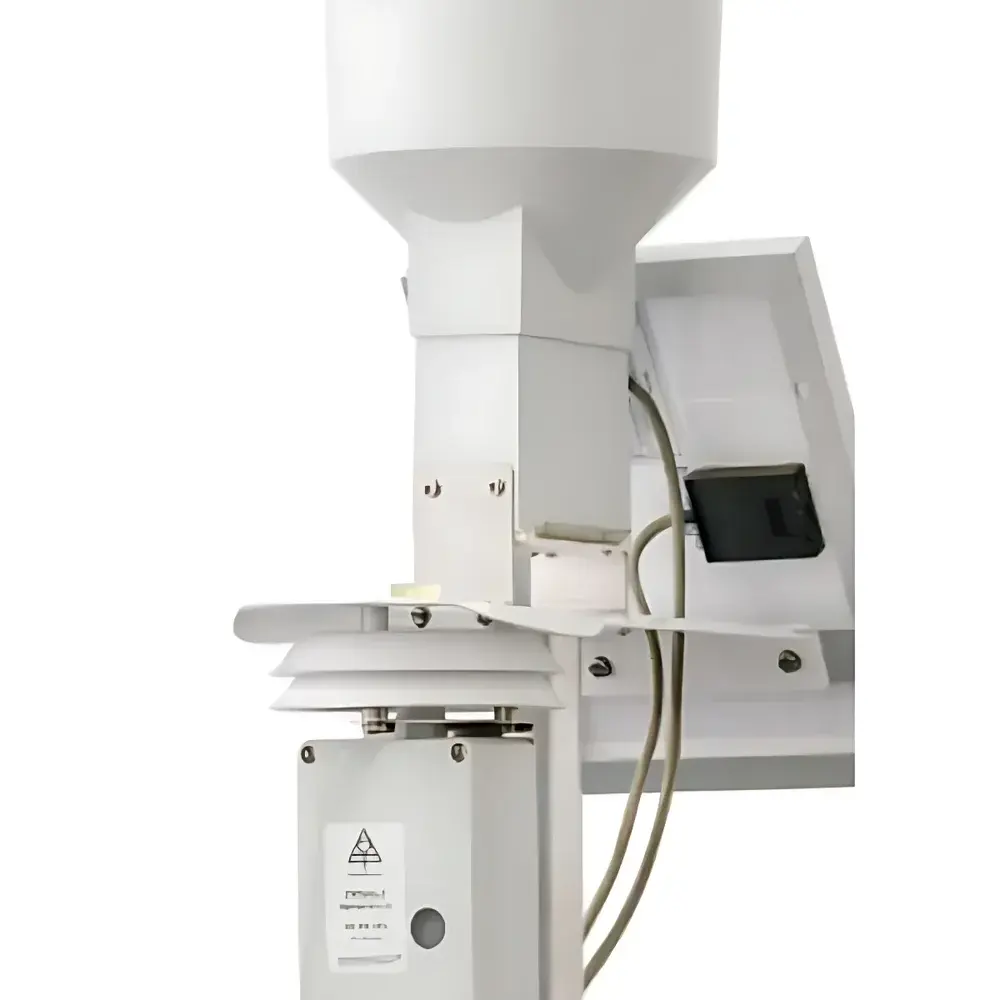

EMScloud RainSet Precipitation Monitoring System by EMS

Overview

The EMScloud RainSet Precipitation Monitoring System is a fully autonomous, solar-ready, IoT-enabled meteorological sensor platform engineered for long-term, unattended rainfall quantification in remote or distributed environmental monitoring networks. Built upon a precision tipping-bucket mechanism with a calibrated collection area of 200 cm², the system captures discrete precipitation events with 0.2 mm resolution—meeting the minimum performance criteria defined in WMO Guide to Meteorological Instruments and Observing Methods (Chapter 8) for Class B rain gauges. Unlike optical or weighing-based alternatives, the mechanical tipping-bucket design ensures immunity to airborne particulates, insect intrusion, and surface contamination—critical for maintaining data integrity across seasons and geographies. Integrated dual-parameter environmental sensing (air temperature and relative humidity) provides contextual meteorological metadata essential for evapotranspiration modeling, hydrological budgeting, and climate trend analysis. All measurements are timestamped, stored locally in non-volatile memory, and transmitted securely via LTE-M or NB-IoT connectivity using an embedded o-SIM—eliminating manual SIM management and enabling global deployment without carrier-specific hardware variants.

Key Features

• Precision tipping-bucket transducer with 0.2 mm resolution and 200 cm² orifice area, compliant with ISO 9060:2018 spectral classification for secondary standard rain gauges
• Integrated Pt1000-grade temperature sensor (±0.15 °C accuracy) and capacitive RH sensor (±2 %RH accuracy) co-located within the same radiation-shielded housing
• Ultra-low-power architecture supporting up to 24 months of continuous operation on a single 3.6 V / 3.6 Ah SAFT LS17500 lithium thionyl chloride battery
• Adaptive transmission logic: default 60-minute LTE upload interval, automatically switching to 10-minute intervals during active precipitation events to capture temporal dynamics
• IP63-rated enclosure with UV-stabilized polycarbonate housing and stainless-steel funnel assembly, validated for sustained outdoor exposure from −40 °C to +60 °C
• Configurable data logging intervals: measurement at 5 min, local storage at 30 min, ensuring redundancy and auditability per GLP-aligned field data practices

Sample Compatibility & Compliance

The EMScloud RainSet is designed for open-air deployment in terrestrial ecosystems, agricultural fields, urban drainage catchments, and alpine or arctic research stations. Its mechanical rain gauge design eliminates sensitivity to dust deposition, pollen accumulation, or nocturnal insect activity—common sources of false positives in optical sensors. The device complies with key international observational standards, including WMO No. 8 guidelines for rain gauge siting and exposure, and supports traceable calibration protocols aligned with ISO/IEC 17025 requirements when deployed within accredited monitoring programs. While not certified for regulatory submission under US EPA 40 CFR Part 53 or EU Directive 2008/50/EC, its metrological performance is suitable for Tier-2 environmental reporting, watershed modeling inputs, and academic research datasets requiring high temporal fidelity and long-term stability.

Software & Data Management

Data from the EMScloud RainSet is ingested into the vendor-agnostic EMScloud platform—a secure, TLS 1.3-encrypted SaaS environment accessible via web browser or RESTful API. Users configure alert thresholds (e.g., >10 mm/h intensity), generate time-series plots with customizable aggregation (hourly totals, daily maxima, cumulative monthly sums), and export CSV/NetCDF files with full metadata headers (sensor ID, firmware version, GPS coordinates, UTC timestamps). Audit trails record all configuration changes, firmware updates, and data retrieval events—supporting 21 CFR Part 11 compliance when paired with organizational electronic signature policies. Raw sensor logs retain native resolution and are preserved for ≥12 months; compressed summaries are retained indefinitely. Third-party integration with GIS platforms (ArcGIS Online, QGIS) and SCADA systems is supported via MQTT and JSON over HTTPS.

Applications

• Real-time flood early-warning systems in low-lying river basins and urban stormwater infrastructure
• Calibration and validation of satellite-derived precipitation products (e.g., GPM IMERG, CHIRPS)
• Long-term climate station networks contributing to ECA&D and GHCN-D databases
• Irrigation scheduling support in precision agriculture, particularly in water-scarce regions
• Soil moisture–precipitation coupling studies when extended with optional soil dielectric sensors (TDR/FDR)
• Post-wildfire erosion risk assessment through high-resolution rainfall intensity-duration-frequency (IDF) analysis

FAQ

What communication protocols does the EMScloud RainSet support?
LTE-M and NB-IoT over licensed cellular spectrum, utilizing an embedded eUICC-compatible o-SIM. No external modem or SIM tray is required.
Can the device operate without cellular coverage?
Yes—it continues logging internally at user-defined intervals (5-min measurement, 30-min storage) and buffers up to 30 days of data for transmission once connectivity resumes.
Is the tipping-bucket mechanism heated for winter operation?
No. The design relies on passive thermal mass and low-friction PTFE-coated bucket pivots to minimize freezing adhesion. For sub-zero environments with frequent sleet or freezing rain, supplemental heating is not integrated but can be added externally per site-specific risk assessment.
How is time synchronization maintained?
Via network time protocol (NTP) over LTE during each transmission cycle, ensuring UTC-aligned timestamps traceable to national time standards (e.g., PTB, NIST).
Does the system support remote firmware updates?
Yes—over-the-air (OTA) updates are delivered securely through the EMScloud platform and require explicit user authorization prior to installation.
