English Product Name
| Brand | Niklas |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | NIKKI |
| Pricing | Upon Request |
| Instrument Type | Seed Coating and Pelletizing System |
Overview

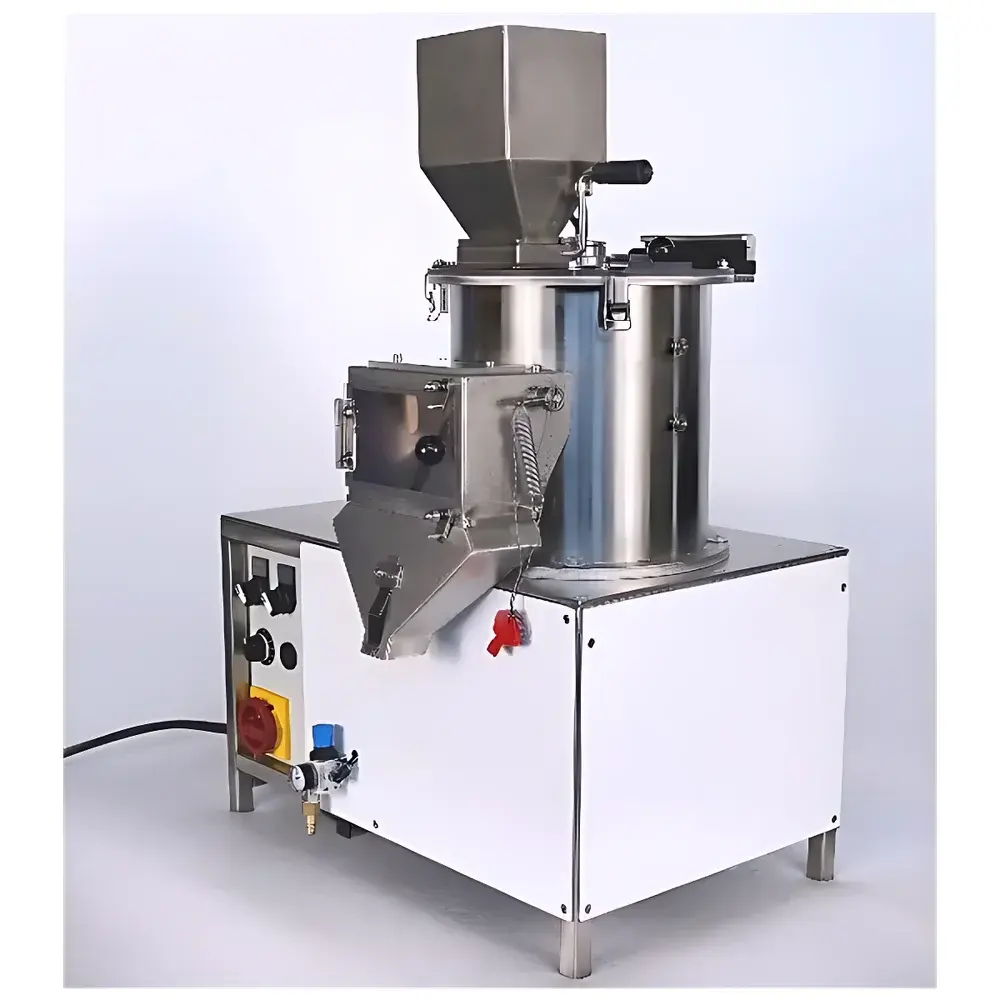

The Niklas NIKKI Laboratory Seed Coater & Pelletizer is a precision-engineered, batch-type seed treatment system designed for research-grade seed coating, film coating, and pelletization under controlled laboratory conditions. It operates on the rotor-stator principle—where a rotating mixing cone (rotor) interacts with stationary baffles (stator) to generate controlled tumbling, lift, and cascading motion within a sealed chamber. This hydrodynamic flow pattern ensures uniform exposure of each seed particle to liquid or powder actives during treatment. Unlike continuous industrial coaters, the NIKKI is optimized for reproducible small-batch processing (50–2000 mL per cycle), making it ideal for breeding programs, formulation development, regulatory efficacy trials, and GLP-compliant seed quality studies. Its design conforms to fundamental principles of particulate fluidization and surface wetting dynamics, enabling precise control over coating uniformity, active ingredient distribution, and physical integrity of coated or pelleted seeds—including fine vegetable seeds, sugar beet, maize, and other high-value agricultural species with challenging flow characteristics.
Key Features
- Intermittent batch processing architecture with full process visibility and manual accessibility
- Variable-speed rotor drive (infinitely adjustable) for tuning tumbling intensity and residence time
- Nozzle-free atomization via high-precision rotating spray disc—generates consistent sub-100 µm droplets without clogging risk
- Modular feed options: syringe, peristaltic pump, or volumetric dispenser for accurate liquid dosing (±1% repeatability)
- Cyclonic air shielding integrated into the chamber to minimize dust dispersion and protect seed viability
- Spring-loaded single-hand discharge gate with fully openable top lid for rapid cleaning and manual seed loading
- Mobile benchtop configuration compatible with standard 230 V AC power and regulated compressed air (6 bar)
- Optional fully enclosed mixing blade assembly for enhanced containment during hazardous or regulated compound handling
Sample Compatibility & Compliance
The NIKKI accommodates a broad spectrum of seed morphologies—from spherical pelleted brassica seeds to irregularly shaped legume and cereal grains—without mechanical damage. Its gentle yet effective tumbling action preserves embryo integrity while ensuring complete surface coverage. The system supports compliance with international seed testing protocols including ISTA Rules (Section 5: Seed Treatment), OECD Seed Schemes, and national regulatory frameworks governing pesticide-treated seed registration (e.g., EU Regulation (EC) No 1107/2009). When paired with a validated peristaltic pump and electronic logbook, it meets traceability requirements for GLP audits and supports documentation of critical process parameters (CPPs) such as rotation speed, dosing volume, and dwell time—essential for submission dossiers to EFSA, EPA, or PMRA.
Software & Data Management
While the base NIKKI operates via intuitive manual controls (toggle switches and analog dials), optional digital integration enables protocol storage, parameter logging, and audit-trail generation. The laboratory-grade peristaltic pump accessory includes RS-485 communication for synchronization with external data acquisition systems. All operational records—including batch ID, seed mass, active ingredient concentration, total liquid volume applied, and rotor runtime—can be exported in CSV format for inclusion in LIMS or regulatory submissions. For users requiring 21 CFR Part 11 compliance, third-party electronic lab notebook (ELN) platforms may be interfaced to enforce user authentication, electronic signatures, and immutable audit trails.
Applications
- Development and optimization of novel seed-applied fungicides, insecticides, and biostimulants
- Formulation screening for polymer-based film coatings and clay-based pellet matrices
- Seed vigor and germination correlation studies under standardized treatment conditions
- Regulatory residue trials supporting maximum residue limit (MRL) establishment
- Training and method transfer for QC laboratories implementing ISTA-certified seed treatment protocols
- Pre-commercial scale-up trials bridging R&D and pilot production lines
FAQ
What is the minimum and maximum batch capacity of the NIKKI?
The system processes batches ranging from 50 mL to 2000 mL of bulk seed volume, corresponding to approximately 10 g–1.2 kg depending on seed density and shape.
Can the NIKKI handle abrasive or highly viscous slurries?
Yes—when equipped with the optional fully enclosed mixing blade and corrosion-resistant spray disc, it supports slurries up to 5,000 mPa·s viscosity and particulate-laden suspensions containing ≤150 µm solids.
Is operator training provided with installation?
Niklas-certified field application engineers deliver on-site commissioning, SOP development support, and hands-on operation training aligned with ISTA Seed Treatment Guidelines.
Does the system meet CE marking requirements for laboratory equipment?
Yes—the NIKKI complies with EU Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, and EMC Directive 2014/30/EU, and carries full CE certification documentation.
How is cleaning and cross-contamination prevention managed?
The fully accessible chamber, tool-free disassembly of the spray disc and baffles, and cyclonic air purge function enable rapid dry-cleaning between batches; optional ultrasonic bath compatibility supports residue verification per ISO 17025 validation protocols.
