ENSOUL ORBIS2 Manual Torque Tester

Overview

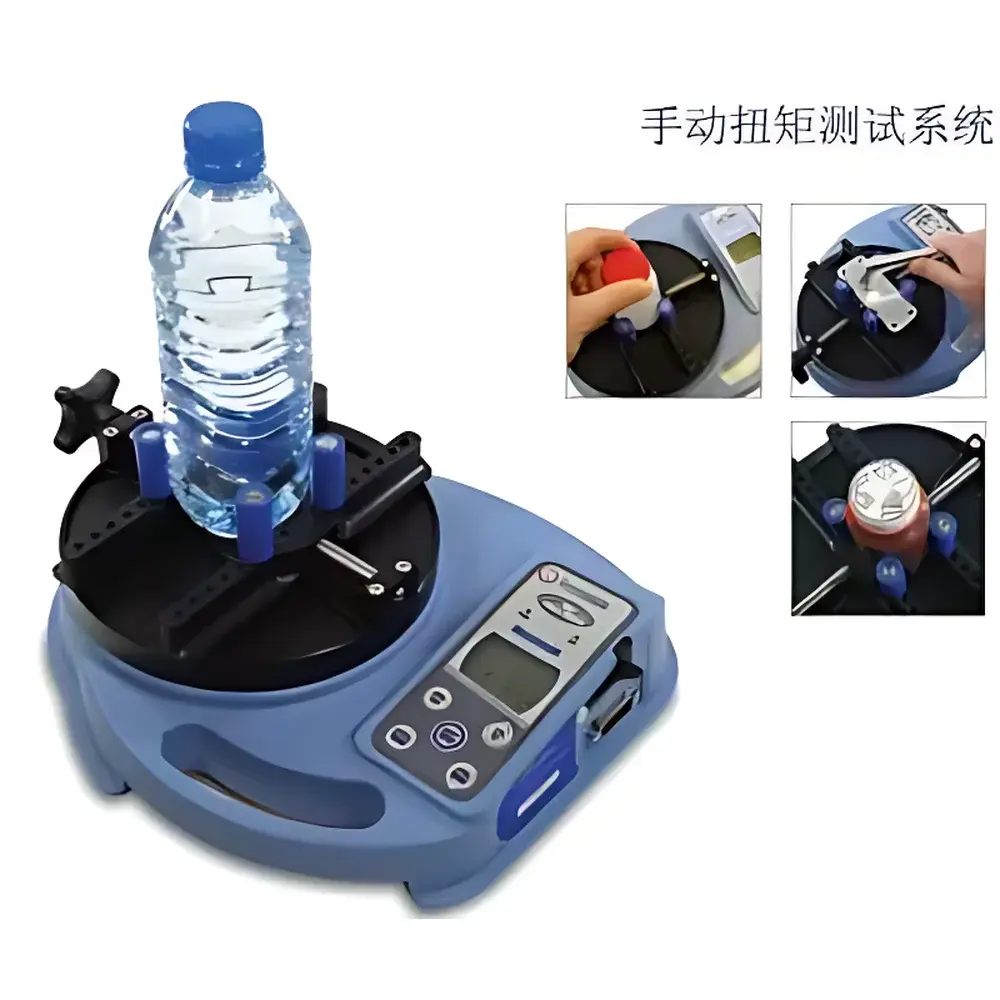

The ENSOUL ORBIS2 Manual Torque Tester is an engineered solution for precise, low-range rotational torque measurement in controlled manual testing environments. Built upon a base-mounted, calibrated strain-gauge torque transducer, the ORBIS2 operates on the principle of direct mechanical load conversion—where applied rotational force at the test interface induces measurable deformation in the sensor element, translated in real time to digital torque values. Designed specifically for applications requiring high repeatability within the 0–6 N·m (0–50 lbf·in) range, it serves as a fundamental metrology tool for functional verification, assembly validation, and quality gate inspection across packaging, medical device manufacturing, consumer electronics, and aerospace component assembly lines. Its compact footprint, rigid aluminum-alloy chassis, and integrated ergonomic handwheel eliminate external fixtures or motorized actuation—making it suitable for benchtop deployment in ISO/IEC 17025-accredited labs, production-floor QC stations, and R&D prototyping cells where traceable, operator-controlled torque data is required.

Key Features

• Base-integrated high-stability torque sensor with factory calibration traceable to NIST standards
• Digital LCD display featuring real-time torque readout, peak-hold capture, and unit toggle (N·m / lbf·in)
• Manual handwheel actuation system enabling consistent, user-defined rotation speed and dwell control
• Sampling rate ≥1 kHz ensures accurate detection of transient torque peaks during snap-fit, cap-sealing, or screw engagement events
• RS-232 serial interface supports direct connection to PCs or PLCs for automated data logging and SPC charting
• Rechargeable lithium-ion battery (≥8 hours continuous operation) plus universal AC adapter compatibility
• Modular multi-jaw chuck system accommodates cylindrical, hexagonal, and flat-bottomed specimens without custom tooling
• IP52-rated enclosure for resistance to dust ingress and incidental splashes in non-sterile industrial settings

Sample Compatibility & Compliance

The ORBIS2 is validated for testing rotational fasteners, child-resistant closures, syringe plungers, vial caps, blister pack latches, and miniature gear assemblies—components commonly specified under ASTM D3474 (Standard Practice for Calibration of Torque Measuring Instruments), ISO 5347 (Vibration and shock – Calibration of vibration and shock transducers), and USP (General Chapter on Mechanical Testing of Packaging Systems). Its mechanical architecture complies with GLP documentation requirements when paired with audit-trail-enabled software; raw torque data output meets FDA 21 CFR Part 11 criteria for electronic records when captured via compliant host systems. No internal moving parts beyond the handwheel mechanism ensure long-term stability and minimal drift—critical for periodic verification per ISO/IEC 17025 clause 6.5.2.

Software & Data Management

While the ORBIS2 operates autonomously via its embedded firmware, optional PC-based software (TorqueView™ v3.2, sold separately) enables full data acquisition, statistical analysis (Cp/Cpk, X̄-R charts), and PDF report generation compliant with internal QA protocols. The RS-232 interface supports ASCII protocol transmission at 9600 baud, allowing integration into LabVIEW, MATLAB, or custom MES platforms. All timestamped torque records include operator ID, test sequence number, and environmental metadata (if externally sourced), satisfying traceability mandates under IATF 16949 and ISO 9001:2015 clause 8.5.2.

Applications

• Verification of torque specifications for pharmaceutical blister seal integrity and vial crimping
• Functional testing of tamper-evident band removal forces on beverage and cosmetic containers
• Assembly process validation for micro-screws in hearing aids and endoscopic tools
• Quality assurance of hinge torque in folding cartons and clamshell packaging
• R&D evaluation of closure torque–seal performance correlation in sterile barrier systems
• Calibration reference for field-deployed torque screwdrivers in regulated manufacturing

FAQ

Is the ORBIS2 suitable for dynamic or cyclic torque testing?
No—it is designed exclusively for static or quasi-static manual torque application. For fatigue or rotational endurance testing, a servo-controlled torsion tester is recommended.
Does the unit include calibration certification?
Yes—each ORBIS2 ships with a NIST-traceable calibration certificate valid for 12 months from date of manufacture.
Can the chuck accommodate non-cylindrical samples?
Yes—the three-jaw adjustable chuck accepts flat-bottomed, hexagonal, and irregularly shaped bases up to 45 mm in diameter using optional jaw inserts.
What is the recommended recalibration interval?
ENSOUL recommends annual recalibration or after 10,000 test cycles—whichever occurs first—to maintain compliance with ISO/IEC 17025 and internal quality system requirements.
Is firmware upgrade capability supported?
Yes—field-upgradable via RS-232 using ENSOUL’s authorized service utility; version history and release notes are available through registered distributor portals.
