ENVIdata-DT Probe-Based Soil Water Content, Temperature, Electrical Conductivity & Matric Potential Monitoring System

Overview

The ENVIdata-DT Probe-Based Soil Water Content, Temperature, Electrical Conductivity & Matric Potential Monitoring System is an integrated, field-deployable environmental observatory engineered for high-fidelity, long-term, in situ quantification of four critical soil physical parameters: volumetric water content (θ_v), soil temperature (T_s), bulk electrical conductivity (EC_b), and matric potential (ψ_m). Designed for hydrological, agronomic, and ecological research applications, the system employs a multi-sensor architecture grounded in complementary physical principles—Time Domain Reflectometry (TDR), Frequency Domain Reflectometry (FDR), Time Domain Transmission (TDT), capacitive-conductance coupling, and tensiometric equilibrium—to ensure cross-validated, physically consistent measurements across diverse soil textures, salinity regimes, and moisture ranges. Unlike single-principle instruments, ENVIdata-DT enables simultaneous acquisition of interdependent variables required for modeling unsaturated zone flow (e.g., Richards’ equation), solute transport (e.g., advection–dispersion), and plant–soil–atmosphere continuum (PSAC) dynamics. Its modular probe configuration supports both shallow-root-zone profiling (0–1 m) and deep vadose zone monitoring (up to 50 m), making it suitable for studies ranging from precision irrigation scheduling to watershed-scale ecohydrological modeling.

Key Features

• Multi-Principle Sensor Fusion: Integrates TRIME-PICO64/32 (TDR, 1 GHz), AZS-2 (FDR, 100 MHz), SM300 (FDR, research-grade ±2.5% θ_v accuracy), Aquaflex (TDT, 3-m strip, 6-L sampling volume), Hydra (capacitance/conductance dual-output), and Th2 (high-stability Pt1000 thermistor) to mitigate principle-specific biases in heterogeneous or saline soils.
• Extended Matric Potential Coverage: Combines tensiometric sensors (T-series: +100 to –85 kPa; EQ-series: 0 to –1500 kPa) with automatic bubble purge, frost-protection drainage, and temperature-compensated transduction—enabling continuous measurement across the full plant-available water range and into permanent wilting point conditions.
• Rugged, Low-Power Data Acquisition: DT80/DT85 loggers feature 18-bit ADC resolution, isolated analog inputs (up to 600 channels via expansion), –45 °C cold-start capability, internal LCD interface, and dual power modes (10–30 VDC); support SDI-12, Modbus RTU/TCP, and HTTP/FTP protocols for SCADA and cloud integration.
• Calibration Flexibility & Soil-Specific Adjustment: Includes factory calibration for common mineral soils; supports user-selectable calibration curves (15 options for TRIME-PICO), empirical EC_w–TDS conversion (TDS = 0.64 × EC_w), and custom water–salinity curve generation per soil texture class (sand, loam, clay).
• Long-Term Field Stability: PICO probes utilize hermetically sealed, on-probe TDR electronics and ceramic-coated stainless-steel waveguides; Aquaflex strips employ patented flexible polymer substrate; all tensiometers incorporate stainless-steel housings and ceramic cups sintered to ISO 4000 µm pore size distribution.

Sample Compatibility & Compliance

The ENVIdata-DT system is validated for use in mineral soils (sand to heavy clay), organic substrates (peat, compost), and engineered media (green roof substrates, turf rootzones). It meets ASTM D5084 (in situ hydraulic conductivity), ISO 11277 (soil texture analysis context), and USDA-NRCS Soil Survey Field and Laboratory Methods Manual requirements for sensor-based water retention characterization. For regulatory and quality-controlled environments, the ENVIdata software platform supports 21 CFR Part 11-compliant audit trails (user action logs, timestamped metadata, electronic signatures), GLP/GMP-aligned data integrity workflows, and ISO 9001:2015–certified system integration—verified annually since 2010. Sensor outputs are traceable to NIST-traceable reference standards for temperature (ITS-90) and electrical conductivity (KCl solution standards).

Software & Data Management

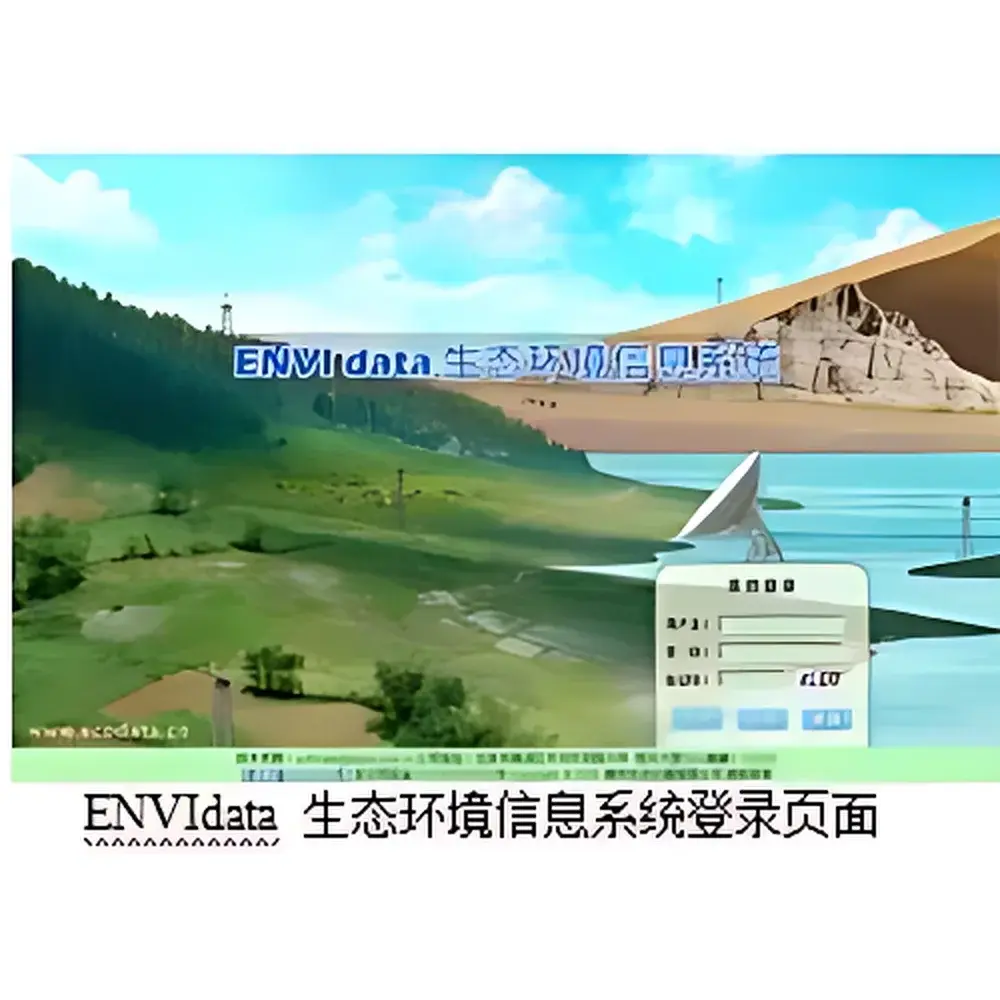

ENVIdata Server operates as a secure, role-based web application supporting both on-premise deployment and managed cloud hosting. Data ingestion occurs at user-defined intervals (10 ms to 24 h), with real-time validation, outlier flagging, and automatic unit conversion (e.g., EC_b → EC_w using Rhoades model). The platform provides time-series visualization (multi-parameter overlay, derivative plots), spatial mapping (GIS-integrated site dashboard), statistical summaries (mean, min/max, standard deviation per channel), and export in CSV, NetCDF, or CF-compliant formats. All data transfers are encrypted (TLS 1.2+), and raw sensor readings—including diagnostic flags (e.g., air gap detection, ceramic head desiccation)—are preserved without interpolation. System health monitoring includes battery voltage tracking, logger temperature logging, and sensor response latency alerts.

Applications

• Agricultural water productivity assessment and deficit irrigation optimization
• Forest evapotranspiration partitioning and root-zone water uptake modeling
• Wetland hydroperiod analysis and methane flux boundary condition definition
• Soil salinization monitoring in irrigated arid-zone agriculture
• Landfill cover performance evaluation (infiltration barrier integrity)
• Climate change impact studies on soil moisture memory and drought propagation
• Validation of satellite-derived soil moisture products (e.g., SMAP, Sentinel-1)
• Green infrastructure performance monitoring (bioswales, rain gardens)

FAQ

What measurement principles are used for soil water content, and how do they differ?
The system deploys TDR (TRIME-PICO), FDR (AZS-2, SM300), and TDT (Aquaflex) methods—each with distinct sensitivity to soil texture, bulk density, and pore-water chemistry. TDR offers highest accuracy in coarse-textured soils; FDR excels in organic-rich or saline media; TDT provides spatially averaged θ_v over large volumes, reducing point-scale variability.
Can the system measure matric potential below –100 kPa?
Yes—via the EQ-series tensiometers (0 to –1500 kPa range), which extend measurement into the permanent wilting point and residual water content domains where traditional tensiometers fail due to air entry.
Is calibration required for every soil type?
Factory calibration suffices for most mineral soils; however, for pure clays, peats, or highly saline (>10 dS/m) profiles, users may select from 15 embedded calibration curves or generate custom water–salinity relationships using controlled laboratory protocols.
How does the system handle data transmission in remote locations with limited connectivity?
DT loggers support local storage (128 MB flash, expandable via USB 2.0), scheduled offline data dump, and store-and-forward logic—automatically transmitting buffered records upon reconnection without data loss.
Does the software support compliance with FDA or EU regulatory frameworks?
ENVIdata Server supports ALCOA+ data integrity principles and provides configurable audit trails, electronic signature enforcement, and version-controlled configuration management—enabling alignment with 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 documentation requirements.
