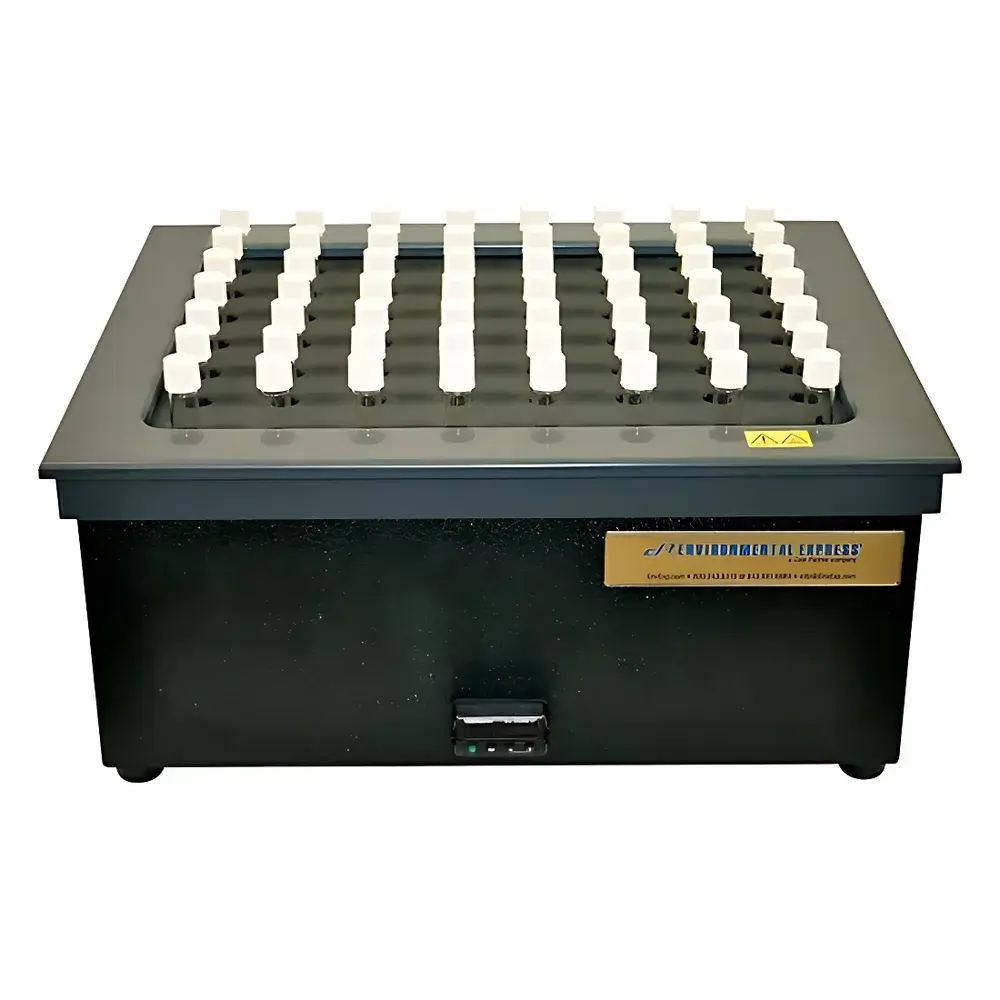

Environmental Express HotBlock B3000 COD Digestion Block

Overview

The Environmental Express HotBlock B3000 COD Digestion Block is a precision-engineered, benchtop thermal digestion system designed for high-throughput, reproducible chemical oxygen demand (COD) analysis in compliance with standard methods including EPA Method 410.4, ISO 6060, and ASTM D1252. It operates on the principle of controlled, uniform conductive heating via a solid graphite block—eliminating convective air variability and ensuring minimal inter-sample temperature deviation. Unlike open-bath or ceramic-block digesters, the B3000’s monolithic graphite architecture delivers rapid thermal response, exceptional thermal mass stability, and long-term resistance to aggressive digestion media (e.g., concentrated H₂SO₄/K₂Cr₂O₇ mixtures). Its dual-range capability (0–150 °C and 0–200 °C) supports not only standard COD digestion but also extended applications such as total phosphorus (TP), total nitrogen (TN), and heavy metal extraction per EPA Methods 300.0, 300.1, and 3050B.

Key Features

• High-capacity digestion: Simultaneous processing of either 56 or 63 samples in standardized 16-mm round-bottom digestion tubes—optimized for compatibility with common COD vials (e.g., Hach, Thermo Fisher, and EPA-compliant borosilicate glass or quartz tubes).
• Graphite heating block with proprietary PTFE surface coating: Ensures uniform heat distribution (±1.5 °C well-to-well), corrosion resistance against strong acids and oxidants, low-friction tube insertion/removal, and simplified cleaning without residue carryover.
• Precision temperature control: Digital PID controller with K-type thermocouple feedback enables setpoint accuracy of ±0.1 °C and programmable ramp/soak profiles; factory-default COD program runs at 150 °C for 120 minutes with automatic end-of-cycle visual indicator.
• Integrated Safe-Sample™ thermal protection: Monitors block temperature in real time; triggers audible alarm and cuts power to the heating element if uncontrolled thermal excursion exceeds safety thresholds—meeting IEC 61010-1 requirements for laboratory electrical equipment.
• Dual-voltage compatibility: Supports both 120 VAC (9 A) and 240 VAC (4.5 A) inputs, enabling global deployment without hardware modification or external transformers.

Sample Compatibility & Compliance

The B3000 accommodates standard 16-mm OD digestion tubes used across major environmental testing workflows—including COD, TP, TN, and trace metal digestion per EPA SW-846 Methods 3015A, 3050B, and 3060A. Its consistent thermal profile meets the stringent uniformity requirements of ISO/IEC 17025-accredited laboratories. The system is fully compatible with GLP and GMP documentation practices: temperature logs (when paired with optional data logger interfaces) support audit-ready records aligned with FDA 21 CFR Part 11 principles. No moving parts or consumable components ensure minimal maintenance and long-term calibration stability—critical for regulated wastewater, drinking water, and industrial effluent monitoring labs.

Software & Data Management

While the B3000 operates as a standalone instrument with intuitive front-panel controls, it supports analog output (0–5 V or 4–20 mA) for integration into centralized lab data acquisition systems. When connected to third-party chart recorders or SCADA-compatible controllers, real-time temperature traces and cycle completion signals can be archived alongside LIMS identifiers. Optional USB or RS-232 interface modules (sold separately) enable automated timestamped logging of setpoints, actual block temperatures, and runtime—facilitating full traceability for method validation and internal QA/QC reviews.

Applications

• Routine COD determination in municipal wastewater treatment plants and industrial discharge monitoring.
• Simultaneous digestion for multi-parameter analysis (COD + TP + TN) using identical sample aliquots—reducing analytical variance and improving data correlation.
• Preparation of digests for ICP-OES, ICP-MS, and AA spectroscopy in regulatory environmental testing laboratories.
• Method development and validation studies requiring precise thermal control over extended durations (e.g., 120–180 min at 150 °C).
• Academic and research labs conducting kinetic digestion experiments where inter-sample consistency directly impacts statistical significance.

FAQ

Is the B3000 compatible with Hach TNT vials and other 16-mm COD digestion tubes?
Yes—the 16-mm well diameter and tapered graphite cavity geometry are engineered for secure, centered placement of standard round-bottom COD vials, including Hach TNTplus, Thermo Scientific UltraClear, and EPA-certified glassware.
Can the unit be calibrated or verified independently of service technicians?
Yes—users may perform routine performance verification using NIST-traceable reference thermometers inserted into designated calibration wells; procedure details are provided in the Operation & Maintenance Manual.
Does the PTFE coating require reapplication over time?
No—the PTFE layer is fused during high-temperature sintering and exhibits no measurable wear under normal use over >5 years of daily operation.
What safety certifications does the B3000 hold?
It complies with UL 61010-1 (2nd Ed.), CSA C22.2 No. 61010-1, and CE marking per EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
Is remote monitoring or network connectivity available?
Native Ethernet or Wi-Fi is not built-in, but analog outputs and optional serial modules allow integration with existing lab network infrastructure via PLCs or middleware gateways.
