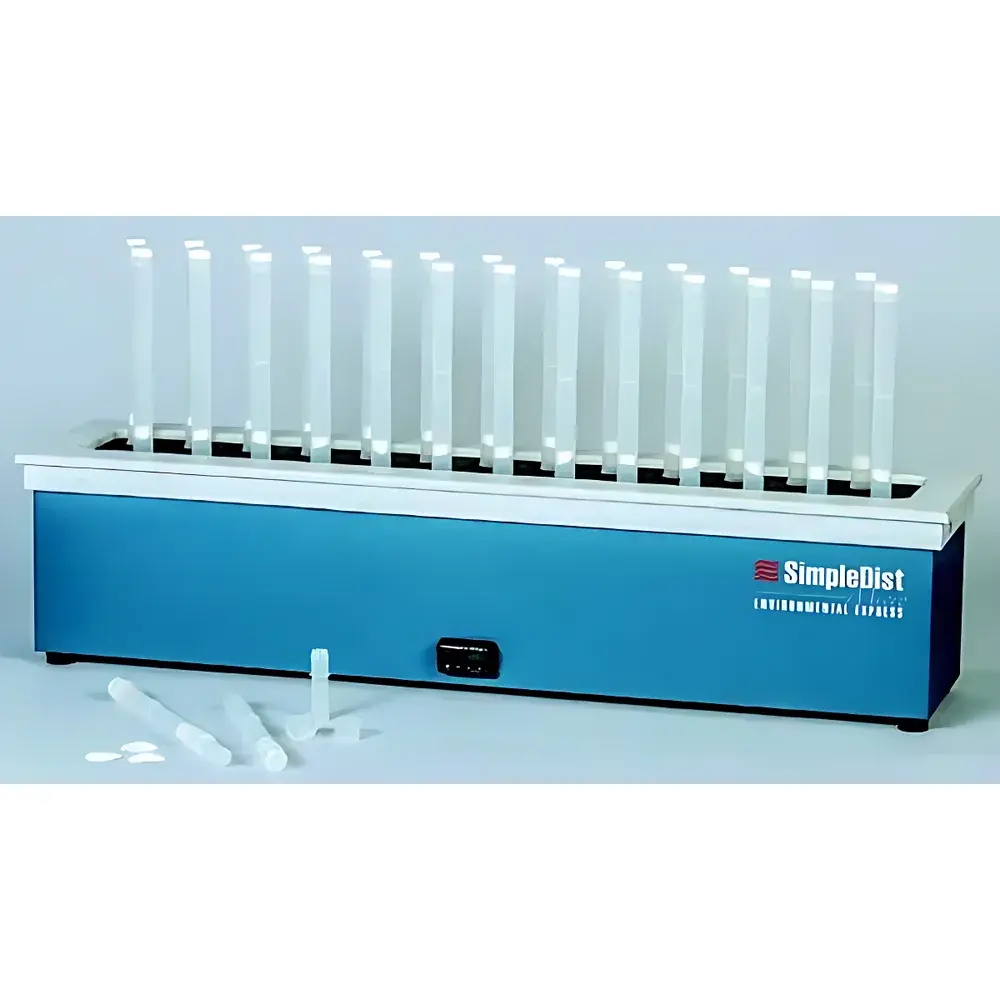

Environmental Express SimpleDist Micro Heating Block for Distillation

Overview

The Environmental Express SimpleDist Micro Heating Block (Model C8000-240) is a purpose-engineered sub-boiling distillation system designed for high-throughput, low-volume sample preparation in regulated environmental and water quality laboratories. Unlike conventional glass-based distillation apparatuses relying on vapor condensation at atmospheric or reduced pressure, the SimpleDist platform employs controlled conductive heating of disposable polypropylene micro-tubes to achieve gentle, reproducible sub-boiling distillation—minimizing analyte loss, cross-contamination, and thermal degradation. Its operation aligns with the thermodynamic principle of selective volatilization under precisely maintained temperature gradients, where analytes such as cyanide (as HCN) or ammonia (as NH₃) are liberated from the matrix below their bulk boiling points and swept into a receiving solution via inert carrier gas or passive diffusion. This method ensures compliance with U.S. EPA reference methods requiring strict control over distillation kinetics and temperature profiles.

Key Features

• 26-position heating block with uniform thermal distribution across all wells, engineered for ±1.5 °C accuracy within the ambient-to-150 °C operating range
• PTFE-coated graphite heating elements encapsulated in impact-resistant Kydex® housing—chemically inert, non-corrosive, and compliant with laboratory safety standards for acid-resistant applications
• Digital LED controller with intuitive setpoint adjustment, real-time temperature display, and auto-shutdown safeguards
• No external cooling water required—eliminates plumbing dependencies, reduces facility infrastructure demands, and supports mobile or space-constrained lab environments
• Designed exclusively for use with certified disposable polypropylene micro-distillation tubes (sold separately), eliminating glass breakage risk, cleaning validation burden, and carryover concerns
• Optimized for 6 mL sample volume per tube—reducing reagent consumption, hazardous waste generation, and overall cost-per-analysis

Sample Compatibility & Compliance

The SimpleDist system is validated for use with aqueous matrices including drinking water, wastewater, surface water, and soil leachates. It meets performance criteria specified in U.S. EPA Methods 4500-CN–F (cyanide) and 4500-NH₃–G (ammonia), where sub-boiling conditions are mandatory to prevent co-distillation of interfering species (e.g., sulfides, volatile organic acids). The disposable tube format supports GLP-compliant workflows by enabling full traceability per sample—each tube is individually labeled, discarded post-use, and requires no cleaning verification. The system’s closed-tube architecture minimizes exposure to ambient contaminants and satisfies OSHA and NIOSH guidelines for handling toxic vapors. No modifications to existing EPA method documentation are required when using EPA-listed consumables.

Software & Data Management

The SimpleDist C8000-240 operates as a standalone hardware platform without embedded firmware or proprietary software. Temperature setpoints and runtime are managed exclusively through its front-panel LED interface, ensuring deterministic, repeatable operation independent of computer systems. For laboratories subject to 21 CFR Part 11 requirements, the absence of electronic records simplifies audit readiness—operator actions are documented manually in bound lab notebooks or LIMS-integrated run logs. Optional integration with barcode-scanned tube identifiers enables automated sample tracking in validated LIMS environments. All calibration procedures follow NIST-traceable protocols, and temperature verification is performed using certified RTD probes prior to each analytical batch.

Applications

• Routine cyanide quantification in regulatory compliance monitoring (e.g., NPDES permits, RCRA groundwater assessments)
• Ammonia nitrogen determination in wastewater treatment plant influent/effluent streams
• Method development for volatile analyte isolation in EPA SW-846 Chapter 5 extractions
• Small-scale method validation studies requiring rapid iteration across multiple digestate or filtrate fractions
• Teaching laboratories emphasizing safe, scalable distillation principles without glassware hazards

FAQ

Is the SimpleDist system compatible with EPA Method 300.0 for anions?
No—the SimpleDist is specifically validated for volatile analytes requiring sub-boiling distillation (e.g., CN⁻, NH₃). It is not intended for ion chromatography sample prep.
Can I use non-Environmental Express branded micro-tubes?
Only EPA-validated, lot-certified polypropylene tubes supplied by Environmental Express are guaranteed to meet dimensional tolerances, thermal stability, and extractables specifications required for compliant reporting.
What maintenance is required?
Annual verification of block temperature uniformity using a calibrated multi-point probe; visual inspection of Kydex® housing integrity and LED controller responsiveness.
Does the unit support programmable ramping or hold steps?
No—it operates at a fixed user-selected temperature until manually powered down. Distillation kinetics are governed by tube geometry and sample composition, not dynamic profiling.
Is electrical certification provided for international use?
The C8000-240 is CE-marked and supplied with 240 V / 50 Hz configuration; UL listing is pending for North American installations.
