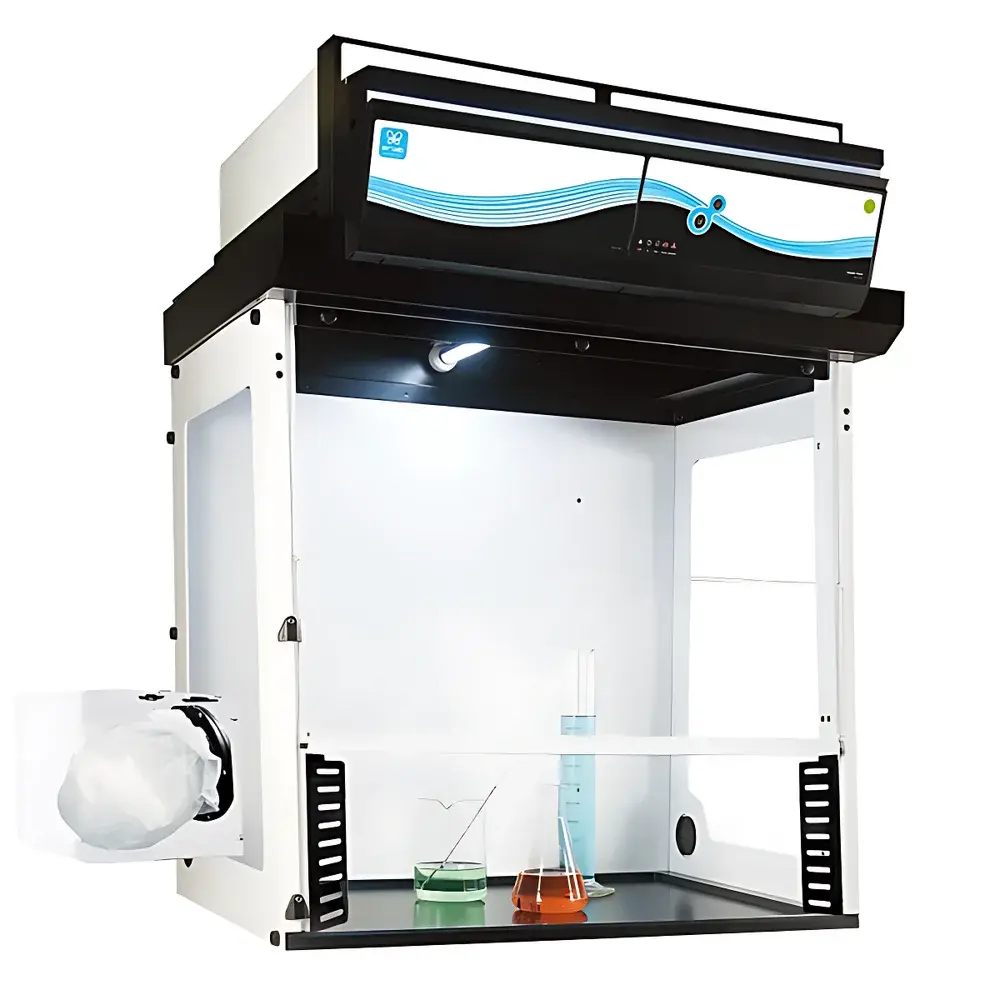

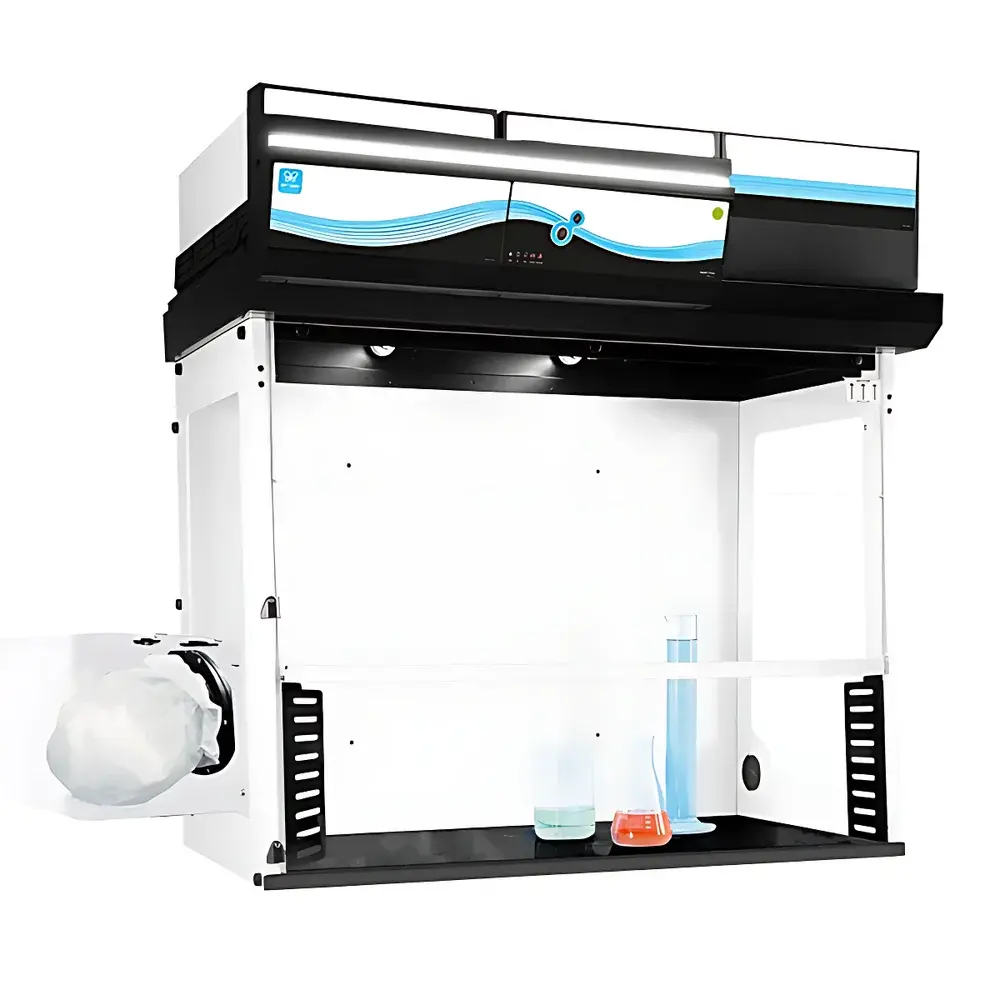

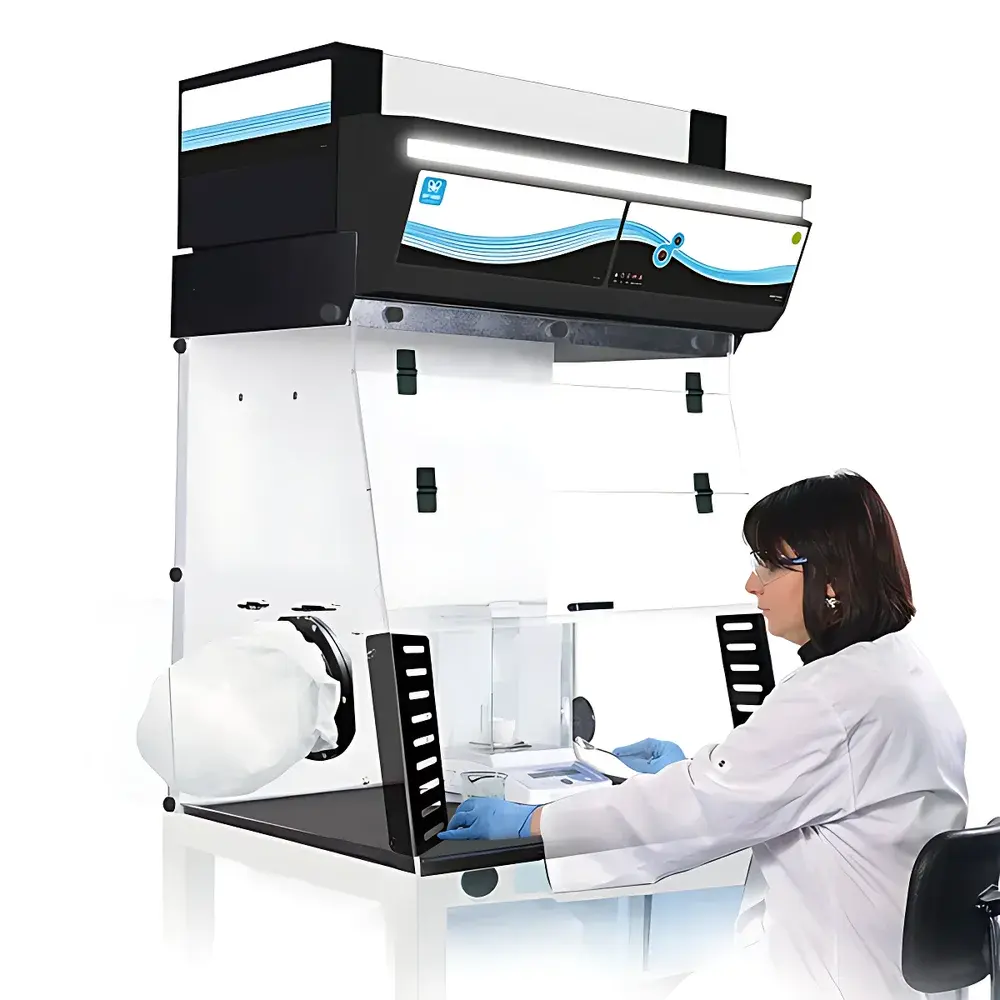

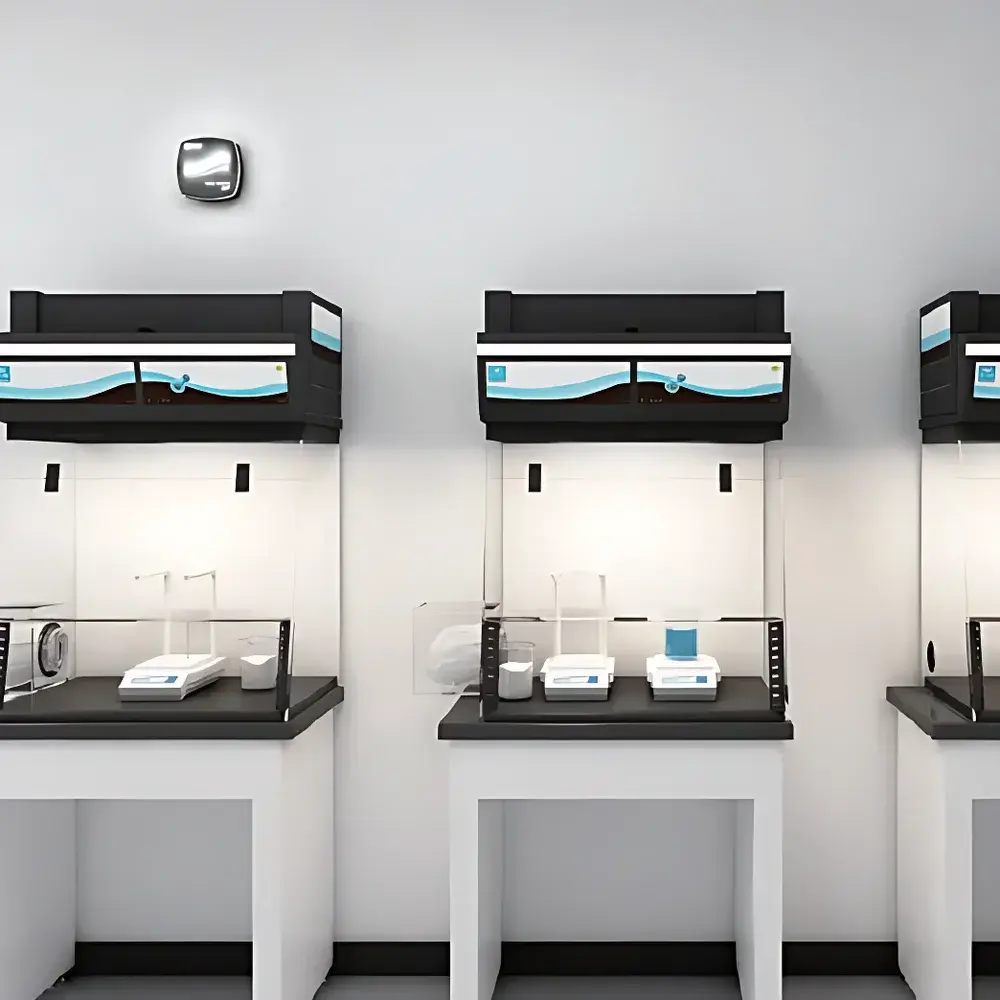

Erlab 351W Smart Precision Weighing Enclosure with Active Fume Filtration

Overview

The Erlab 351W Smart is an active air-cleaning weighing enclosure engineered for the safe, precise, and repeatable handling of highly potent, toxic, sensitizing, or teratogenic compounds in pharmaceutical development, QC laboratories, and chemical R&D environments. Unlike passive containment hoods or conventional balance enclosures, the 351W Smart integrates real-time, in-line filtration using Erlab’s proprietary eGuard™ dual-stage modular filter system—comprising a pre-filter for particulates and a high-efficiency molecular adsorption stage (activated carbon + specialty impregnated media)—to continuously recirculate purified air within the workspace. This closed-loop airflow architecture maintains ISO Class 5 (100) cleanroom-equivalent particle concentration at the weighing surface while eliminating cross-contamination risk and minimizing exhaust ducting requirements. Designed explicitly for OEB3 to OEB5 (Occupational Exposure Band) materials per ICH M7 and ISPE guidelines, the unit operates under slight negative pressure relative to the lab environment, ensuring containment integrity during powder dispensing, API weighing, and intermediate handling.

Key Features

• Modular eGuard™ filtration platform with RFID-tracked cartridge life monitoring and automatic alerting via integrated touchscreen interface
• Smart airflow management: dynamic fan speed adjustment based on filter loading, door position, and user-defined SOP modes (e.g., “High Potency Mode”, “Low-Dust Mode”)
• Integrated 7-inch capacitive touchscreen with multilingual UI (English, German, French, Chinese), audit-trail enabled logging (21 CFR Part 11 compliant configuration available)
• Vibration-damped stainless steel weighing platform (600 × 450 mm) compatible with analytical balances up to 320 mm depth and 12 kg capacity
• Full-height transparent polycarbonate front sash with motorized lift mechanism and anti-static coating (surface resistivity <10⁹ Ω/sq)
• Low-energy EC motor fan assembly (99.99% removal efficiency for particles ≥0.3 µm and >95% adsorption efficiency for organic vapors (acetone, dichloromethane, methanol) at 10 ppmv challenge concentration

Sample Compatibility & Compliance

The 351W Smart accommodates solid powders, lyophilized APIs, cytotoxic intermediates, hormonal actives, and peptide-based compounds across OEB3–OEB5 exposure bands. Its design conforms to EN 14175-3 (fume hood performance testing), ISO 14644-1 Class 5 airborne particle limits at the working plane, and ASTM D6377 for vapor hazard assessment. When configured with optional data export modules and electronic signature capability, it supports GLP/GMP-aligned instrument qualification (IQ/OQ/PQ) and satisfies USP requirements for analytical instrument verification. All filter cartridges are validated per ISO 15971 for breakthrough testing and supplied with full traceability documentation including batch-specific adsorption isotherms and TWA (Time-Weighted Average) exposure modeling reports.

Software & Data Management

The embedded Erlab SmartControl OS provides local and remote access via Ethernet or Wi-Fi. Real-time parameters—including face velocity (0.45–0.55 m/s), differential pressure across filters, cumulative runtime, and sash position—are logged with timestamp and operator ID. Audit trails capture all configuration changes, filter replacements, and alarm events (e.g., low airflow, high filter delta-P, door open duration). Data export supports CSV, PDF, and XML formats; integration with LIMS or ELN systems is achievable through RESTful API or OPC UA protocol. Optional cloud-based fleet management (eGuard Cloud) enables centralized monitoring of multiple units across sites, predictive maintenance scheduling, and regulatory submission-ready reports.

Applications

• Weighing of oncology APIs and hormone therapeutics under OEB4–OEB5 containment protocols
• Formulation development involving low-dose, high-potency drug substances (e.g., kinase inhibitors, PROTACs)
• QC release testing of cytotoxic injectables where environmental contamination must remain below 1 ng/m³
• Research-scale synthesis requiring inert atmosphere compatibility (optional nitrogen purge kit available)
• GMP manufacturing support for Stage 1–3 clinical trial material preparation
• Academic pharmacology labs handling Schedule I/II controlled substances under DEA-compliant workflows

FAQ

What OEB levels does the 351W Smart support?
It is validated for routine use with OEB3, OEB4, and OEB5 compounds as defined in the ISPE Guide to Handling Highly Potent Compounds.
Can the unit be integrated into an existing building exhaust system?
Yes—though designed for recirculation, it supports ducted exhaust mode with optional canopy adapter and static pressure compensation.
Is filter replacement a user-serviceable task?
Yes; modular cartridges slide in/out without tools, and the system automatically zeros baseline pressure drop upon installation.
Does the 351W Smart meet FDA expectations for data integrity?
When deployed with 21 CFR Part 11 configuration (electronic signatures, audit trail encryption, role-based access), it fulfills ALCOA+ principles for regulated environments.
What balance brands/models are confirmed compatible?
All major analytical balances (Mettler Toledo XSR/XSE, Sartorius Entris/Secura, Shimadzu UX series) with footprint ≤320 × 250 mm and height ≤120 mm are mechanically and electromagnetically compatible.
