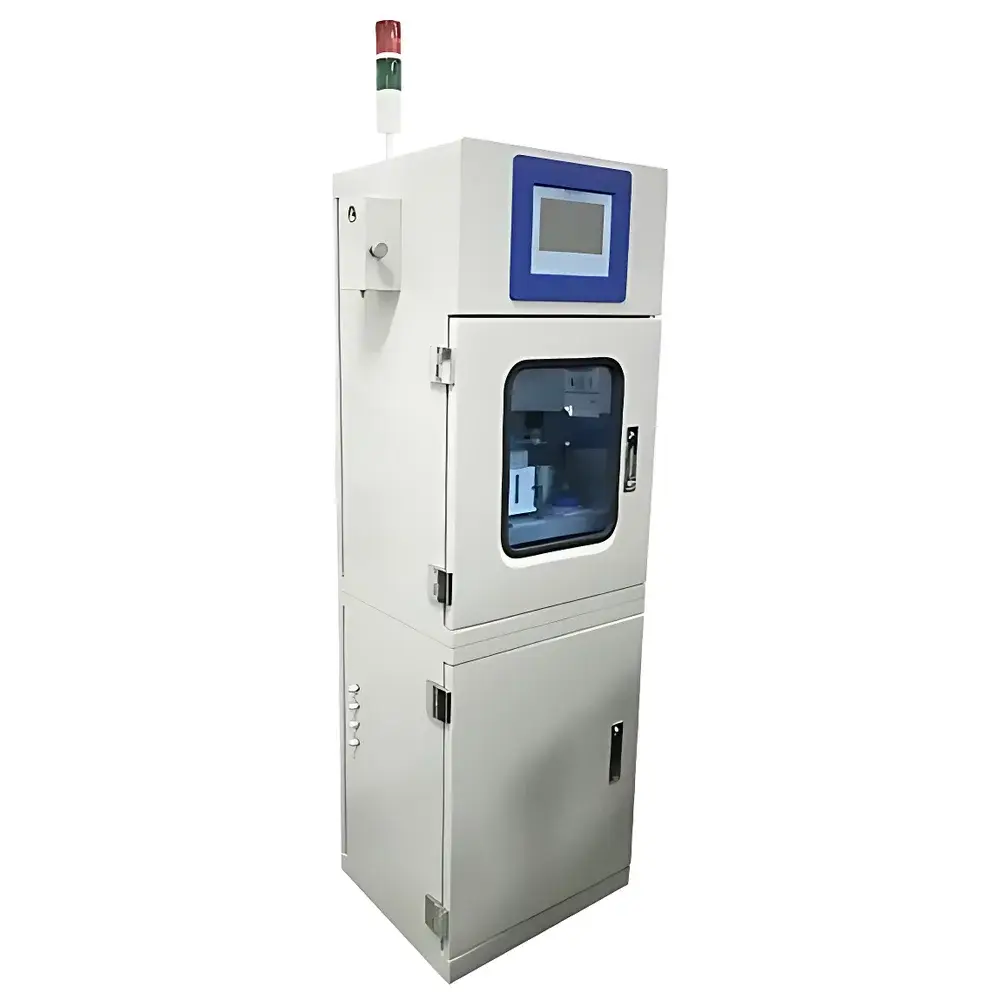

HOGON ALT Online Trivalent Chromium & Sodium Hypophosphite Analyzer for Electroplating Lines

Overview

The HOGON ALT Online Trivalent Chromium & Sodium Hypophosphite Analyzer is a fully automated,无人值守 (unattended) process analytical instrument engineered for real-time, in-line monitoring and control of critical bath chemistry parameters in industrial electroplating production lines. It employs potentiometric and photometric endpoint detection—leveraging high-precision ion-selective electrodes and a high-resolution color-sensing module—to perform quantitative titrimetric analysis of trivalent chromium (Cr³⁺) and sodium hypophosphite (NaH₂PO₂) concentrations directly within the plating bath circulation loop. Unlike laboratory-based offline testing, this system integrates sampling, reagent delivery, titration, endpoint recognition, calculation, data logging, and closed-loop chemical dosing into a single robust architecture—enabling continuous compliance with target bath specifications without manual intervention. Designed to meet stringent requirements of modern electroplating quality management systems, it supports ISO 9001–aligned process validation and provides audit-ready digital records compatible with GLP/GMP traceability frameworks.

Key Features

• Modular hardware architecture built around an ARM Cortex-A8 processor for deterministic real-time control and low-latency response
• 7-inch full-color capacitive touchscreen HMI with localized multilingual UI (English interface standard), supporting intuitive configuration, calibration, and diagnostic workflows
• Dual high-accuracy burettes (±0.1% volumetric accuracy) with integrated electromagnetic switching valves and long-life solvent-resistant peristaltic pumps
• Multi-mode titration capability: potentiometric (pH, redox, complexometric), photometric (colorimetric endpoint), precipitation, and non-aqueous titrations—automatically selected based on assay protocol
• Dual platinum indicator electrode and reference electrode pair optimized for Cr³⁺ stability and NaH₂PO₂ oxidation potential detection
• Integrated process control interface supporting RS-232, TCP/IP, and Modbus RTU/ASCII protocols for seamless integration with PLCs, SCADA, and MES systems
• Self-cleaning fluidic path with programmable rinse cycles using deionized water or designated cleaning solution to prevent cross-contamination and drift
• Configurable alarm logic for abnormal conditions—including sample flow interruption, reagent depletion, power loss, electrode signal saturation, and out-of-specification results

Sample Compatibility & Compliance

The ALT analyzer is validated for continuous operation in aggressive electroplating environments containing acidic Cr(III) sulfate or chloride baths (pH 2.0–4.5) and sodium hypophosphite concentrations ranging from 10–60 g/L. Its fluidic components are constructed from PTFE, PEEK, and chemically inert ceramics to resist corrosion from phosphorous acid byproducts and metal ion accumulation. The system complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. All firmware and data handling routines adhere to principles outlined in FDA 21 CFR Part 11 for electronic records and signatures—supporting user authentication, audit trails, and electronic signature capture where enabled. Calibration and verification procedures align with ASTM D1129 and ISO 8655-6 for volumetric apparatus performance evaluation.

Software & Data Management

The embedded ALT Control Suite provides a secure, role-based software environment for method development, sequence programming, and remote supervision. Users define custom titration sequences—including variable sample volume, titrant concentration, stirring speed, endpoint threshold, and post-analysis calculation formulas—via drag-and-drop workflow editor. All raw sensor data (mV, absorbance, time stamps), intermediate calculations, final results, and actuator commands (e.g., dosing pump ON/OFF duration) are timestamped and stored locally in SQLite format with automatic daily backup to external NAS or cloud-hosted SQL databases via configurable ODBC or RESTful API endpoints. Data export supports CSV, PDF report generation (with optional company logo and QA stamp), and direct integration into LIMS platforms through HL7 or ASTM E1384 messaging.

Applications

This analyzer is deployed across multiple electrochemical manufacturing segments requiring precise bath composition control: trivalent chromium passivation lines for zinc and aluminum substrates; electroless nickel-phosphorus (EN-P) deposition processes where NaH₂PO₂ serves as the reducing agent; and mixed-metal plating baths used in automotive and aerospace component finishing. Beyond electroplating, its modular titration engine supports online monitoring of total acidity in pickling lines, free acid concentration in anodizing baths, and chelant concentration in metal cleaning formulations. Field-proven integrations exist with PCB surface finish lines (e.g., immersion gold, OSP), textile dyeing auxiliaries, and wastewater neutralization systems—where rapid feedback enables dynamic pH and alkalinity correction.

FAQ

What types of electrodes are included in the base configuration?
The standard package includes a dual-platinum redox electrode set and a combination pH electrode calibrated for low-pH Cr(III) bath environments.
Can the system be integrated with existing plant SCADA or DCS infrastructure?
Yes—native support for Modbus TCP, Modbus RTU, and Ethernet/IP enables bidirectional communication with major industrial automation platforms including Siemens SIMATIC, Rockwell Allen-Bradley, and Yokogawa CENTUM.
How often does the system require maintenance or recalibration?
Electrode calibration is recommended before each production shift or after 24 hours of continuous operation; full system verification using certified reference solutions is advised weekly.
Is remote diagnostics and firmware updates supported?
Yes—the unit features secure SSH/TLS-enabled remote access for technical support, log retrieval, and over-the-air firmware upgrades without physical intervention.
Does the analyzer comply with cybersecurity standards for industrial IoT devices?
It implements TLS 1.2 encryption for data transmission, role-based access control, and disabled default credentials—all aligned with ISA/IEC 62443-3-3 Level 1 security requirements.
