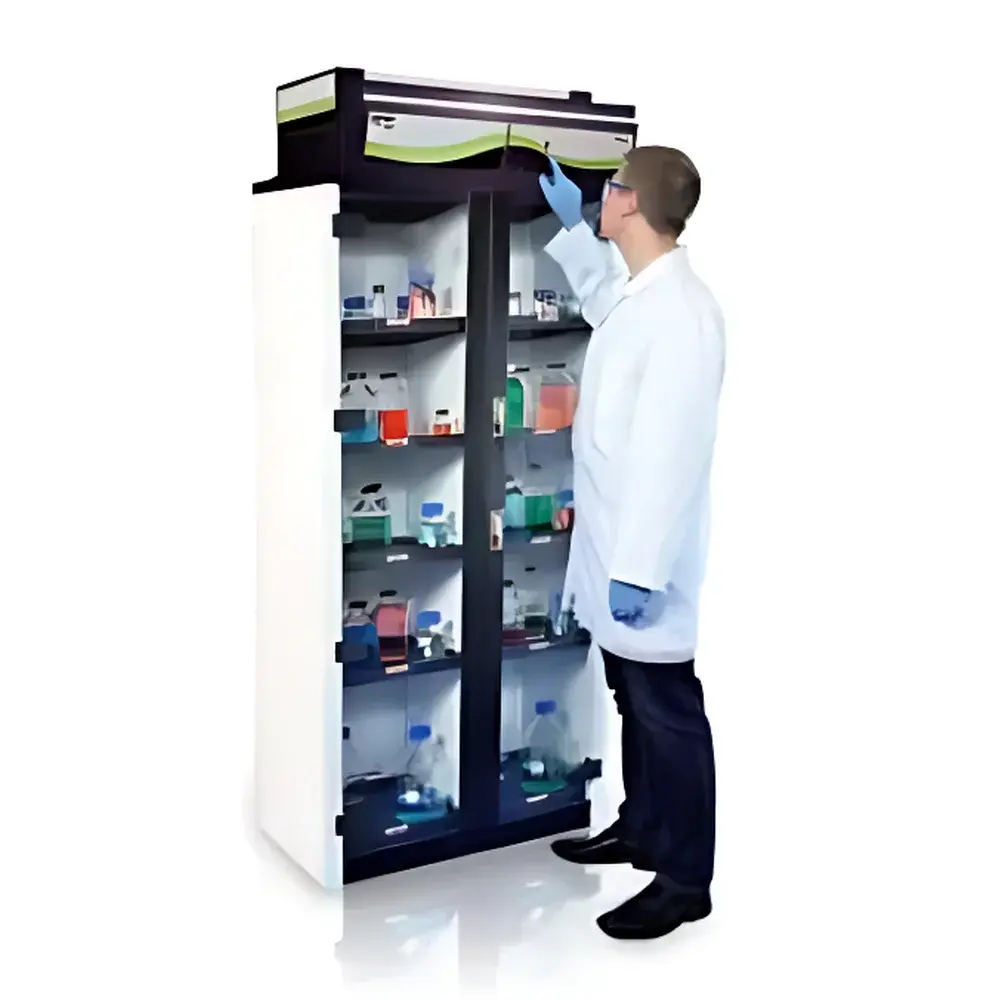

Erlab Captair 834 Smart Plug-and-Play Chemical Storage Cabinet
| Brand | Erlab |
|---|---|
| Origin | France |
| Model | Captair 834 Smart |
| Airflow Capacity | 220 m³/h |
| Dimensions (L×W×H) | 900 × 530 × 2138–2323 mm |
| Voltage/Frequency | 100–240 V AC / 50–60 Hz (Internal Circuit: 24 V DC) |
| Cabinet Material | Chemically resistant polypropylene (transparent front panels) + galvanized steel coated with acid-resistant polymer |
| Filter Frame Material | Polypropylene (PP) |
| Filtration Technology | Patented modular dual-layer filter system (primary + safety filter) |
| Safety Alarms | LED status band + audible tone coding for fan failure, face velocity deviation, or filter saturation |
| Compliance | AFNOR NF X 15-211:2009 (FR), SEFA 9 (US), BS 7989 (UK), DIN 12927 (DE), JG/T 385–2012 (CN), EN 1822:1998 (HEPA H14/ULPA U17) |
| Filter Efficiency | Residual chemical concentration < 1% of OSHA TWA or ACGIH TLV thresholds |
| Filter Saturation Detection | Molecode® S (organics), A (inorganics), F (formaldehyde) |
| Certified Test Reports | TÜV SGS (SEFA 9), Intertek (NF X 15-211), Tongji University (JG/T 385–2012) |
| Security | Dual-point mechanical lock |
Overview
The Erlab Captair 834 Smart is a CE-marked, plug-and-play recirculating chemical storage cabinet engineered for continuous, source-capture air purification in laboratories handling volatile organic compounds (VOCs), acids, bases, aldehydes, and mixed-phase reagents. Unlike traditional ducted cabinets requiring structural HVAC integration, the Captair 834 Smart operates as a self-contained unit—drawing ambient air through a patented dual-stage filtration architecture, removing airborne contaminants at the point of storage, and returning purified air to the laboratory environment. Its design adheres to the fundamental principle of exposure prevention: eliminating inhalation risk before hazardous vapors disperse. The cabinet’s operational integrity is validated against internationally harmonized safety benchmarks—including AFNOR NF X 15-211:2009, SEFA 9, and JG/T 385–2012—and certified via third-party testing from Intertek, SGS, and Tongji University. With a nominal airflow of 220 m³/h and a fully transparent polypropylene front panel, it enables real-time visual inventory management while maintaining full chemical resistance and optical clarity.
Key Features
- Modular dual-layer filtration system: Primary filter positioned below the centrifugal blower; safety filter mounted above—ensuring uninterrupted protection even during primary filter saturation.
- Intelligent status communication via dynamic LED light band and coded acoustic alerts: Distinct flash patterns and beep sequences indicate fan operation status, face velocity anomalies, or filter end-of-life conditions—no software interface required for basic diagnostics.
- eGuard™ cloud-connected platform: Enables remote monitoring, configuration updates, and usage analytics across multiple cabinets via smartphone or web browser after online registration.
- Chemical-specific saturation detection: Molecode® sensor modules (S/A/F variants) provide quantitative, compound-selective endpoint signaling aligned with OSHA TWA and ACGIH TLV thresholds—not generic time-based replacement schedules.
- Structural resilience: Front panel constructed from optically clear, UV-stabilized polypropylene; body frame from galvanized steel coated with acid-resistant polymer; all fasteners and internal components rated for long-term exposure to aggressive reagents.
- Flexible configuration options: Available in open-front or 1–2 large sliding-door variants to accommodate diverse bottle sizes, solvent cans, and powder containers without compromising containment integrity.
Sample Compatibility & Compliance
The Captair 834 Smart supports safe storage of liquids, powders, and hybrid formulations across over 600 documented chemical species, as verified in the Erlab Chemical Compatibility Handbook. Each filter module is pre-characterized for adsorption capacity (mass uptake at ≤1% TWA breakthrough), enabling precise service life estimation under defined storage conditions. Regulatory alignment includes compliance with ISO/IEC 17025-accredited test reports per AFNOR NF X 15-211:2009 (France), SEFA 9 (USA), BS 7989 (UK), DIN 12927 (Germany), and JG/T 385–2012 (China). HEPA H14 and ULPA U17 filtration media meet EN 1822:1998 specifications for particulate retention. The cabinet also satisfies GLP-relevant requirements for audit-trail-capable logging (via eGuard™) and tamper-evident dual-point mechanical locking.
Software & Data Management
eGuard™ serves as the secure, role-based digital interface for fleet-level oversight. Upon activation, users gain access to real-time cabinet metrics—including cumulative runtime, filter saturation percentage, airflow stability index, and alarm history—with exportable CSV logs for internal QA review or regulatory submission. All data transmissions are encrypted (TLS 1.2+), and user permissions support hierarchical access control (administrator, technician, lab manager). The system maintains local event buffering during network outages and synchronizes automatically upon restoration—ensuring continuity of record integrity. Audit trails comply with FDA 21 CFR Part 11 principles for electronic records and signatures when deployed in GxP environments.
Applications
This cabinet is deployed in academic research labs, pharmaceutical QC/QA suites, industrial R&D centers, and clinical chemistry departments where solvent-intensive workflows (e.g., HPLC mobile phase preparation, synthesis scale-up, histology staining) demand persistent vapor control without infrastructure retrofitting. It is especially suited for satellite labs, mobile facilities, or historic buildings where duct installation is prohibited. Common use cases include storage of acetone, methanol, hydrochloric acid, formaldehyde solutions, sodium azide stock vials, and pesticide standards—each benefiting from compound-specific Molecode® detection and dual-filter redundancy.
FAQ
Does the Captair 834 Smart require external ducting?
No. It is a fully recirculating system designed for plug-and-play operation without connection to building exhaust infrastructure.
How is filter lifetime determined?
Through real-time, chemistry-specific saturation sensing (Molecode®), not fixed time intervals—ensuring optimal utilization and eliminating premature replacement.
Can multiple cabinets be monitored centrally?
Yes. eGuard™ supports unified dashboard views across geographically distributed installations with configurable alert thresholds.
Is the cabinet suitable for storing flammable liquids?
It meets electrical safety requirements for Class I, Division 2 environments per NEC Article 500 but does not replace FM-approved flammable storage cabinets; consult local fire codes for combined deployment.
What certifications validate its performance claims?
Third-party test reports from Intertek (NF X 15-211), SGS (SEFA 9), and Tongji University (JG/T 385–2012) are available upon request and form the basis of CE marking under EN 1822.
