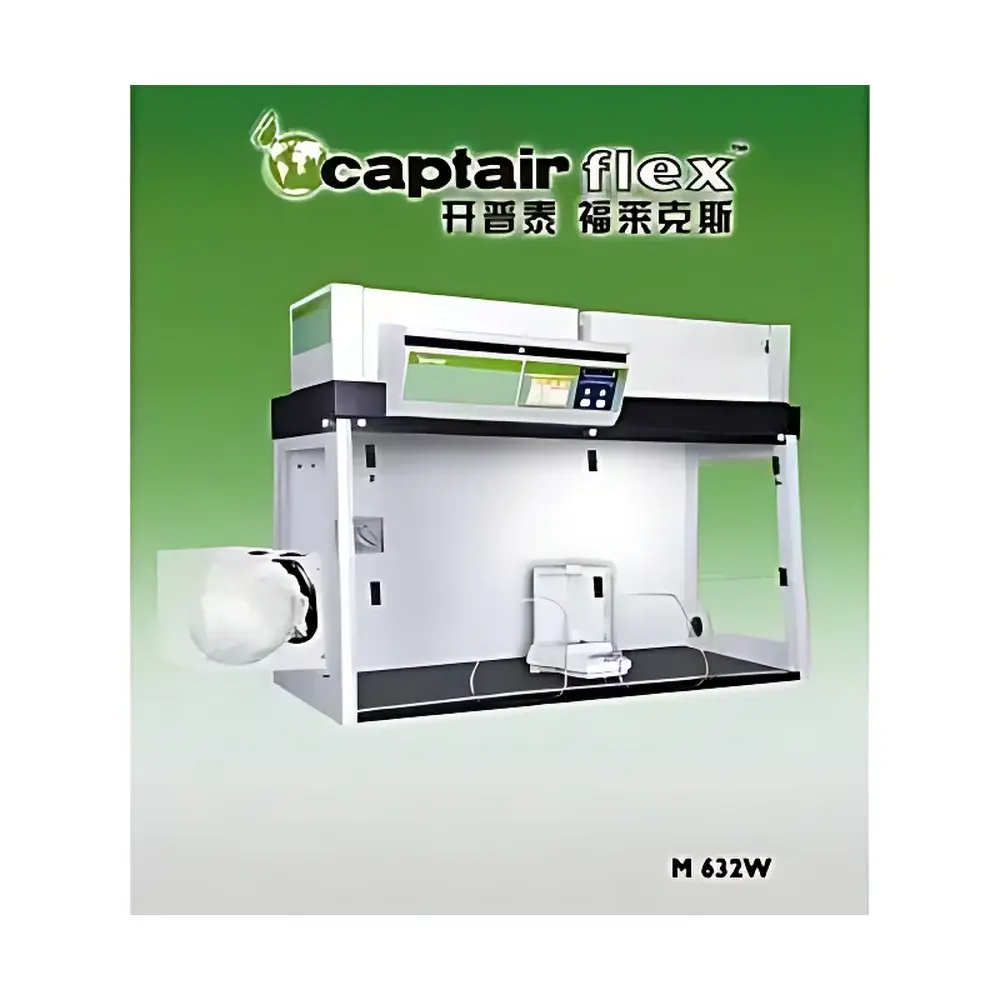

Erlab Captair® Flex M632W Safe Weighing Workstation

Overview

The Erlab Captair® Flex M632W Safe Weighing Workstation is a certified recirculating fume hood engineered for high-integrity containment during precision weighing, low-volatility chemical handling, and particulate-sensitive operations—including powder dispensing, solvent-free formulation, and cleanroom-adjacent analytical preparation. Unlike ducted hoods that exhaust conditioned laboratory air, the M632W employs a closed-loop airflow architecture based on active mechanical extraction and dual-stage molecular filtration. Air is drawn across the work surface at a controlled face velocity of 0.4–0.6 m/s—validated per AFNOR NF X 15-211:2009—and passed sequentially through two identical, vertically stacked molecular filter cartridges. This design ensures continuous protection even during progressive saturation of the lower filter stage, eliminating unfiltered bypass pathways. The unit operates at 460 m³/h total airflow with a nominal power draw of 125 W, delivering energy efficiency without compromising containment integrity.

Key Features

• Dual-layer molecular filtration system compliant with Class 1 performance per NF X 15-211: two identically specified filter modules (upper and lower) provide redundant adsorption capacity for organic vapors, acids, bases, and aldehydes.
• Captair® Flex™ digital control panel integrates real-time airflow monitoring, audible/visual alarms for velocity deviation, programmable maintenance timers (60-hour default), and optional Melecode™ S sensor integration for organic vapor breakthrough detection.
• Ergonomic front panel geometry: 15° forward tilt improves operator posture and visual access; elliptical sash opening accommodates natural arm movement; central splash guard mitigates lateral splashes; curved work surface edge supports forearm stability during prolonged tasks.
• IP67-rated 18 W fluorescent lighting (500 lux at work surface) ensures uniform, glare-free illumination across the full internal width—critical for reading analytical balance displays and identifying particulate contamination.
• Low-voltage internal electronics (24 V DC) enhance electrical safety in wet or conductive environments; noise emission limited to 55 dB(A) at 1 m—compatible with open-plan lab layouts requiring acoustic discretion.
• Modular installation: self-contained unit requires only standard 100–240 V AC outlet; no external ductwork, roof penetration, or HVAC coordination needed; optional castor base enables repositioning without structural modification.

Sample Compatibility & Compliance

The M632W is validated for use with liquid reagents, dry powders, and mixed-phase samples involving volatile solvents, hygroscopic compounds, and low-to-moderate toxicity agents (e.g., methanol, acetone, ammonium hydroxide, sodium azide). Its Class 1 filtration rating—verified by independent SGS testing per NF X 15-211—confirms <0.1% breakthrough for target contaminants under defined challenge conditions. The workstation meets ISO 14644-1 Class 8 (ISO 8) ambient compatibility requirements when deployed adjacent to clean zones. It supports GLP-compliant workflows through audit-ready event logging (via optional software interface), traceable filter service records, and built-in airflow validation prompts aligned with USP and ASTM E2500-13 guidance on equipment qualification.

Software & Data Management

While the base M632W operates via embedded firmware without cloud connectivity, its Captair® Flex™ control panel supports data export via USB for local archival. Optional integration with Erlab’s LabManager™ Suite (v3.2+) enables centralized monitoring of multiple units, automated filter life tracking using cumulative runtime and Melecode™ S sensor feedback, and PDF report generation for maintenance history and airflow verification. All logged events—including alarm triggers, velocity deviations, and manual override actions—are time-stamped and stored with immutable timestamps, satisfying FDA 21 CFR Part 11 requirements for electronic records when deployed with appropriate system validation protocols.

Applications

• High-accuracy mass measurement of reference standards, pharmaceutical intermediates, and catalysts where ambient humidity or airborne particulates compromise balance repeatability.
• Weighing of cytotoxic or sensitizing powders (e.g., paclitaxel, platinum complexes) under ISO 14644-1 Class 8 background conditions.
• Preparation of calibration standards for ICP-MS, HPLC, and GC-MS systems requiring solvent minimization and headspace control.
• Handling of moisture-sensitive reagents (e.g., LiAlH₄, PCl₅) where inert gas purging is impractical but atmospheric exclusion remains essential.
• QC/QA release testing in GMP environments where localized containment must coexist with shared laboratory HVAC infrastructure.

FAQ

What filtration media are used in the M632W’s dual-layer system?
The unit employs activated carbon impregnated with chemisorbent additives (e.g., potassium permanganate for aldehydes, copper oxide for ammonia), configured identically in both upper and lower filter frames per NF X 15-211 Class 1 specifications.
Can the M632W be installed in a non-ventilated room?
Yes—the recirculating design eliminates dependency on building exhaust systems; however, ambient CO₂ levels and general air exchange should remain within OSHA PEL limits (5,000 ppm) for occupant safety.
How often must filters be replaced?
Replacement frequency depends on chemical load and usage intensity; the 60-hour timer provides a conservative baseline, but colorimetric tube testing at the dedicated sampling port is the definitive method for determining saturation.
Is the M632W suitable for perchloric acid digestion?
No—perchloric acid applications require water-washed ducted hoods with corrosion-resistant liners and explosion-proof components; the M632W is not rated for oxidizing acid mists.
Does the unit comply with European CE marking requirements?
Yes—it carries CE marking under the Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU, with conformity assessment conducted by TÜV Rheinland.
