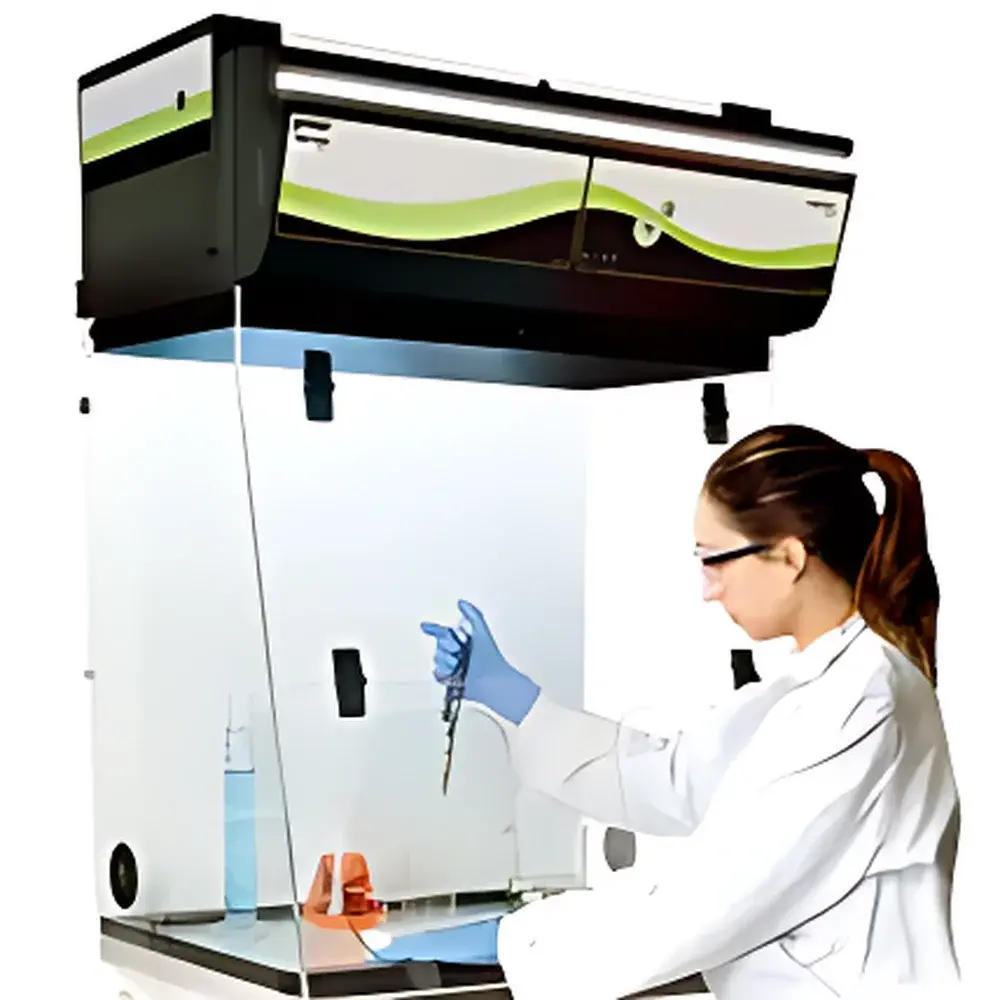

Erlab Captair Smart Recirculating Fume Hood

Overview

The Erlab Captair Smart is a high-performance, recirculating (ductless) fume hood engineered for precision containment and operator safety in modern chemistry, pharmaceutical, and academic laboratories. Unlike conventional ducted hoods that exhaust conditioned air outdoors, the Captair Smart employs an integrated, top-mounted centrifugal blower and modular adsorption filtration system to draw contaminated air from the work area, pass it through chemically selective filter media, and return purified air back into the laboratory environment—reducing HVAC load and energy consumption without compromising protection. Its operation is based on the principle of dynamic negative pressure control: the blower maintains a consistent inward face velocity of 0.4–0.6 m/s across the sash opening, ensuring reliable containment of volatile organic compounds (VOCs), inorganic acids, aldehydes, ammonia, and fine particulates. Designed and manufactured in France, the Captair Smart adheres to internationally recognized performance benchmarks—including SEFA 9 (Scientific Equipment and Furniture Association) and JG/T 385–2012 (Chinese national standard for recirculating fume hoods)—and has undergone third-party validation for SF₆ tracer gas leakage (≤0.5 ppm at the operator breathing zone), confirming its suitability for routine handling of moderate-hazard chemicals under GLP-compliant workflows.

Key Features

• Modular, application-specific filtration architecture supporting five certified filter configurations: GF4 AS (predominantly organic vapors), GF4 BE+ (dual organic/inorganic capture), GF4 F (formaldehyde-selective), GF4 K (ammonia-specific), and GF4 HP (HEPA-grade particulate retention).
• Real-time, chemistry-specific saturation monitoring via Erlab’s Molecode sensor suite—Molecode S (organic), A (inorganic), and F (formaldehyde)—providing early warning prior to breakthrough and enabling predictive maintenance scheduling.
• Ergonomically optimized front sash with patented flip-up mechanism (models 392/483/633/714): allows unobstructed access from above or below while maintaining certified face velocity; complemented by a contoured, arc-edged work surface and tilted sash geometry to reduce operator fatigue during extended use.
• Robust full-steel enclosure featuring epoxy-coated galvanized steel structural frame and seamless, chemical-resistant polypropylene (PP) side and rear panels—resistant to corrosion from HCl, HNO₃, acetone, ethanol, and other common reagents.
• Integrated 24 V DC low-voltage control system with fail-safe airflow monitoring, audible/visual alarms, and automatic shutdown upon filter saturation or airflow deviation beyond ±10% of setpoint.

Sample Compatibility & Compliance

The Captair Smart accommodates a broad spectrum of laboratory activities involving liquid handling, powder weighing, solvent evaporation, and low-to-moderate toxicity synthesis. It is validated for continuous use with >600 chemicals documented in Erlab’s publicly available Chemical Compatibility Handbook—including isopropanol, cyclohexane, hydrochloric acid, formaldehyde, and ammonia—at concentrations up to 1% of their respective Threshold Limit Values (TLVs®). All models comply with JG/T 385–2012 (People’s Republic of China), SEFA 9–2022 (USA), and EU Machinery Directive 2006/42/EC, carrying CE marking. Full 3Q documentation (Installation Qualification, Operational Qualification, Performance Qualification) is provided for GMP-regulated environments. While not classified as medical devices, its design supports alignment with FDA 21 CFR Part 11 requirements when integrated with compliant LIMS or ELN platforms via optional digital I/O interfaces.

Software & Data Management

The Captair Smart operates autonomously without external software but supports audit-ready data logging via its embedded microcontroller. All critical operational parameters—including real-time face velocity, total airflow volume, cumulative runtime, filter service intervals, and Molecode saturation status—are timestamped and stored locally for ≥12 months. Optional RS-485 or Modbus RTU output enables integration with building management systems (BMS) or centralized lab monitoring dashboards. Filter replacement logs, calibration records, and third-party test reports (e.g., SF₆ leakage, JG/T 385–2012 verification) are supplied in PDF format with each unit, fulfilling GLP documentation traceability requirements. No cloud connectivity or proprietary subscription services are required or implemented—ensuring data sovereignty and IT security compliance.

Applications

• Routine analytical sample preparation involving acid digestion, solvent extraction, or derivatization in QC/QA labs.
• Pharmaceutical formulation development where solvent recovery and ambient air quality preservation are prioritized.
• University teaching laboratories requiring safe, low-infrastructure ventilation for undergraduate organic chemistry experiments.
• Research settings handling low-volatility organics, mild inorganic acids, or formaldehyde-based fixatives—particularly where duct installation is impractical or cost-prohibitive.
• Cleanroom-adjacent applications using GF4 HP + GF4 BE+ dual-stage filtration to maintain ISO Class 7 particulate integrity while managing chemical emissions.

FAQ

Does the Captair Smart require external ductwork?
No. It is a fully self-contained recirculating fume hood and does not connect to a central exhaust system.
Can it be used with perchloric acid or hydrofluoric acid?
No. Perchloric acid, hydrofluoric acid, and other highly reactive or high-boiling-point acids are excluded from the approved chemical list due to irreversible filter degradation and safety risks.
How often must filters be replaced?
Replacement frequency depends on usage intensity and chemical profile; typical service life ranges from 6–24 months, guided by Molecode sensor alerts and Erlab’s online filter life calculator.
Is third-party certification documentation available for regulatory submissions?
Yes—certified test reports for JG/T 385–2012, SEFA 9, CE, and SF₆ leakage testing, along with full 3Q packages, are provided upon order confirmation.
What electrical infrastructure is required?
Standard 100–240 V AC, 50/60 Hz single-phase supply; internal electronics operate at 24 V DC, eliminating grounding hazards and enabling flexible placement within lab layouts.
