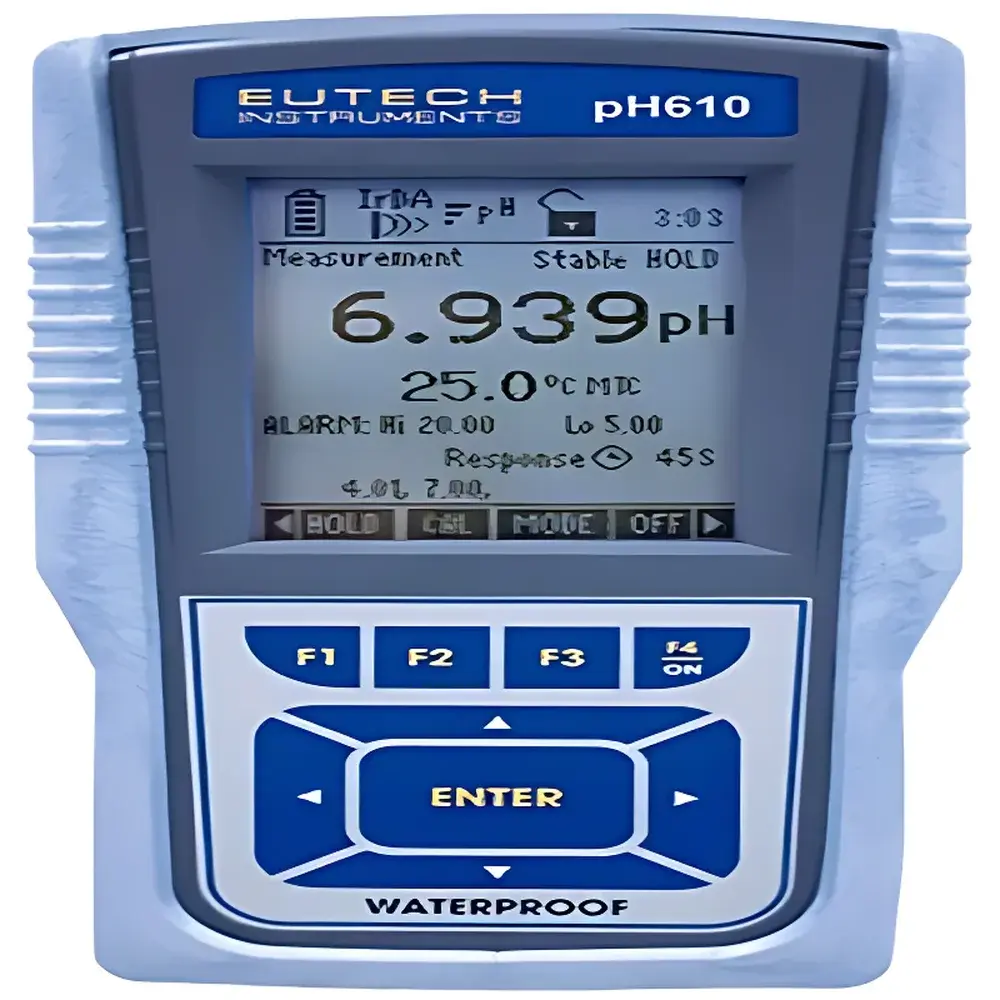

Eutech CyberScan pH 610 Portable pH/ORP/mV/Temperature Meter

Overview

The Eutech CyberScan pH 610 is a high-precision, field-deployable electrochemical meter engineered for rigorous pH, ORP (oxidation-reduction potential), mV, and temperature measurements in diverse laboratory, industrial, and environmental applications. Based on potentiometric measurement principles, the instrument employs a stable reference electrode system and high-impedance input circuitry (≥10¹² Ω) to ensure minimal current draw and maximal signal fidelity—critical for accurate pH determination across extreme ranges (–2.000 to 20.000 pH). Its dual-mode temperature compensation (automatic or manual) integrates with Nernstian slope calculation to correct for thermal drift in real time, supporting compliance with ASTM D1293, ISO 10523, and USP . Designed for operational continuity in non-laboratory settings, the CyberScan pH 610 meets IP67 ingress protection standards—fully dust-tight and submersible up to 1 m for 30 minutes—making it suitable for wastewater monitoring, aquaculture, field soil analysis, and pharmaceutical process water verification.

Key Features

• Triple-range pH resolution (0.1 / 0.01 / 0.001) with ±0.002 pH relative accuracy—validated per IUPAC traceable calibration protocols
• Simultaneous display of pH, mV, temperature, electrode slope (%), and offset (mV)—enabling real-time diagnostic assessment of electrode health
• Intelligent auto-buffer recognition across five standardized buffer families (USA, NIST, DIN, PWB) plus user-defined entries—reducing calibration errors and operator dependency
• Up to six-point calibration with slope/offset diagnostics—supporting multi-point linearity verification required under GLP and GMP environments
• Integrated IR (IrDA) and RS232C interfaces for secure, audit-ready data export—compatible with LIMS and electronic lab notebooks (ELN)
• Backlit LCD (5.4 × 7.1 cm) with contrast adjustment—optimized for low-light field conditions and glove-compatible operation
• Programmable auto-off (2–30 min) and battery-saving architecture—delivering >500 hours of continuous operation on standard AAA alkaline cells

Sample Compatibility & Compliance

The CyberScan pH 610 accommodates standard BNC, phono (RCA), and 8-pin DIN electrode connectors—ensuring compatibility with Eutech’s full range of refillable, gel-filled, and solid-state pH/ORP probes (e.g., pH 300, ORP 300, Temp 300 series). It supports aqueous samples across conductivity ranges from 10 µS/cm to 2 S/cm, including low-ionic-strength solutions (e.g., deionized water, rainwater) when used with low-drift double-junction electrodes. The device conforms to IEC 61010-1 (safety), IEC 61326-1 (EMC), and FDA 21 CFR Part 11 requirements for electronic records when paired with compliant data management software. Its GLP-compliant logging includes timestamped calibration events, electrode ID tracking (where supported), and full audit trails—essential for ISO/IEC 17025-accredited testing laboratories.

Software & Data Management

Data capture is managed via embedded non-volatile memory storing up to 500 complete measurement sets—including pH, mV, temperature, date/time stamp, calibration history, and user ID (if configured). Export is performed via IrDA (Class 1, 115.2 kbps) or RS232C (DB9) to PCs running Eutech’s free CyberLink software or third-party platforms supporting ASCII CSV output. CyberLink enables batch export, statistical analysis (mean, SD, RSD), trend graphing, and PDF report generation with digital signature fields—meeting ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity criteria. All exported files include metadata headers identifying instrument serial number, firmware version, and calibration status—facilitating traceability during regulatory inspections.

Applications

• Environmental monitoring: Surface water, groundwater, effluent discharge, and stormwater pH/OPR profiling per EPA Method 150.1 and ISO 5667-3
• Pharmaceutical manufacturing: Purified water (PW) and water-for-injection (WFI) quality checks aligned with USP and EU Annex 1
• Food & beverage QC: Fermentation broth monitoring, dairy product titratable acidity validation, and cleaning-in-place (CIP) rinse verification
• Aquaculture & hydroponics: Real-time nutrient solution stability tracking and CO₂/bicarbonate equilibrium assessment
• Educational labs: Undergraduate electrochemistry experiments requiring Nernst equation validation and buffer capacity analysis

FAQ

Does the CyberScan pH 610 support automatic temperature compensation (ATC) with all electrode types?
Yes—ATC is enabled when a compatible temperature probe (e.g., Eutech Temp 300) is connected via the 8-pin DIN port; manual compensation is available if no probe is detected.
Can calibration data be password-protected or restricted by user role?
No—the instrument does not feature multi-user authentication; however, calibration logs are immutable and time-stamped to prevent post-hoc modification.
Is the device suitable for measuring pH in non-aqueous or high-alcohol-content samples?
It is calibrated and validated for aqueous systems only; non-aqueous solvents require specialized electrodes and empirical correction factors beyond the scope of standard operation.
What is the recommended recalibration frequency under GLP conditions?
Per ISO/IEC 17025:2017 Clause 7.7.1, recalibration shall occur before each analytical batch, after electrode replacement, following exposure to extreme pH or contaminants, and at least once per 24 hours of continuous use.
How is compliance with FDA 21 CFR Part 11 ensured during data transfer?
CyberLink software provides electronic signatures, audit trail review functions, and export lock-down options—though full Part 11 compliance requires site-specific validation of the entire workflow (instrument, software, network, storage).
