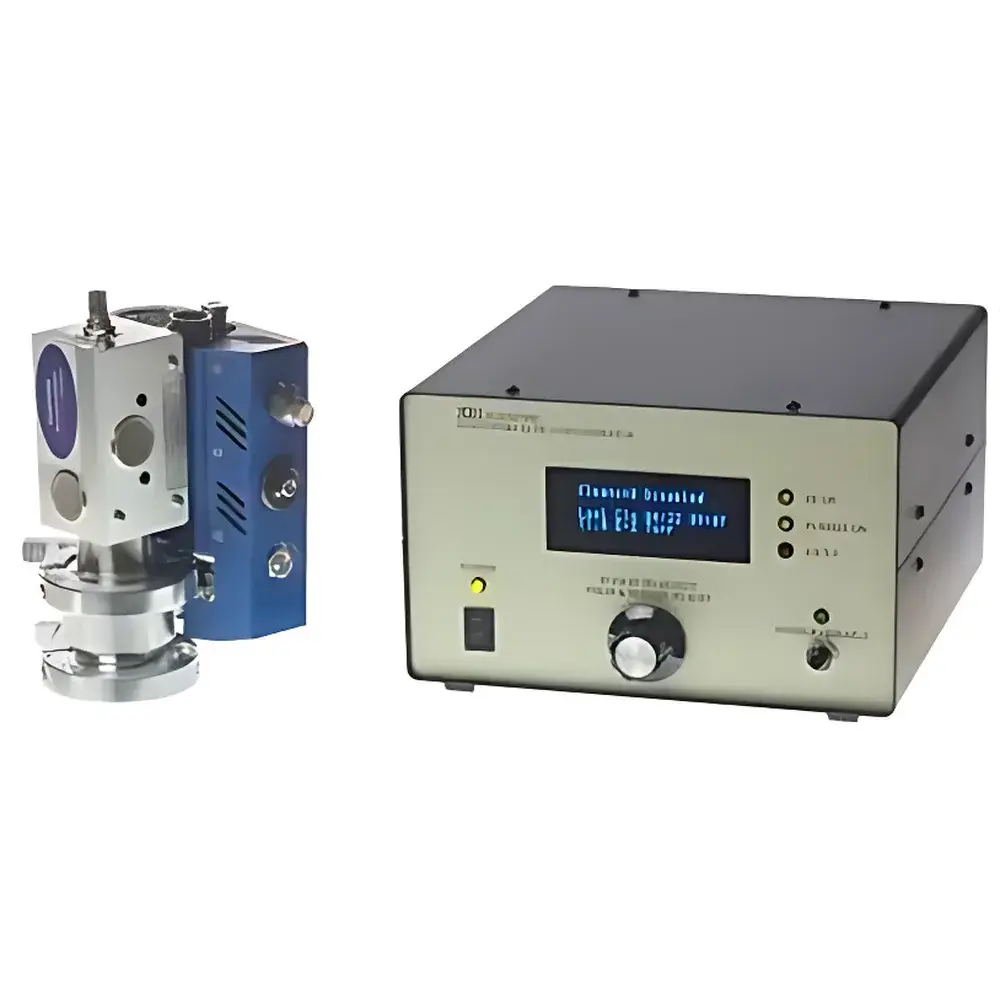

Evactron Plasma Cleaner for Electron Microscopy

Overview

The Evactron Plasma Cleaner is a high-vacuum compatible, low-power, RF-excited plasma system engineered specifically for in-situ cleaning of electron microscope chambers—including scanning electron microscopes (SEM), focused ion beam (FIB) systems, and dual-beam FIB-SEM platforms—as well as other ultra-high vacuum (UHV) analytical instruments such as X-ray photoelectron spectroscopy (XPS) and Auger electron spectrometers. It operates via downstream, non-contact, oxygen-based plasma generation at pressures between 1 × 10⁻² and 5 × 10⁻¹ Torr, producing reactive atomic oxygen species that selectively oxidize and volatilize hydrocarbon contaminants—including pump oils, fingerprint residues, and deposition byproducts from gas injection systems—without damaging sensitive chamber components, detector windows (e.g., Si(Li) or SDD EDX detectors), or sample stages. Unlike thermal or solvent-based cleaning methods, the Evactron process preserves vacuum integrity, avoids mechanical abrasion, and requires no venting or disassembly.

Key Features

• RF-powered, capacitively coupled plasma source operating at 13.56 MHz with automatic impedance matching for stable, repeatable plasma ignition across varying chamber geometries.
• Downstream configuration ensures no direct plasma exposure to samples or optics—eliminating risk of surface charging, etching, or UV-induced damage.
• Integrated pressure-controlled gas delivery system supporting pure O₂ or O₂/N₂ mixtures; optional mass flow controller for precise gas dosing.
• Programmable cleaning cycles (duration, power level, gas flow) stored in non-volatile memory for GLP-compliant repeatability.
• Compact, modular design with CF-40 or ISO-KF 63 flange options for seamless integration into existing vacuum lines without chamber modification.
• Real-time RF power and reflected power monitoring with audible/visual fault alerts for preventive maintenance logging.

Sample Compatibility & Compliance

The Evactron system is compatible with all major SEM and FIB platforms (including Thermo Fisher Scientific, Zeiss, JEOL, Hitachi, and Tescan) and integrates directly with standard UHV-compatible vacuum interlocks. It complies with ISO 14644-1 Class 5 cleanroom requirements when operated in controlled environments and meets electromagnetic compatibility standards per FCC Part 18 and CE EN 61326-1. For regulated laboratories, the system supports audit-ready operation under FDA 21 CFR Part 11 when paired with validated instrument control software (e.g., Evactron Control Suite v3.x), enabling electronic signatures, user access levels, and immutable cleaning logs traceable to operator ID, timestamp, and cycle parameters.

Software & Data Management

The Evactron Control Suite provides Windows-based local operation with intuitive GUI for defining, saving, and recalling cleaning protocols. Each session generates a timestamped CSV log file containing start/stop time, applied RF power (W), forward/reflected power ratio (%), chamber pressure (Torr), total gas consumption (sccm·min), and operator ID. Logs are exportable for inclusion in instrument maintenance records or LIMS integration. Optional OPC UA server support enables centralized monitoring across multi-instrument facilities. All firmware updates are digitally signed and delivered via secure HTTPS, ensuring integrity verification prior to installation.

Applications

• Restoration of secondary electron detector (SED) and backscattered electron (BSE) detector sensitivity degraded by carbonaceous buildup.
• Maintenance of EDX detector window transmission efficiency—critical for quantitative elemental analysis accuracy.
• Pre-analysis chamber conditioning to minimize background carbon signal and improve detection limits in EDS and WDS mapping.
• Cleaning of FIB gas injection system nozzles and nearby apertures to prevent clogging and ensure consistent precursor delivery.
• Removal of beam-induced contamination during in-situ nanofabrication or TEM lamella preparation workflows.
• Routine preventative maintenance between high-magnification imaging sessions to sustain sub-nanometer resolution stability over extended operational periods.

FAQ

Can the Evactron be used while the electron column is installed?
Yes—Evactron cleaning is performed under high vacuum (typically 10⁻²–10⁻¹ Torr), fully compatible with column-mounted configurations. No column removal or venting is required.
Does plasma cleaning affect aluminum or gold sputter-coated samples?
No—downstream atomic oxygen does not interact with bulk metals or conductive coatings; it targets only adsorbed organics. Verified per ASTM E1559 mass loss testing.
How often should routine cleaning be scheduled?
For high-throughput labs, weekly 10-minute cycles are typical; for low-use systems, biweekly or pre-critical-session cleaning suffices—determined by residual hydrocarbon partial pressure monitoring.
Is ozone generation a concern during operation?
Minimal—integrated catalytic converter and exhaust line scrubbing reduce ozone output to <0.05 ppm at 30 cm, well below OSHA PEL limits.
What vacuum pumps are compatible?
All standard turbomolecular-pumped systems with backing via dry scroll or diaphragm pumps; oil diffusion pumps require cold traps to prevent backstreaming during plasma activation.
