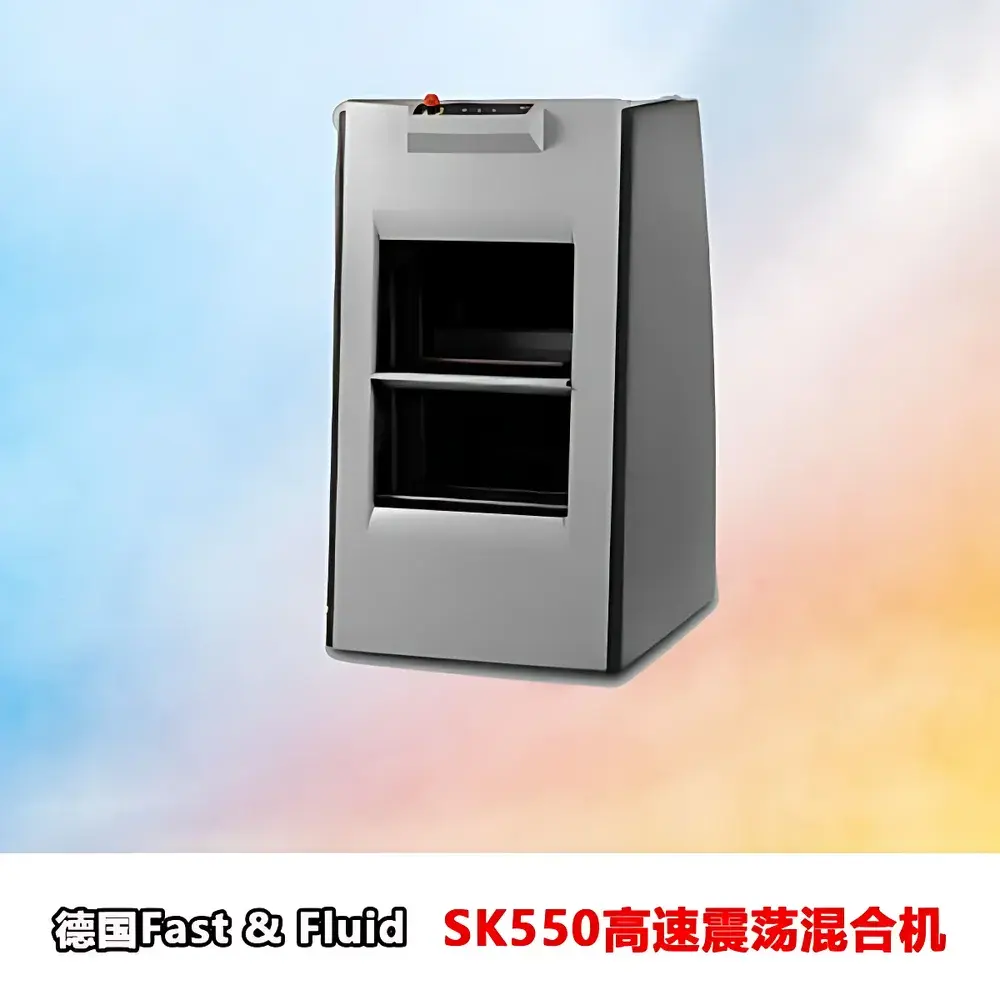

Fast & Fluid SK550 Heavy-Duty Oscillating Mixer

Overview

The Fast & Fluid SK550 Heavy-Duty Oscillating Mixer is an industrial-grade laboratory and production mixing system engineered for high-reproducibility homogenization of viscous, heterogeneous, or sediment-prone materials—particularly coatings, paints, inks, adhesives, sealants, and composite pastes. Unlike orbital shakers or vortex mixers, the SK550 employs a precisely controlled horizontal oscillation mechanism based on balanced eccentric drive architecture, delivering consistent linear displacement across the entire platform. This motion profile minimizes shear-induced degradation while maximizing bulk material turnover, making it especially suitable for pigment dispersion, filler wetting, and solvent recovery applications where particle integrity and phase stability are critical. Designed and assembled in Germany under ISO 9001-certified processes, the SK550 integrates mechanical robustness with operator-centric interface design, supporting both standalone operation and networked process monitoring in regulated environments.

Key Features

• Graphical LCD display with intuitive menu navigation—enables real-time visualization of cycle stage, elapsed time, speed status, and error codes.
• Dual clamping detection (high/low position sensing) ensures automatic safety interlock activation when vessels are improperly seated or exceed height limits (6–45 cm).
• Four factory-preset oscillation durations (e.g., 30 s, 60 s, 120 s, 300 s), plus user-defined custom timing up to 99 minutes 59 seconds—editable even during active mixing.
• Variable-speed control with soft-start functionality prevents splashing and mechanical shock during acceleration; maximum oscillation frequency optimized for 40 kg load capacity.
• Bidirectional oscillation mode available as factory-installed option—enhances mixing uniformity for asymmetric or high-viscosity formulations.
• Automatic speed limiting adapts motor output based on load inertia and vessel geometry, preserving motor longevity and reducing acoustic emissions.
• Integrated USB port enables direct connection to Windows-based diagnostic software for firmware updates, calibration logging, and predictive maintenance reporting.
• Modular component architecture—shared drive assemblies, sensors, and control boards across Fast & Fluid’s SK-series mixers reduce spare parts inventory for multi-instrument labs.

Sample Compatibility & Compliance

The SK550 accommodates cylindrical, conical, and rectangular containers—including industry-standard paint cans (1–20 L), metal pails, glass jars, and composite drums—within its 40 kg payload limit and 6–45 cm vertical envelope. Its oscillation amplitude and frequency range are validated for non-Newtonian fluids with apparent viscosities from 500 mPa·s to >50,000 mPa·s (measured per ASTM D1084). The unit complies with CE marking requirements (2014/30/EU EMC Directive, 2014/35/EU Low Voltage Directive), RoHS 2011/65/EU restrictions on hazardous substances, and conforms to EN 61000-6-2/6-4 immunity and emission standards. While not intrinsically rated for ATEX Zones, optional grounding kits and static-dissipative platform inserts are available for solvent-handling workflows requiring charge mitigation.

Software & Data Management

The SK550 supports traceable operation through Fast & Fluid’s proprietary Diagnostic Suite v3.2 (Windows 10/11 compatible), accessible via USB. This application logs timestamped event records—including start/stop cycles, parameter modifications, fault triggers, and thermal sensor readings—for GLP/GMP-aligned documentation. Audit trails comply with FDA 21 CFR Part 11 requirements when deployed with validated user authentication and electronic signature modules. Raw operational data exports in CSV format for integration into LIMS or MES platforms. No cloud connectivity is embedded; all data remains locally stored unless explicitly transferred by authorized personnel.

Applications

• Pigment dispersion and rheological conditioning of architectural and automotive coatings prior to viscosity measurement (ISO 2555, ASTM D1200).
• Homogenization of two-component adhesives and epoxy resins before dispensing or curing validation.
• Re-suspension of settled ceramic slurries, battery electrode pastes, and pharmaceutical suspensions (USP <>701).
• Pre-analytical sample preparation for elemental analysis (ICP-OES, XRF), ensuring representative sub-sampling of heterogeneous powders or sludges.
• QC batch release testing in paint manufacturing lines—integrated into SOP-driven workflows with documented parameter lockout and revision-controlled presets.

FAQ

Is the SK550 suitable for explosive or flammable solvent-based formulations?
The base unit is not certified for Class I Division 1 environments. Optional static-control accessories and grounding hardware may be installed to mitigate ignition risk—but formal ATEX or IECEx certification requires third-party hazardous-area validation.
Can multiple SK550 units be synchronized or networked?
No native Ethernet or Wi-Fi interface is provided. Synchronization must be achieved externally via PLC-level timing signals or centralized PC control using the USB diagnostic interface.
What maintenance intervals are recommended?
Lubrication of the oscillation linkage assembly is required every 12 months or after 2,000 operating hours; belt tension verification is advised quarterly. Full calibration verification is recommended annually using NIST-traceable inertial load standards.
Are replacement clamps and platform inserts available as consumables?
Yes—standard clamp sets (for 1–5 L and 10–20 L vessels), rubberized anti-slip inserts, and stainless-steel platform overlays are catalogued separately under Fast & Fluid part numbers SK-CLAMP-STD, SK-INSERT-RUB, and SK-PLAT-SS.
Does the SK550 support regulatory audit trails for pharmaceutical use?
When configured with Diagnostic Suite v3.2 + validated Windows OS environment and role-based access controls, it meets ALCOA+ data integrity principles and supports 21 CFR Part 11 compliance—subject to site-specific validation protocols.
