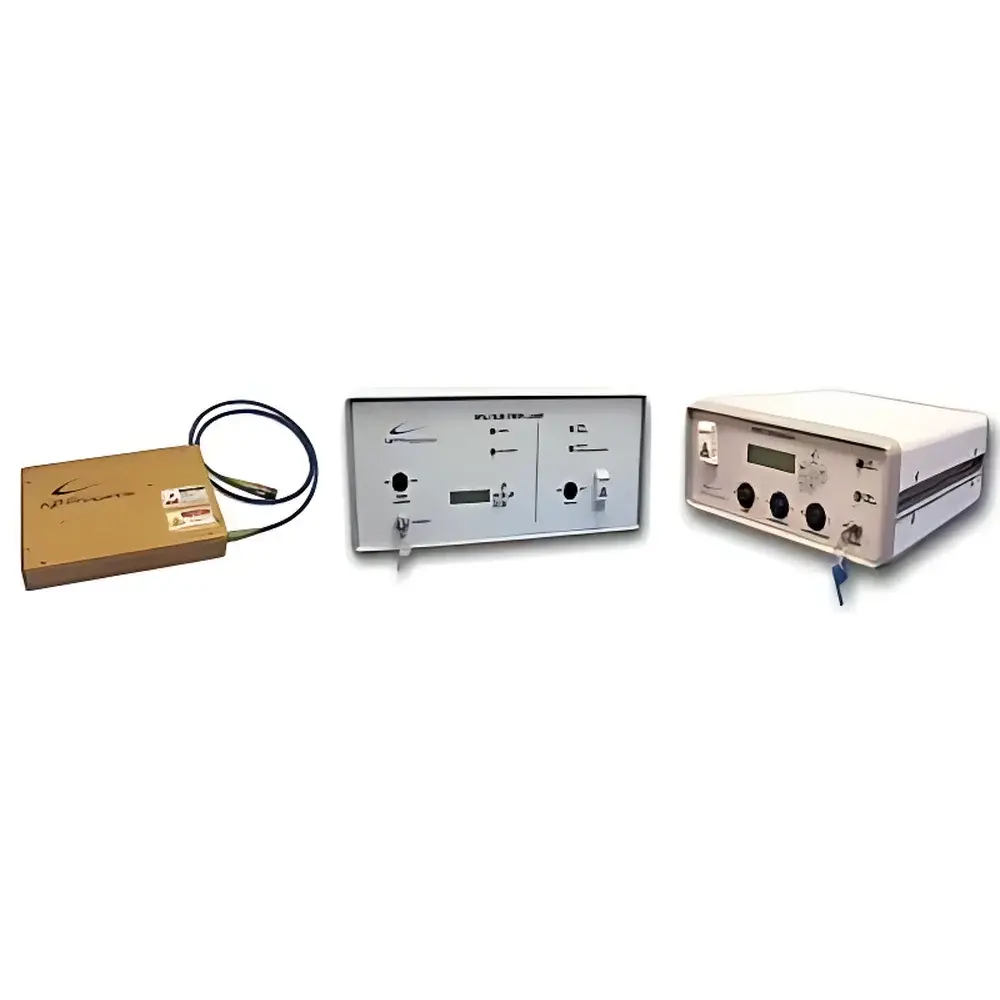

Fianium FemtoPower1060-15 High-Power Passively Mode-Locked Fiber Laser
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FP1060-15 |
| Price | Upon Request |
| Wavelength | 1064 ± 1 nm |
| Pulse Width | <20 ps |
| Spectral Linewidth | <25 nm |
| Repetition Rate | 40–100 MHz |
| Average Output Power | 15 W |
| Pulse Energy | 350 nJ |
| Peak Power | >20 kW |
| Beam Quality (M²) | <1.1 |
| Beam Diameter | 2 mm |
| Beam Divergence | 0.7 mrad |
| Amplitude Noise | ≤2% RMS |
| Power Consumption | <250 W |
| Dimensions (W×L×D) | TBA mm |
| Weight | 6 kg |
Overview
The Fianium FemtoPower1060-15 is a high-repetition-rate, passively mode-locked fiber laser engineered for demanding ultrafast photonics applications requiring robust, turnkey performance at 1064 nm. Based on an integrated oscillator-amplifier architecture, this laser delivers stable, diffraction-limited output with exceptional temporal fidelity and long-term power stability. Its all-fiber design eliminates free-space alignment, enhancing reliability and reducing sensitivity to environmental perturbations. The system operates without water cooling—relying solely on intelligent forced-air thermal management—making it suitable for integration into compact optical tables, industrial workstations, and regulated laboratory environments where footprint and operational simplicity are critical. As a product of Fianium (now part of NKT Photonics), the FemtoPower1060-15 reflects over two decades of expertise in ultrafast fiber laser engineering, adhering to stringent ISO 9001-certified manufacturing protocols and traceable calibration practices.
Key Features
- Passively mode-locked Yb-doped fiber oscillator followed by multi-stage polarization-maintaining fiber amplification
- Output centered at 1064 ± 1 nm with spectral bandwidth <25 nm (FWHM), optimized for nonlinear frequency conversion and pump-probe compatibility
- Pulse duration <20 ps (transform-limited), enabling high peak-power delivery while maintaining excellent temporal contrast
- Repetition rate tunable from 40 to 100 MHz—software-controllable via RS232 or USB interface for synchronization with external equipment
- Beam quality M² < 1.1 and collimated 2 mm output beam with divergence <0.7 mrad, compatible with standard off-the-shelf optics and scanning systems
- Amplitude noise ≤2% RMS (20 Hz–10 MHz), meeting requirements for quantitative pump-probe spectroscopy and time-resolved fluorescence lifetime imaging
- Fully enclosed, fan-cooled chassis with EMI-shielded housing; no external chiller or compressed air required
- Compliance with IEC 60825-1:2014 Class 4 laser safety standards; includes interlock-ready connector and key-switch enable
Sample Compatibility & Compliance
The FemtoPower1060-15 is routinely deployed in applications involving transparent dielectrics (e.g., fused silica, sapphire), semiconductors (Si, GaAs), polymers (PMMA, PI), and biological tissues. Its 1064 nm wavelength offers optimal penetration depth in scattering media while minimizing nonlinear absorption in common optical materials. The laser conforms to international regulatory frameworks including CE marking under the EU Machinery Directive and RoHS 2011/65/EU. For GxP environments, optional firmware enables audit-trail logging and user-access control aligned with FDA 21 CFR Part 11 principles. All units ship with full traceable test reports—including pulse characterization (autocorrelation), power stability (24-hr drift), and beam profiling data—validating conformance to ISO/IEC 17025-accredited metrology practices.
Software & Data Management
Control is facilitated through Fianium’s proprietary FemtoControl GUI (Windows 10/11 compatible), supporting real-time monitoring of output power, repetition rate, internal temperature, and fault status. The software provides SCPI command support for integration into LabVIEW, MATLAB, or Python-based automation frameworks. Optional Ethernet or TTL-triggered external synchronization allows precise timing coordination with delay stages, detectors, or pulsed light sources. Data export is supported in CSV and HDF5 formats, ensuring compatibility with industry-standard analysis pipelines used in ultrafast science and industrial process validation.
Applications
- Time-resolved photoluminescence spectroscopy and carrier dynamics studies in perovskite and 2D materials
- High-precision ablation and surface structuring of medical-grade stainless steel and titanium alloys
- Two-photon excited fluorescence (TPEF) imaging in thick-tissue preparations using non-descanned detection pathways
- Optical clock stabilization and femtosecond optical frequency comb seeding
- Calibration of streak cameras and single-photon avalanche diode (SPAD) arrays
- Seed source for optical parametric amplifiers (OPAs) operating in the mid-IR (3–12 µm) spectral region
FAQ
Is the FemtoPower1060-15 compatible with third-party pulse compressors?
Yes—the transform-limited output and low dispersion pre-compensation allow direct coupling into standard grating- or prism-based compressors for sub-100 fs pulse generation.
Can output polarization be controlled or stabilized?
The standard configuration delivers linear polarization with >20 dB extinction ratio; optional fiber-pigtailed polarization-maintaining (PM) output is available upon request.
What maintenance is required during routine operation?
No consumables or periodic alignment are needed; recommended annual verification of power stability and beam profile by an accredited service provider ensures continued compliance with ISO 11146 and ISO 13694 standards.
Are custom wavelengths such as 1030 nm or 1053 nm available?
Yes—wavelength variants within the Yb gain bandwidth (1030–1080 nm) can be factory-configured; lead time and pricing depend on optical design validation.
Does the system support remote diagnostics or predictive failure monitoring?
Embedded sensor telemetry (temperature, current, power) is accessible via API; advanced health monitoring requires optional Fianium ServiceLink subscription.
