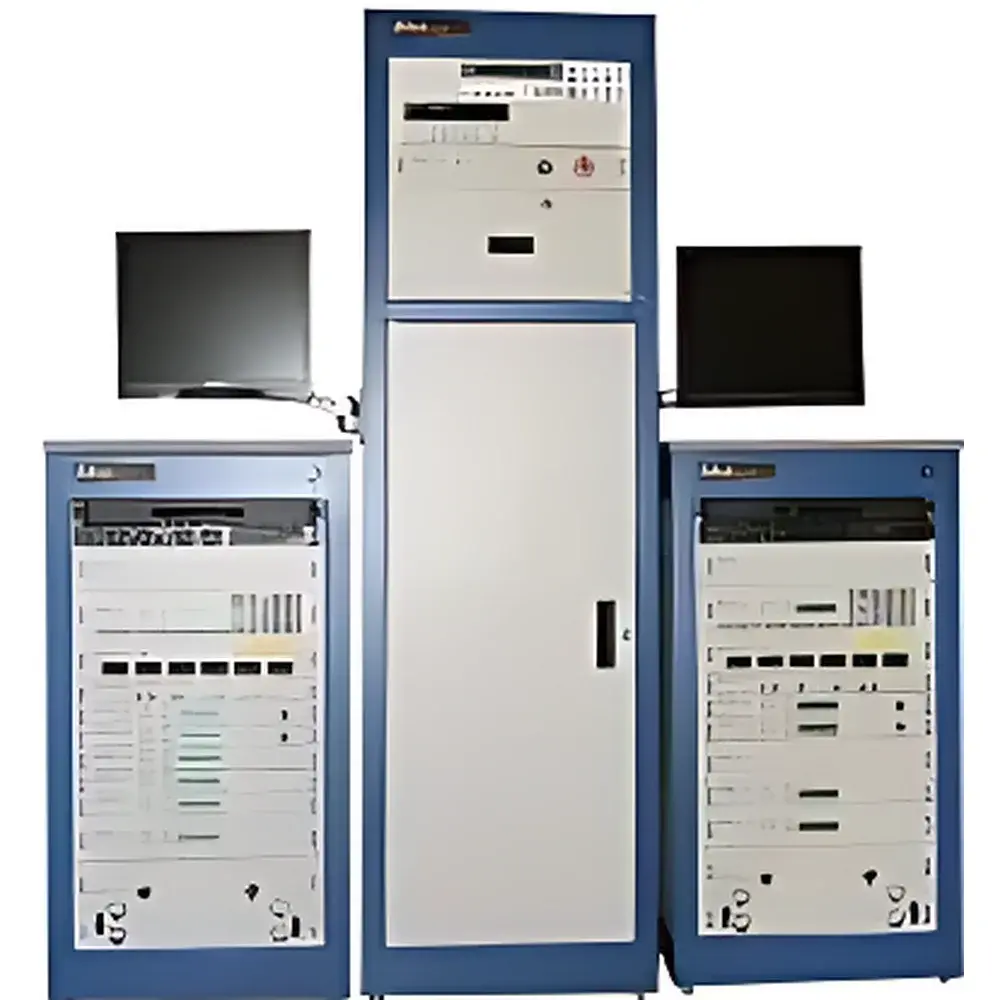

Fideris Fuel Cell Testing System

Overview

The Fideris Fuel Cell Testing System is a modular, research-grade electrochemical test platform engineered for rigorous characterization of fuel cells and related electrocatalytic materials under controlled, reproducible conditions. Built upon fundamental principles of galvanostatic/potentiostatic electrochemistry and mass-transport-limited current analysis, the system enables precise measurement of polarization curves, impedance spectra (EIS), durability cycling (e.g., voltage hold, current cycling, load stepping), and transient response behavior. Designed for laboratory-scale R&D and quality assurance workflows, it supports full-stack single-cell and short-stack testing across all major fuel cell chemistries—including proton exchange membrane fuel cells (PEMFC), solid oxide fuel cells (SOFC), alkaline fuel cells (AFC), and direct methanol fuel cells (DMFC)—with operational flexibility for hydrogen, reformate, natural gas, diesel-derived syngas, and other hydrocarbon-based fuels.

Key Features

• Modular architecture with plug-and-play integration of electronic load, gas/liquid delivery, humidification, backpressure control, temperature regulation, and auxiliary I/O modules—enabling scalable configuration from micro-watt to >100 kW equivalent test capacity.
• Low-impedance electronic load module eliminating need for external discharge enhancers; supports continuous operation at up to 200 A per channel with programmable slew rates and multi-step current/voltage profiles.
• Ethernet-based communication (TCP/IP) with real-time data streaming at ≥100 Hz sampling rate; compatible with standard industrial Ethernet switches and network security protocols.
• Integrated safety subsystem including hardware interlocks, over-pressure/over-temperature cutoffs, gas leak detection interface, and configurable emergency shutdown logic compliant with IEC 61508 SIL-2 functional safety guidelines.
• Pre-calibrated gas mass flow controllers (MFCs) with NIST-traceable calibration certificates; liquid delivery modules support both pressurized and gravity-fed operation with integrated bubble detection and auto-purge routines.

Sample Compatibility & Compliance

The system accommodates membrane electrode assemblies (MEAs), catalyst-coated membranes (CCMs), gas diffusion layers (GDLs), bipolar plates, and complete single cells or short stacks (up to 10 cells). It meets ASTM D7249 (Standard Test Method for Determining Fuel Cell Stack Performance), ISO 14687-2 (Hydrogen fuel quality specifications), and USP (Analytical Instrument Qualification) requirements for analytical instrument validation. All firmware and software components are designed to support GLP/GMP-compliant environments, with optional audit trail functionality, user access levels, and electronic signature capability aligned with FDA 21 CFR Part 11 Annex 11 expectations.

Software & Data Management

FCPower software serves as the unified control and analysis environment, built on a Windows-based architecture with native support for VBScript, Python (via COM interface), and MATLAB scripting for custom protocol development. The GUI provides real-time visualization of voltage, current, temperature gradients, pressure differentials, humidity levels, and gas composition (when interfaced with third-party analyzers). Data export is supported in CSV, HDF5, and MATLAB .mat formats; time-stamped raw datasets include metadata tags for test parameters, environmental conditions, and operator credentials. Software updates are provided free of charge throughout product lifecycle, and remote diagnostic support is available via secure TLS-encrypted connection.

Applications

• Electrocatalyst screening and degradation mechanism studies (e.g., Pt dissolution, carbon corrosion, anode CO tolerance)
• MEA performance mapping under variable stoichiometry, relative humidity, and thermal boundary conditions
• System-level validation of balance-of-plant (BOP) components including humidifiers, ejectors, and recirculation pumps
• Accelerated stress testing (AST) per DOE protocols for lifetime prediction modeling
• Integration with in-situ diagnostics such as operando XRD, Raman, or DEMS systems via TTL-triggered synchronization
• Training and certification platforms for fuel cell technician programs and university laboratories

FAQ

Does the system support automated compliance reporting for ISO/IEC 17025 accreditation?
Yes—FCPower includes configurable report templates that auto-generate test summaries with traceable calibration records, uncertainty budgets, and instrument verification logs required for laboratory accreditation.
Can third-party sensors (e.g., dew point meters, residual gas analyzers) be integrated?
Absolutely—the system features eight configurable analog/digital I/O channels and Modbus TCP/RTU support for seamless integration with OEM sensors and process instrumentation.
Is hardware-level redundancy available for critical subsystems?
Redundant pressure transducers, dual thermocouple inputs per zone, and hot-swappable power supplies are available as optional configurations for mission-critical testing environments.
What is the typical lead time for custom module development?
Standard modules ship within 8–10 weeks; bespoke hardware integration projects follow a formal V-model development process with documented design reviews and FAT/SAT protocols—typical timeline is 16–20 weeks from specification sign-off.
