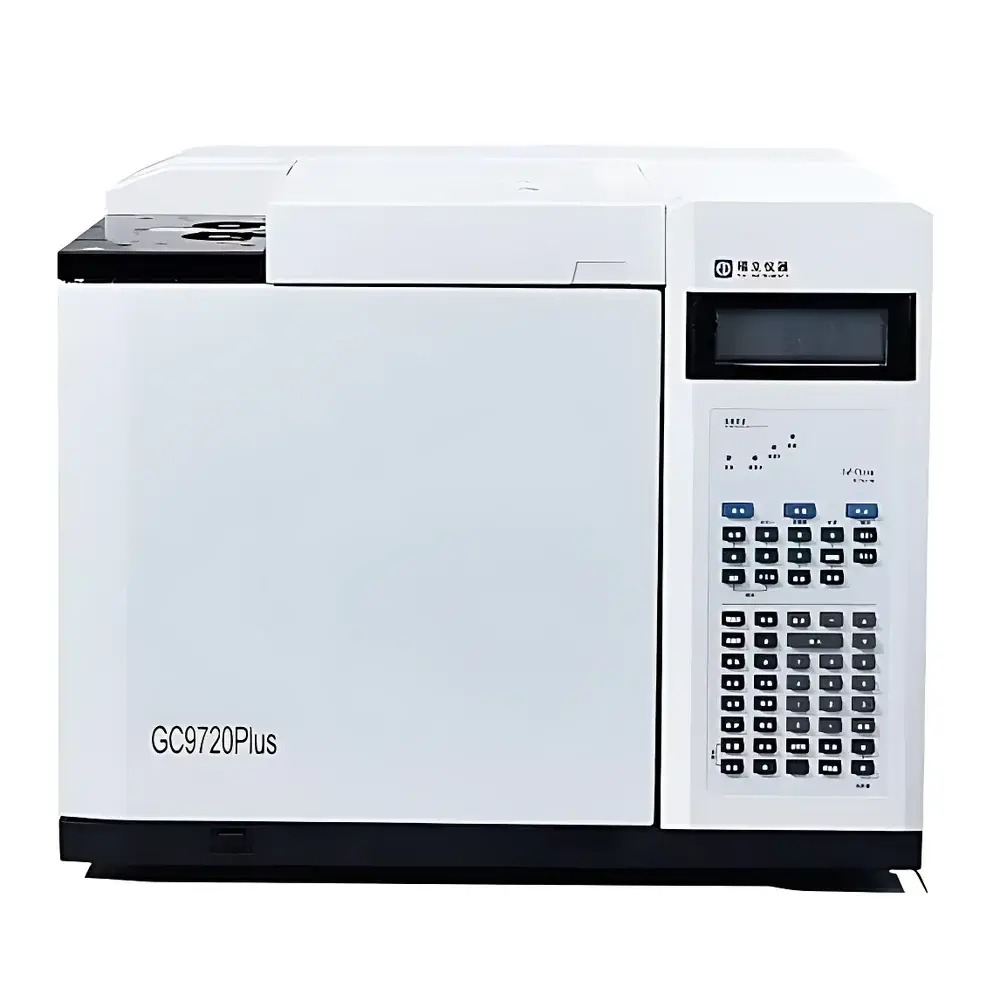

Flower GC9720PLUS Gas Chromatograph

Overview

The Flower GC9720PLUS is a high-performance laboratory gas chromatograph engineered for precision, robustness, and long-term operational stability in routine and regulated analytical environments. Based on proven capillary column separation principles, it employs temperature-programmed elution and precise carrier gas flow/pressure regulation to resolve volatile and semi-volatile organic compounds across diverse matrices. Designed as a general-purpose GC platform, the GC9720PLUS integrates advanced pneumatic control architecture, thermally optimized oven design, and modular hardware expandability—making it suitable for QC laboratories, environmental testing facilities, petrochemical R&D, and food safety applications where reproducibility, method transferability, and regulatory compliance are critical.

Key Features

• Third-generation AFC (Advanced Flow Control) Pneumatic System: Delivers pressure control accuracy of ±0.001 psi using imported proportional valves and high-stability pressure sensors—enabling highly reproducible retention times and quantitative precision across multi-day sequences.
• Modular Injector Design: Patented bayonet-style capillary inlet allows full disassembly in under 10 seconds for liner replacement or cleaning; includes removable inert split plate and integrated septum purge trap for reduced bleed and extended maintenance intervals.
• Intelligent Maintenance Tracking: Embedded firmware logs usage metrics for consumables—including septa, liners, and split traps—and provides real-time alerts for scheduled or condition-based replacement.
• Rapid Oven Thermal Management: Achieves column oven cooldown from 450 °C to 50 °C in ≤5 minutes (standard); optional fast-cool module reduces this to ≤3.5 minutes—accelerating high-throughput workflows without compromising thermal homogeneity.
• Dual-Path Temperature Uniformity: Optimized internal heat exchange ensures <±0.5 °C axial and radial temperature consistency across dual-column configurations, supporting parallel analysis or Deans Switch applications.
• Enhanced Safety Architecture: Integrated hydrogen leak detection with automatic shut-off valve; DC-powered heated zones (excluding oven) for stable, low-noise heating; multi-level oven overtemperature protection compliant with IEC 61010-1.

Sample Compatibility & Compliance

The GC9720PLUS supports standard capillary columns (0.1–0.53 mm ID), packed columns (optional), and universal injector configurations (split/splitless, PTV, cold-on-column). It accommodates common carrier gases (He, H₂, N₂) and is compatible with flame ionization (FID), thermal conductivity (TCD), electron capture (ECD), and nitrogen-phosphorus (NPD) detectors (detector modules sold separately). The system meets electromagnetic compatibility requirements per EN 61326-1 and undergoes rigorous EMC pre-compliance testing. When operated with validated methods and configured with audit-trail-enabled software, it supports GLP and GMP workflows aligned with FDA 21 CFR Part 11, ISO/IEC 17025, and ASTM D3612, D6345, and D7217 standards.

Software & Data Management

The GC9720PLUS is fully controlled via third-party or vendor-supplied chromatography data systems (CDS), including FL97Plus, MyLab, and Clarity platforms. All supported workstations provide full instrument reverse control, sequence scheduling, real-time diagnostics, and event-triggered alarms. Audit trail functionality records user actions, method changes, data modifications, and instrument status events with immutable timestamps. Role-based access control (RBAC), electronic signatures, and configurable permission levels ensure compliance with regulated environments. Custom CDS modules are available for industry-specific applications—including non-methane hydrocarbons (NMHC), calorific value determination (gas heating value), and petroleum hydrocarbon fractionation (TPH).

Applications

• Environmental analysis: VOCs in air/water per EPA Method 8260D, TO-17, and ASTM D5502
• Petrochemical QA/QC: Hydrocarbon group-type analysis (ASTM D5186, D6550), gasoline oxygenates (ASTM D4815)
• Food & flavor: Residual solvents (ICH Q3C), fatty acid methyl esters (FAME), terpenes
• Pharmaceutical impurity profiling: Residual solvents per USP , genotoxic impurities screening
• Industrial gas purity: Trace moisture, CO, CO₂, hydrocarbons in H₂, O₂, N₂, and synthetic air

FAQ

Is the GC9720PLUS compliant with 21 CFR Part 11?
Yes—when used with validated, audit-trail-enabled chromatography software (e.g., FL97Plus or Clarity with Part 11 option enabled) and appropriate administrative controls (e.g., password policies, electronic signatures).

What detector options are supported?
The GC9720PLUS features standardized electrical and gas interfaces for FID, TCD, ECD, and NPD detectors. Detector modules are supplied separately and require mechanical and firmware calibration during installation.

Can the system be integrated with autosamplers or auxiliary devices?
Yes—it provides TTL and RS-232 interfaces for seamless integration with high/low-position liquid autosamplers, headspace samplers, thermal desorbers, and multi-dimensional GC accessories such as microfluidic Deans Switch modules.

Does the instrument support method transfer from other GC platforms?
Its precise AFC system, consistent thermal gradients, and standardized column connections facilitate reliable method portability—particularly from Agilent 7890/8890, Shimadzu GC-2010, and Thermo ISQ platforms—subject to minor retention time adjustment and flow recalibration.

What service and support options are available internationally?
Global technical support, preventive maintenance contracts, and certified training programs are delivered through authorized Flower distribution partners; hardware repair and firmware updates follow ISO 9001-certified service protocols.
