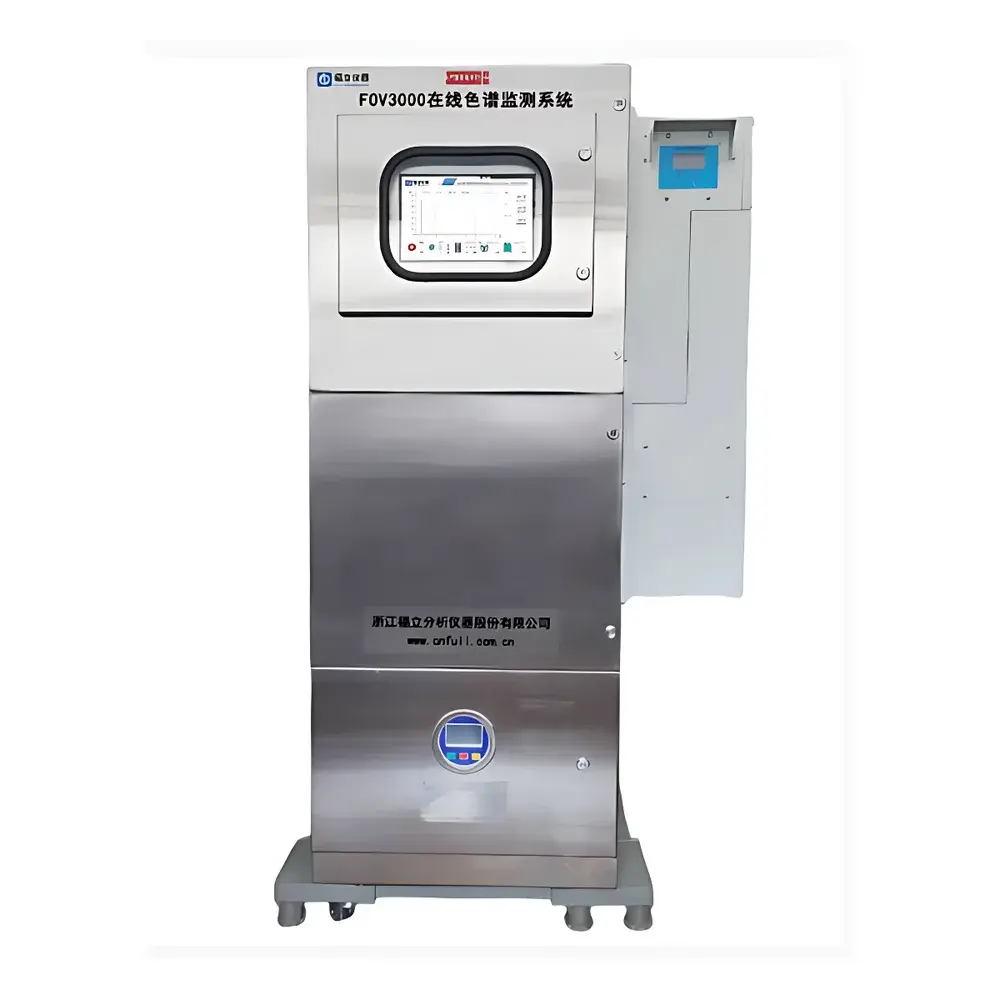

Fulit FOV 3000 Industrial Online Gas Chromatography System

Overview

The Fulit FOV 3000 Industrial Online Gas Chromatography System is a purpose-engineered, continuous-process analytical platform designed for real-time compositional monitoring in demanding industrial environments. Built upon gas chromatographic separation principles—where volatile and semi-volatile compounds are resolved based on differential partitioning between a mobile phase (carrier gas) and stationary phase (capillary column)—the FOV 3000 delivers robust, trace-level quantification across complex gas matrices. Its architecture integrates high-fidelity detection (FID, TCD, ECD, FPD, NPD, PDHID), precision electronic pressure control (EPC), and full-system thermal management to ensure long-term stability under fluctuating process conditions. Deployed in hydrogen production units, air separation plants, natural gas processing facilities, petrochemical reactors, and high-purity gas manufacturing lines, the system operates continuously with minimal operator intervention while maintaining analytical integrity aligned with regulatory measurement requirements.

Key Features

• Third-generation Fulit EPC technology enabling sub-kPa pressure resolution and <0.1% RSD retention time repeatability over 30-day unattended operation;
• Five-zone independent temperature control system—including main column oven with back-door rapid cooling and programmable ramp profiles (−20 to 450 °C) — optimized for method flexibility and fast cycle times;

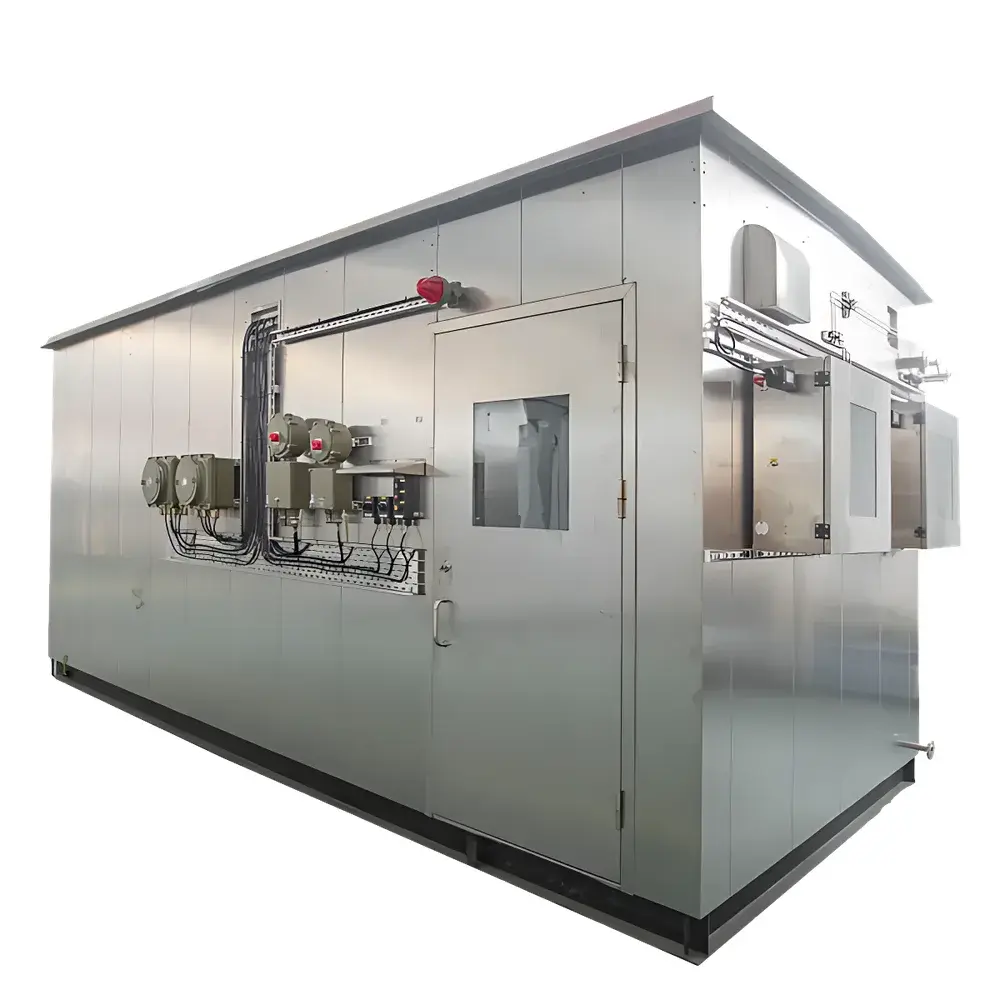

• Explosion-proof FL3000 EX enclosure rated Ex db mb px b IIC T6 Gb, constructed from electropolished 316 stainless steel with powder coating for corrosion resistance in aggressive chemical atmospheres;
• Full-path heated sample handling: probe, pre-treatment module, and valve manifold maintained at user-defined temperatures (up to 200 °C) with triple-stage particulate and moisture filtration to prevent condensation, adsorption, or clogging;
• Wide-dynamic-range FID detector featuring auto-ignition, flame-out detection, and low-noise electronics (<0.5 pA RMS baseline noise), supporting linear response over 10⁷ concentration range (ppb to % v/v);
• Integrated industrial-grade all-in-one controller running LoongOS-5.0—a deterministic Linux derivative developed in-house for embedded instrument control, eliminating third-party licensing dependencies and vulnerability surface;
• Comprehensive communication stack: native support for HJ 212 (China EPA data transmission standard), FL97 (Fulit proprietary protocol), Modbus/TCP and Modbus-RTU; optional CANopen or custom protocol implementation available upon request.

Sample Compatibility & Compliance

The FOV 3000 is validated for direct analysis of industrial gas streams including hydrogen, syngas, refinery off-gas, LNG boil-off vapor, ethylene cracker effluent, and ultra-high-purity nitrogen/argon. Its hardware and method configuration comply with Chinese environmental monitoring standards HJ 38–2017 (determination of total hydrocarbons in fixed pollution sources), HJ 604–2017 (determination of VOCs in ambient air), and HJ 1013–2018 (determination of benzene series compounds). All firmware, database operations, and audit trail functions meet GLP-aligned data integrity expectations: time-stamped action logs, immutable run records, and role-based access control (operator / administrator / maintenance engineer tiers). Optional electronic signature modules support 21 CFR Part 11 readiness when deployed in regulated QA/QC environments.

Software & Data Management

LoongOS-5.0 provides deterministic real-time scheduling for chromatographic acquisition, peak integration, calibration curve management, and alarm event handling. The embedded MariaDB relational database stores quantitative results with metadata (sample ID, method name, operator, instrument status) for ≥12 months without external server dependency. Raw chromatograms may be archived optionally on internal SSD or exported via SFTP/USB. The touch-optimized UI features multi-point capacitive sensing, context-aware soft keys, and dynamic dashboard widgets displaying live retention time shifts, detector baselines, and EPC pressure drift metrics. All system events—including power cycles, method changes, detector ignition attempts, and filter saturation warnings—are logged with ISO 8601 timestamps and retained for forensic review. Remote diagnostics and firmware updates are supported over secure TLS-enabled channels.

Applications

• Real-time hydrogen purity verification in PEM electrolysis and ammonia synthesis loops;
• Continuous monitoring of C₁–C₅ hydrocarbons in FCC unit overhead vapors;
• Trace sulfur compound detection (H₂S, COS, mercaptans) in natural gas custody transfer;
• Residual solvent analysis in pharmaceutical inert gas purge systems;
• Process optimization feedback for catalytic reforming and methanol synthesis reactors;
• Environmental compliance reporting for fugitive emission monitoring per local EPA mandates.

FAQ

Does the FOV 3000 support remote calibration and method validation?
Yes—calibration sequences can be scheduled or triggered remotely via Modbus or HJ 212 commands; validation reports include integrated peak symmetry, tailing factor, and system suitability metrics.
Can the system operate in hazardous Zone 1 environments?
Yes—the FL3000 EX enclosure is certified Ex db mb px b IIC T6 Gb, permitting installation in Zone 1 (gas) and Zone 21 (dust) classified areas per IEC 60079 series.
Is raw chromatogram storage mandatory for regulatory audits?
No—raw data archiving is optional; however, all quantitative results, calibration parameters, and system logs are stored by default and cannot be altered or deleted without administrative authorization.
What is the typical service interval for consumables such as liners, septa, and columns?
Under continuous operation at 200 °C with clean sample gas, inlet liners and septa require replacement every 6–12 months; capillary columns typically exceed 18 months service life when protected by proper pre-filtration and bake-out routines.
How does the FOV 3000 handle transient process upsets or feed composition spikes?
The system employs adaptive baseline correction algorithms and configurable alarm hysteresis to distinguish genuine analyte excursions from short-duration pressure or temperature transients—minimizing false positives while preserving detection sensitivity.
