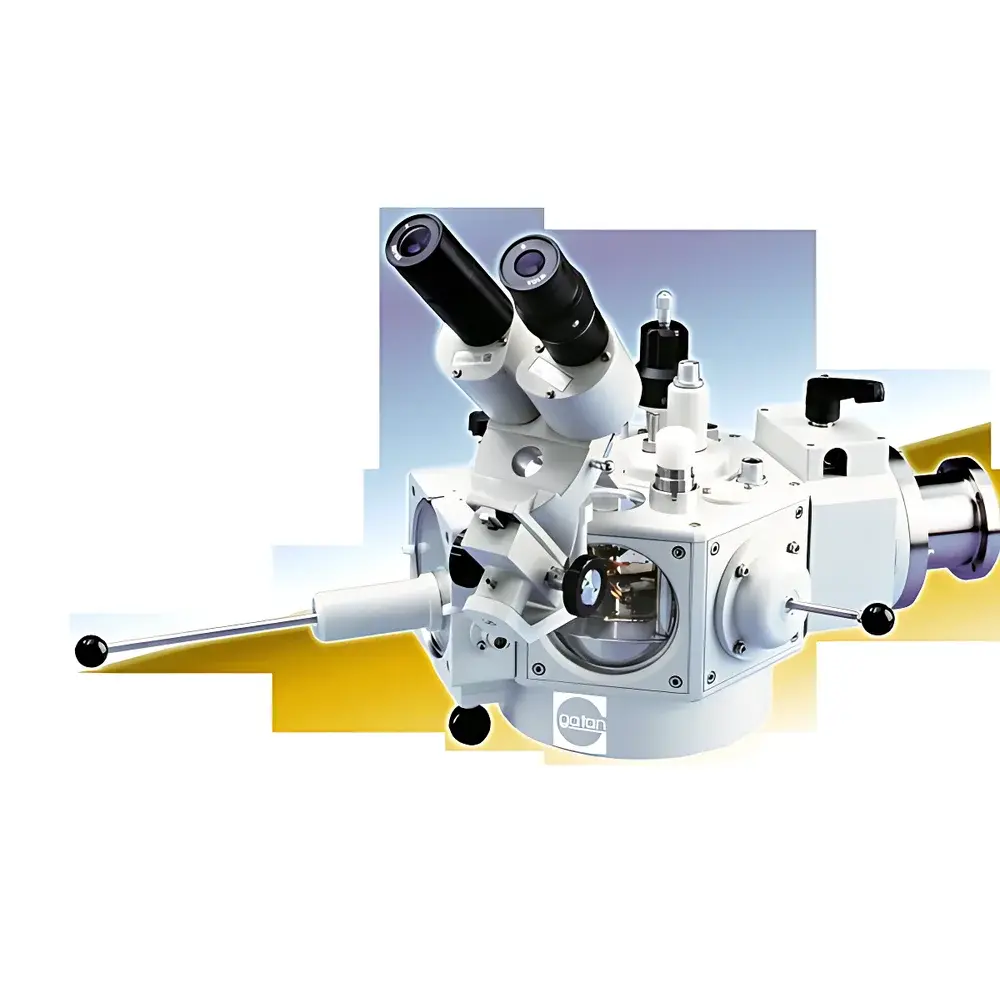

Gatan Alto 2500 High-Resolution Cryo-Transfer System for SEM
| Brand | Gatan |
|---|---|
| Origin | USA |
| Model | Alto 2500 |
| Vacuum Performance | <1×10⁻⁶ mbar (preparation chamber) |
| Operating Temperature Range | –190 °C to +50 °C (sample stage) |
| Cooling Method | Liquid nitrogen–cooled cryo-stage & subcooled nitrogen gas–cooled SEM stage |
| Cryo-Stage Stability | ±1 °C |
| Imaging Compatibility | Field-emission SEM (FE-SEM), FIB-SEM, and dual-beam systems |
Overview
The Gatan Alto 2500 is a high-resolution, integrated cryo-transfer system engineered specifically for field-emission scanning electron microscopy (FE-SEM) and focused ion beam–SEM (FIB-SEM) platforms. It enables the preparation, transfer, and in situ analysis of fully hydrated, vitrified biological, soft, or thermally labile specimens under stable cryogenic vacuum conditions—without ice contamination, structural collapse, or phase separation. The system operates on the principle of rapid plunge-freezing into liquid nitrogen slush (–210 °C), followed by controlled cryo-manipulation—including cryo-fracture, sublimation (etching), and sputter-coating—within a high-vacuum (<1×10⁻⁶ mbar), vibration-isolated preparation chamber. This preserves native ultrastructure at near-atomic resolution and supports high-fidelity secondary electron (SE), backscattered electron (BSE), and energy-dispersive X-ray spectroscopy (EDS) imaging in the microscope.
Key Features
- Integrated cryo-preparation chamber with independent 70 L/s turbo-molecular pump and vibration-damped mounting—ensuring ultra-high vacuum stability during fracture and coating.
- Direct-coupled liquid nitrogen cryo-stage (–180 °C) and anti-contamination trap (–190 °C) housed in a single monolithic cold trap assembly, minimizing thermal gradients and eliminating condensation pathways.
- Dual-magnification stereo observation system (×10 and ×20) with LED illumination and large-diameter optical viewport for real-time monitoring of sample handling, fracture propagation, and coating uniformity.
- Programmable cryo-fracture module with standard double-edged knife and optional motorized rotating knife for depth-controlled cleavage of brittle or layered materials.
- High-precision magnetron sputter coater optimized for cryogenic operation: Pt target standard; interchangeable targets (Au/Pd, W, Ir, Cr) available; 5 nm thickness resolution with automated argon gas flow control.
- Compact vacuum transfer shuttle with manual push-pull actuation and optically aligned docking interface—enabling seamless, contamination-free specimen transfer from prep chamber to SEM stage.
- Modular SEM cold stage cooled by subcooled nitrogen gas: temperature range –185 °C to +50 °C, stability ±1 °C, tilt-compatible for FIB-SEM tomography workflows.
- Embedded Pt100 resistance thermometry for real-time, traceable temperature monitoring of both cold stage and anti-contamination surface—critical for GLP-compliant documentation.
Sample Compatibility & Compliance
The Alto 2500 accommodates diverse specimen geometries up to 25 mm diameter and 5 mm height, including bulk tissue sections, freeze-fractured membranes, colloidal suspensions, polymer blends, petroleum source rocks, aerogels, and low-k dielectrics. Its design conforms to ISO 16700:2016 (electron microscopy — cryo-preparation of biological specimens), ASTM E2343-21 (standard guide for cryo-SEM of soft materials), and supports audit-ready workflows under FDA 21 CFR Part 11 and EU Annex 11 requirements when paired with Gatan’s DigitalMicrograph® software with electronic logbook and user-access controls. All vacuum interlocks, pressure sensors, and temperature monitors are hardwired to fail-safe mechanical shutters and valve actuators—meeting IEC 61000-6-2 EMC and UL 61010-1 safety standards.
Software & Data Management
System operation is coordinated via a compact, palm-sized front-panel controller with tactile keypad and OLED display—showing real-time vacuum status, stage temperature, LN₂ level, and process timers. No PC dependency is required for routine operation; however, optional integration with Gatan’s Microscopy Suite™ enables synchronized logging of cryo-events (e.g., fracture initiation time, sublimation duration, coating current profile) alongside SEM image metadata. All temperature and vacuum logs are exportable as CSV or HDF5 for long-term archival, LIMS ingestion, or regulatory submission. Audit trails include operator ID, timestamped parameter changes, and system error codes—fully compliant with GLP/GMP documentation protocols.
Applications
- Life sciences: Vitrified plant epidermis, fungal hyphae, mammalian cell monolayers, cryo-fractured synaptic terminals, and viral particles—preserving lipid bilayer integrity and macromolecular complexes.
- Food & cosmetics: Ice crystal morphology in frozen dairy emulsions (yogurt, ice cream), phase separation in creams and gels, and starch granule swelling kinetics under controlled sublimation.
- Geosciences: Pore network architecture in oil shales and mudstones, clay mineral hydration states, and bitumen distribution in source rocks—without dehydration artifacts.
- Materials science: Nanoscale phase segregation in block copolymers, pore collapse in aerogels, grain boundary wetting in low-k dielectrics, and radiation-sensitive photoresists.
- Electronics: Cross-sectional analysis of Cu/low-k interconnect stacks, cryo-FIB lift-out of TEM lamellae from operational devices, and contamination-free EDS mapping of dopant distributions.
FAQ
What vacuum level is maintained in the preparation chamber during cryo-fracture?
The chamber achieves and sustains <1×10⁻⁶ mbar using a dedicated 70 L/s turbo-molecular pump, verified by a capacitance manometer calibrated to NIST-traceable standards.
Can the Alto 2500 be retrofitted to existing FE-SEM systems?
Yes—Gatan provides application-specific flange kits and vacuum interface adapters for major SEM platforms (Zeiss, Thermo Fisher, JEOL, Hitachi), including compatibility with chamber-mounted STEM detectors and in-lens BSE detectors.
Is automatic temperature ramping supported during sublimation?
Yes—programmable heating profiles (0.1–10 °C/min) are executed via the integrated stage heater and PID-controlled Pt100 feedback loop, with dwell time and endpoint temperature fully configurable.
How is contamination prevented during sputter coating at cryogenic temperatures?
Coating occurs inside the sealed preparation chamber under dynamic vacuum; the anti-contamination trap (-190 °C) intercepts stray metal atoms and residual water vapor, ensuring >99.9% coating fidelity on the specimen surface.
Does the system support correlative light–cryo-SEM workflows?
When used with Gatan’s BioQuantum™ or MonoCL™ fluorescence stages, the Alto 2500 enables precise relocation of fluorescently labeled regions prior to cryo-fracture—facilitating targeted ultrastructural analysis.
