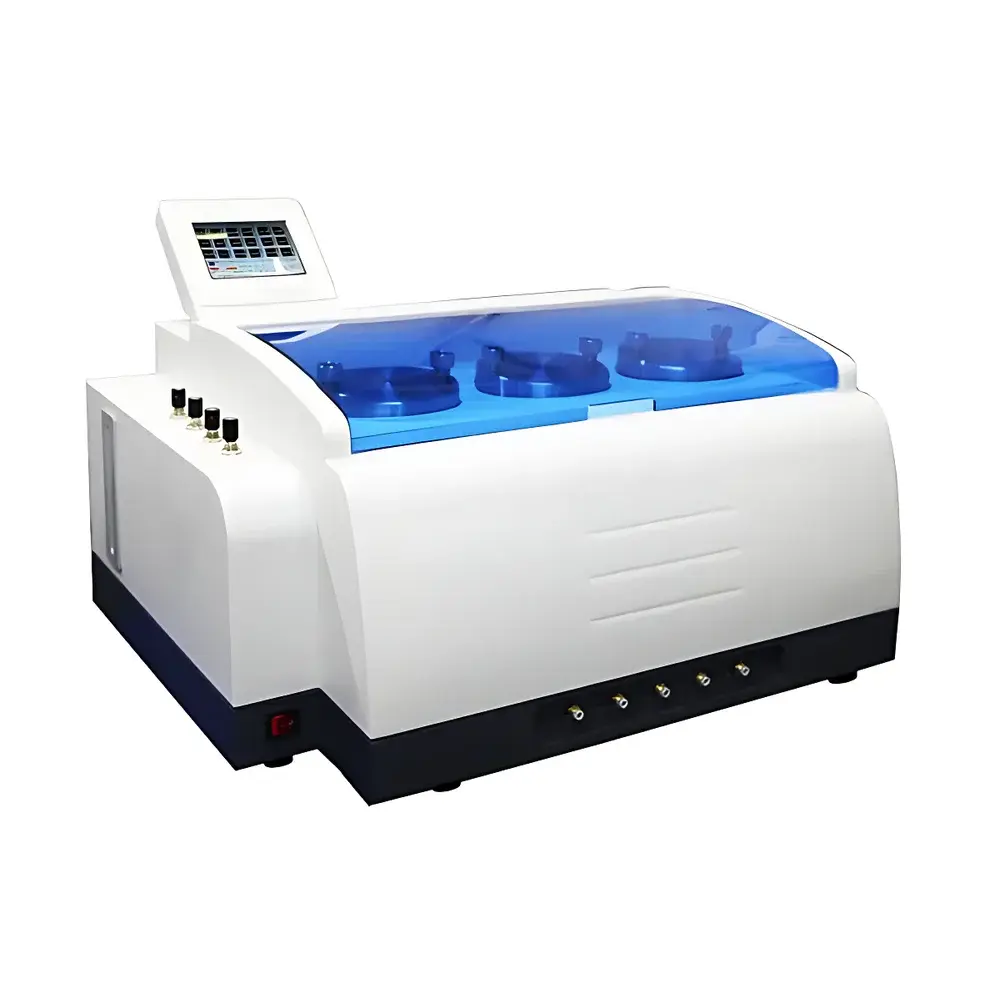

GBPI W403-D Infrared Water Vapor Transmission Rate (WVTR) Tester

Overview

The GBPI W403-D Infrared Water Vapor Transmission Rate (WVTR) Tester is a precision gravimetric–infrared hybrid instrument engineered for high-reliability measurement of water vapor permeation through packaging materials, barrier films, and functional laminates. It operates on the principle of dynamic infrared detection: water vapor diffusing through a conditioned specimen is carried by a purified nitrogen stream into an infrared absorption cell, where real-time quantification is achieved via calibrated IR photometry at 2.7 µm — the fundamental vibrational absorption band of H₂O. This method eliminates reliance on mass-change kinetics or desiccant saturation, enabling stable, drift-free measurements across ultra-low to high-permeability ranges (0.001–100 g/m²·24h). Designed specifically for regulated environments in pharmaceutical packaging, medical device barrier validation, flexible electronics encapsulation, and food-grade laminate development, the W403-D meets the metrological rigor required for GLP, GMP, and ISO/IEC 17025-compliant laboratories.

Key Features

• Triple-Independent Chamber Architecture: Three parallel test stations with dedicated IR sensors, temperature/humidity control loops, and gas flow regulation — enabling simultaneous, statistically independent WVTR determinations on identical or heterogeneous samples without cross-contamination or thermal crosstalk.
• Traceable Metrology Framework: Certified reference standards (GBW(E)130543/4) issued by the State Administration for Market Regulation (SAMR), China, support on-site calibration and verification; integrated temperature and humidity sensor ports allow routine traceable recalibration against NIST-traceable probes.
• Advanced Environmental Control: Dual-stream humidity generation (dry + saturated N₂ blending) ensures stable, programmable RH from 0% to 100% with ±1% RH accuracy; electromagnetic stepwise PID temperature control maintains chamber uniformity within ±0.1°C over 15–45°C (extendable to 60°C).
• ARM-Based Embedded Control System: Fully autonomous operation without external PC dependency; color TFT touchscreen interface displays live curves for temperature, RH, H₂O concentration, and cumulative transmission — all with configurable zoom, overlay, and data export.
• GMP-Compliant Software Suite: Role-based access control (Administrator, Operator, Reviewer), full audit trail (system, method, run-level), electronic signatures, and 21 CFR Part 11–ready data integrity features including immutable raw data storage and change history logging.

Sample Compatibility & Compliance

The W403-D accommodates planar and 3D geometries: flat films (plastic, metallized PET, Al foil, SiOₓ-coated substrates), rigid sheets (PC, PP, acrylic), elastomeric seals, ceramic substrates, and packaged formats including blister cavities, pouches, trays, and vials (with optional container fixtures). Its standardized test area (50.24 cm², scalable down to 0.785 cm²) complies with ISO 15106-2 Annex A and ASTM F1249 Annex B for low-flux validation. All hardware and firmware conform to electromagnetic compatibility (EMC) and electrical safety standards IEC 61000-6-3 and IEC 61010-1. The system supports full validation documentation packages (IQ/OQ/PQ) aligned with EU Annex 11 and FDA guidance on computerized systems.

Software & Data Management

GBPI’s proprietary WinWVTR software provides intuitive workflow configuration — including multi-step conditioning protocols, automatic baseline subtraction, endpoint detection algorithms, and adaptive sampling intervals. Raw sensor outputs (voltage vs. time), environmental logs, and calculated WVTR values are stored in encrypted SQLite databases with SHA-256 hash integrity checks. Reports comply with ISO/IEC 17025 clause 7.8: generated PDF/Office exports include instrument ID, operator credentials, calibration status, uncertainty budgets (k=2), and full metadata traceability. Data backup supports network drives, USB archives, and scheduled cloud sync (TLS 1.2 encrypted).

Applications

• Pharmaceutical primary packaging: moisture barrier validation of PTP blisters, cold-form foil, sachets, and desiccant-containing vials per USP & Ph. Eur. monographs.
• Medical device packaging: ISO 11607-1 compliance testing for sterile barrier systems (Tyvek®/PE laminates, peelable pouches).
• Flexible electronics: WVTR characterization of thin-film encapsulation layers for OLEDs, perovskite solar cells, and bio-sensors (targeting <10⁻⁶ g/m²·24h).
• Food packaging R&D: comparative analysis of biopolymer films (PLA, PHA), nanocomposites, and edible coatings under accelerated aging conditions.
• Quality control labs: routine release testing of incoming barrier films per ASTM D3045 or internal specifications requiring ≤5% RSD repeatability.

FAQ

Does the W403-D require external nitrogen purification?
Yes — carrier gas must be ≥99.999% pure N₂; optional inline oxygen/moisture traps (Cat. No. GBPI-GP-01) are recommended for long-term stability.
Can it measure WVTR of rigid containers like HDPE bottles?
Yes — using the optional container fixture kit (W403-CF), which enables headspace purge methodology per ASTM F1249 Annex C.
Is temperature and humidity calibration traceable to national standards?
Yes — built-in PT100 and capacitive RH sensor ports accept NIST-traceable probes; calibration certificates are included with each GBW standard reference material set.
What level of software validation support is provided?
GBPI supplies full IQ/OQ documentation templates, test scripts, and UAT protocols compatible with Annex 11 and 21 CFR Part 11 requirements.
How is sensor longevity ensured under continuous operation?
The IR detector features automatic over-range protection, self-diagnostic warm-up cycles, and field-replaceable optical modules — rated for >20,000 hours MTBF.
