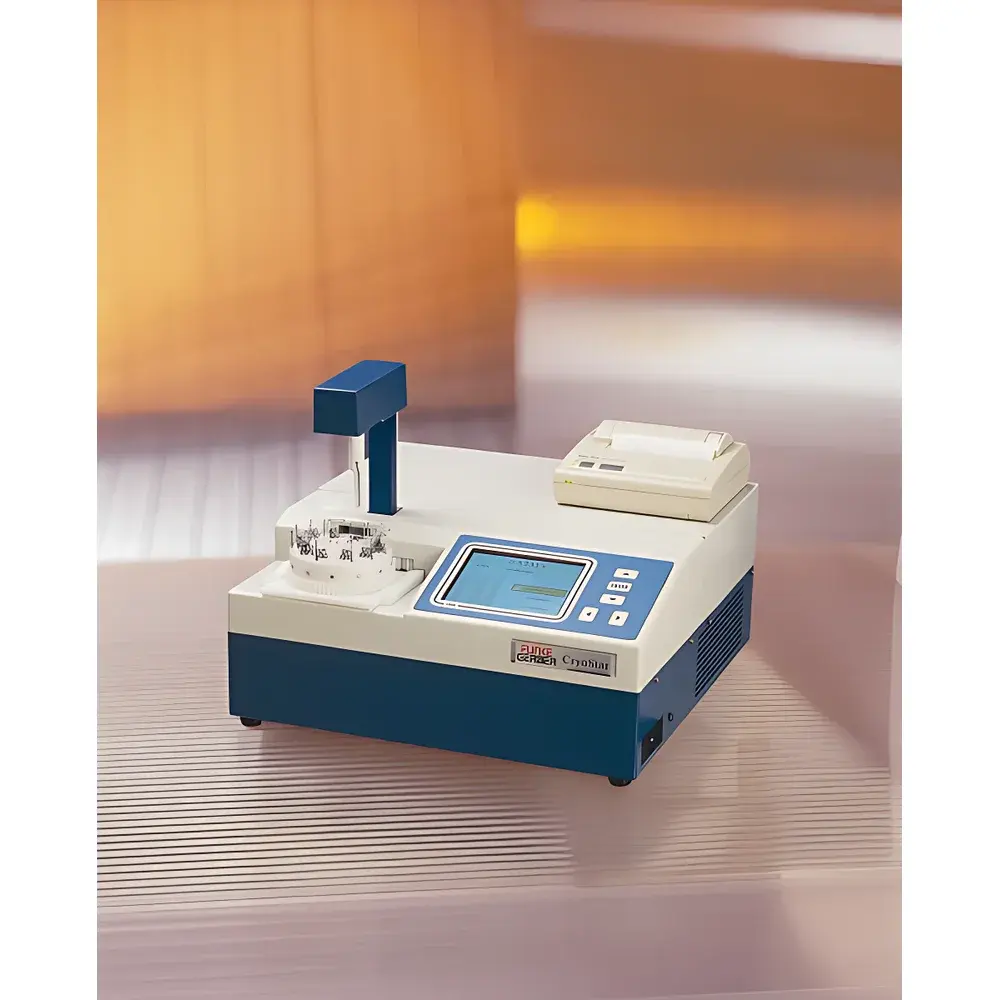

GERBER CryoStar Automatic Milk Cryoscope

Overview

The GERBER CryoStar Automatic Milk Cryoscope is a precision laboratory instrument engineered for the colligative determination of milk freezing point depression—a fundamental physical parameter directly correlated with milk adulteration by water addition. Based on the principle of cryoscopic analysis, the system measures the exact temperature at which a milk sample transitions from liquid to solid phase under controlled cooling and nucleation conditions. This thermodynamic property is highly sensitive to solute concentration; even 1% added water shifts the freezing point by approximately 0.005 °C. Designed and manufactured in Germany, the CryoStar Automatic adheres to the metrological rigor required for regulatory compliance in dairy quality assurance, particularly in accordance with ISO/DIS 5764—*Milk — Determination of freezing point — Reference method*. Its fully automated operation eliminates operator-dependent variability, ensuring high reproducibility across routine QC workflows in dairies, testing laboratories, and regulatory inspection facilities.

Key Features

• 12-position programmable sample carousel enabling unattended sequential analysis of up to 12 samples per batch
• High-resolution thermometry with ±0.0001 °C absolute accuracy and ±0.002 °C repeatability over repeated measurements
• Dual-point calibration protocol supported by certified reference standards: Calibration Fluid A (0.000 °C) and Calibration Fluid B (−0.557 °C)
• Integrated thermal test head with optimized heat exchange geometry and precise Peltier-based cooling control
• Embedded thermal printer for immediate hard-copy output of results, including timestamp, sample ID, and deviation from reference value
• RS232 serial interface compliant with standard laboratory data acquisition protocols, supporting bidirectional communication with LIMS or custom QA software
• Low-power dual-voltage architecture: mains-powered main unit (230 V, 50–60 Hz, 180 W) and isolated 12 V DC supply for the sensor module to minimize electrical noise
• Compact benchtop footprint (44 × 44 × 20 cm) with modular accessories—including 50 × 2.0 mL disposable sample tubes and a 27-tube rack for pre- and post-analysis handling

Sample Compatibility & Compliance

The CryoStar Automatic is validated exclusively for raw, pasteurized, and standardized bovine milk matrices. It accommodates sample volumes of 2.0–2.5 mL in standardized borosilicate glass capillaries, ensuring consistent thermal mass and nucleation behavior. The instrument meets the performance criteria defined in ISO/DIS 5764 for precision, detection limit, and inter-laboratory reproducibility. Its measurement traceability is maintained through NIST-traceable calibration fluids and documented verification procedures suitable for GLP and GMP environments. While not FDA 21 CFR Part 11–certified out-of-the-box, the CryoStar I software supports audit-trail-enabling configurations when deployed on validated Windows platforms under controlled IT governance.

Software & Data Management

CryoStar I software provides full instrument control, real-time thermogram visualization, automatic freezing point detection via derivative-based inflection analysis, and configurable reporting templates. Data export is supported in CSV and PDF formats, with metadata fields including operator ID, calibration status, ambient temperature, and system diagnostics. The software enables user-level access control (administrator/operator modes), electronic signature logging, and version-stamped method files—facilitating alignment with internal QA documentation requirements. All raw thermographic curves are retained with timestamps and instrument firmware revision identifiers, supporting retrospective root-cause analysis during non-conformance investigations.

Applications

• Routine screening of raw milk deliveries for water adulteration at dairy intake stations
• Final product release testing for pasteurized and UHT milk batches
• Internal process validation during standardization and recombination operations
• Reference method verification in accredited food testing laboratories (ISO/IEC 17025)
• Proficiency testing and inter-laboratory comparison studies under national dairy monitoring programs
• Research applications involving osmolality correlation studies and lactose/salt interference modeling

FAQ

What is the minimum detectable level of water adulteration using the CryoStar Automatic?
Based on ISO/DIS 5764 validation data and typical milk composition variance, the system reliably detects ≥0.5% added water (equivalent to ~0.0025 °C shift) with ≥95% confidence under controlled lab conditions.
Can the CryoStar Automatic be integrated into an existing LIMS environment?
Yes—via its RS232 interface and ASCII-based command protocol, it supports integration with common LIMS platforms using middleware or custom serial-to-TCP/IP gateways.
Is maintenance of the cooling system user-serviceable?
Cooling fluid replenishment is performed by trained service personnel only; the sealed Peltier module and thermal sensor assembly require factory-level recalibration after any internal intervention.
How frequently must calibration be performed?
Daily two-point calibration is recommended prior to first use; additional verification is required after ambient temperature shifts >5 °C or following extended idle periods (>8 hours).
Are the sample tubes reusable?
No—2.0 mL borosilicate capillaries are supplied as single-use consumables to prevent cross-contamination and ensure consistent thermal response characteristics.
