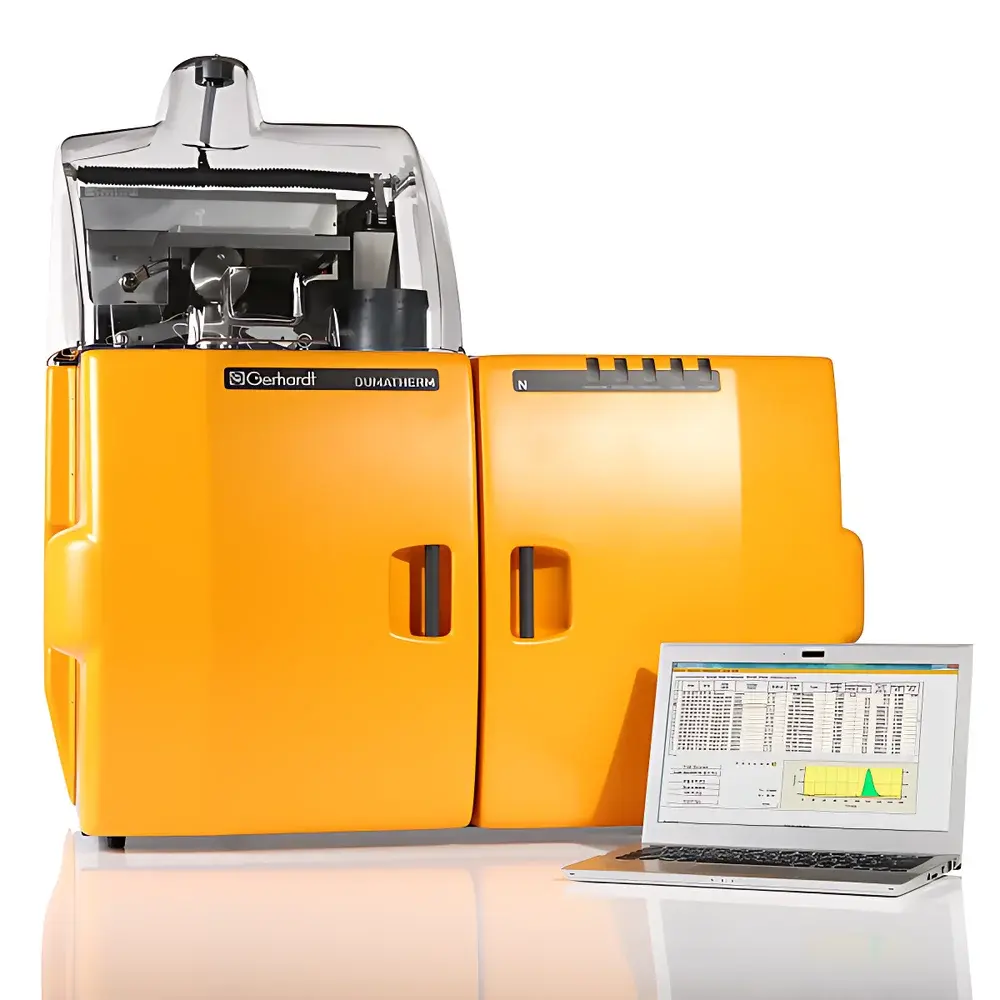

Gerhardt Dumatherm DT N Pro Dumas Nitrogen Determinator

Overview

The Gerhardt Dumatherm DT N Pro is a fully automated Dumas combustion-based nitrogen determinator engineered for high-throughput, trace-level elemental nitrogen quantification in diverse matrices. Operating on the principle of high-temperature oxidative combustion (900–1100 °C) in a controlled oxygen-rich atmosphere, the instrument converts all organic and inorganic nitrogen compounds in the sample into molecular nitrogen (N₂). The evolved gases—primarily N₂, CO₂, H₂O, and NO_x—are sequentially purified via catalytic reduction, selective water removal (using a patented dual-stage desiccant system), and CO₂ scrubbing. The purified N₂ is then quantified using a high-stability thermal conductivity detector (TCD), delivering absolute nitrogen mass values without calibration drift or stoichiometric assumptions. Unlike Kjeldahl-based systems, the DT N Pro eliminates acid digestion, hazardous reagents, and lengthy wet chemistry steps—reducing analysis time to under 5 minutes while maintaining full compliance with international reference methods.

Key Features

• True Dumas combustion architecture: Integrated ceramic combustion tube with optimized oxygen dosing (software-controlled, pulse-width modulated), minimizing O₂ consumption and reducing copper oxide reductant usage by up to 40% versus conventional systems.
• Air-tight sample introduction: Inert carrier gas (He or Ar) purges the sample boat and combustion chamber prior to ignition, eliminating atmospheric nitrogen contamination and ensuring sub-0.5% RSD repeatability—even at trace levels (0.003 mg N).
• Zero-wear combustion design: No moving parts inside the furnace zone; combustion tube and catalyst beds are rated for >10,000 analyses with no scheduled replacement—reducing lifetime maintenance costs by >65% relative to competitive platforms.
• Intelligent time optimization: Real-time thermal profiling and gas flow monitoring enable dynamic adjustment of combustion duration per sample, ensuring complete oxidation without over-processing—critical for heterogeneous or high-fat samples.

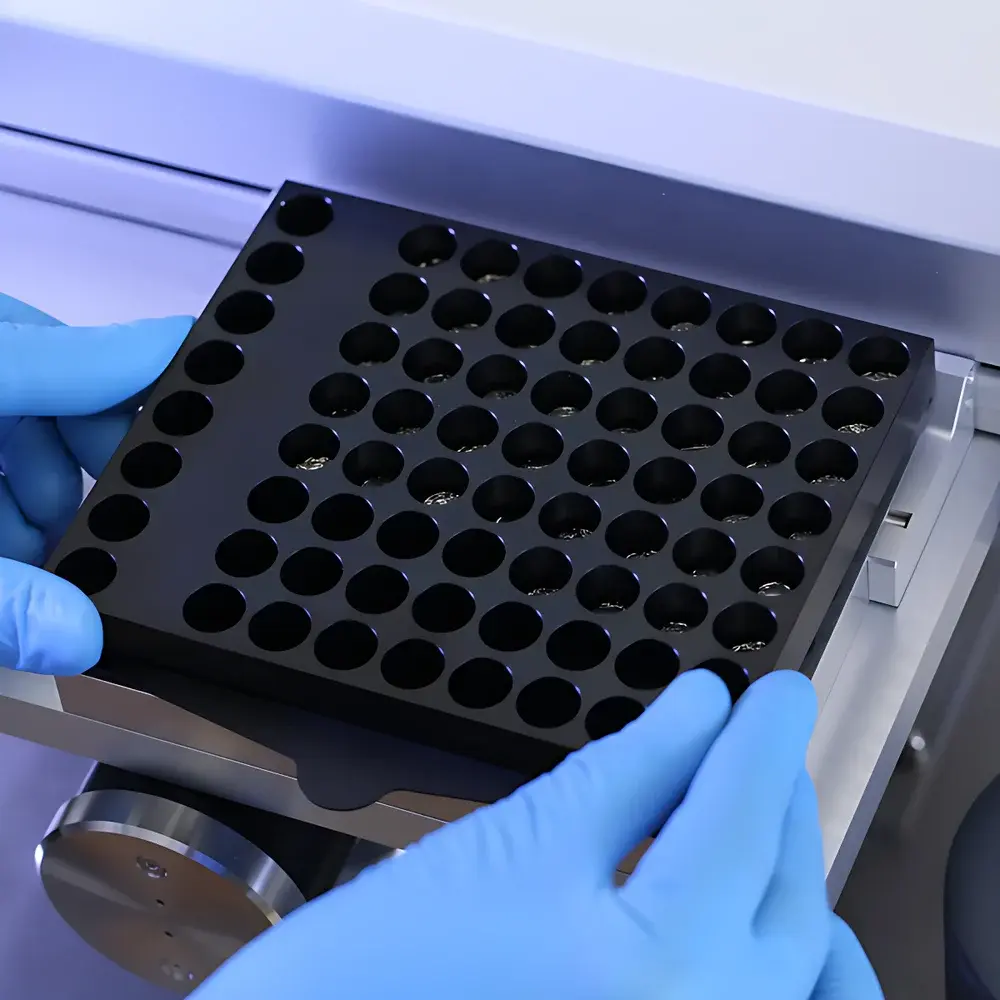

• Modular autosampling: Standard 64-position pneumatic autosampler (optional 100- or 144-position configurations) with independent temperature-controlled sample staging, enabling unattended overnight operation and GLP-compliant batch processing.

Sample Compatibility & Compliance

The DT N Pro accommodates solid, liquid, and semi-solid samples—including cereals, dairy powders, meat homogenates, soil slurries, wastewater digests, pharmaceutical excipients, and polymer pellets—without derivatization or pre-treatment. It meets or exceeds performance requirements of AOAC Official Methods 979.09, 992.15, 990.03, 997.09; DIN EN ISO 14891, 16634, and 11512-20; USP 〈467〉 (residual solvents); and EPA Method 440.1 for total Kjeldahl nitrogen (TKN) equivalency validation. All hardware and firmware comply with IEC 61000-6-3 (EMC), CE Machinery Directive 2006/42/EC, and RoHS 2011/65/EU. Data integrity features—including electronic signatures, audit trails, and user-access tiers—support adherence to FDA 21 CFR Part 11 and EU Annex 11 requirements when deployed in regulated QC/QA environments.

Software & Data Management

Dumatherm Manager v5.x (Windows 10/11 compatible) provides full instrument control, method development, and reporting. The software implements role-based access control (RBAC), automatic metadata tagging (operator ID, timestamp, instrument ID, calibration status), and configurable report templates aligned with ISO/IEC 17025 clause 7.8. Raw chromatograms, TCD response curves, and gas-phase composition logs are stored in vendor-neutral .csv and .pdf formats. Integrated LIMS export supports ASTM E1482-compliant data exchange. All method changes, calibration events, and error logs are permanently recorded with immutable timestamps—enabling full traceability during regulatory audits.

Applications

• Protein quantification in food & feed (via 6.25 conversion factor) per AOAC 920.87, DIN EN ISO 14891, and Codex Alimentarius standards.
• Total nitrogen determination in environmental matrices: soils (DIN 11512-20), wastewater (DEV H11/H28), fertilizers (AOAC 973.48), and compost (EN 15936).
• Pharmaceutical raw material testing (USP 〈467〉, EP 2.4.13) and nitrogen content verification in APIs and excipients.
• Research applications requiring ultra-low detection limits: micro-samples (≥0.5 mg), biological tissues, and nanomaterials where classical Kjeldahl fails due to incomplete digestion.
• Industrial QA/QC of nitrogen-containing polymers, explosives precursors, tobacco alkaloids, and coffee roast profiling.

FAQ

What carrier gas is recommended for highest sensitivity?
Helium is recommended for maximum TCD response and lowest detection limit (0.003 mg N); argon may be substituted for routine analysis to reduce operational cost without compromising accuracy.
Is the DT N Pro compliant with FDA 21 CFR Part 11?
Yes—when configured with Dumatherm Manager v5.x in validated mode, it supports electronic signatures, audit trail generation, and secure user authentication required for regulated GxP environments.
Can the instrument analyze volatile or thermally labile samples?
Yes—the programmable combustion ramp rate (up to 50 °C/s) and inert purge sequence prevent premature volatilization; optional cryo-trapping accessories are available for samples with low-boiling nitrogen species.
What maintenance is required beyond catalyst replacement?
Annual verification of TCD baseline stability, carrier gas line integrity, and autosampler mechanical alignment; no furnace or detector recalibration is needed between certifications.
How does recovery rate >99.5% compare to Kjeldahl reference methods?
The DT N Pro achieves statistically equivalent results to AOAC 984.13 Kjeldahl across 12 matrix types (p ≤ 0.05, t-test), with superior precision for samples containing nitrate/nitrite or heterocyclic nitrogen (e.g., caffeine, nicotine).
