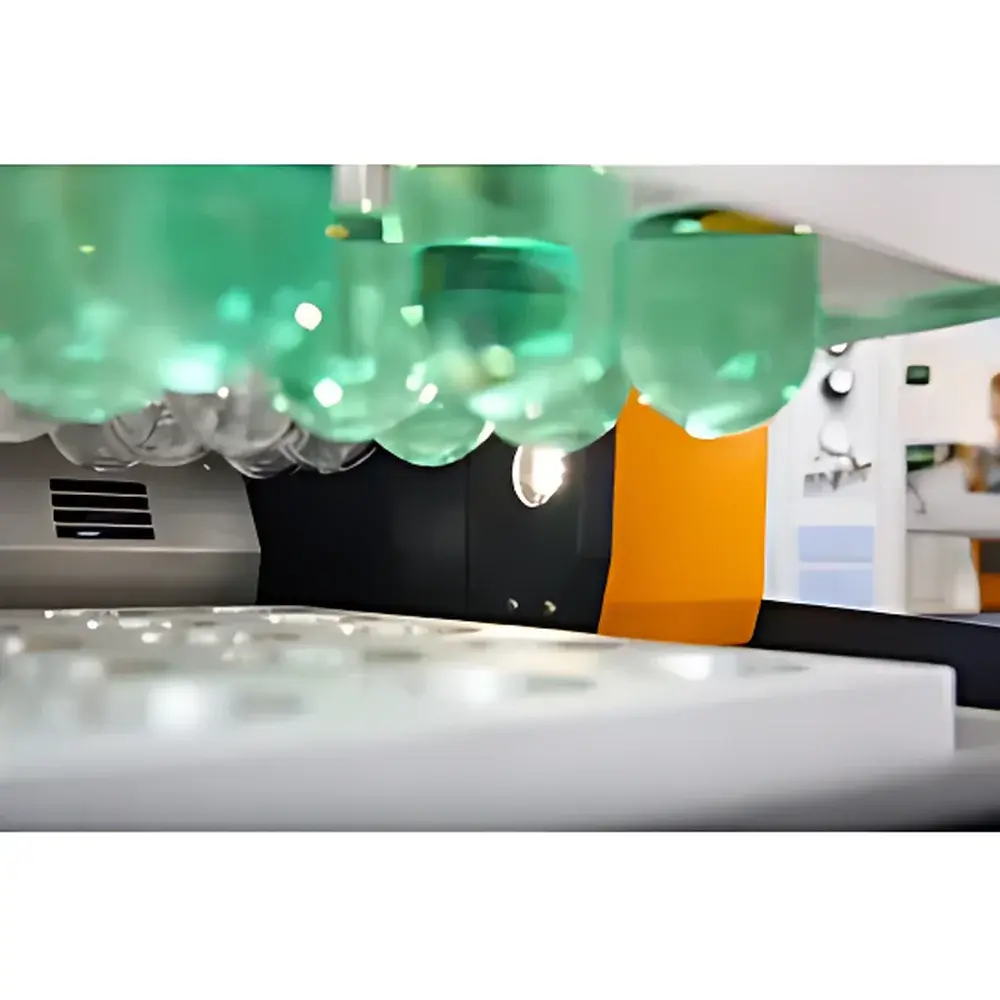

Gerhardt Kjeldatherm KT/KT-L Automated Kjeldahl Digestion System
| Brand | Gerhardt |
|---|---|
| Origin | Germany |
| Model | KT / KT-L |
| Sample Capacity | 8/20/40 positions |
| Digestion Tube Sizes | 100 mL, 250 mL, 400 mL |
| Temperature Control Accuracy | ±0.5% of setpoint |
| Programmable Methods | 99 methods, up to 40 temperature ramps per method |
| Predefined Methods | 30 standard protocols |
| Heating Rate | Adjustable |
| Safety Features | Overheat protection, acid drip tray, audible/visual alarms, automatic fume extraction activation, user-configurable safety cutoff temperature |
| Compliance | ISO/IEC 17025, GLP, FDA 21 CFR Part 11 (audit trail & user access control), DIN EN ISO 5983, AOAC 984.13, EPA 350.1, ASTM D5142, EU Regulation (EC) No 152/2009, APHA 4500-Norg, Ph. Eur. 2.5.33 (Method 7, Step A) |
Overview

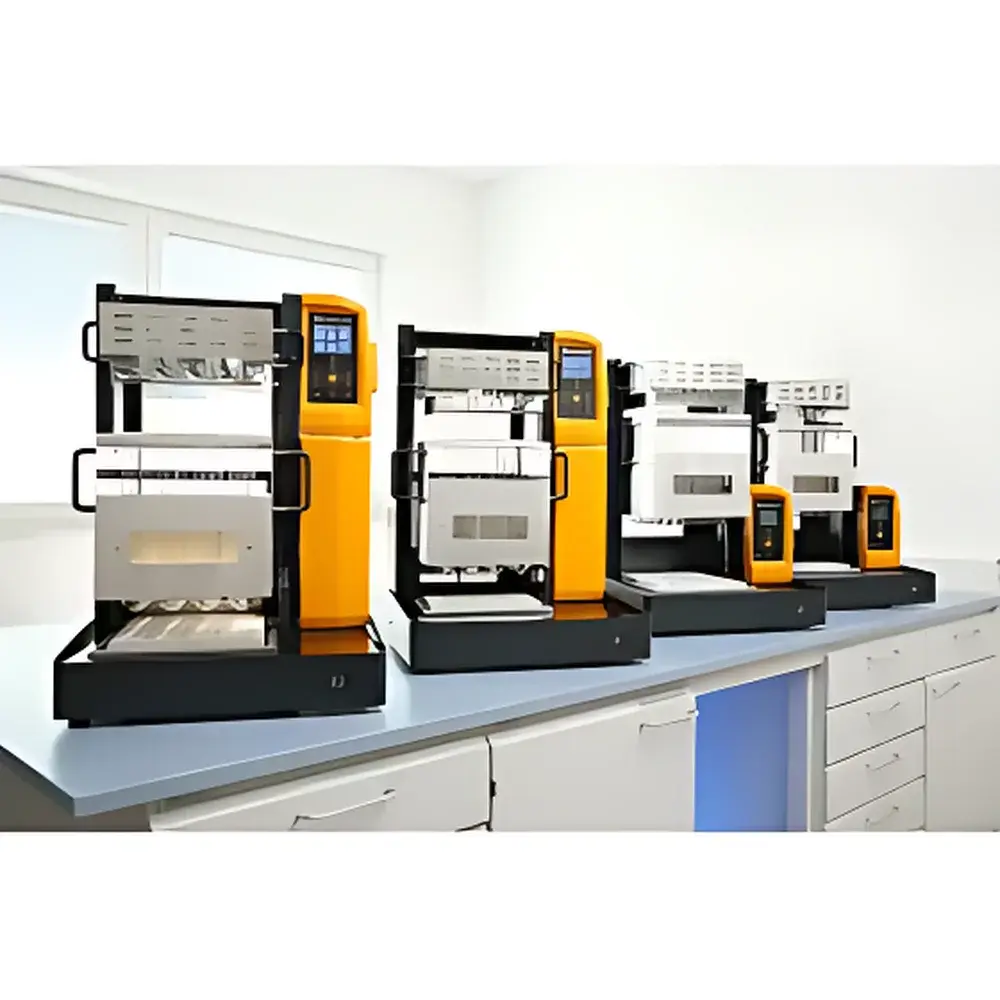

The Gerhardt Kjeldatherm KT/KT-L Automated Kjeldahl Digestion System is a precision-engineered, modular aluminum-block digestion platform designed for high-throughput, reproducible, and fully traceable sample mineralization in compliance-critical environments. Based on the classical Kjeldahl principle—acidic oxidative digestion using concentrated sulfuric acid and catalysts—the system enables quantitative conversion of organic nitrogen into ammonium sulfate under rigorously controlled thermal conditions. Unlike conventional open-flame or ceramic-heater digesters, the Kjeldatherm employs a monolithic, anodized aluminum heating block with full peripheral insulation and electrostatically applied acid-resistant porcelain enamel finish. This architecture ensures uniform heat distribution, minimal thermal lag, and exceptional energy efficiency—reducing power consumption by up to 40% compared to legacy systems. The system operates across three standardized configurations (8-, 20-, and 40-position), accommodating 100 mL, 250 mL, or 400 mL Duran® borosilicate glass digestion tubes, and integrates seamlessly into end-to-end Kjeldahl workflows including distillation and titration.
Key Features
- Precision temperature control with ±0.5% accuracy across the full operating range (up to 450 °C), achieved via dual Pt100 RTD sensors embedded in the heating block and real-time PID feedback.
- Advanced programmability: 99 user-defined methods, each supporting up to 40 discrete temperature ramps, dwell times, and heating rate profiles; 30 pre-validated methods included for common matrices (feed, soil, wastewater, pharmaceutical excipients).
- Energy-optimized aluminum module featuring full-wrap high-density mineral wool insulation and low-emissivity surface treatment—minimizing ambient heat loss and enabling rapid cooldown between runs.
- Corrosion-resistant construction: acid-resistant porcelain enamel coating on all exposed metal surfaces; chemically inert Duran® glass digestion tubes and fume condensation traps; electropolished stainless-steel exhaust manifolds.
- Integrated safety architecture: thermally insulated ergonomic handles; removable acid-collection drip tray beneath each tube position; configurable safety cutoff temperature; automatic activation of external fume extraction upon method initiation; dual independent overtemperature cutouts.
- Ergonomic and operational enhancements: built-in LED digestion chamber illumination; programmable preheating mode; KT-L variant includes motorized, programmable tube rack lift mechanism for operator safety and repeatability; engraved position numbering on all racks for unambiguous sample tracking.
Sample Compatibility & Compliance
The Kjeldatherm KT/KT-L supports heterogeneous solid and liquid samples—including animal feed, cereals, dairy products, environmental sludges, pharmaceutical raw materials, and clinical specimens—within defined matrix-specific digestion protocols. Its design meets the mechanical, thermal, and procedural requirements of internationally recognized standards: DIN EN ISO 5983-1/2 (animal feeding stuffs), AOAC Official Method 984.13 (crude protein), EPA Method 350.1 (wastewater nitrogen), ASTM D5142 (coal and coke), Ph. Eur. 2.5.33 (Method 7, Step A, for nitrogen determination in medicinal products), and EU Regulation (EC) No 152/2009 (official control of feed). Full GLP and ISO/IEC 17025 conformance is enabled through password-protected multi-level user access (administrator, analyst, reviewer), time-stamped digital log files capturing temperature profiles, method IDs, operator credentials, and run timestamps, and secure export of audit-ready data to LIMS via USB or RS232.
Software & Data Management
The system’s embedded controller provides a tactile membrane keypad interface with backlit LCD display. All digestion parameters—including ramp sequences, hold durations, safety thresholds, and fume extraction timing—are stored in non-volatile memory. Up to 30 complete digestion logs (including full temperature-time curves, start/end times, method version, and user ID) are retained onboard with tamper-evident timestamps. Data export supports CSV format compatible with laboratory information management systems (LIMS) and electronic lab notebooks (ELN). For regulated environments, optional firmware upgrade enables 21 CFR Part 11-compliant electronic signatures, audit trails with immutable event logging (e.g., parameter changes, method edits, user logins), and role-based permissions—ensuring full traceability from sample intake to final nitrogen quantification.
Applications
The Kjeldatherm KT/KT-L serves as the primary digestion stage in accredited nitrogen analysis workflows across food & agriculture testing laboratories (AOAC-certified feed protein labs), environmental monitoring agencies (EPA-compliant wastewater labs), pharmaceutical QC units (Ph. Eur.-compliant excipient testing), and contract research organizations performing GLP studies. Its consistent thermal performance ensures low inter-run CVs (<2.5%) in nitrogen recovery experiments, critical for validation of reference materials and proficiency testing schemes. The modular footprint and standardized tube geometry also support integration with automated distillation modules (e.g., Gerhardt Vapodest series) and robotic sample handling platforms.
FAQ
What digestion tube sizes are supported?
The system accommodates standard 100 mL, 250 mL, and 400 mL Duran® borosilicate glass digestion tubes, with dedicated rack configurations for each volume.
Is the system compliant with FDA 21 CFR Part 11?
Yes—when equipped with the optional regulatory firmware package, it provides electronic signature capability, secure audit trails, and role-based access control required for GxP environments.
Can digestion methods be transferred between KT and KT-L models?
Yes—method files are fully interchangeable between KT and KT-L controllers; the KT-L adds lift-motion programming but retains identical thermal control logic and data structure.
How is acid fume management handled?
The system features an integrated fume activation signal output that triggers external fume hoods or scrubbers at method start; all digestion tubes seat within sealed, corrosion-resistant exhaust manifolds with individual condensate collection channels.
Does the system support remote monitoring or network connectivity?
Standard configuration includes RS232 and USB ports for local data transfer; Ethernet or Wi-Fi connectivity is not natively supported but may be implemented via third-party serial-to-Ethernet bridges compliant with laboratory network security policies.
