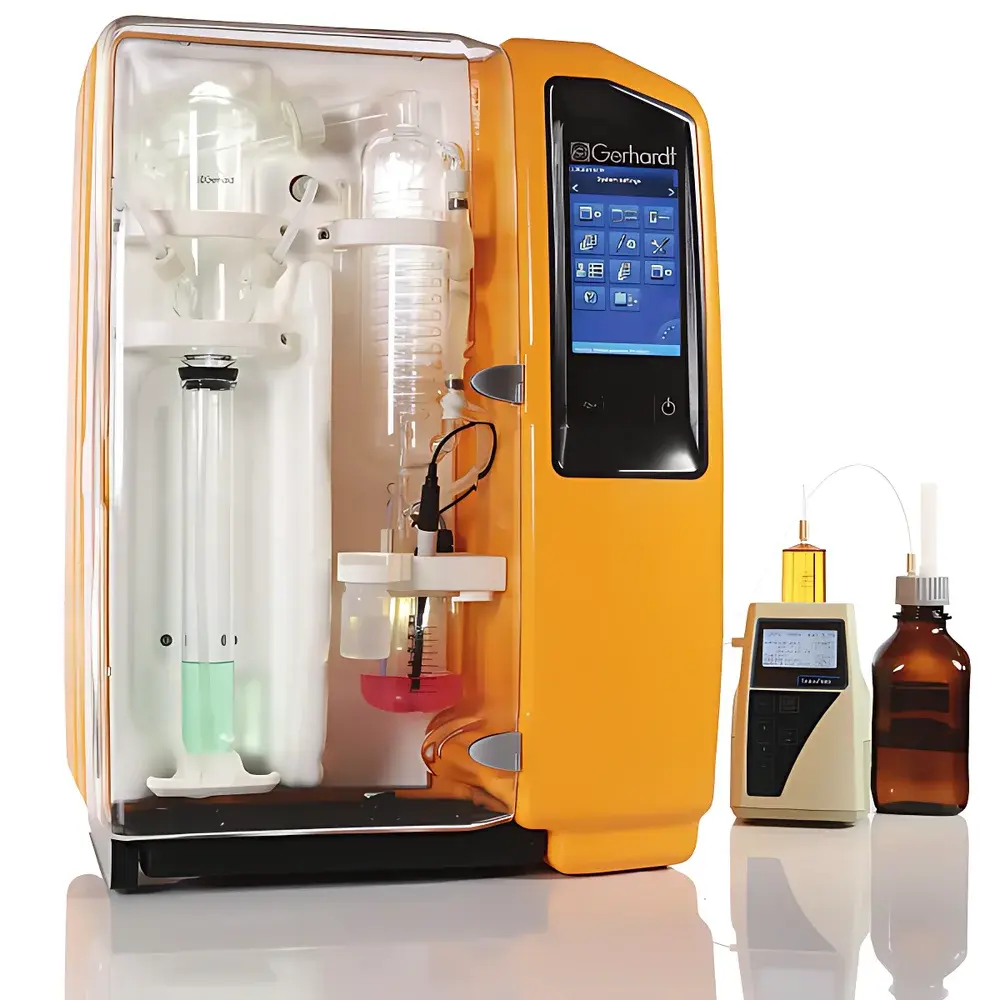

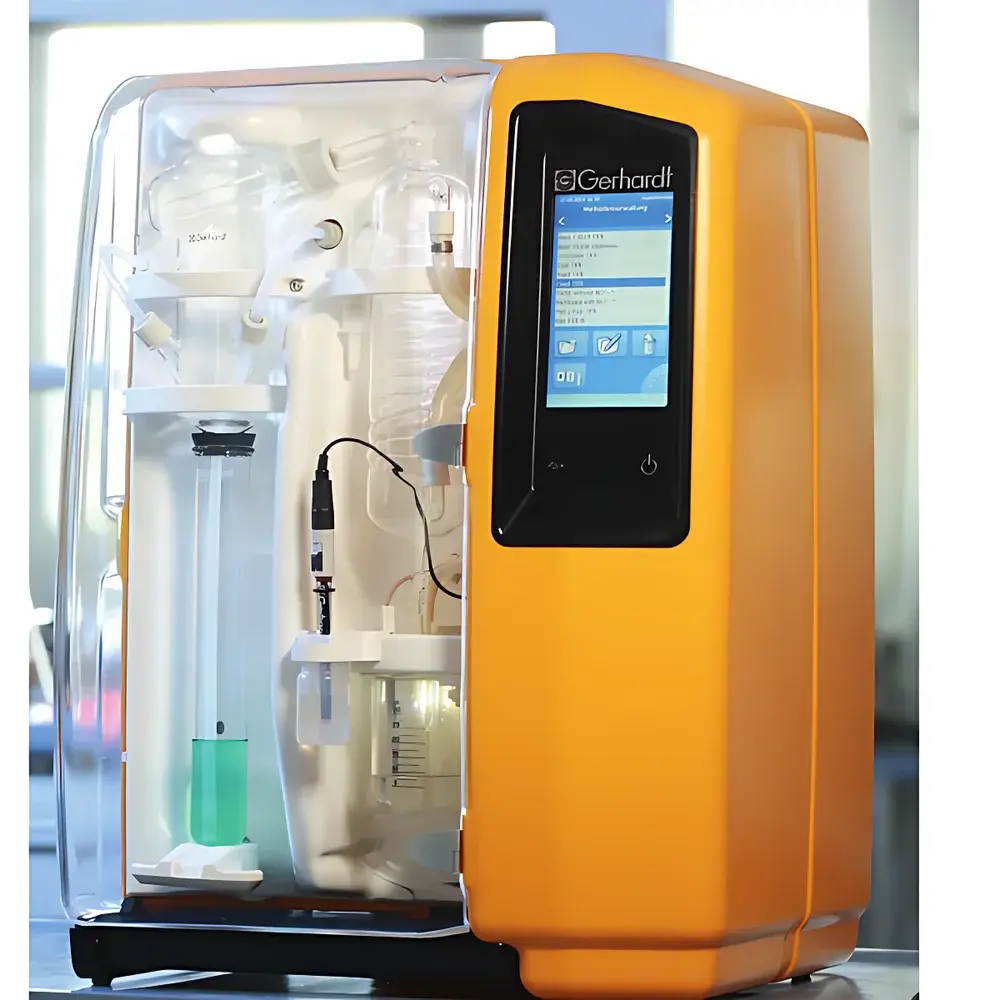

Gerhardt VAPODEST 450 Fully Automated Kjeldahl Nitrogen Determinator

Overview

The Gerhardt VAPODEST 450 is a fully programmable, CE-compliant automated Kjeldahl distillation system engineered for precision, safety, and regulatory compliance in modern analytical laboratories. Based on classical Kjeldahl methodology—acid digestion followed by alkaline steam distillation and subsequent nitrogen quantification—the VAPODEST 450 delivers traceable, auditable, and reproducible results across diverse sample matrices. Its core architecture integrates a maintenance-free, explosion-protected all-metal steam generator with thermal insulation, eliminating glass or polymer components in high-temperature zones. The system operates under controlled steam pressure (adjustable 10–100% via software), enabling precise optimization of distillation kinetics for volatile analytes such as ammonia, volatile basic nitrogen (VBN), formaldehyde, sulfur dioxide, phenols, and sulfides. Designed to meet ISO 8968 (milk protein), AOAC 981.10 (crude protein), ISO 5983 (feed), and USP (nitrogen content) requirements, the VAPODEST 450 supports GLP/GMP workflows through full process automation, real-time parameter logging, and integrated error diagnostics.

Key Features

• Fully programmable distillation sequence: automatic reagent dosing (water, NaOH, boric acid), timed steam delivery, condensate cooling control, waste evacuation, and endpoint detection.
• Steam generator with standby mode and overcurrent protection; no routine descaling or component replacement required.
• Modular expandability: optional integration with Gerhardt’s certified autotitrator (e.g., Titrino-compatible module) transforms the system into a fully integrated Kjeldahl analyzer—distillation and titration executed synchronously under unified software control.
• Microprocessor-based controller with alphanumeric LCD display showing real-time step status, measured values, alarm codes, and user-defined program names.
• On-the-fly alkali replenishment function ensures consistent reaction stoichiometry during extended batch runs.
• Robust fluid handling: corrosion-resistant peristaltic pumps for reagent delivery and waste removal; programmable delay, ramp, and hold functions for method development.
• Wide cooling water flow tolerance (2–5 L/min), ensuring stable condensation performance under ambient temperatures up to 40 °C.

Sample Compatibility & Compliance

The VAPODEST 450 accommodates solid samples up to 5 g and liquid samples within standard Kjeldahl digestion tubes (e.g., 100–300 mL capacity). It is validated for use with foodstuffs (cereals, dairy, meat), feedstuffs, environmental samples (soil, wastewater), pharmaceutical intermediates, and chemical reagents. All operational parameters—including steam pressure, distillation duration, reagent volumes, and cooling thresholds—are configurable and stored as SOP-compliant methods. The system conforms to IEC 61010-1 (safety of laboratory equipment), EN 61326-1 (EMC), and supports 21 CFR Part 11 readiness when paired with Gerhardt’s validated LIMS interface and audit-trail-enabled software. Method validation documentation (including recovery studies, linearity assessment, and intermediate precision data) is available upon request for regulatory submissions.

Software & Data Management

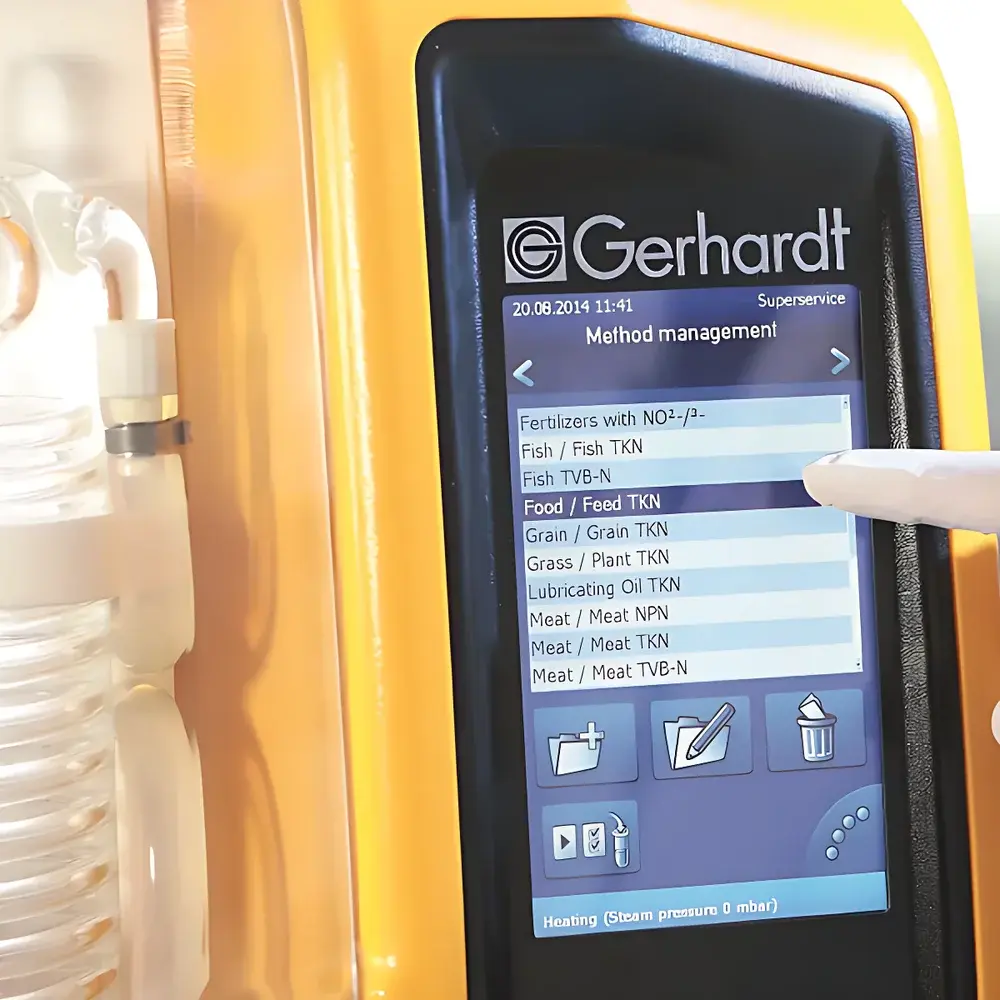

Control and data acquisition are managed via Gerhardt’s proprietary VAP-SOFT v5.x platform, running on an embedded industrial PC. The software enables creation, storage, and recall of ≥100 user-defined methods, each with independent settings for steam ramp rate, hold time, titrant addition volume, and endpoint criteria (pH threshold or ΔpH slope). Raw sensor data—including temperature, conductivity, pH (when connected to titrator), and pump actuation timestamps—is logged at 100 ms resolution and exportable in CSV or XML format. Electronic signatures, user access levels (admin/operator/auditor), and immutable audit trails comply with ALCOA+ principles. Optional OPC UA connectivity allows seamless integration into enterprise laboratory information management systems (LIMS) or MES platforms.

Applications

Beyond total nitrogen and crude protein determination (converted using standard factors: 6.25 for cereals, 6.38 for dairy, 5.70 for wheat), the VAPODEST 450 supports specialized applications requiring selective volatilization: determination of volatile basic nitrogen (VBN) in fish freshness assessment (ISO 11014); ammoniacal nitrogen in wastewater (ISO 5664); formaldehyde in disinfectants (AOAC 973.39); sulfur dioxide in wine (OIV-MA-AS313); and hydrazine in rocket propellants. Its optimized steam dynamics and low carryover design make it particularly suitable for alcohol distillation (e.g., ethanol separation prior to GC analysis) and analysis of thermally labile compounds where conventional distillers exhibit poor recovery.

FAQ

Can the VAPODEST 450 operate without an external titrator?
Yes—it functions as a standalone automated distillation unit. Titration capability is added only when the optional autotitrator module is installed and configured.
Is method validation support provided for regulatory submissions?
Gerhardt supplies IQ/OQ documentation templates, performance qualification protocols, and application notes aligned with AOAC, ISO, and pharmacopoeial monographs.
What maintenance is required for the steam generator?
None—its stainless-steel, scale-resistant design and thermal buffer eliminate descaling, gasket replacement, or pressure vessel certification.
How is data integrity ensured during long unattended runs?
All critical events (reagent depletion, coolant failure, overpressure) trigger immediate hardware interlocks and timestamped log entries; power-loss recovery resumes from last completed step.
Does the system support multi-user environments with role-based access?
Yes—VAP-SOFT implements three-tier authentication (operator, supervisor, administrator) with encrypted password policies and session timeout controls.
