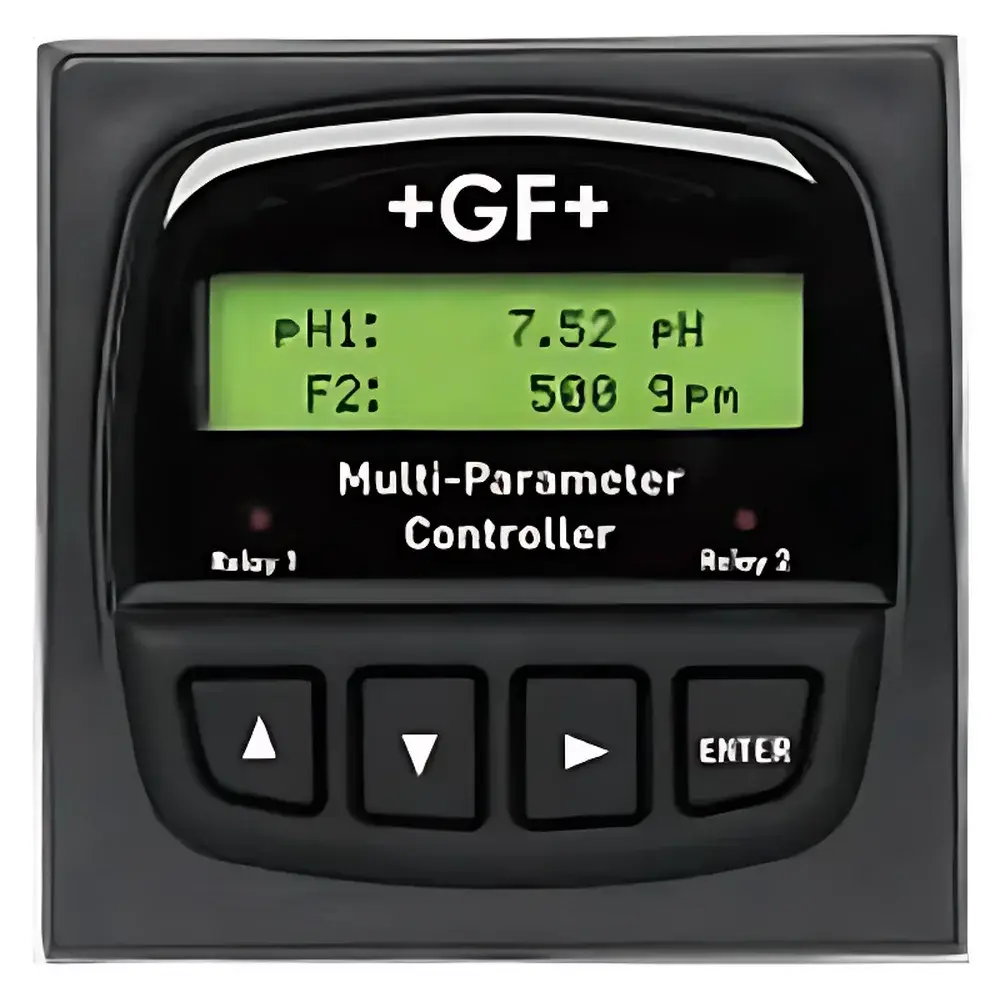

GF SIGNET 8550 Flow Transmitter

Overview

The GF SIGNET 8550 Flow Transmitter is a field-proven, programmable signal conditioning and conversion device engineered for industrial liquid flow measurement systems. It serves as the central interface between GF SIGNET flow sensors—including paddlewheel, magnetic, ultrasonic, and conductivity-based models—and distributed control systems (DCS), programmable logic controllers (PLC), or data acquisition units. Operating on the principle of analog signal conditioning and digital parameterization, the 8550 accepts raw sensor outputs (e.g., pulse frequency, voltage, or current) and converts them into standardized 4–20 mA process signals with high linearity and thermal stability. Its dual-channel capability supports differential flow computation, redundancy monitoring, or multi-point system integration—making it suitable for critical applications in water treatment, chemical dosing, pharmaceutical utilities, and food & beverage processing where traceability and repeatability are governed by regulatory frameworks such as FDA 21 CFR Part 11 and ISO 9001.

Key Features

• Configurable dual-input architecture supporting up to two independent GF SIGNET flow sensors (models P51530 series, 3-2536 series, and compatible variants)
• Programmable 4–20 mA output with user-defined scaling, zero/span adjustment, and linearization per sensor input
• Optional relay outputs (up to two SPDT relays) configurable for high/low alarm, pump control, batch counting, or regeneration sequencing
• Open-collector digital outputs supporting pulse, frequency, or status signaling for integration with counters, SCADA gateways, or PLC high-speed inputs
• Dual-mount flexibility: available in both field-mounted (NEMA 4X/IP66-rated enclosure) and panel-mounted (DIN-rail compatible) configurations
• Backlit 2×16 character LCD display with intuitive menu navigation, real-time flow rate, accumulated total, and diagnostic status indicators
• Chemically resistant polypropylene housing with self-healing polycarbonate window and tactile membrane buttons for glove-compatible operation
• Non-volatile memory retaining configuration, calibration, and totalizer values during power loss
• Support for permanent and resettable volumetric accumulation with overflow protection and time-stamped reset logging

Sample Compatibility & Compliance

The 8550 is designed exclusively for use with GF SIGNET’s certified flow sensing elements, including the P51530 series (PP-bodied paddlewheel sensors for pipe sizes 0.5″–36″) and the 3-2536 series (multi-material compatible sensors with extended cable options). It complies with IEC 61000-4 electromagnetic compatibility standards, UL 61010-1 safety requirements for industrial control equipment, and RoHS Directive 2011/65/EU. When deployed in validated environments—such as purified water (PW) or water-for-injection (WFI) distribution loops—the transmitter supports audit-ready configuration management, including change logs, user access levels, and factory-reset traceability per GAMP 5 and Annex 11 guidelines.

Software & Data Management

Configuration is performed locally via the front-panel keypad and LCD interface; no external software or PC connection is required. All parameters—including flow unit selection (gpm, l/min, m³/h, etc.), damping time, relay hysteresis, totalizer reset conditions, and sensor type identification—are stored in EEPROM with write-cycle protection. The device maintains an internal event log capturing power cycles, configuration changes, and alarm activations—accessible through diagnostic mode. While the 8550 does not feature Ethernet or Modbus communication natively, its 4–20 mA output is fully compatible with third-party HART-enabled I/O modules for asset monitoring and predictive maintenance integration.

Applications

• Real-time flow monitoring and closed-loop control in municipal water distribution and wastewater lift stations
• Regeneration cycle supervision for ion exchange softeners and multimedia filters
• Volumetric batching and proportioning in chemical feed systems (e.g., chlorine, coagulant, pH adjusters)
• Pump protection via dry-run detection, over-pressure interlock, and flow-loss shutdown protocols
• Leak detection through continuous differential flow analysis across parallel pipelines or looped circuits
• Utility monitoring in pharmaceutical clean steam condensate return lines and HVAC chilled water circuits
• Compliance-driven totalization for billing, environmental reporting (e.g., EPA NPDES), and sustainability KPIs

FAQ

Can the 8550 accept non-GF SIGNET flow sensors?
No—the 8550 is calibrated and tested exclusively with GF SIGNET sensor families. Interfacing with third-party sensors may result in inaccurate scaling, loss of temperature compensation, or failure to meet stated accuracy specifications.
Is the 8550 suitable for hazardous locations?
The standard 8550 is rated for general-purpose industrial environments (NEMA 4X / IP66). For Class I Div 1 or ATEX Zone 1 installations, GF offers intrinsically safe barrier-compatible variants—consult technical documentation for model-specific certifications.
Does the 8550 support HART communication?
The base 8550 operates as a conventional 4–20 mA analog transmitter without native HART protocol. However, it functions reliably with HART-enabled smart I/O systems when used in pass-through mode.
How is calibration verification performed?
Calibration is verified using known flow rates from a master meter or gravimetric test stand. The 8550 supports zero and span adjustments via front-panel menu; full calibration certificates are issued upon request for IQ/OQ validation packages.
What is the maximum cable length between sensor and transmitter?
For pulse-output sensors, maximum recommended distance is 300 m using shielded twisted-pair cable (AWG 22). For 4-wire active sensors, consult the specific sensor datasheet for voltage drop and noise immunity constraints.
