Rainin E4 XLS+ Electronic Single-Channel Pipette (Cylindrical Design)

Overview

The Rainin E4 XLS+ Electronic Single-Channel Pipette is a high-precision, motor-driven liquid handling instrument engineered for reproducible, traceable, and ergonomic performance in regulated laboratory environments. Built on a cylindrical, balanced chassis and manufactured in Switzerland, the E4 XLS+ employs closed-loop microprocessor-controlled piston actuation—leveraging a 4,000-step precision stepper motor—to deliver consistent aspiration and dispensing across its full volume range. Unlike manual or semi-automated alternatives, the E4 XLS+ eliminates operator-dependent variability by decoupling volumetric accuracy from hand strength, fatigue, or technique. Its core architecture supports both routine volumetric transfers and advanced multi-step protocols—including reverse pipetting, serial dilution, and stepwise dispensing—while maintaining ISO 8655-compliant performance throughout its operational life.

Key Features

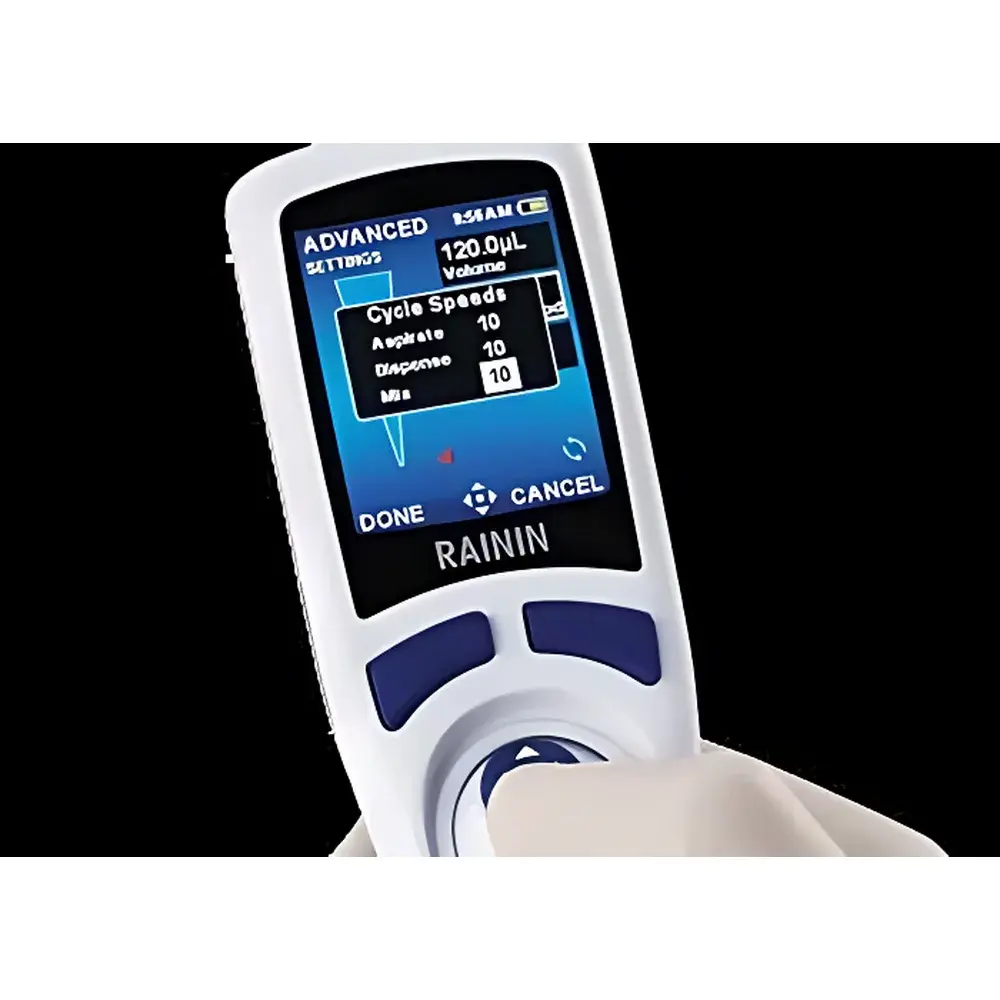

• Full-color graphical LCD display with intuitive icon-based navigation and real-time feedback on volume, mode, battery status, and error codes.
• Joystick + rotary dial interface enables one-handed operation, rapid parameter adjustment, and seamless transition between preloaded protocols.
• Auto-zeroing calibration performed at the conclusion of every pipetting cycle ensures continuous positional accuracy without manual recalibration.
• LTS (Low-Torque Spring) tip ejection system, reducing tip ejection force to ≤0.6 kg—critical for repetitive workflows and users with reduced grip strength.
• Ambidextrous, glove-compatible ergonomics: lightweight cylindrical design, optimized center-of-mass, and contoured finger hooks minimize wrist deviation and muscular load during extended use.
• Onboard memory stores up to 9 user-defined protocols, including volume, speed profiles, mixing steps, and pause intervals—accessible instantly via joystick navigation.
• Password-protected configuration modes allow lab managers to lock critical parameters (e.g., volume limits, calibration access, protocol editing) to enforce SOP adherence.

Sample Compatibility & Compliance

The E4 XLS+ is compatible with all standard conical, filter, and low-retention pipette tips meeting ISO 8655–5 specifications—including Rainin LTS and BioClean Ultra tips. Its sealed internal mechanism prevents aerosol ingress and cross-contamination during handling of viscous, volatile, or temperature-sensitive samples (e.g., glycerol solutions, ethanol-based reagents, RNA/DNA suspensions). For regulatory compliance, the device maintains a tamper-evident, time-stamped GLP audit trail: service history, calibration events, total pipetting cycles, and firmware updates are stored in non-volatile memory and exportable via USB. While the pipette itself does not constitute a “system” under FDA 21 CFR Part 11, its data architecture—including password authentication, user-level access control, and immutable log entries—supports integration into validated workflows requiring electronic record integrity.

Software & Data Management

All E4 XLS+ units ship with embedded PureSpeed™ firmware—a dedicated protocol engine optimized for rapid, gentle purification of biomolecules such as proteins, oligonucleotides, and plasmid DNA. PureSpeed leverages variable aspiration/dispense speeds, controlled air-cushion displacement, and optimized tip geometry to achieve high-concentration eluates with minimal shear stress. Configuration, protocol backup, and firmware updates are managed through Rainin’s free Pipette+ desktop application (Windows/macOS), which supports CSV export of usage logs and synchronization across multi-user labs. Optional cloud-enabled versions provide remote diagnostics and fleet-level calibration tracking—fully aligned with ISO/IEC 17025 and GxP documentation requirements.

Applications

The E4 XLS+ serves as a primary liquid handling tool in molecular biology, clinical diagnostics, pharmaceutical QC, and academic research laboratories. Typical use cases include: preparation of qPCR master mixes with sub-microliter accuracy; serial dilution of reference standards for ELISA assay development; precise loading of CRISPR-Cas9 ribonucleoprotein complexes onto electroporation cuvettes; high-throughput cell culture media supplementation; and GLP-compliant sample aliquoting for biobanking. Its programmable multi-dispense function supports consistent reagent distribution across 96- or 384-well plates, while its reverse pipetting mode ensures fidelity when handling surfactant-containing buffers or high-viscosity glycoprotein solutions.

FAQ

What volume ranges are available for the E4 XLS+ series?
The E4 XLS+ platform spans nine models: E4-10XLS+ (0.5–10 µL), E4-20XLS+ (2–20 µL), E4-100XLS+ (10–100 µL), E4-200XLS+ (20–200 µL), E4-300XLS+ (20–300 µL), E4-1000XLS+ (100–1000 µL), E4-2000XLS+ (200–2000 µL), E4-5000XLS+ (500–5000 µL), and E4-10MLXLS+ (1–10 mL).
Does the E4 XLS+ require annual recalibration?
Yes—per ISO 8655 and internal quality policy, Rainin recommends annual verification and adjustment by an accredited service provider. The device records all calibration events and retains historical performance data for trend analysis.
Can the E4 XLS+ be integrated into LIMS or ELN systems?
Direct API integration is not supported natively; however, usage logs and protocol metadata exported via Pipette+ can be ingested into third-party LIMS/ELN platforms using standardized CSV or XML schemas.
Is the battery replaceable by the end user?
No—the lithium-ion battery is sealed and field-replaceable only by authorized Rainin service centers to maintain IP rating and torque calibration integrity.
What certifications apply to the E4 XLS+ manufacturing process?
All E4 XLS+ units are produced in Rainin’s ISO 13485-certified facility in Vernier, Switzerland, with full traceability from component sourcing to final functional test. Each unit ships with a Certificate of Conformance and factory calibration report.
