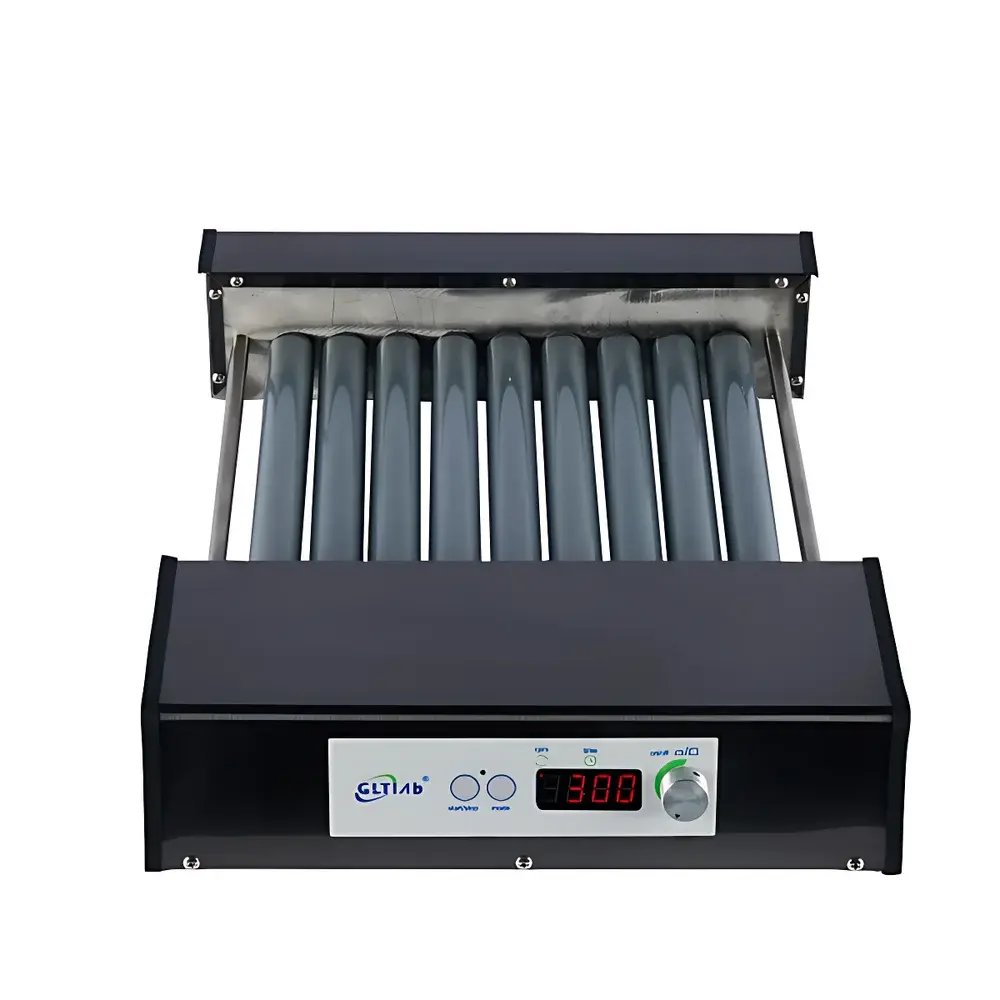

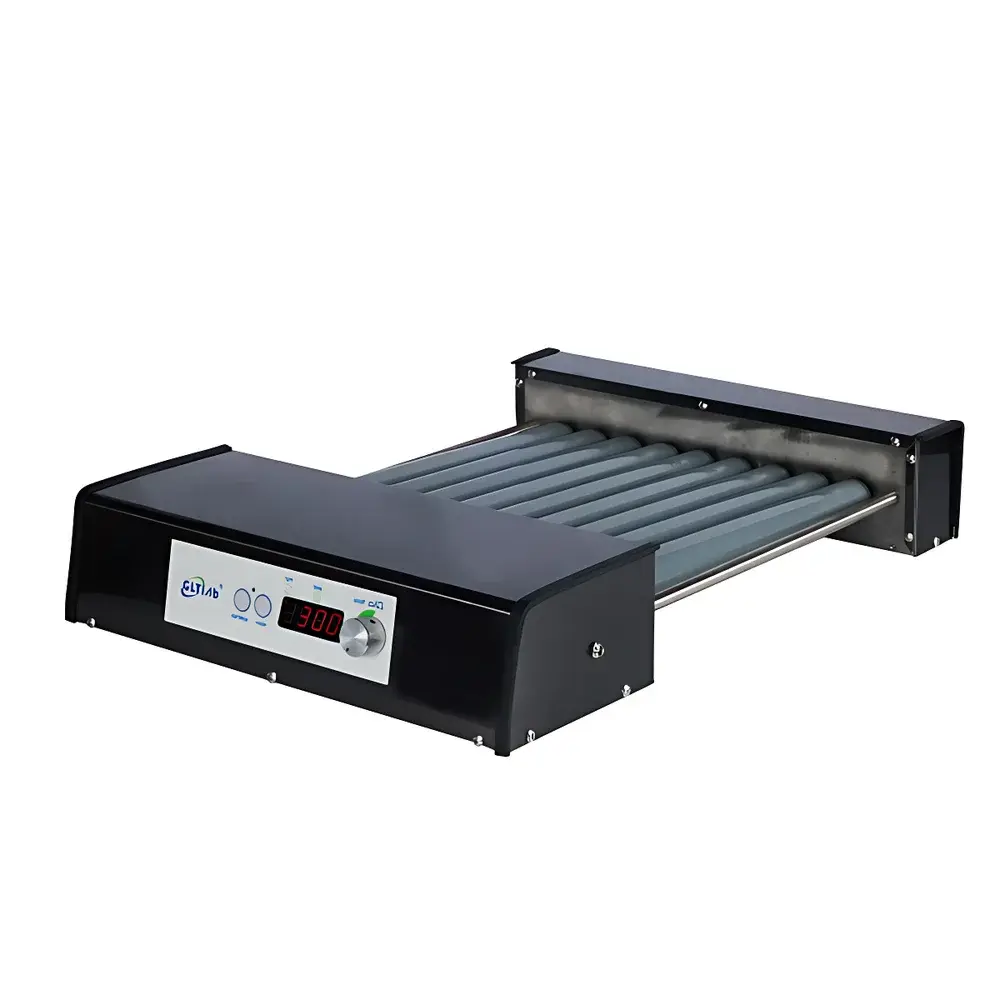

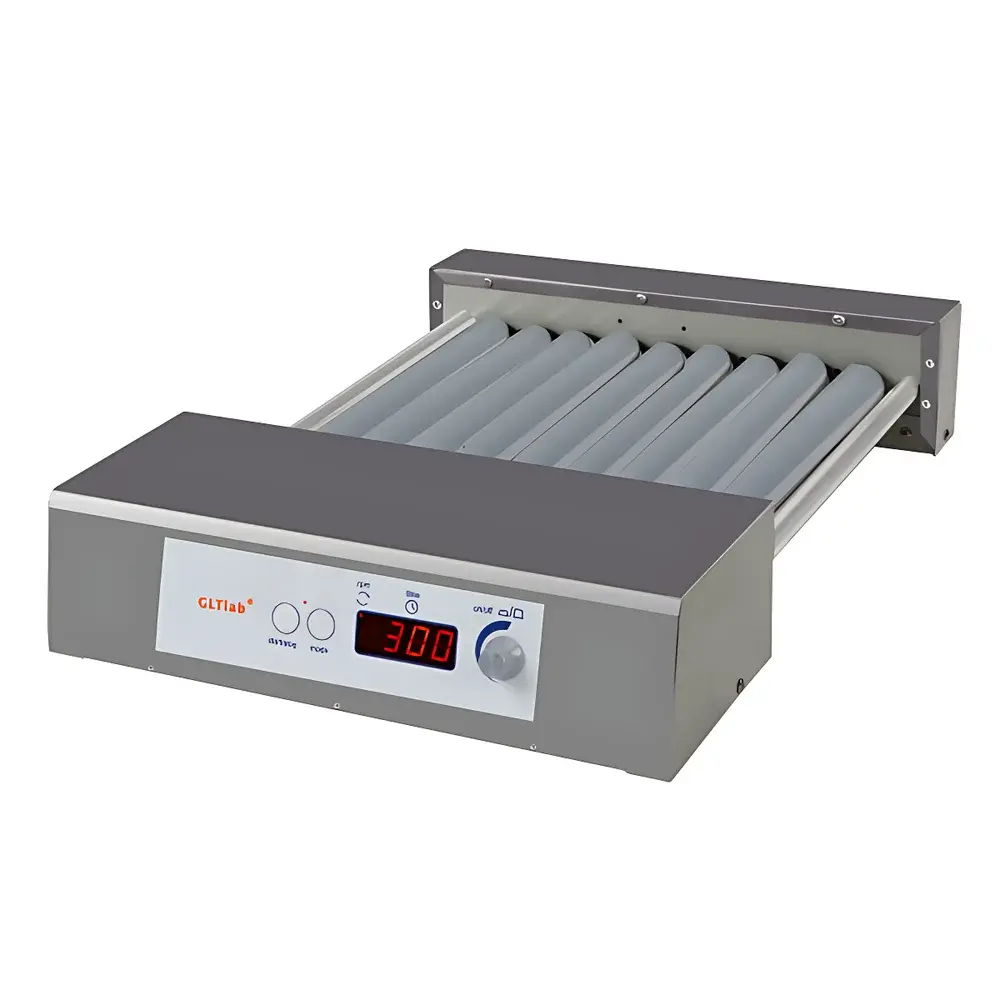

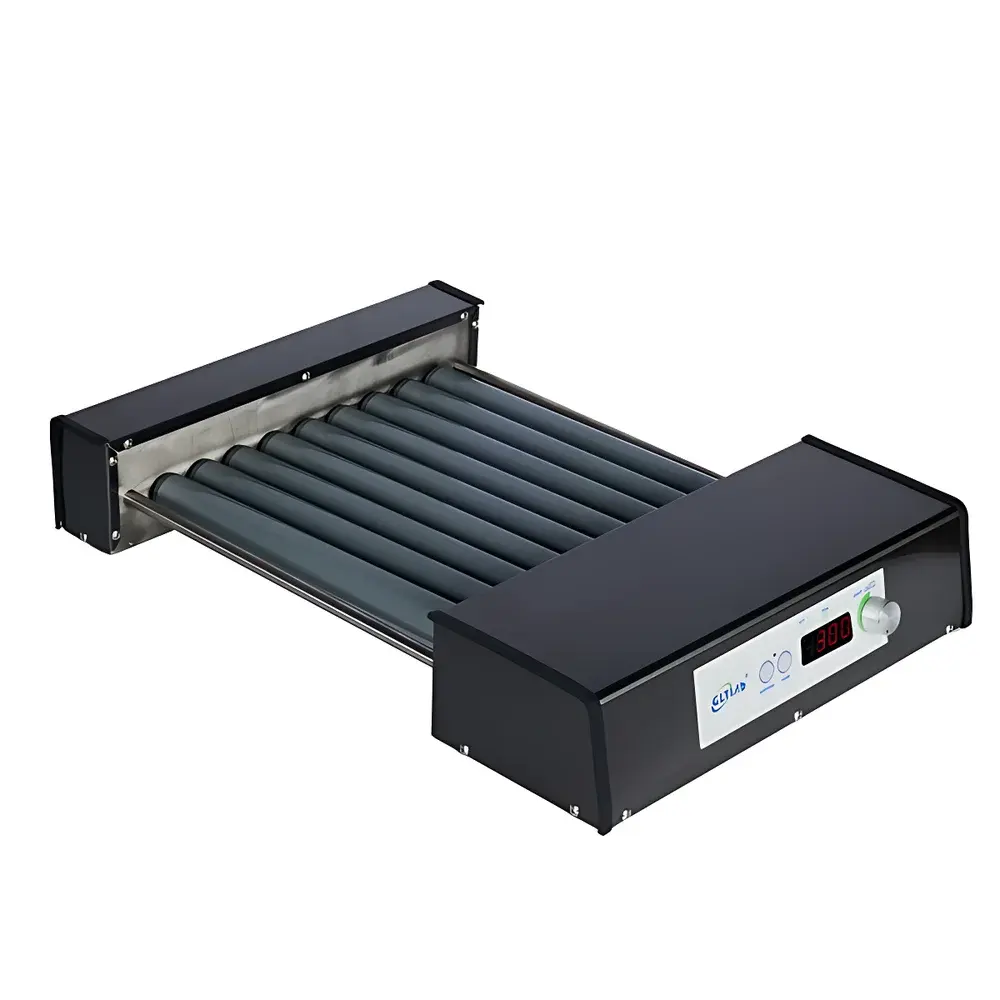

GLTLab LTR-2D-SS Stainless Steel Roller Mixer

Overview

The GLTLab LTR-2D-SS Stainless Steel Roller Mixer is an engineered solution for consistent, low-shear sample homogenization and adsorption-based extraction workflows in life science, clinical diagnostics, and pharmaceutical R&D laboratories. It operates on the principle of coaxial or angular-axis roller-driven motion—where cylindrical sample containers rotate synchronously with precision-machined stainless steel rollers—generating controlled laminar flow within liquids, suspensions, and semi-viscous matrices. Unlike orbital shakers or vortex mixers, this design eliminates mechanical coupling points (e.g., clamps, adapters, or gear trains), reducing maintenance dependency and enabling direct compatibility with a broad range of tube formats—from 1.5 mL microcentrifuge tubes to 50 mL conical tubes and custom glass vials. The unit’s core innovation lies in its brushless DC motor architecture, which replaces traditional geared transmission systems, thereby eliminating gear wear, backlash, and speed calibration drift over time. This results in long-term rotational stability and reproducible mixing kinetics across thousands of operational cycles.

Key Features

• Full 304 stainless steel construction—including housing, rollers, shafts, and fasteners—for sustained resistance to corrosion in humid, acidic, alkaline, or sterilant-exposed environments (e.g., ISO Class 7 cleanrooms or GLP-compliant QC labs).
• Dual-mode operation: selectable oscillating mode (roller axis angled relative to drive shaft) for gentle resuspension of blood pellets, cryopreserved cells, or viscous hydrogels; and pure rolling mode (coaxial alignment) for uniform powder blending or solid-phase extraction (SPE) protocols.
• Programmable bidirectional rotation: users define clockwise (CW) and counterclockwise (CCW) intervals between 1 and 15 minutes, optimizing magnetic bead–surface interaction during affinity capture steps.
• Nine precision-ground rollers (340 mm length × 30 mm diameter) provide extended contact surface area and load distribution—enabling stable handling of up to 10 kg total payload without deflection or resonance-induced instability.
• Wide-speed digital control (5–1000 rpm) with 1-rpm resolution and real-time feedback ensures precise kinetic tuning for applications ranging from slow thawing of frozen serum aliquots to high-efficiency magnetic separation in nucleic acid purification.
• Integrated microprocessor-based timer supports durations from 1 second to 200 hours, with auto-shutdown and memory retention for repeat protocol execution under unattended operation.

Sample Compatibility & Compliance

The LTR-2D-SS accommodates standard laboratory vessels without adapters—including polypropylene, polycarbonate, borosilicate glass, and stainless steel containers—making it suitable for ISO 15195:2018-compliant reference material handling and CLSI EP10-A3–aligned method validation studies. Its non-porous, electropolished stainless steel surfaces meet FDA 21 CFR Part 11 requirements for traceable cleaning verification and support routine autoclaving (up to 121°C, 2 bar) when disassembled per manufacturer guidelines. The absence of painted coatings or rubberized components eliminates organic leachables, ensuring compliance with USP for extractables profiling in biopharmaceutical process development.

Software & Data Management

While the LTR-2D-SS operates as a standalone instrument with front-panel digital interface, its firmware architecture supports optional RS-485 serial communication (Modbus RTU protocol) for integration into LabVantage, Thermo Fisher SampleManager, or custom LIMS environments. Audit trails—including start/stop timestamps, speed setpoints, direction toggles, and elapsed runtime—are stored locally in non-volatile memory and exportable via USB-C dongle (optional accessory). All configuration changes are logged with user ID fields compatible with GLP/GMP electronic record retention policies.

Applications

• Blood bank workflows: uniform resuspension of RBC pellets prior to crossmatching or antigen typing.
• Magnetic bead-based assays: enhanced binding efficiency in immunoassays (e.g., ELISA wash steps), ChIP-seq library prep, and CRISPR guide RNA complex formation.
• Cryopreservation recovery: controlled, low-turbulence thawing of stem cell suspensions and organoid fragments.
• Solid-phase extraction: consistent agitation during protein A/G purification, phosphopeptide enrichment, or small-molecule cleanup in LC-MS sample prep.
• Materials science: dispersion of nanomaterials in polymer precursors or ceramic slurries where shear-sensitive particle integrity must be preserved.

FAQ

Is the LTR-2D-SS compatible with ISO 13485-certified quality management systems?
Yes—the full stainless steel build, traceable component sourcing, and documented calibration procedures align with ISO 13485:2016 clause 7.5.2 (Production and service provision) for medical device manufacturing support equipment.
Can the roller spacing be adjusted to accommodate oversized containers?
Yes—rollers are modular and can be manually repositioned along the rail system to increase inter-roller distance, supporting custom bottles up to Ø120 mm diameter.
Does the unit include electromagnetic interference (EMI) shielding for use near sensitive analytical instruments?
Yes—the brushed stainless steel enclosure functions as a Faraday cage, and the DC motor driver complies with IEC 61000-6-3:2019 emission limits for industrial environments.
What is the expected service life under continuous 24/7 operation?
Based on accelerated lifetime testing (MIL-HDBK-217F), the brushless motor and sealed roller bearings are rated for ≥30,000 hours MTBF at 70% nominal load and ambient temperatures ≤40°C.
Are spare parts and technical documentation available internationally?
Yes—GLTLab provides multilingual operation manuals (EN/DE/FR/JP), RoHS/REACH declarations, and certified replacement rollers, controllers, and power modules through authorized distributors in EU, NA, and APAC regions.
