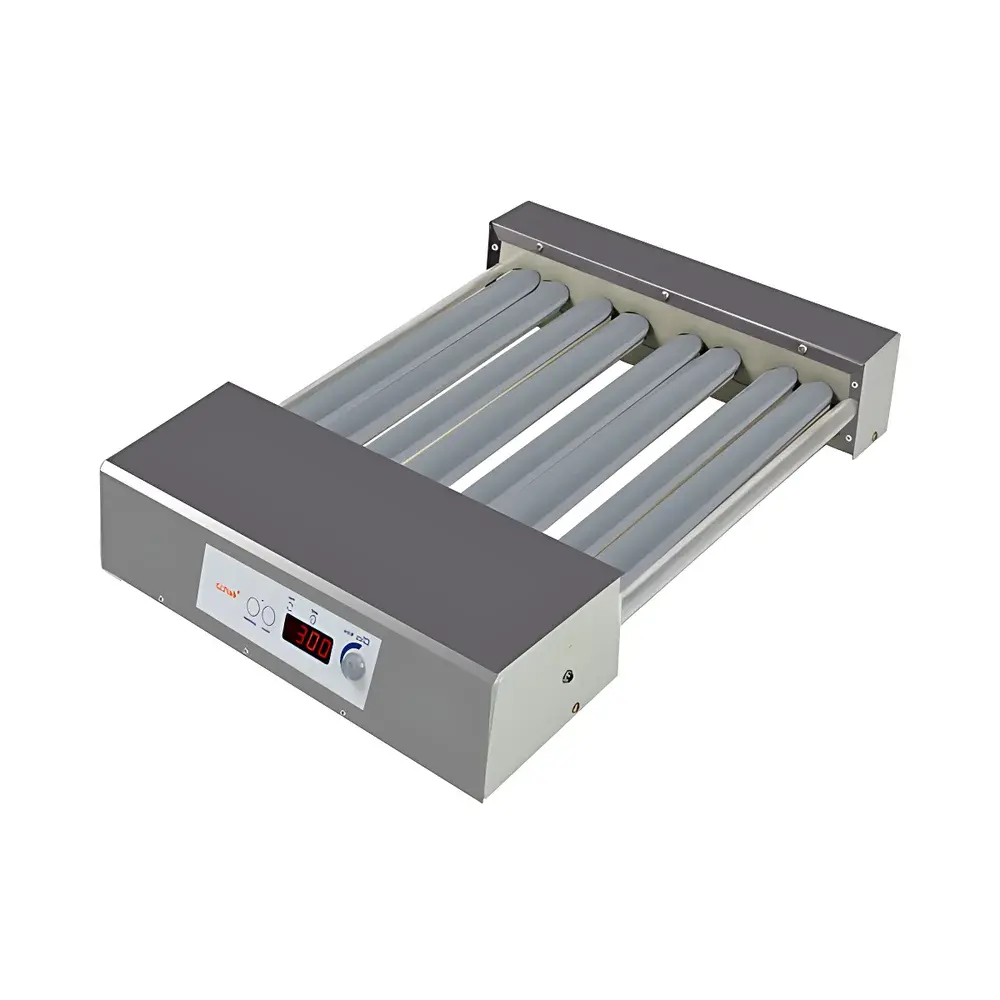

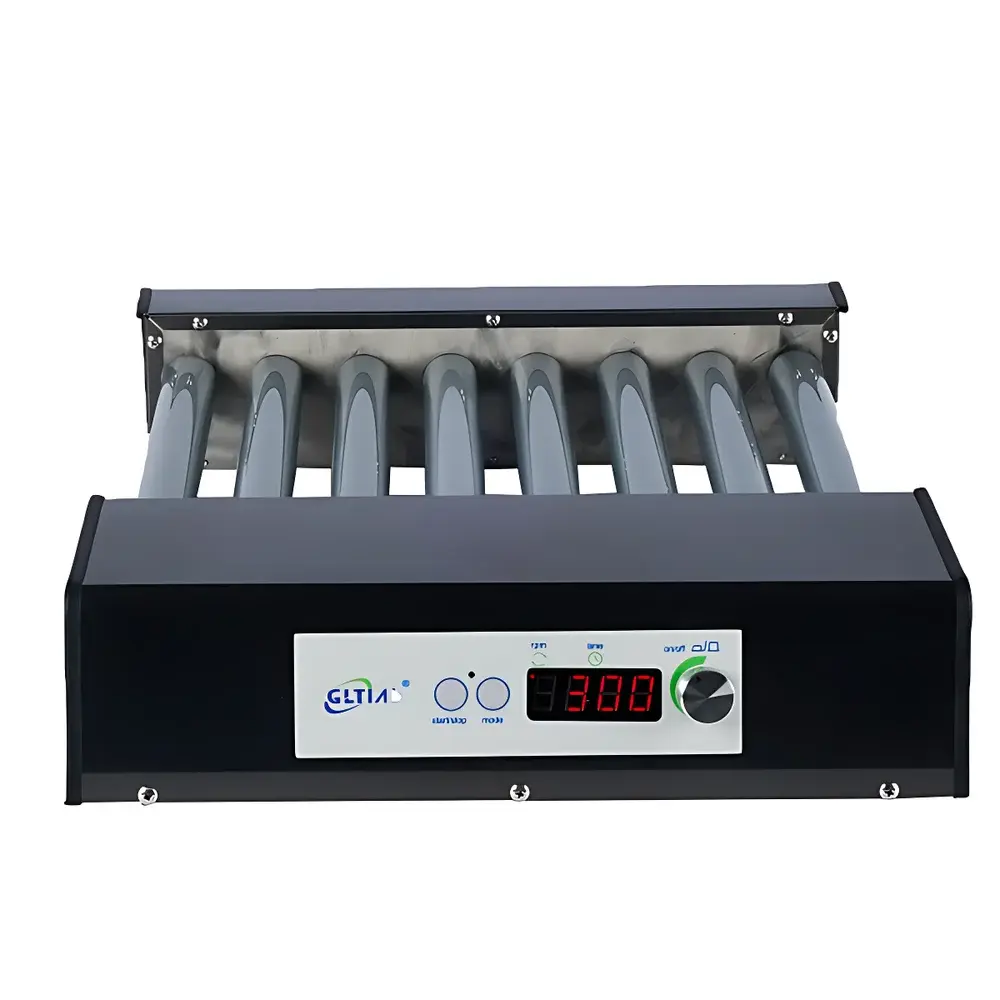

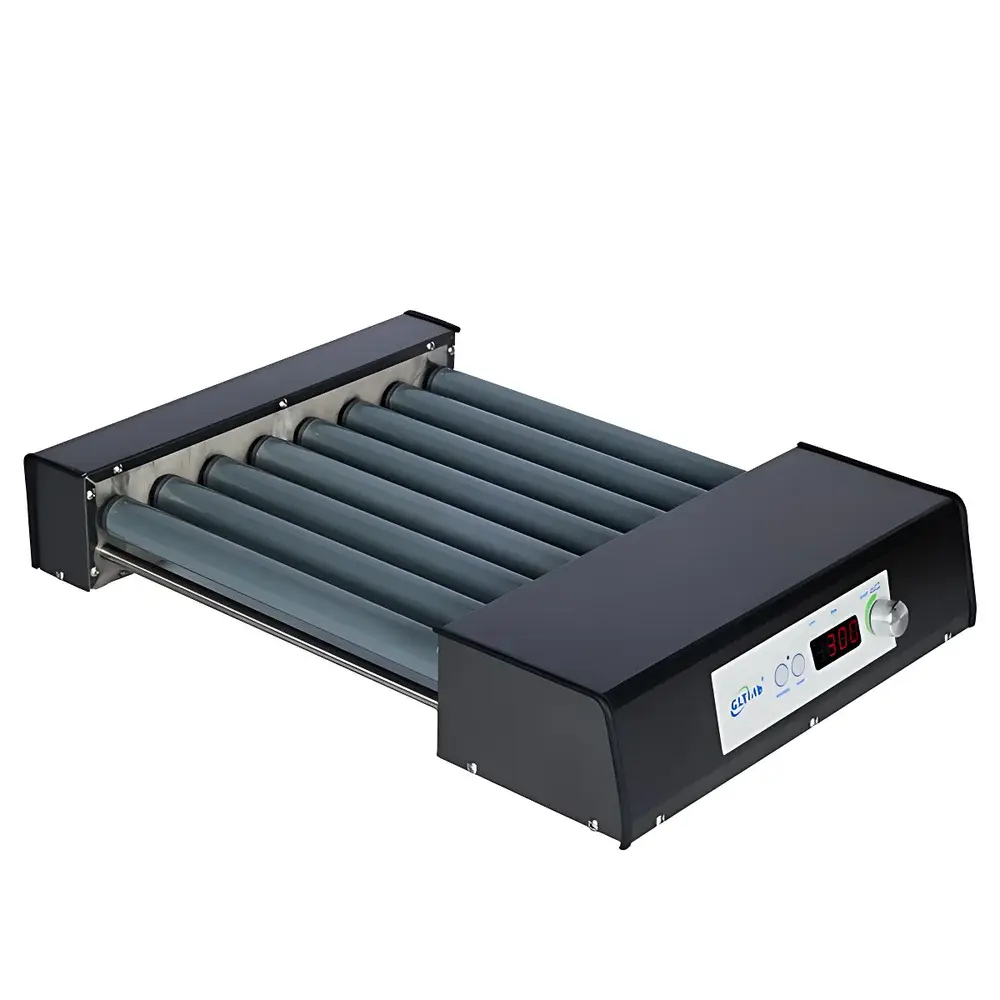

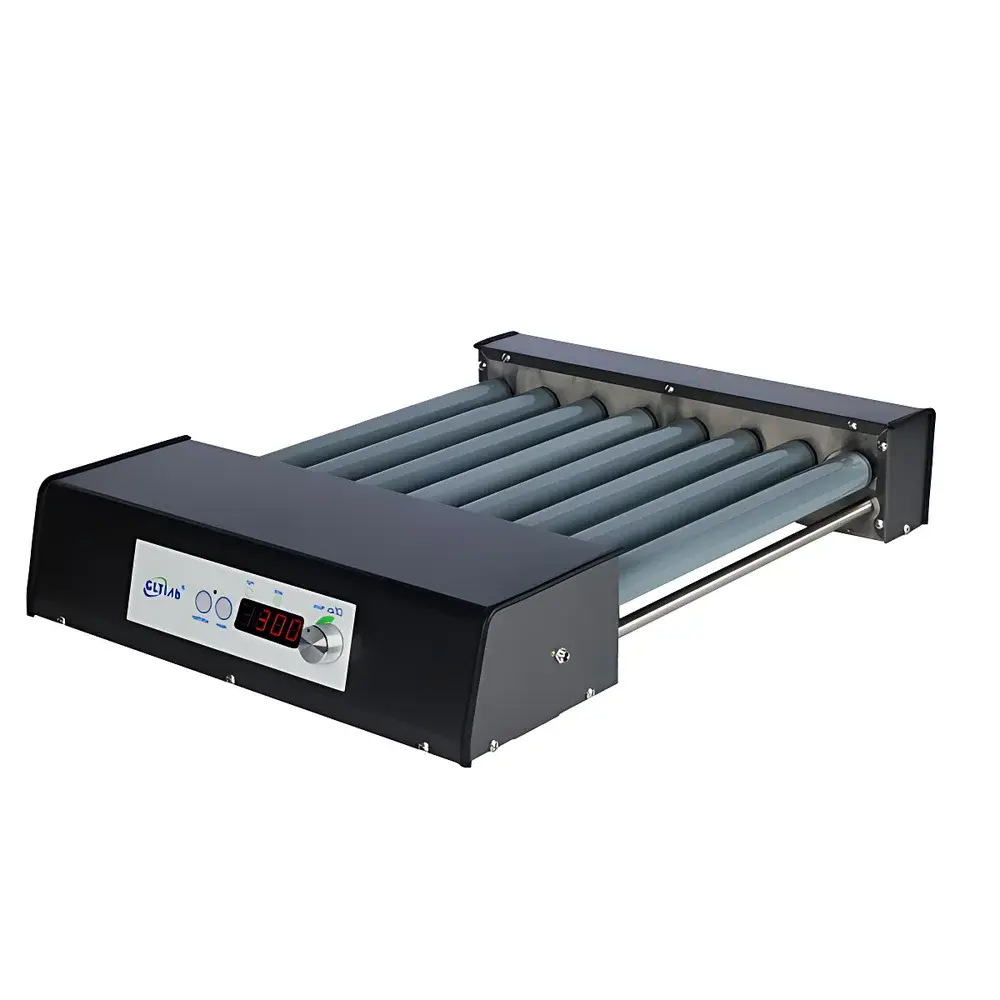

GLTLab TR-8SS Stainless Steel 8-Axis Roller Mixer

Overview

The GLTLab TR-8SS Stainless Steel 8-Axis Roller Mixer is an industrial-grade laboratory mixing platform engineered for high-reproducibility, long-term operational stability in chemically aggressive environments. It operates on the principle of synchronous multi-axis rolling motion—eight independently mounted cylindrical shafts rotate at precisely controlled speeds and directions, inducing gentle yet effective tumbling, shearing, and axial dispersion within sealed containers. Unlike orbital shakers or vortex mixers, roller mixers provide low-shear, continuous-contact agitation ideal for sensitive suspensions, viscous pastes, and heterogeneous solid–liquid systems where phase separation, foaming, or particle degradation must be minimized. The TR-8SS is specifically designed for applications demanding corrosion resistance—such as battery slurry preparation, pharmaceutical excipient blending, and analytical sample extraction under acidic or alkaline conditions—where conventional painted steel or aluminum housings would degrade over time.

Key Features

• Full 304 stainless steel construction—including chassis, shaft supports, motor housing, and control panel—ensures immunity to chloride-induced pitting, acid/alkali exposure, and high-humidity operation.
• Eight independent rolling axes with precision-machined 304 SS shafts (340 mm length × 30 mm diameter), each rated for continuous 10 kg load capacity at up to 300 rpm.
• Digital microprocessor controller with intuitive membrane keypad interface; enables speed adjustment in 1-rpm increments and programmable run time from 1 minute to 200 hours.
• Bi-directional rotation logic: optional alternating forward/reverse sequencing prevents sediment settling and improves homogeneity in high-viscosity media.
• Thermally optimized motor design with IP54-rated enclosure and passive aluminum heatsink ensures stable performance during extended duty cycles (e.g., overnight battery slurry mixing).
• Anti-fingerprint brushed stainless surface finish enhances cleanroom compatibility and simplifies decontamination between batches—critical for GMP-aligned QC labs.

Sample Compatibility & Compliance

The TR-8SS accommodates standard laboratory vessels including glass or polypropylene roller bottles (10–500 mL), centrifuge tubes (15–50 mL), and custom-fit cartridges used in magnetic bead-based extraction workflows. Its low-vibration mechanical architecture maintains container integrity during prolonged agitation—reducing risk of cap leakage or tube deformation. While not certified to ISO 13485 or FDA 21 CFR Part 11 out-of-the-box, the device’s deterministic timer logic, non-volatile parameter storage, and absence of cloud connectivity make it suitable for environments requiring audit-ready manual operation logs. It complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and meets RoHS Directive 2011/65/EU material restrictions.

Software & Data Management

The TR-8SS operates via embedded firmware without external software dependency. All settings—including speed setpoint, direction mode (unidirectional/bidirectional), elapsed time, and remaining runtime—are retained in EEPROM memory after power cycling. No USB, Bluetooth, or Ethernet interfaces are provided, eliminating cybersecurity concerns and ensuring regulatory traceability in regulated manufacturing settings. Users may document operational parameters manually in lab notebooks or integrate usage records into LIMS via timestamped operator entries. Optional RS-232 serial output (available upon request with accessory cable) permits basic status polling for facility-wide equipment monitoring systems.

Applications

• Battery Materials Processing: Homogeneous dispersion of cathode/anode active materials (e.g., NMC, LFP, silicon-graphite composites) in PVDF/NMP or aqueous binders—critical for electrode slurry rheology consistency prior to coating.
• Pharmaceutical & Biotech: Gentle reconstitution of lyophilized proteins, mixing of insoluble APIs with surfactants, and magnetic bead–mediated nucleic acid isolation where mechanical shear must be avoided.
• Chemical Synthesis & Catalysis: Slurry-phase reactions involving heterogeneous catalysts (e.g., Pd/C, Raney Ni), where uniform suspension prevents localized overheating or mass-transfer limitations.
• Environmental & Food Testing: Extraction of analytes from solid matrices (soil, tissue, plant matter) using solvent-assisted rolling, enhancing recovery efficiency versus static soaking.
• Quality Control Laboratories: Standardized mixing protocols compliant with ASTM D7928 (clay dispersion), ISO 14689 (geotechnical sample prep), or internal SOPs governing slurry viscosity benchmarking.

FAQ

Is the TR-8SS compatible with autoclaving or steam sterilization?
No—the unit is not designed for direct autoclave exposure; however, all external stainless surfaces are wipe-sterilizable with 70% ethanol, isopropanol, or diluted sodium hypochlorite solutions.
Can I operate multiple TR-8SS units synchronously from a central controller?
Not natively; each unit functions as a standalone instrument. Synchronized start/stop requires external relay-based timing hardware.
What maintenance is required beyond routine cleaning?
Annual inspection of shaft bearing preload and drive belt tension (if equipped); no lubrication is needed due to sealed ball bearings and stainless-on-stainless contact surfaces.
Does the TR-8SS support variable-speed ramping profiles?
No—it provides fixed-speed operation only; gradual acceleration/deceleration is not implemented in firmware.
Are replacement rollers or custom-length shafts available?
Yes—GLTLab offers OEM-compatible 304 SS shafts in lengths from 250 mm to 600 mm and diameters of 25 mm or 30 mm, subject to minimum order quantity.
