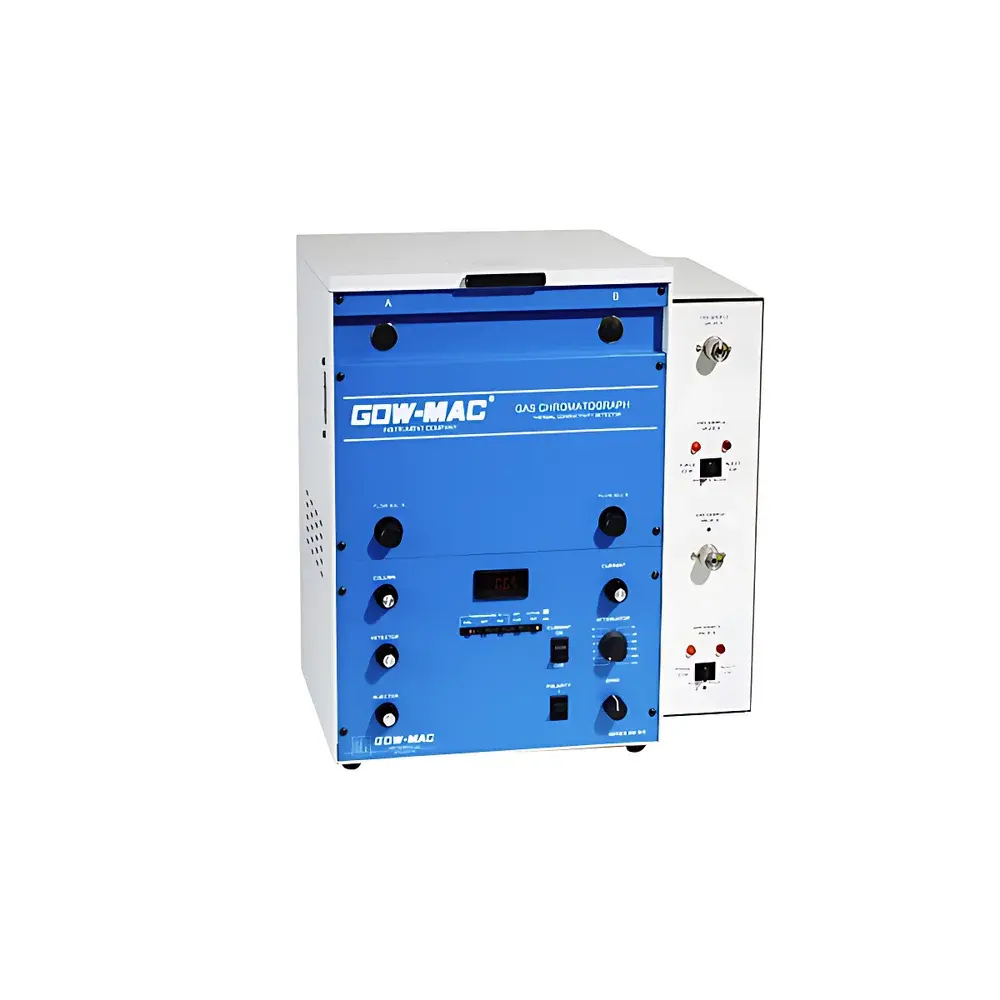

GOW-MAC 402 Dedicated Online Gas Chromatograph

Overview

The GOW-MAC 402 Dedicated Online Gas Chromatograph is a rugged, benchtop-integrated analytical instrument engineered for continuous or intermittent gas-phase compositional analysis in industrial process control, quality assurance laboratories, and academic teaching environments. Based on classical packed-column gas chromatography with thermal conductivity detection (TCD), the system operates on the principle of differential partitioning of gaseous analytes between a stationary phase (packed column) and a carrier gas mobile phase. Separation occurs as components elute at characteristic retention times, enabling quantitative determination of binary or ternary gas mixtures—including CO₂, O₂, Ar, N₂, and He—without requiring cryogenic cooling or complex detector electronics. Designed for reliability under non-ideal conditions—including variable ambient temperature, infrequent operator intervention, and mechanical vibration—the GOW-MAC 402 embodies over eight decades of chromatographic instrumentation heritage since its founding in 1935.

Key Features

• Dual independent precision flow control via two calibrated metering valves for carrier and reference gas streams, ensuring stable baseline and reproducible retention time alignment.
• 6-port gas sampling valve with ball-drop injection mechanism for repeatable, low-dead-volume sample introduction; compatible with both manual and automated actuation.
• Integrated sample/calibration selector manifold using a three-way solenoid valve, allowing seamless switching between process gas stream and certified calibration standards without hardware reconfiguration.
• Separately controlled oven and detector zones: column oven temperature range 30–250 °C (±0.5 °C stability); TCD block maintained at constant temperature for optimal thermal equilibrium.
• Overtemperature safety cutoff: automatic heater shutoff if column oven exceeds setpoint by >30 °C, preventing column degradation and safeguarding operator safety.
• Robust mechanical architecture with shock-absorbing base and simplified pneumatic routing—designed for classroom durability, field-deployable monitoring, and long-term unattended operation in production labs.

Sample Compatibility & Compliance

The GOW-MAC 402 is validated for routine analysis of permanent gases and light hydrocarbons in binary and ternary mixtures, including but not limited to: CO₂/Ar/O₂ systems, CO₂/N₂/He blends, and O₂/CO₂/Ar matrices. It supports direct connection to process lines via standard 1/8″ Swagelok fittings and accommodates sample pressures up to 100 psig. While not certified for hazardous area installation (e.g., ATEX or IECEx), the unit complies with UL 61010-1 for laboratory electrical safety and meets electromagnetic compatibility requirements per FCC Part 15, Class B. Its design facilitates traceability and audit readiness in regulated environments: all temperature setpoints, flow rates, and calibration events are manually logged per GLP principles; optional analog output (0–5 VDC or 4–20 mA) enables integration into DCS/SCADA systems compliant with ISA-88 and ISA-95 frameworks.

Software & Data Management

The GOW-MAC 402 operates as a standalone analog-output chromatograph with no embedded microprocessor or proprietary software. Peak integration, quantitation, and report generation are performed externally using third-party chromatography data systems (CDS) such as Chromeleon, Empower, or open-source tools like OpenChrom. Analog signal outputs support real-time plotting and alarm triggering in LabVIEW or MATLAB-based supervisory platforms. All operational parameters—including oven temperature, detector bridge current, and flow settings—are manually adjustable and documented via front-panel dials and digital displays. For FDA-regulated applications, users may implement 21 CFR Part 11-compliant electronic records through validated CDS configurations, including audit trail logging, electronic signatures, and user-access controls.

Applications

• Teaching laboratories: Demonstrating fundamental GC theory—including retention time, resolution, selectivity, and detector response—using safe, non-toxic gas standards.
• Industrial process monitoring: Real-time verification of purge gas composition in semiconductor annealing furnaces, blanketing gas purity in food packaging lines, or inert gas ratios in metal heat-treatment atmospheres.
• Environmental compliance: Quantifying CO₂ and O₂ levels in flue gas streams, landfill biogas, or fermentation off-gas for emissions reporting under EPA Method 3A or ISO 10156.
• Quality control in specialty gas manufacturing: Verifying certification values for medical-grade O₂, calibration gas blends, and ultra-high-purity carrier gases used in analytical labs.
• Research-scale preparative fraction collection: When paired with optional micro-preparative accessories, the system supports milliliter-scale isolation of retained components for downstream spectroscopic or synthetic use.

FAQ

Is the GOW-MAC 402 suitable for regulatory-compliant QC testing in pharmaceutical manufacturing?
Yes—when integrated with a validated CDS platform supporting 21 CFR Part 11, and operated within documented SOPs, it fulfills USP <621> and ICH Q2(R2) requirements for gas purity testing.
Can the instrument analyze moisture or hydrogen sulfide in natural gas?
No—the standard configuration lacks the column chemistry and detector sensitivity required for polar or reactive species; specialized columns and sulfur-specific detectors (e.g., PFPD) would be needed.
What maintenance intervals are recommended for the TCD filament?
Under typical operation with clean, dry carrier gas, the rhenium-tungsten (Re-W) filaments require no scheduled replacement; periodic resistance checks every 6 months are advised to verify thermal stability.
Does the system support remote diagnostics or Ethernet connectivity?
No—this is an analog-output-only instrument; remote monitoring requires external DAQ hardware and networked SCADA integration.
Is column oven ramping programmable?
No—temperature is manually set and held constant; the GOW-MAC 402 does not feature programmable temperature gradients.
