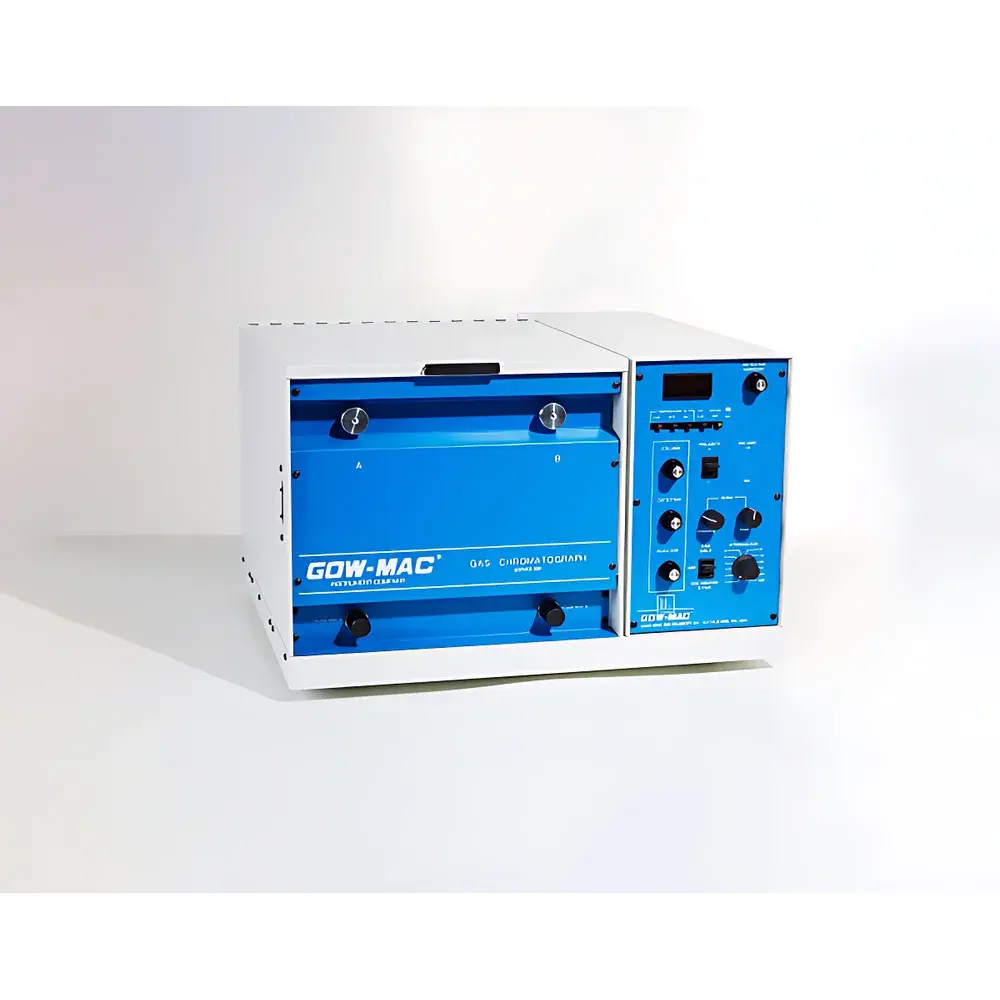

GOW-MAC 582 Series Laboratory Gas Chromatograph

Overview

The GOW-MAC 582 Series Laboratory Gas Chromatograph is a robust, benchtop gas chromatography system engineered for high-reliability analysis of industrial and process gases—including corrosive, reactive, and high-purity gas streams. Designed and manufactured in the United States since 1935, GOW-MAC instruments embody decades of expertise in trace-level gas analysis, particularly in demanding environments such as petrochemical refining, semiconductor manufacturing, specialty gas production, and environmental monitoring. The 582 Series employs classical packed-column and capillary-column GC architecture with fully independent thermal control of the column oven, injector(s), and detector(s), enabling precise retention time reproducibility and method transfer across laboratories. Its flow-path design prioritizes inertness and leak integrity—standard wetted surfaces are constructed from electropolished stainless steel, with optional nickel alloy or corrosion-resistant silicon steel components available for H₂S, Cl₂, HF, NH₃, and other aggressive analytes. The system supports both constant-pressure and constant-flow carrier gas operation, compatible with helium, hydrogen, nitrogen, and argon carriers.

Key Features

• Triple-zone independent temperature control: column oven (0–450 °C), injector(s) (up to 450 °C), and detector(s) (up to 450 °C), each with digital LED readout and proportional-integral-derivative (PID) regulation
• High-capacity column oven accommodating up to thirty 1/8-inch OD packed columns or multiple capillary columns with configurable routing
• Modular valve manifold supporting front-cut, back-cut, heart-cut (center-cut), and bypass configurations; optional heated pneumatic valve box for >200 °C valve operation
• Column-on-column (COC) and gas sampling valve (GSV) injection options with 9-mm standard spacing; dual-injector configuration available for parallel or sequential analysis
• Thermally insulated, heated transfer lines and detector exhaust ports to prevent condensation and adsorption of polar or low-volatility species
• Integrated filament protection circuitry for TCD operation, including pressure-actuated cutoff and carrier gas flow interlock
• 4–20 mA analog output with optional x10 signal amplifier for integration into distributed control systems (DCS) or SCADA environments

Sample Compatibility & Compliance

The GOW-MAC 582 is validated for quantitative and qualitative analysis of permanent gases (O₂, N₂, CO, CO₂, CH₄, H₂), light hydrocarbons (C₁–C₅), sulfur compounds (H₂S, COS, SO₂), halogenated gases (Cl₂, F₂, HCl), and ammonia. Its corrosion-resistant flow path meets ASTM D1945 (analysis of natural gas), ASTM D1946 (analysis of reformed gas), and ISO 8573-5 (purity testing of compressed air) requirements. When configured with appropriate columns (e.g., molecular sieve 5A, Porapak Q, Hayesep D) and detectors (TCD, FID, or optional PID), the system complies with GLP documentation standards and supports audit-ready operation under FDA 21 CFR Part 11 when paired with compliant data acquisition software. All temperature and flow parameters are logged with timestamped metadata for full traceability.

Software & Data Management

While the GOW-MAC 582 operates as a hardware-controlled standalone instrument, it interfaces seamlessly with third-party chromatography data systems (CDS) via analog 4–20 mA output or optional RS-232/RS-485 serial communication modules. Integration with Thermo Fisher Chromeleon, Agilent OpenLab CDS, or Waters Empower is routinely implemented in regulated laboratories. Internal firmware retains all method parameters—including ramp rates, hold times, valve event sequences, and detector bias settings—in non-volatile memory. Real-time temperature and pressure diagnostics are accessible via front-panel LED indicators and can be monitored remotely using external PLCs or SCADA HMIs. System logs support export for review during internal audits or regulatory inspections.

Applications

• Quality control of bulk and specialty industrial gases (e.g., electronic-grade N₂, He, Ar, SF₆)
• Process stream monitoring in ammonia synthesis, methanol reforming, and Fischer–Tropsch units
• Corrosion product identification in refinery sour water strippers and Claus plant tail gas
• Residual solvent analysis in pharmaceutical excipients per USP
• Trace impurity profiling in hydrogen fuel cells (CO, CO₂, CH₄, H₂O)
• Environmental emissions testing per EPA Method 18 and ISO 10156

FAQ

What column types are supported by the GOW-MAC 582?

The system accommodates both stainless steel and fused-silica packed columns (1/8″ or 1/4″ OD) and capillary columns (0.25–0.53 mm ID) using standard compression fittings and universal column nuts.
Can the 582 Series be used for unattended overnight operation?

Yes—its solid-state thermal controllers, overtemperature shutdown circuits, and fail-safe carrier gas interlocks make it suitable for extended automated runs when integrated with autosamplers and CDS software.
Is compliance with FDA 21 CFR Part 11 achievable?

Full Part 11 compliance requires external CDS software with electronic signature, audit trail, and user access controls; the 582 provides the necessary hardware-level data integrity features (e.g., parameter logging, timestamped events) to serve as a validated component within such a system.
What maintenance intervals are recommended for routine operation?

Injector septa should be replaced every 100 injections or weekly in continuous use; detector filaments inspected quarterly; column oven insulation and door gaskets assessed annually; and carrier gas filters changed every six months under typical lab conditions.
Does GOW-MAC offer factory calibration and IQ/OQ documentation?

Yes—factory-installed calibration certificates traceable to NIST standards are available, along with customizable Installation Qualification (IQ) and Operational Qualification (OQ) protocols aligned with ISO/IEC 17025 and ASTM E2655 guidelines.
