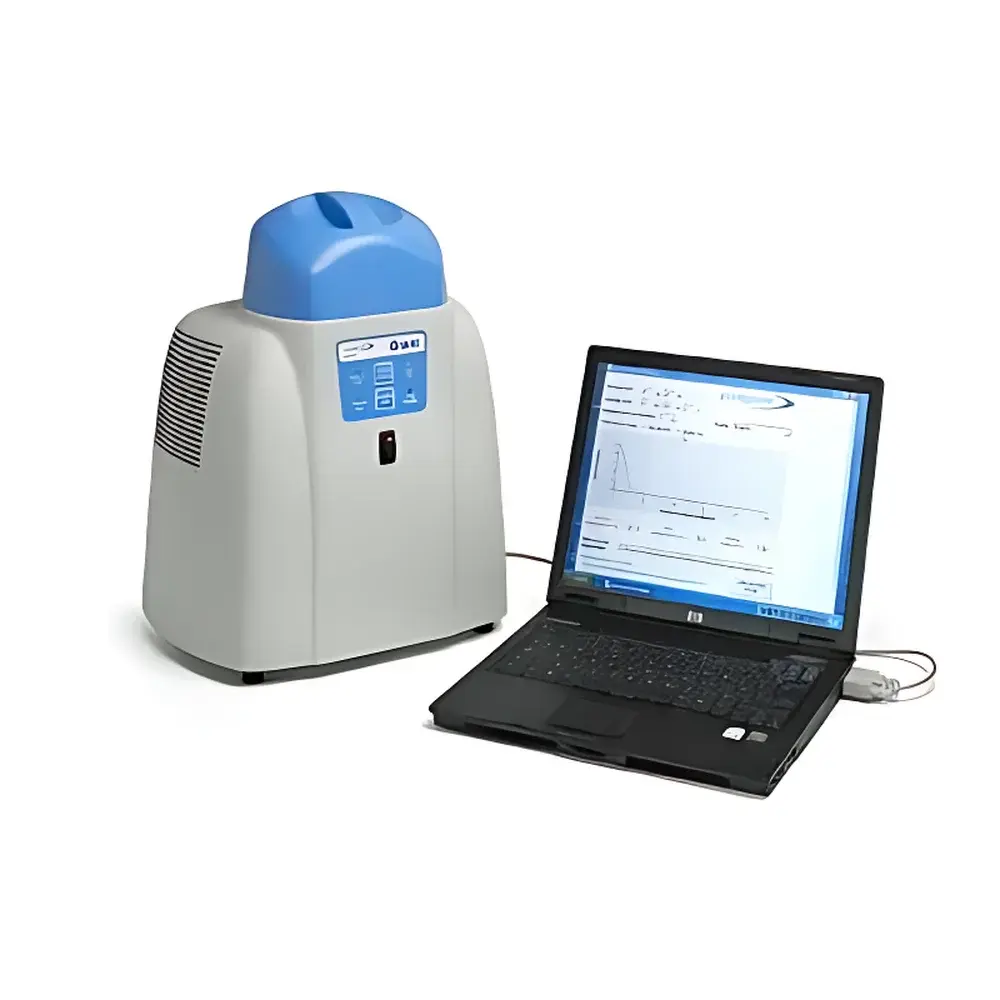

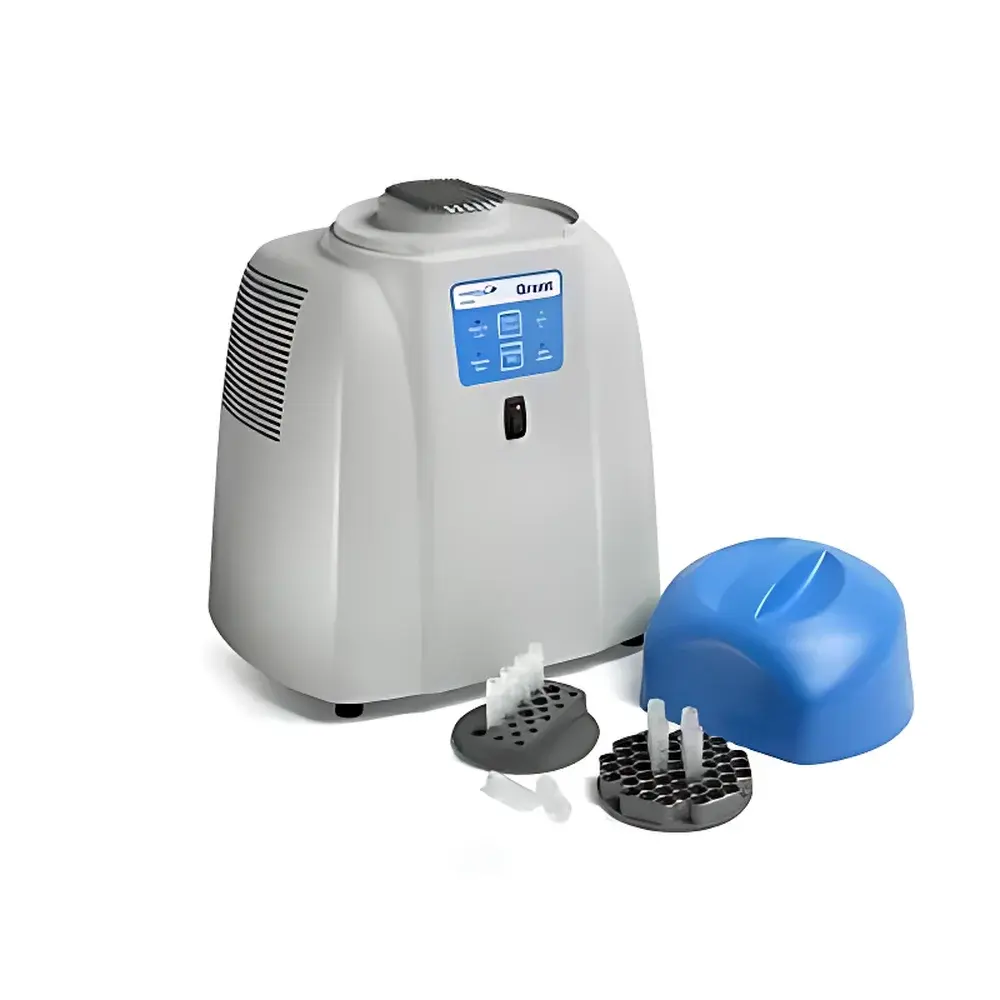

Grant EF600M Controlled-Rate Freezer

Overview

The Grant EF600M Controlled-Rate Freezer is a compact, electrically driven, nitrogen- and refrigerant-free cryopreservation system engineered for precise, reproducible, and contamination-free slow freezing of biologically sensitive samples. Unlike conventional liquid nitrogen-based freezers or mechanical units relying on volatile refrigerants, the EF600M employs solid-state thermoelectric cooling combined with advanced PID-controlled thermal management to deliver programmable cooling profiles across a range of −100 °C to +30 °C. Its design adheres to fundamental principles of cryobiology—specifically, controlled nucleation and linear/non-linear cooling kinetics—to minimize intracellular ice crystal formation, osmotic shock, and membrane phase transitions during freezing. This enables high post-thaw viability in delicate cell types including human embryonic stem cells, primary cardiomyocytes, oocytes, spermatozoa, umbilical cord blood-derived stem cells, and adherent cell lines cultured in microplates. The device operates silently (<45 dB(A)) and without flammable solvents or cryogenic hazards, making it suitable for ISO Class 5–7 cleanrooms, IVF laboratories, GLP-compliant biobanks, and integrated automated cell processing workflows.

Key Features

• Refrigerant-free operation: Eliminates reliance on liquid nitrogen, dry ice, or fluorocarbon refrigerants—reducing operational risk, regulatory burden, and long-term cost of ownership.
• Precise thermal control: Programmable cooling rates up to 15 °C/min (with 0.5 mL cryovials), with sub-degree accuracy and ±0.3 °C repeatability over full temperature range.
• Flexible sample handling: Interchangeable sample platforms support diverse formats—including CBS/IMV straws, 1.8 mL cryovials (up to 55 per run), SBS-standard microplates (96-well), cryobags, and Matrix-96 storage blocks.
• Integrated nucleation capability: Optional N₂O ice-seeding module delivers sterile, localized, and temporally synchronized ice nucleation at user-defined sub-zero temperatures (e.g., −6 °C to −12 °C), critical for reproducible vitrification-critical transitions.
• Low total cost of ownership: Estimated energy consumption is ~1% of equivalent liquid nitrogen systems; no consumables, no dewar refills, no venting infrastructure required.
• Robust compliance architecture: CE-marked; supports audit-ready data logging with timestamped cooling profiles, operator ID, and parameter verification—aligned with FDA 21 CFR Part 11 readiness when used with validated software.
• Uninterruptible operation: Optional UPS module sustains full-cycle execution (including hold-at-temperature phases) for up to 3 hours during mains failure.

Sample Compatibility & Compliance

The EF600M accommodates biological specimens across clinical, research, and biobanking applications. Validated use cases include cryopreservation of human and veterinary embryos, transgenic mouse embryos, CD34+ hematopoietic progenitors, primary hepatocytes, adipose-derived mesenchymal stromal cells (MSCs), and suspension or adherent stem cell lines in 96-well plates. All sample carriers are autoclavable or disposable and compatible with ISO 13485-certified labware. The system meets essential requirements of IEC 61010-1 (electrical safety), EN 61326-1 (EMC), and EU Medical Device Regulation (MDR) Annex I general safety and performance requirements for non-invasive laboratory equipment. It supports traceability under ISO 20387:2018 (biobanking) and aligns with best practices outlined in ISBER Best Practices (4th ed.) and ESHRE guidelines for embryo cryopreservation.

Software & Data Management

Control and monitoring are performed via intuitive touchscreen interface or optional PC-based Grant CryoSoft™ software (Windows 10/11). The software enables creation, validation, and export of cooling protocols—including linear, stepwise, or custom non-linear profiles—with real-time visualization of chamber temperature, sample thermocouple feedback (via optional probe integration), and rate deviation alerts. All runs generate CSV- and PDF-formatted reports containing metadata (date/time, operator, protocol name, setpoints, actual temperature log), supporting 21 CFR Part 11 compliance when paired with electronic signature and audit trail modules. Exported data integrates seamlessly with LIMS platforms (e.g., LabVantage, STARLIMS) and biorepository management systems via standard OPC UA or REST API interfaces.

Applications

• In vitro fertilization (IVF) laboratories: Routine slow freezing of oocytes, zygotes, and blastocysts with documented >92% post-thaw survival and implantation equivalence to LN₂-based methods.
• Stem cell banking: Standardized freezing of iPSCs, ESCs, and MSCs across donor cohorts, ensuring batch-to-batch consistency for GMP-aligned manufacturing.
• Preclinical research: Cryopreservation of primary tissue isolates (e.g., murine cardiac tissue, porcine hepatocytes) where metabolic integrity post-thaw is critical for functional assays.
• Biobanking: Long-term archival of rare clinical specimens—including cord blood units and tumor organoids—in SBS-format plates or cryobags, with barcode-scannable rack-level tracking.
• Automated cell therapy workflows: OEM-integrated deployment into robotic liquid handlers (e.g., Hamilton STAR, Tecan Fluent) for end-to-end closed-system cryopreservation.

FAQ

Does the EF600M require liquid nitrogen or external refrigerant gas?
No. It is fully self-contained and uses solid-state thermoelectric cooling with passive heat dissipation—no cryogens, compressors, or hazardous gases are involved.
Can I validate cooling profiles for regulatory submissions?
Yes. The system supports IQ/OQ documentation packages, NIST-traceable calibration certificates, and generates ALCOA+ compliant raw data files suitable for FDA, EMA, or PMDA review.
Is the EF600M suitable for GMP environments?
It is routinely deployed in ISO 13485-certified facilities and supports GMP-aligned operation when configured with electronic signatures, audit trails, and change control logs via CryoSoft™.
What sample formats are supported out-of-the-box?
Standard configurations include platforms for 0.3 mL IMV straws, 0.5 mL CBS straws, 1.8 mL cryovials (0.5 mL or 1.0 mL fill volume), SBS microplates, and cryobags—each with dedicated thermal mass compensation algorithms.
How is temperature uniformity ensured across the sample chamber?
The chamber employs multi-zone thermal sensing and adaptive fan-assisted air circulation to maintain ±0.8 °C spatial uniformity (measured at 5-point grid per ICH Q5C Annex 3) across all supported platforms.
