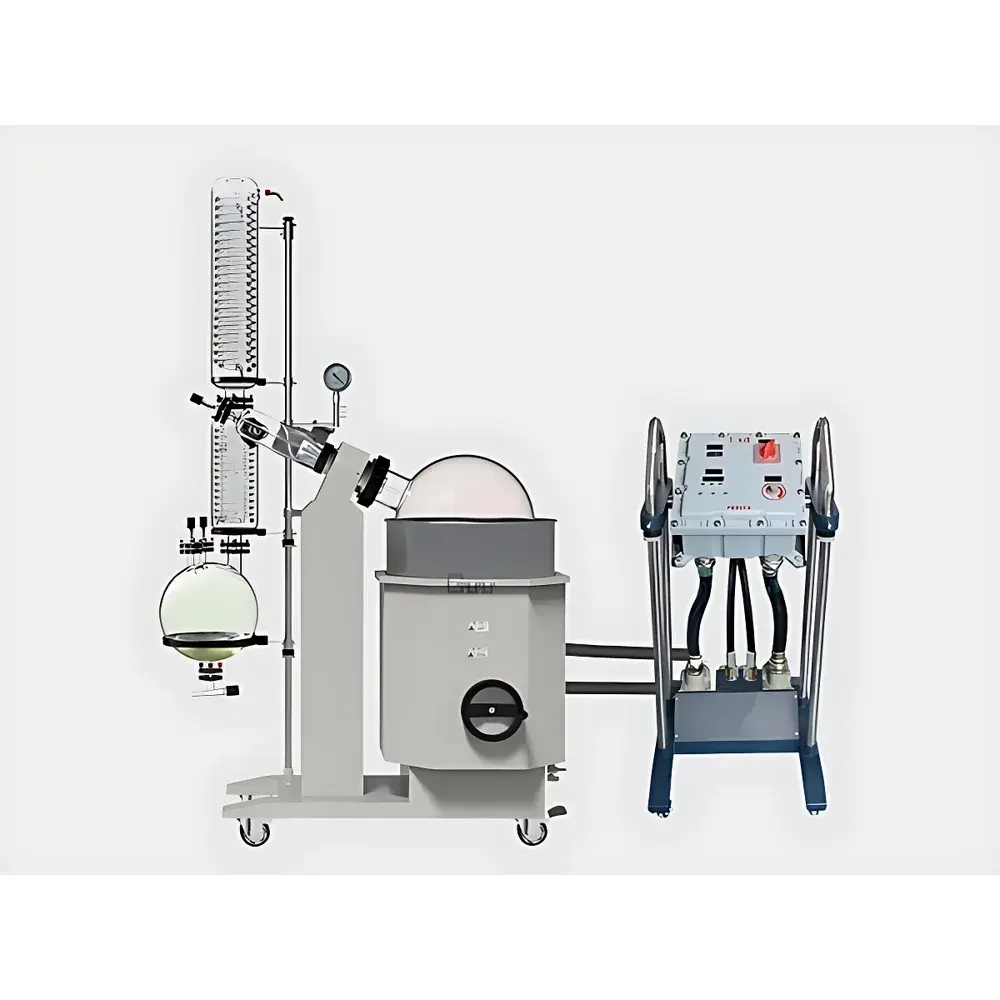

The Great Wall R-1010EX Explosion-Proof Rotary Evaporator

Overview

The Great Wall R-1010EX Explosion-Proof Rotary Evaporator is an engineered solution for safe, efficient solvent removal and compound concentration under reduced pressure in hazardous environments. Designed in strict compliance with IEC 60079-0 and GB 3836.1–2010 standards for explosion-proof electrical equipment, the system integrates a certified Class II, Division 1, Group IIB T4-rated control cabinet with intrinsically safe signal routing and reinforced flameproof enclosure. Its core operation follows the principle of rotary evaporation: a motor-driven 10 L evaporation flask rotates continuously within a thermostatically controlled water/oil bath while subjected to regulated vacuum—reducing boiling points and enhancing mass transfer kinetics. The dual-stage vertical condensation system—comprising a main condenser (0.390 m²) and auxiliary condenser (0.253 m²) with triple-reflux geometry—ensures high-efficiency vapor capture across volatile organic solvents (e.g., acetone, dichloromethane, ethanol) and heat-sensitive compounds. All wetted parts—including the rotating flask, condenser, and collection vessel—are constructed from borosilicate 3.3 glass (DIN ISO 3585), providing chemical inertness and thermal shock resistance up to 200 °C.

Key Features

• Explosion-proof certification: Full-system design compliant with GB 3836.1–2010 (China) and aligned with ATEX/IECEx principles for use in Zone 1/21 environments handling flammable vapors or combustible dusts.
• Dual-seal vacuum interface: PTFE gasket combined with FFKM (perfluoroelastomer) secondary seal ensures leak-tight performance below 400 Pa, validated via helium leak testing (<1×10⁻⁶ mbar·L/s).
• High-capacity thermal management: 4500 W immersion heater delivers rapid, uniform bath temperature control from ambient +5 °C to 95 °C with ±1.5 °C stability—critical for reproducible distillation endpoints in QC/QA workflows.
• Robust mechanical architecture: Precision-machined aluminum alloy frame, SUS304 stainless steel bath vessel (Φ350 × 220 mm), and manually actuated lift mechanism (0–160 mm travel) enable stable operation at full 10 L load without resonance or wobble.

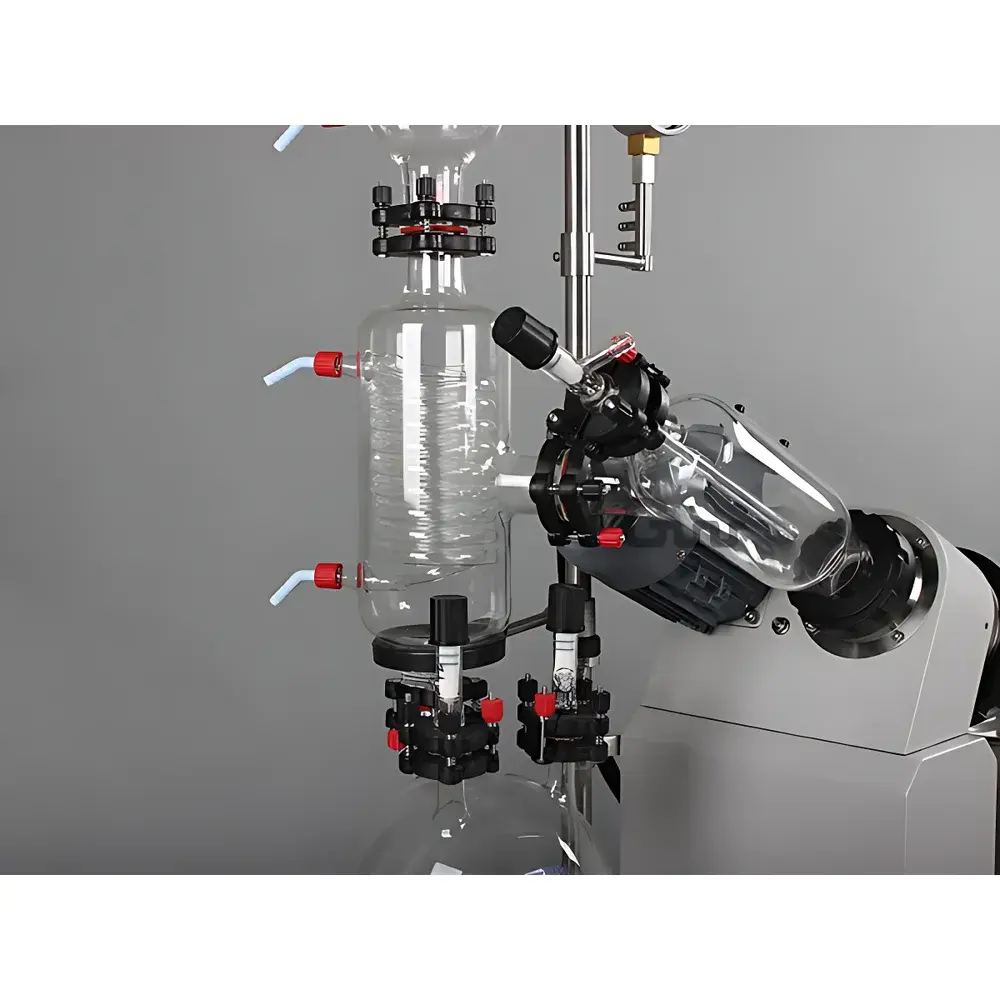

• Optimized condensation efficiency: Triple-reflux vertical condenser configuration maximizes surface contact time and thermal gradient across both main and auxiliary stages—validated by ≥92% solvent recovery rate for ethanol at 40 °C bath / 150 Pa vacuum.

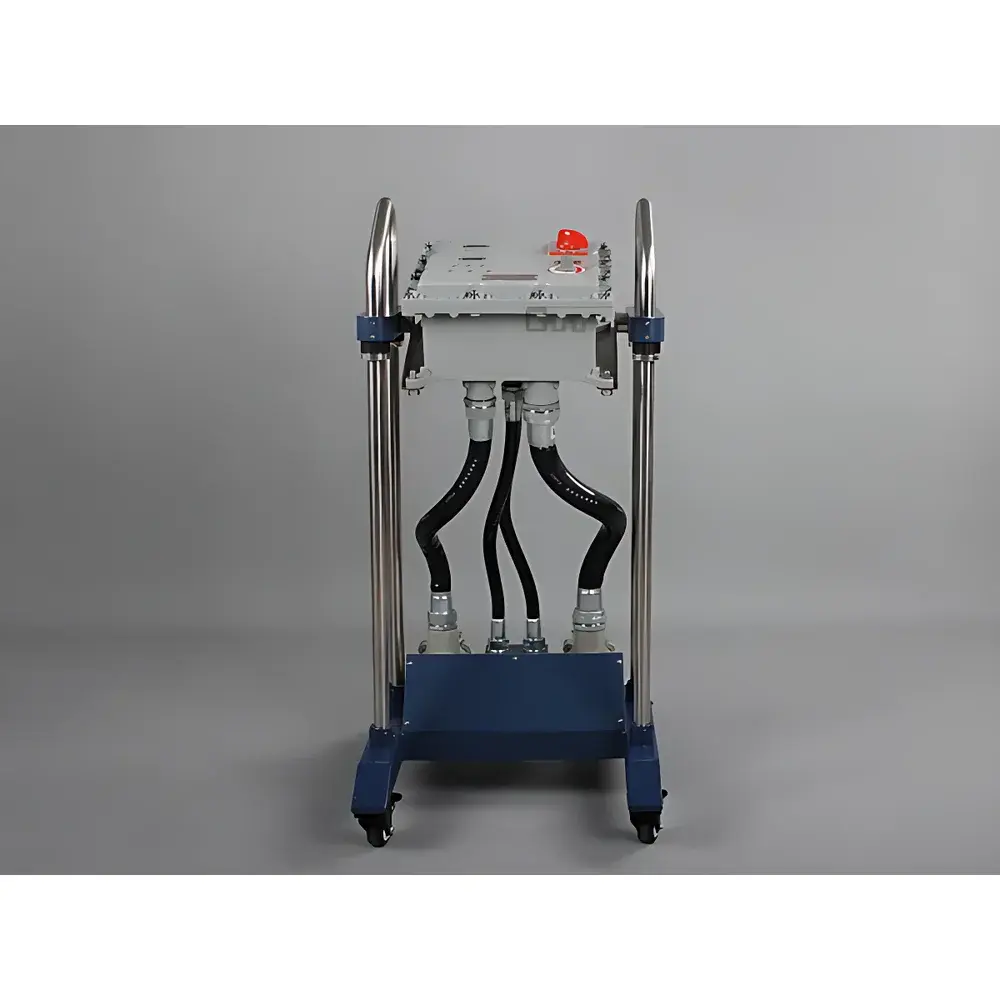

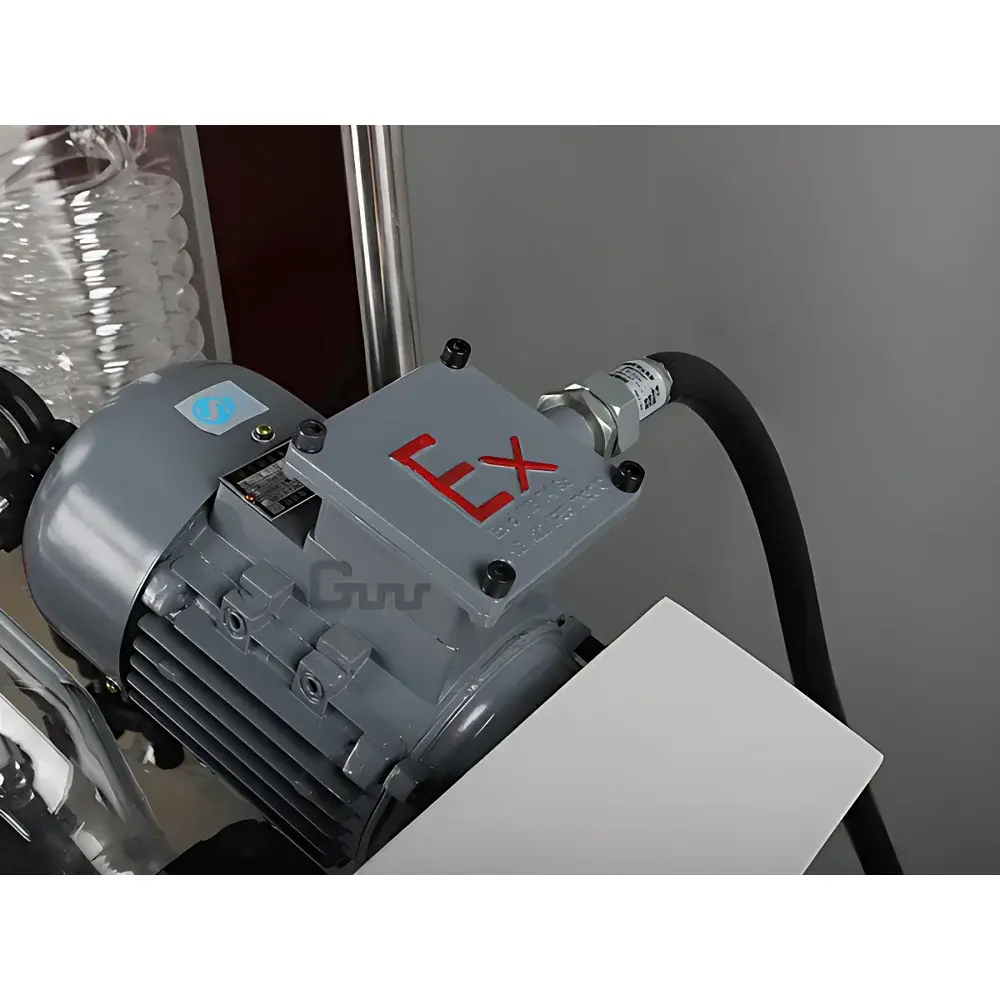

• Integrated safety protections: Real-time monitoring of motor current, ground continuity, and bath temperature triggers automatic shutdown per IEC 61508 SIL1 requirements; all electrical pathways routed through isolated, explosion-proof conduit.

Sample Compatibility & Compliance

The R-1010EX accommodates a broad spectrum of laboratory-scale purification tasks involving low-to-medium volatility organic solvents (bp 30–150 °C), thermolabile natural extracts, polymer solutions, and pharmaceutical intermediates. Its 10 L capacity and Φ95 mm standardized ground-glass joint support scalable process development from benchtop to pilot scale. The system meets essential regulatory expectations for GMP-aligned laboratories: vacuum integrity supports USP <721> residual solvent testing protocols; temperature traceability complies with ISO/IEC 17025 calibration requirements; and dual-seal design satisfies FDA 21 CFR Part 11 data integrity prerequisites when paired with validated digital loggers. Documentation includes factory calibration certificates for temperature sensor (Pt100, Class B) and vacuum transducer (capacitance manometer), traceable to NIM (National Institute of Metrology, China).

Software & Data Management

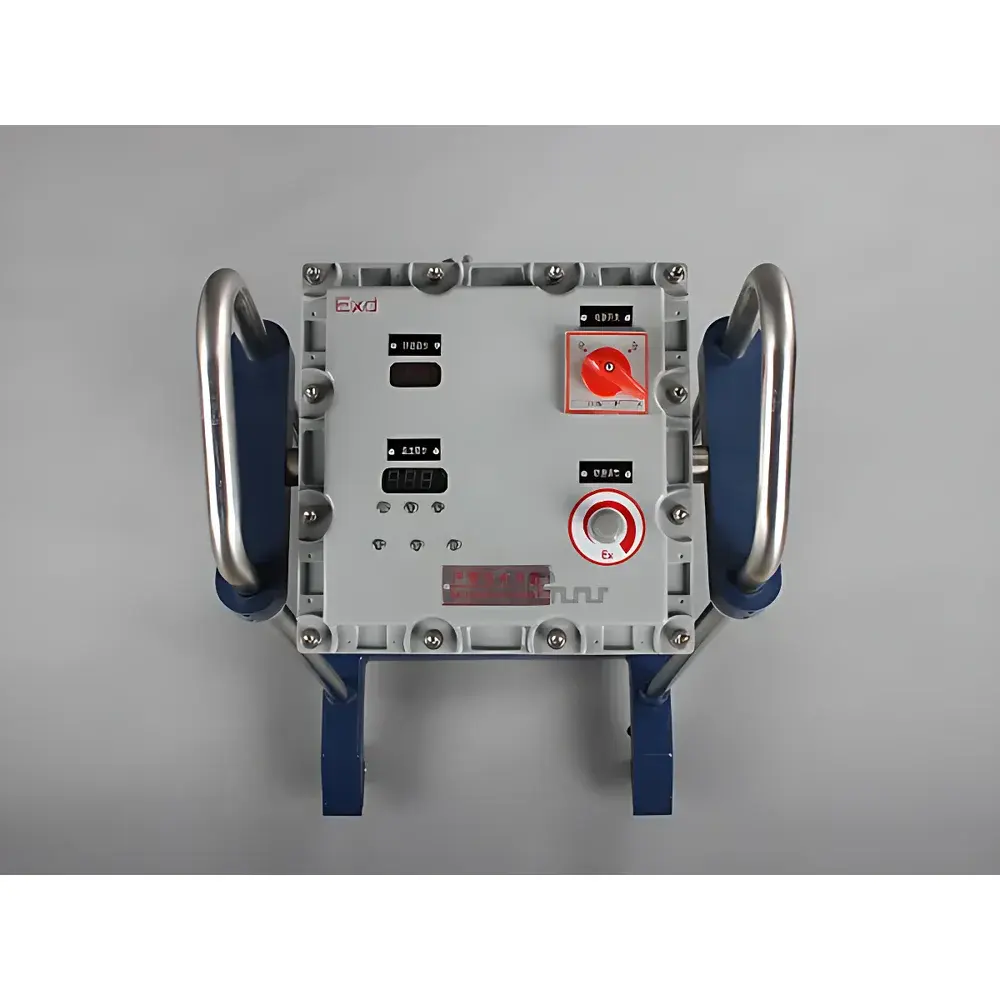

While the R-1010EX operates via analog-digital hybrid controls (LED-display RPM and temperature setpoints), its modular architecture allows seamless integration with third-party data acquisition systems. Analog outputs (0–10 V) for bath temperature, vacuum level, and rotation speed enable connection to PLCs or SCADA platforms supporting IEC 61131-3 programming. Optional RS485 Modbus RTU interface (available upon request) permits remote parameter adjustment and real-time logging—supporting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for audit-ready records. All firmware updates are performed offline via secure USB port, ensuring no network exposure in classified lab environments.

Applications

• Concentration of natural product extracts (e.g., alkaloids, flavonoids) under oxygen-limited, low-temperature conditions to prevent oxidative degradation.
• Removal of reaction solvents (THF, DMF, ethyl acetate) following Grignard, Suzuki, or amidation reactions—prior to crystallization or chromatography.
• Preparative-scale solvent exchange in polymer synthesis (e.g., transitioning from chloroform to methanol for precipitation).
• Residual solvent analysis sample preparation per ICH Q3C guidelines, particularly for Class 2 solvents requiring strict ppm-level control.
• Teaching laboratories conducting hazard-aware organic chemistry experiments—where intrinsic safety and transparent operational limits are pedagogical priorities.

FAQ

What explosion-proof certification does the R-1010EX hold?
It conforms to GB 3836.1–2010 (China National Standard) for electrical apparatus in explosive gas atmospheres, with the control cabinet rated for Class II, Division 1, Group IIB T4. Certification documentation includes test reports from CNEx (China National Explosion Protection Inspection Center).
Can the system achieve vacuum levels below 100 Pa?
Yes—when paired with a certified two-stage oil-sealed rotary vane pump (e.g., Welch 1402 or equivalent) and proper cold trap, ultimate vacuum reaches ≤100 Pa. The stated <399.9 Pa reflects performance with standard diaphragm vacuum pumps.
Is the 10 L rotating flask compatible with standard ISO-K or Quickfit joints?
No—it uses a proprietary Φ95 mm conical ground-glass joint per GB/T 12807–2021, designed for enhanced torque transmission and vacuum integrity at large volumes. Adapters to ISO-K 29/32 are available as optional accessories.
Does the system support GLP-compliant electronic record keeping?
Standalone operation does not include built-in electronic audit trails; however, its analog/Modbus interfaces allow integration with validated LIMS or ELN systems meeting 21 CFR Part 11 requirements when configured with appropriate validation documentation.
What maintenance intervals are recommended for the explosion-proof cabinet?
Annual inspection of flameproof joints, static grounding resistance (<10 Ω), and seal compression force is required per GB 3836.16–2017. Preventive maintenance logs must be retained for regulatory audits.
