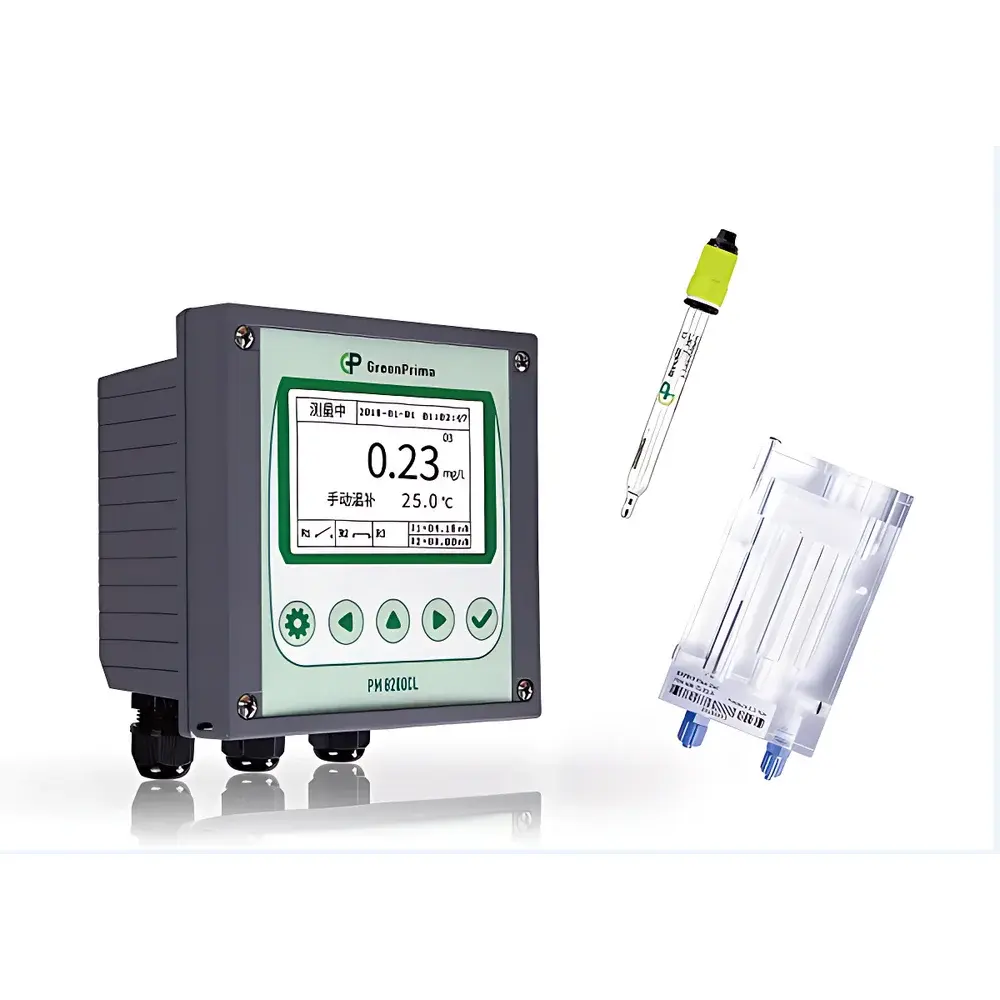

GreenPrima PM8200CL Residual Chlorine and Chlorine Dioxide Analyzer for Municipal Secondary Water Supply

Overview

The GreenPrima PM8200CL is a high-stability, online residual chlorine and chlorine dioxide analyzer engineered specifically for continuous monitoring in municipal secondary water supply systems. It operates on the electrochemical amperometric principle using a constant-voltage, dual-platinum three-electrode sensing configuration — a design that eliminates reliance on membrane diffusion, liquid electrolyte replenishment, or colorimetric reagents. This architecture ensures long-term measurement integrity under fluctuating hydraulic conditions typical of rooftop tanks, booster stations, and distributed network nodes. Unlike spectrophotometric methods, the PM8200CL delivers real-time, maintenance-light quantification of free chlorine (Cl₂), total chlorine, chlorine dioxide (ClO₂), and dissolved ozone (O₃) without sample pretreatment or chemical dosing — critical for compliance with WHO Guidelines for Drinking-water Quality and national secondary supply standards such as China’s CJJ/T 225-2015 and EU Directive 98/83/EC.

Key Features

• Dual-platinum ring working electrodes with Ag/AgCl reference and ceramic frit membrane ensure robust signal stability and resistance to sulfide, nitrite, and organic fouling commonly encountered in recirculated distribution systems.
• Three-range programmable measurement (0–2.000 ppm and 0–20.00 ppm, plus automatic range switching) accommodates both low-dose disinfection control at consumer taps and higher residual verification at pump station outlets.
• Integrated BAF615 laminar-flow conditioning cell maintains consistent sample velocity and residence time — eliminating flow-dependent drift and enabling reliable calibration traceability per ISO 8467:1993 (electrochemical determination of residual oxidants).
• Full-featured transmitter with IP65-rated enclosure, dual isolated 4–20 mA analog outputs, and native Modbus RTU over RS485 supports seamless integration into SCADA, PLC, and building management systems (BMS).
• Onboard data logging stores 600,000 timestamped measurements with temperature compensation metadata, supporting audit-ready record retention aligned with GLP and ISO/IEC 17025 requirements.
• Self-diagnostic routines monitor electrode polarization status, zero drift, and sensor impedance — generating maintenance alerts prior to performance degradation.

Sample Compatibility & Compliance

The PM8200CL is validated for use in potable water matrices with turbidity ≤ 5 NTU, pH 5.0–9.0, and conductivity 50–2000 µS/cm — covering typical secondary supply conditions across high-rise residential complexes, hospitals, and institutional campuses. Its electrochemical architecture meets ASTM D1253-22 (Standard Test Method for Residual Chlorine in Water) and complies with EN ISO 7890-3 for chlorine dioxide detection. The system supports 21 CFR Part 11-compliant data handling when paired with GreenPrima’s optional secure software suite, including electronic signatures, audit trails, and user-access tiering. All wetted parts (glass body, ceramic frit, Pt rings, gel electrolyte) are NSF/ANSI 61-certified for drinking water contact.

Software & Data Management

The embedded firmware provides configurable alarm thresholds (HI/LO, rate-of-change), automatic zero calibration via air-saturated water, and scheduled cleaning cycles controlled via relay output. Data export is supported via USB mass storage or Modbus polling; CSV-formatted logs include measurement value, compensated temperature, sensor status flags, and system uptime. Optional GreenPrima CloudLink gateway enables encrypted TLS 1.2 transmission to centralized dashboards, supporting predictive maintenance analytics and regulatory reporting templates for local health authority submissions.

Applications

• Real-time residual chlorine surveillance at rooftop water tanks and pressurized intermediate reservoirs in high-density urban developments.
• Process validation in hospital central sterile supply departments (CSSD) where chlorine-based disinfectant residuals must be verified pre-rinse.
• QA/QC monitoring in pharmaceutical clean utility water loops (PW, WFI) requiring non-invasive, reagent-free oxidant tracking.
• Performance benchmarking of UV/chloramine hybrid disinfection systems in aging infrastructure with variable hydraulic retention times.
• Regulatory compliance reporting for municipal utilities subject to periodic audits by provincial CDC or environmental protection bureaus.

FAQ

Does the PM8200CL require daily calibration or reagent replacement?
No. The dual-Pt amperometric sensor operates without membranes, liquid electrolytes, or consumable reagents. A single factory calibration remains valid for ≥12 months under typical secondary supply conditions; field verification is recommended quarterly using NIST-traceable chlorine standard solutions.
Can the same sensor measure chlorine dioxide and ozone simultaneously?
Yes — the Bsens650 electrode is chemically selective across Cl₂, ClO₂, and O₃ through applied potential tuning. Each parameter is measured sequentially in <15 seconds using built-in waveform protocols compliant with Standard Methods 4500-Cl G and 4500-O₃ D.
Is temperature compensation automatic and traceable?
Yes. Integrated NTC10K or PT1000 probe inputs enable real-time thermal correction per the Arrhenius equation, with compensation coefficients stored in non-volatile memory and logged with every measurement.
How is sensor fouling mitigated in high-turbidity secondary networks?
The BAF615 flow cell minimizes particulate deposition via laminar shear, while programmable ultrasonic or air-pulse cleaning (via optional solenoid valve) clears surface contaminants without interrupting measurement continuity.
What cybersecurity measures apply to remote data access?
When deployed with CloudLink, all communications use AES-256 encryption and certificate-based device authentication. Role-based access control (RBAC) and immutable audit logs meet IEC 62443-3-3 SL2 requirements for industrial IoT endpoints.
