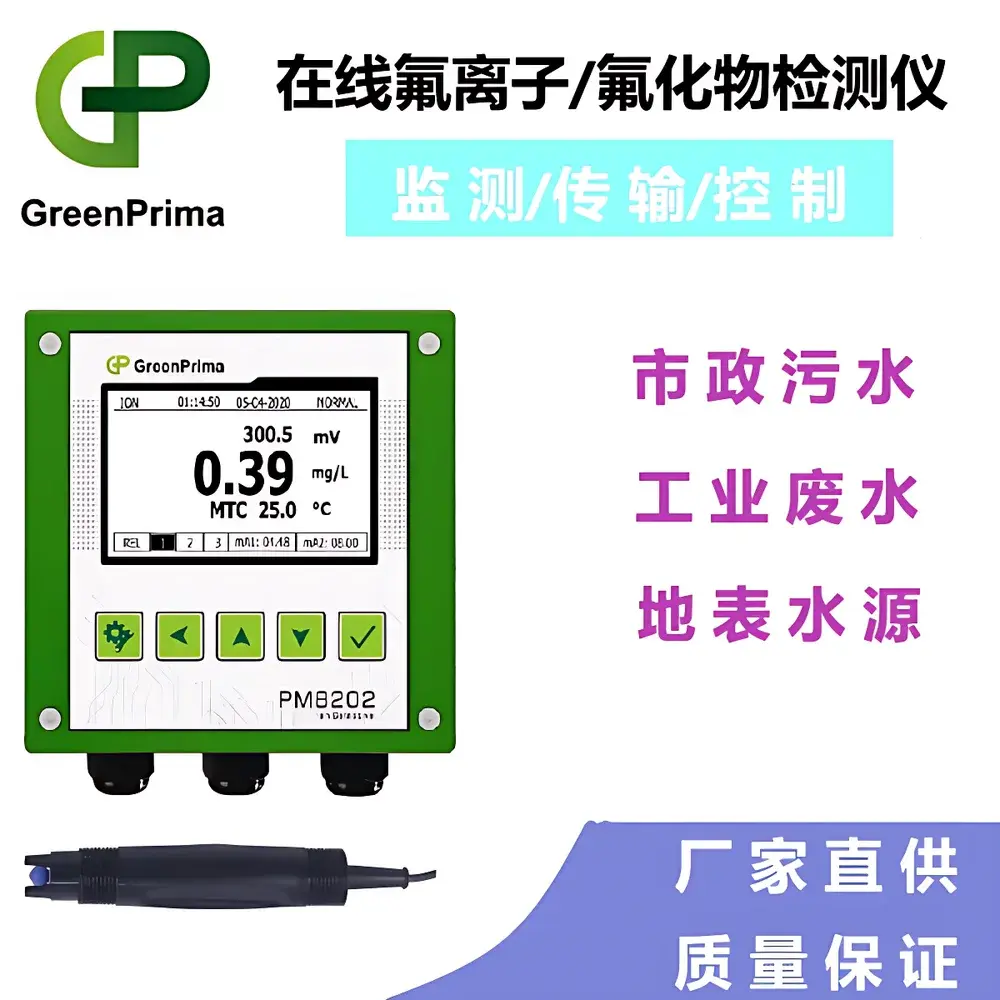

GreenPrima PM8202I Online Fluoride Analyzer

Overview

The GreenPrima PM8202I Online Fluoride Analyzer is a dedicated ion-selective electrode (ISE)-based continuous monitoring system engineered for real-time quantification of fluoride (F⁻) concentration in aqueous industrial effluents, municipal wastewater, and process water streams. Built upon potentiometric measurement principles, the analyzer detects the thermodynamic activity of fluoride ions via a solid-state lanthanum fluoride (LaF₃) membrane electrode—BSens710—which generates a stable, Nernstian response across a wide dynamic range (0.00–20,000 ppm). The system integrates temperature compensation using either NTC30K or PT1000 sensors to ensure measurement integrity under variable thermal conditions, critical for compliance-driven environmental discharge monitoring where regulatory limits often fall within sub-ppm thresholds (e.g., WHO guideline: 1.5 mg/L; EPA secondary standard: 2.0 mg/L). Unlike optical or colorimetric methods, ISE-based detection eliminates interferences from turbidity, color, or suspended solids—making the PM8202I especially suitable for raw wastewater and high-salinity industrial discharges.

Key Features

• Robust IP66/IP67-rated enclosure with full gasket sealing—designed for outdoor mounting and harsh industrial environments including chemical plants, electroplating facilities, and semiconductor rinse-water loops.
• Bilingual (English/Chinese), menu-driven interface on a high-contrast backlit dot-matrix LCD—enabling intuitive navigation without external software or PC dependency.
• Dual isolated 4–20 mA analog outputs configurable for fluoride concentration and temperature—compatible with DCS, SCADA, and PLC systems; supports HART-compatible signal conditioning when paired with optional interface modules.
• RS485 Modbus RTU serial communication for remote data polling, configuration updates, and alarm event logging—facilitating integration into centralized environmental monitoring platforms.
• Password-protected parameter editing and calibration routines—ensuring operational integrity and audit readiness per ISO/IEC 17025 and GLP requirements.
• Onboard non-volatile memory storing up to 600,000 timestamped measurement records—including F⁻ concentration, temperature, calibration timestamps, and relay status—with cyclic overwrite capability.

Sample Compatibility & Compliance

The PM8202I is validated for direct immersion or flow-cell installation in liquid streams with pH 4.5–8.5 and conductivity < 5 mS/cm. It accommodates variable flow rates (0.1–2 L/min recommended) and tolerates particulate loadings up to 50 mg/L without filtration—though inline 50-µm pre-filtration is advised for long-term electrode stability in sludge-laden influents. The BSens710 fluoride electrode exhibits minimal cross-sensitivity to chloride (< 0.1% at 1000 ppm Cl⁻) and negligible response to nitrate, sulfate, or phosphate—an advantage over complexometric titration or SPADNS-based spectrophotometry. Regulatory alignment includes conformance with ASTM D1179 (Standard Test Method for Fluoride in Water), ISO 10304-1 (Ion Chromatography for Anions), and EN ISO 10304-2 (Determination of Fluoride by ISE). Device firmware and data handling protocols support traceability requirements under EU Regulation (EC) No 1272/2008 (CLP) and U.S. EPA Clean Water Act reporting frameworks.

Software & Data Management

While the PM8202I operates autonomously without host software, its Modbus register map enables seamless connection to third-party supervisory systems (e.g., Ignition SCADA, Siemens Desigo CC, or custom Python-based data loggers). All stored measurements include UTC timestamps, electrode millivolt readings, temperature values, and calibration metadata—structured to meet FDA 21 CFR Part 11 electronic record retention standards when deployed in GMP-regulated pharmaceutical wastewater applications. Optional GreenPrima CloudLink gateway provides encrypted MQTT transmission to secure cloud dashboards, supporting automated alerting (SMS/email) upon threshold violation or calibration due date.

Applications

• Real-time monitoring of fluoride discharge compliance at aluminum smelters, glass manufacturing, and fluoropolymer production sites.
• Control of fluoridation dosing in municipal drinking water treatment—when configured with dual-channel operation (F⁻ + pH).
• Process optimization in semiconductor wet benches, where residual fluoride must be maintained below 0.1 ppm prior to ultrapure water (UPW) polishing.
• Leachate monitoring in landfill containment systems and groundwater remediation wells.
• QA/QC verification in electroplating rinse tanks to prevent fluoride-induced pitting corrosion on stainless steel substrates.

FAQ

What electrode types are supported beyond fluoride measurement?
The PM8202I controller natively supports BSens710 (fluoride), BSens720 (chloride), and BSens730 (ammonia) ISEs—each with independent calibration and temperature compensation channels.
Is automatic temperature compensation mandatory?
No—both manual and automatic modes are available; however, automatic compensation using integrated NTC30K or PT1000 probes is strongly recommended for applications with >±2 °C diurnal variation.
How frequently must the fluoride electrode be calibrated?
Calibration interval depends on matrix stability: daily for high-variability industrial effluents; weekly for treated wastewater; monthly for low-conductivity potable water streams—verified against NIST-traceable fluoride standards (e.g., 1, 10, and 100 ppm NaF solutions).
Can the device operate on 24 VDC power only?
Yes—the unit accepts either 90–260 VAC (50/60 Hz) or 24 VDC input; no internal conversion required. Dual-power capability enhances deployment flexibility in explosion-proof zones or solar-powered remote stations.
Does the system support alarm relays with configurable hysteresis?
Yes—two programmable SPDT relays (rated 5 A @ 250 VAC) provide fail-safe high/low concentration alarms with user-defined hysteresis (0.1–100 ppm) and delay timers (0–300 s) to suppress transient spikes.
