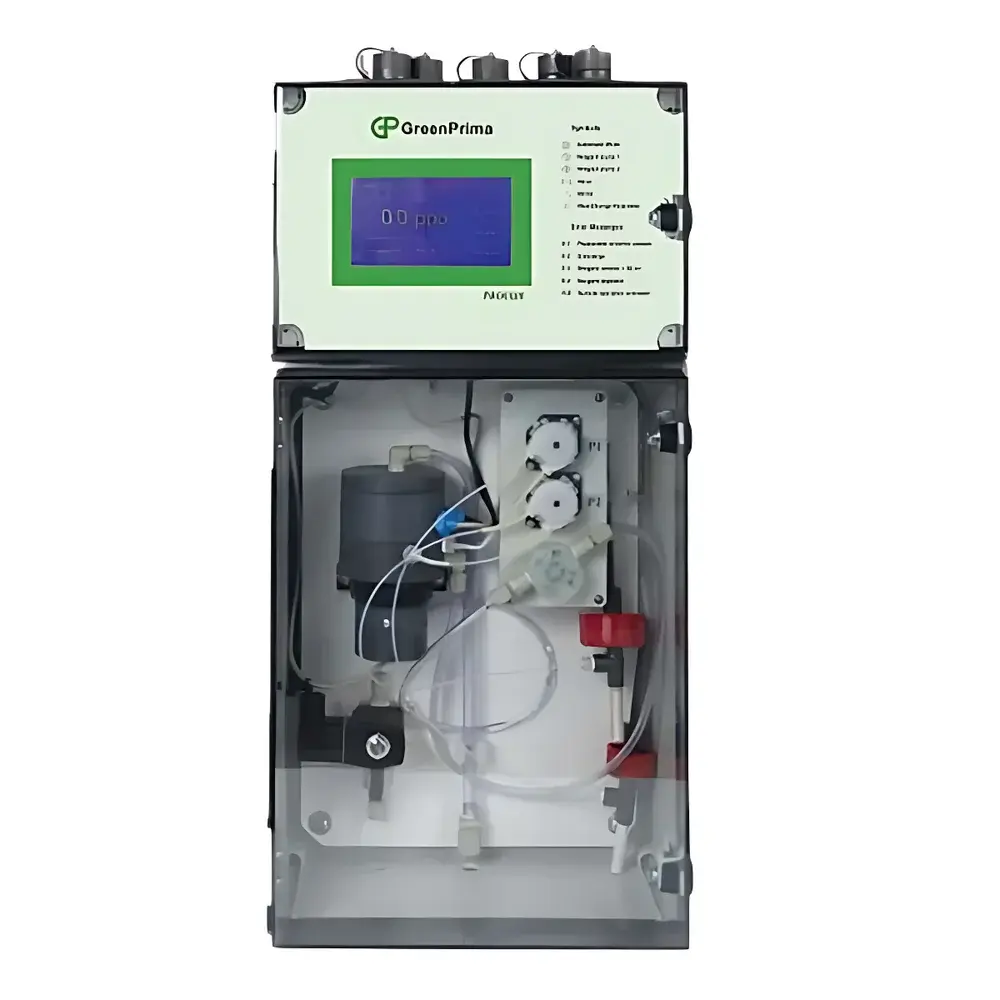

GreenPrima PROCON 5000 Total Iron Analyzer for Wastewater and Effluent

Overview

The GreenPrima PROCON 5000 Total Iron Analyzer is a fully automated, benchtop-mounted photometric analyzer engineered for continuous or intermittent monitoring of total iron (Fe²⁺ and Fe³⁺) in wastewater, sewage effluent, industrial process water, and potable water distribution systems. It operates on the principle of colorimetric spectrophotometry, leveraging two complementary complexation chemistries to ensure accurate quantification across a broad dynamic range: low-concentration samples (10–500 ppb) are measured via formation of the iron(II)-2,4,6-tris(2-pyridyl)-s-triazine (TPTZ) complex, while higher concentrations (0.1–20.0 ppm) employ the classical 1,10-phenanthroline method. The system integrates a microprocessor-controlled fluidic module—including peristaltic metering pumps, solenoid valves, optical flow cells, and integrated LED-based photodetectors—with a dedicated control unit housing embedded firmware compliant with IEC 61508 functional safety principles for unattended operation in industrial environments.

Key Features

• Fully autonomous measurement cycle including automatic self-diagnostic routines, zero-point drift compensation, and built-in validation checks at startup and during scheduled intervals
• Dual-range detection capability (10 ppb–500 ppb and 0.1 ppm–20.0 ppm) selectable via configuration menu—no hardware modification required
• Intuitive 240 × 128 pixel resistive touchscreen interface with multilingual support (English, German, French, Spanish) and context-sensitive help
• User-configurable alarm thresholds, limit setpoints, and hysteresis parameters with visual and relay-based notification outputs
• Isolated 0/4–20 mA analog output (500 Ω load max), programmable for linear or logarithmic scaling relative to measured concentration
• Optional USB 2.0 data logging port supporting CSV export for offline trend analysis and regulatory reporting (e.g., ISO 9001, ISO/IEC 17025)
• Adjustable analysis interval from 4 minutes (including rinse cycle) up to 99 minutes—or triggered externally via dry-contact input
• No routine manual calibration needed; factory-calibrated reagent kits maintain traceability to NIST SRM 3136a (Iron Standard Solutions)
• Wide-input power supply (110–230 V AC, 50/60 Hz), low-power design (~16 VA typical consumption), and IP65-rated front panel enclosure

Sample Compatibility & Compliance

The PROCON 5000 is validated for use with clarified aqueous matrices meeting the following operational constraints: sample pressure 0.1–10 bar, temperature 5–30 °C, pH 6.0–8.0, and turbidity < 5 NTU. Samples must be free of suspended solids that could clog the 1.2 mm internal tubing or interfere with photometric pathlength integrity. The analyzer complies with EN 61326-1 (EMC for laboratory equipment), EN 61000-6-2/-6-3 (immunity/emission), and meets essential requirements of the EU Machinery Directive 2006/42/EC. Its measurement methodology aligns with ASTM D1068–22 (Standard Test Methods for Iron in Water) and ISO 6332:1981 (Water quality — Determination of iron — 1,10-Phenanthroline spectrophotometric method), supporting audit-ready documentation under GLP and GMP frameworks.

Software & Data Management

Embedded firmware supports time-stamped event logging (including reagent depletion warnings, valve actuation cycles, optical intensity drift, and error codes) stored in non-volatile memory for ≥12 months at default sampling frequency. Data export via USB enables integration with LIMS platforms or SCADA systems using standard Modbus RTU over RS-485 (optional add-on module). Audit trail functionality satisfies FDA 21 CFR Part 11 requirements when paired with user-access controls and electronic signature configuration. Firmware updates are performed via secure signed binary upload through the web-based configuration portal (HTTPS/TLS 1.2).

Applications

• Real-time monitoring of iron breakthrough in ion exchange or greensand filtration units at municipal water treatment plants
• Effluent compliance tracking for iron discharge limits under EPA NPDES permits or EU Urban Wastewater Treatment Directive (91/271/EEC)
• Process control of acid mine drainage (AMD) neutralization systems where Fe(OH)₃ precipitation efficiency must be verified
• Quality assurance in pharmaceutical purified water loops (PW/UPW) per USP and EP 2.2.48 guidelines
• Corrosion product surveillance in closed-loop cooling water systems to detect early-stage ferrous pipe degradation

FAQ

What reagents are required, and how often do they need replacement?
The system uses three pre-formulated, shelf-stable reagent kits (Fe1001/Fe1002/Fe1003 for low-range TPTZ chemistry; Fe2001 for high-range phenanthroline). At standard 7-minute cycle intervals, Fe100x kits last ~300 analyses (~12 days), and Fe2001 lasts ~925 analyses (~45 days). All kits are stored at 5–25 °C and carry lot-specific expiration dates traceable to certificate of analysis.
Can the analyzer be integrated into an existing PLC-based control system?
Yes—via isolated dry-contact inputs for external start/stop commands and relay outputs for alarm, limit, and analysis status signals. Optional RS-485 Modbus RTU interface enables bidirectional parameter read/write and real-time concentration streaming.
Is field calibration possible without returning the unit to the manufacturer?
No routine calibration is required. However, verification checks using certified reference materials (CRM) can be executed manually through service mode. Full recalibration is performed only at authorized GreenPrima service centers using traceable photometric standards and hydraulic flow verification rigs.
What maintenance tasks are recommended for long-term reliability?
Monthly inspection of tubing integrity and optical window cleanliness; quarterly replacement of peristaltic pump rollers; annual validation of photodetector linearity and reagent delivery accuracy using built-in diagnostic sequences.
