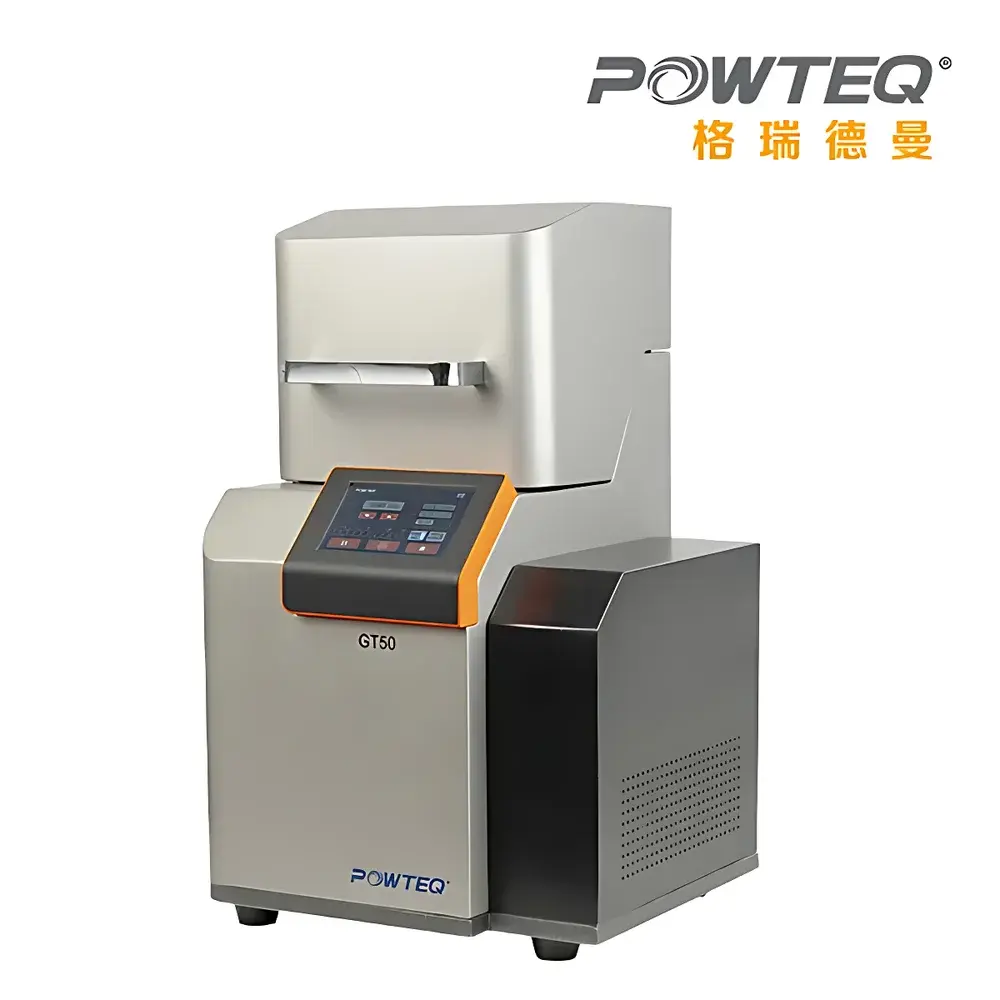

Grinderman GT50 High-Throughput Tissue Grinder

Overview

The Grinderman GT50 High-Throughput Tissue Grinder is an engineered solution for rapid, reproducible, and scalable mechanical lysis of biological samples under controlled conditions. It operates on the principle of high-frequency vertical oscillation—generating kinetic energy through reciprocating motion that drives grinding beads to impact, shear, and abrade cellular structures. This physical disruption mechanism is optimized for simultaneous processing of up to 96 individual samples in standard microcentrifuge tubes (2 mL, 5 mL, 50 mL) or cryogenic vials, without compromising sample integrity or introducing thermal degradation. The system supports dry grinding, wet grinding, and cryogenic grinding down to –196 °C using liquid nitrogen immersion, enabling preservation of labile biomolecules such as native RNA, intact genomic DNA, and conformationally sensitive proteins. Its vertical architecture ensures uniform force distribution across all sample positions, eliminating positional bias and supporting GLP-compliant workflows in molecular biology, agricultural genomics, and biopharmaceutical R&D.

Key Features

• Vertical oscillation design with 32 mm stroke and programmable frequency (15–30 Hz), delivering consistent mechanical energy transfer across all sample wells.
• Ultra-fast acceleration and deceleration (<2 seconds), minimizing thermal buildup during short-cycle protocols and preserving nucleic acid integrity.
• Integrated 5-inch LED touchscreen interface with intuitive navigation, real-time parameter monitoring, and secure user-access levels.
• Programmable operation modes including continuous run, interval pulsing, and multi-step sequences with stored method recall.
• Brushless DC motor with direct-drive transmission—eliminating belts or gears—to ensure long-term torque stability, low maintenance, and silent operation.
• Modular adapter system supporting 12-, 24-, 32-, and 48-position configurations; each adapter isolates samples physically to prevent carryover contamination.
• Cryo-compatible construction validated for use with liquid nitrogen pre-cooling, enabling sub-zero grinding of thermolabile tissues and microbial pellets.

Sample Compatibility & Compliance

The GT50 accommodates diverse biological matrices—including plant roots/stems/leaves/seeds, animal soft tissues (liver, muscle, brain), bacterial pellets, yeast colonies, fungal mycelia, spores, and archived paleontological specimens. It is routinely deployed in ISO 17025-accredited laboratories for sample preparation prior to downstream applications governed by ASTM D6347/D6347M (nucleic acid extraction), USP (cell lysis validation), and FDA 21 CFR Part 11–compliant data management environments. All adapters are manufactured from autoclavable, non-pyrogenic stainless steel or certified medical-grade polymers, meeting ISO 10993 biocompatibility requirements. CE marking confirms conformity with EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU.

Software & Data Management

The GT50’s embedded firmware supports audit-trail-enabled method logging, including timestamped start/stop events, parameter settings, operator ID, and cycle count. Exportable CSV logs can be integrated into LIMS platforms or electronic lab notebooks (ELNs) compliant with ALCOA+ principles. No external PC dependency is required for routine operation; however, optional USB export enables traceable backup of protocol libraries and instrument diagnostics. Firmware updates are delivered via encrypted firmware packages verified against SHA-256 checksums—ensuring data integrity and cybersecurity alignment with IEC 62443-3-3 standards.

Applications

• Molecular breeding programs requiring parallel DNA/RNA isolation from hundreds of plant accessions per day.
• Transcriptomic and proteomic workflows where rapid lysis minimizes RNase-mediated degradation and phosphatase activity.
• QuEChERS-based pesticide residue analysis in food safety testing, where homogenization efficiency directly impacts analyte recovery.
• API extraction from botanical matrices under cGMP-aligned botanical drug development pipelines.
• Microbial cell disruption for plasmid prep, enzyme purification, and metabolite profiling in industrial biotechnology.
• Archival tissue reprocessing for retrospective biomarker discovery in biobank repositories.

FAQ

Can the GT50 process samples at sub-zero temperatures?
Yes—the instrument is fully compatible with liquid nitrogen–cooled adapters and has been validated for operation at –196 °C, preserving thermolabile biomolecules during lysis.
Is cross-contamination between samples possible?
No—each adapter physically isolates tubes/vials; no shared surfaces or airflow pathways exist between positions.
What tube formats does the GT50 support?
Standard formats include 2 mL, 5 mL, and 50 mL microcentrifuge tubes, as well as 0.5–2.0 mL cryovials; custom adapters are available upon request.
Does the GT50 meet regulatory requirements for GxP environments?
Yes—its programmable parameters, electronic audit trail, and CE compliance support qualification under FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 frameworks.
How is maintenance performed on the brushless motor system?
The direct-drive motor requires no periodic lubrication or belt replacement; only routine visual inspection and cleaning of the chamber and adapters are recommended per manufacturer guidelines.
