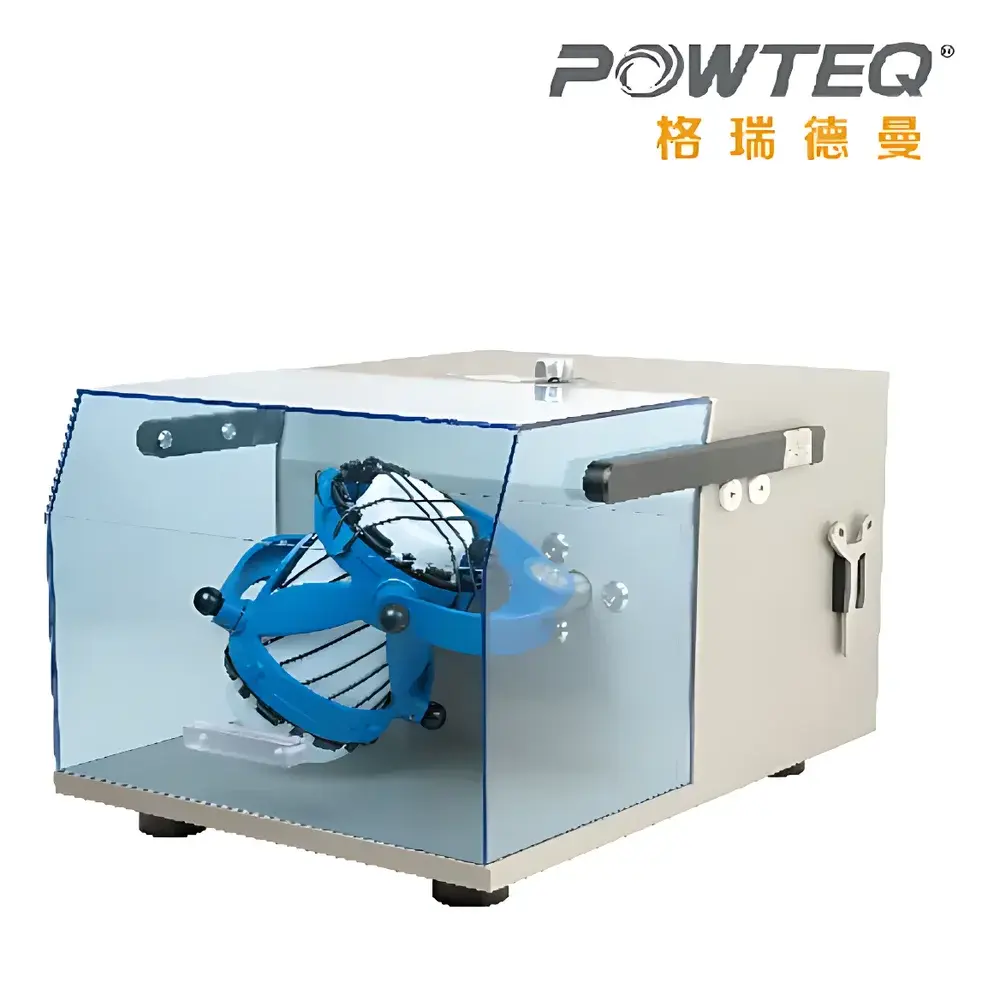

Grinderman M10 Three-Axis Sample Mixer
| Brand | Grinderman |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | M10 |
| Rotational Speed Range | 20–100 rpm |
| Mixing Volume Capacity | 2 L |
| Timer Range | 00:01–99:59 (hh:mm) |
| Rated Power | 200 W |
| Rated Voltage/Frequency | 220 V, 50 Hz |
| Noise Level | Low |
| Maintenance | Tool-free access to internal components |
| Cleanability | Smooth stainless-steel chamber with removable lid and gasket |
Overview
The Grinderman M10 Three-Axis Sample Mixer is an engineered solution for homogeneous blending of dry powders, granular solids, and viscous suspensions in analytical, quality control, and R&D laboratories. Unlike conventional orbital or vortex mixers, the M10 implements the Schatz Geometric Motion Principle—a patented multi-axis kinematic sequence combining simultaneous rotation, inversion, tumbling, and oscillation within a sealed mixing chamber. This motion profile ensures isotropic particle reorientation across all three spatial dimensions, eliminating stratification and density-driven segregation commonly observed in single-axis agitators. The result is statistically reproducible homogeneity—critical for downstream analytical techniques such as X-ray fluorescence (XRF), inductively coupled plasma optical emission spectroscopy (ICP-OES), and laser diffraction particle size analysis. Designed for routine use in regulated environments, the M10 supports method transfer and process validation under GLP and ISO/IEC 17025 frameworks.
Key Features
- Three-axis dynamic motion path ensuring uniform dispersion of materials with disparate densities (e.g., metal alloys, ceramic composites, pharmaceutical excipients)
- Sealed 2 L stainless-steel mixing chamber with FDA-compliant silicone gasket and quick-release clamping system
- Programmable digital timer (00:01–99:59 hh:mm) with non-volatile memory retention after power interruption
- Adjustable rotational speed (20–100 rpm) optimized for both fragile crystalline structures and abrasive particulates
- Low-noise operation (<62 dB(A) at 1 m distance) enabled by precision-balanced drive assembly and vibration-dampening feet
- Tool-free maintenance design: motor housing, drive coupling, and chamber mount are accessible without disassembly tools
- IP54-rated enclosure suitable for controlled laboratory environments with moderate dust exposure
Sample Compatibility & Compliance
The M10 accommodates heterogeneous solid samples including but not limited to: metal powders (Al, Ti, Ni-based alloys), semiconductor precursors (SiC, GaN), aerospace-grade ceramics (ZrO₂, Al₂O₃), and pharmaceutical blends (API + lactose/microcrystalline cellulose). It is compatible with standard 50–2000 mL polypropylene, HDPE, or stainless-steel sample containers fitted with leak-tight closures. The mixer meets electromagnetic compatibility requirements per IEC 61326-1 and electrical safety standards per IEC 61010-1. While not certified for Class I Div 1 hazardous locations, its non-sparking drive train and absence of internal heating elements permit safe use with non-volatile, non-flammable formulations. Documentation includes factory calibration report, mechanical performance verification data, and traceable component certifications.
Software & Data Management
The M10 operates via embedded microcontroller firmware with no external PC dependency. All operational parameters—including speed setpoint, duration, start time, and cycle count—are stored in EEPROM with timestamped logging (last 100 cycles retained). Optional RS-232 serial interface (standard on M10-PRO variant) enables integration into LIMS or MES platforms for audit trail generation compliant with FDA 21 CFR Part 11 requirements. Audit logs include operator ID (via optional RFID badge reader), parameter changes, runtime deviations, and chamber open/close events. Firmware updates are performed via USB-C port using signed binary packages validated against SHA-256 checksums.
Applications
- Preparation of representative sub-samples for elemental analysis (XRF, ICP-MS) in metallurgical QC labs
- Homogenization of blended active pharmaceutical ingredients prior to tablet compression trials
- Uniform dispersion of dopants in ceramic green bodies for sintering consistency studies
- Stabilization of slurry suspensions containing nanoparticles for rheological characterization
- Batch-to-batch equivalence testing in catalyst manufacturing workflows
- Standardization of reference material preparation per ISO Guide 35 protocols
FAQ
What types of containers are compatible with the M10?
Standard cylindrical containers with outer diameters between 80–160 mm and heights up to 220 mm, made from chemically resistant polymers or austenitic stainless steel (e.g., AISI 316), are supported. Custom adapters are available for conical or rectangular vessels.
Can the M10 handle moisture-sensitive or oxygen-sensitive samples?
Yes—when used with gas-purged, hermetically sealed containers (e.g., Swagelok®-capped vials or glovebox-compatible chambers), inert atmosphere mixing is achievable. Optional vacuum/gas-fill ports can be integrated upon request.
Is validation documentation available for GMP environments?
Grinderman provides IQ/OQ protocol templates, DQ summary reports, and traceable calibration certificates aligned with ASTM E2500 and EU Annex 15 guidelines. Full PQ support is offered through authorized service partners.
How often does preventive maintenance require intervention?
Under typical lab usage (≤8 hrs/day, 5 days/week), belt tension and bearing lubrication inspection is recommended every 12 months; gasket replacement is advised every 24 months or after 500 cycles involving abrasive media.
Does the M10 comply with international shipping and import regulations?
Yes—the unit ships with CE marking (2014/30/EU EMC Directive and 2014/35/EU LVD Directive), RoHS 2011/65/EU compliance statement, and UN3481-compliant packaging for lithium-free electronics. Export classification: ECCN 3A999.b.
