GuanCe Instruments ZKFT-1600b Image-Based Particle Size and Shape Analyzer
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | ZKFT-1600b |
| Application Focus | Metal Powders |
| Instrument Type | Dynamic Imaging System |
| Field of View | 5.70 mm (H) × 4.28 mm (V) |
| Lens Count | 1 |
| Sample Dispersion Method | Static Field-of-View Imaging with Controlled Illumination |
| Exposure Time Range | 0.21 ms – 2000 ms (ROI-Adjustable) |
| Signal-to-Noise Ratio | 66.5 dB |
Overview

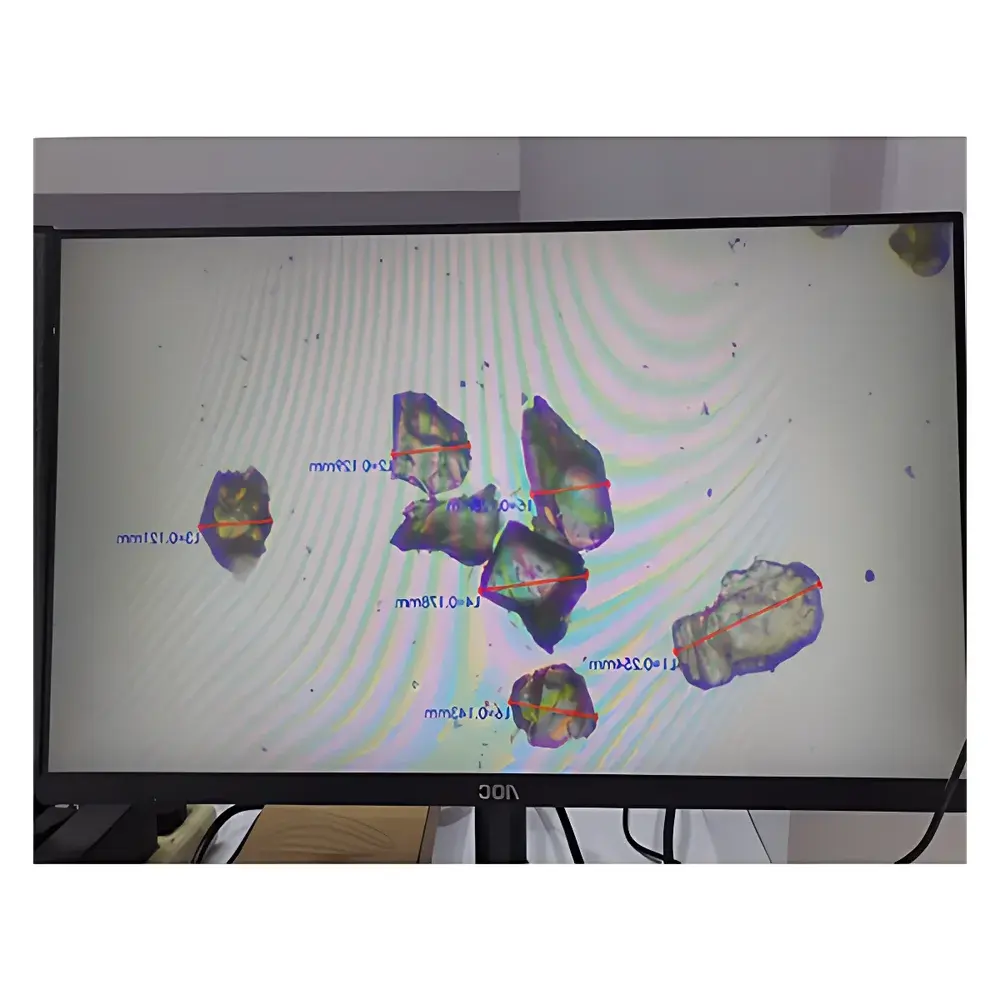

The GuanCe Instruments ZKFT-1600b Image-Based Particle Size and Shape Analyzer is an engineered solution for high-fidelity morphological characterization of dry or suspended particulate systems. It operates on the principle of digital static field imaging—capturing high-resolution micrographs of particles within a defined optical field (5.70 mm × 4.28 mm), followed by deterministic pixel-based segmentation and geometric feature extraction. Unlike laser diffraction or dynamic light scattering methods, this system preserves individual particle identity and spatial context, enabling simultaneous quantification of size distribution (e.g., D10, D50, D90), shape descriptors (aspect ratio, circularity, convexity, solidity, roundness), and texture-derived metrics. Designed for metrologically rigorous environments—including R&D labs, QC/QA departments in additive manufacturing, battery material production, and metallurgical powder processing—the ZKFT-1600b delivers traceable, operator-independent results compliant with foundational principles outlined in ISO 13322-1:2020 (Particle size analysis — Image analysis methods — Part 1: Static image analysis methods).
Key Features
- High-stability optical path incorporating a precision achromatic objective lens and coaxial LED illumination for consistent contrast across heterogeneous samples.
- Progressive-scan monochrome CCD sensor with programmable exposure control (0.21–2000 ms) and region-of-interest (ROI) cropping to optimize signal-to-noise ratio (66.5 dB) and frame rate for dynamic dispersion assessment.
- Dedicated real-time image acquisition engine synchronized with stage motion control, supporting both single-frame capture and time-lapse sequences for agglomeration or settling behavior studies.
- Automated edge detection and binary thresholding algorithms validated against NIST-traceable calibration standards; includes adaptive background subtraction for variable substrate reflectivity.
- Modular hardware architecture allowing future integration with vibratory feeders, air-jet dispersers, or liquid flow cells—enabling transition from static to semi-dynamic measurement protocols.
Sample Compatibility & Compliance
The ZKFT-1600b accommodates dry powders (e.g., stainless steel, titanium, nickel alloys), slurries (up to 30 vol% solids), and freeze-dried granules without requiring conductive coating or vacuum conditions. Sample preparation follows standardized procedures per ASTM E2455-22 (Standard Guide for Characterizing Particulate Materials Using Static Image Analysis). All measurement outputs include embedded metadata (timestamp, magnification, exposure, lens ID) to support GLP/GMP audit trails. Software-generated reports are exportable in PDF/A-1b and CSV formats, satisfying documentation requirements under ISO/IEC 17025:2017 for testing laboratories.
Software & Data Management
The proprietary GuanCe ParticleStudio v4.2 software provides full workflow traceability: raw image archiving, batch processing queues, inter-operator calibration verification, and configurable pass/fail criteria based on user-defined shape thresholds. It supports 21 CFR Part 11-compliant electronic signatures via optional PKI module, role-based access control, and immutable audit logs recording every parameter modification, image rejection, or statistical recalculation. Data exports include hierarchical HDF5 containers for long-term archival and machine learning pipeline ingestion—compatible with Python-based scikit-image and OpenCV frameworks.
Applications
- Quality control of metal powders for laser powder bed fusion (LPBF) and binder jetting—verifying spherical morphology, satellite content, and surface roughness indicators.
- Development of pharmaceutical excipients where particle shape governs flowability, compressibility, and dissolution kinetics.
- Evaluation of catalyst supports and ceramic precursors where aspect ratio and convexity correlate with thermal stability and sintering behavior.
- Forensic particle comparison in environmental or failure analysis contexts requiring evidentiary-grade image provenance.
- Academic research in granular physics, including contact mechanics modeling and discrete element method (DEM) parameterization.
FAQ
What magnification options does the ZKFT-1600b support?
The system uses a fixed focal-length objective lens optimized for 50×–200× effective magnification depending on sensor binning and ROI selection; additional magnifications require optional lens interchange kits.
Can the ZKFT-1600b analyze transparent or low-contrast particles?
Yes—through differential interference contrast (DIC) emulation via multi-angle illumination sequencing and phase-aware deconvolution algorithms embedded in ParticleStudio.
Is the software compatible with LIMS integration?
Yes; RESTful API endpoints enable bidirectional data exchange with major LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager) using OAuth 2.0 authentication and JSON-schema payloads.
How is measurement repeatability verified?
Each instrument ships with a NIST-traceable dual-scale calibration slide (10 µm and 100 µm line widths); automated repeatability reports calculate CV% across five independent acquisitions per sample.
Does the system meet FDA regulatory expectations for pharmaceutical use?
When deployed with validated IQ/OQ/PQ protocols and 21 CFR Part 11 add-ons, it satisfies data integrity requirements for USP , ICH Q5A(R2), and Annex 11 compliance assessments.
