Guangzhou GBPI GBN2000Z-1 Compression Tester for Corrugated Boxes

Overview

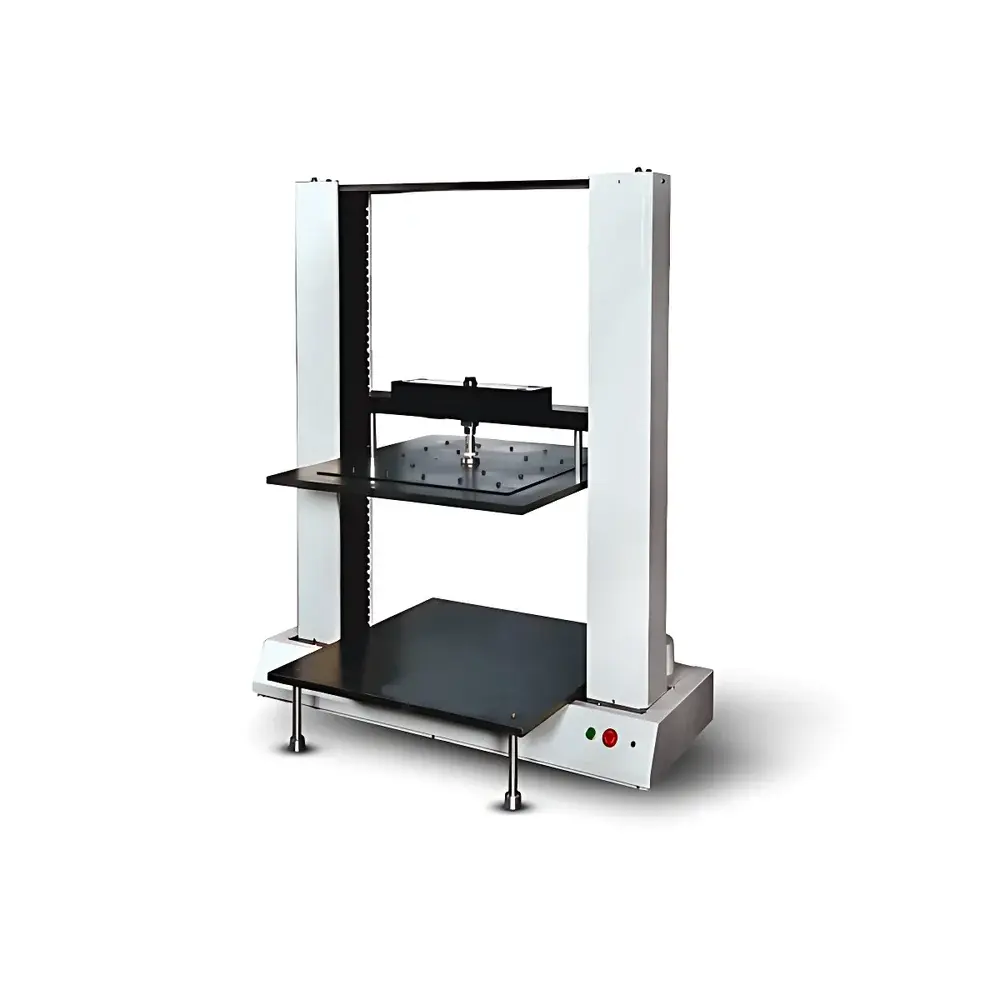

The Guangzhou GBPI GBN2000Z-1 Compression Tester is an industrial-grade static compression testing system engineered for precise evaluation of compressive strength, deformation behavior, and stacking performance of corrugated fiberboard containers, honeycomb packaging, and other rigid transport packaging structures. It operates on the principle of controlled axial loading under displacement- or load-controlled conditions, conforming to standardized mechanical testing protocols for packaging integrity assessment. Designed for compliance-driven quality control laboratories, the instrument delivers repeatable, traceable force-displacement data essential for validating packaging design against real-world distribution hazards—including warehouse stacking, palletized storage, and intermodal handling stresses.

Key Features

• Fully automated test sequence with programmable criteria for crush detection, automatic return-to-start, and emergency stop activation.
• Integrated embedded computing module enabling standalone operation—no external PC required for basic test execution and result display.
• High-contrast LCD interface showing real-time force (N/kgf/lbf), displacement (mm), time, and test status; intuitive navigation via membrane keypad.
• Built-in thermal printer for immediate hard-copy output of test reports, including peak load, deformation at yield, and pass/fail annotations.
• Triple-unit force display (N, kgf, lbf) with seamless switching and auto-scaled graphical curves during live testing.
• Multi-curve overlay capability: up to four concurrent force-displacement traces can be superimposed, zoomed, panned, and annotated for comparative analysis.
• Comprehensive calibration support: independent sensor-level adjustment for load cell, displacement encoder, and speed actuator—traceable to national metrological standards.
• Robust mechanical architecture featuring heavy-duty steel frame, precision-ground lead screws, and overload protection circuitry rated for 150% of nominal capacity.

Sample Compatibility & Compliance

The GBN2000Z-1 accommodates standard-sized shipping containers (up to 800 mm cube) and supports custom platens for non-standard geometries, including edge crush test (ECT) fixtures and flat crush configurations. It meets the mechanical and procedural requirements of multiple international packaging standards, including ISO 12048 (compression testing of corrugated boxes), ISO 2872 (stacking test methods), ASTM D642 (standard test method for compressive resistance of shipping containers), ASTM D4169 (performance testing of shipping containers), TAPPI T804 (compressive strength of corrugated fiberboard), GB/T 16491 (universal testing machines), and GB 4857.16 (packaging—basic tests—compression test). Its Class 1 accuracy rating per GB/T 16491 and ISO 7500-1 ensures suitability for accredited laboratory environments subject to CNAS, ILAC, or A2LA audit frameworks.

Software & Data Management

The proprietary GBPI TestMaster software provides full control over test configuration, real-time monitoring, post-test analysis, and report generation. It supports GLP-compliant data integrity practices—including user access levels, electronic signatures, audit trail logging, and immutable raw data archiving. Export formats include PDF, Excel (.xlsx), CSV, and XML for integration with LIMS or ERP systems. All test files retain embedded metadata: operator ID, timestamp, environmental conditions (if connected to optional hygrothermograph), calibration certificate IDs, and instrument firmware version. Software validation documentation is available upon request for regulated industries operating under FDA 21 CFR Part 11 or EU Annex 11 requirements.

Applications

• Validation of box compression strength (BCT) for logistics optimization and pallet stability modeling.
• Correlation studies between edge crush test (ECT) values and actual BCT performance.
• Accelerated aging assessments: pre- and post-humidity conditioning compression comparisons per ASTM D685.
• Design verification of sustainable packaging alternatives (e.g., molded fiber, corrugated composites) under static load.
• Supplier qualification testing in food, pharmaceutical, and e-commerce fulfillment centers where ISTA 3A/3E compliance is mandated.
• Internal R&D for structural reinforcement strategies—including flute geometry, adhesive formulation, and linerboard basis weight optimization.

FAQ

Does the GBN2000Z-1 require a dedicated PC to operate?

No—it features an embedded controller and onboard LCD interface, allowing complete test execution, data visualization, and printed reporting without external computing hardware.
Is the force transducer calibrated to national metrological standards?

Yes—each unit ships with a factory calibration certificate traceable to China NIM (National Institute of Metrology); optional third-party ISO/IEC 17025 calibration is available.
Can the system perform edge crush testing (ECT)?

Not natively—the GBN2000Z-1 is configured for top-load compression only; however, ECT-compatible platens and alignment fixtures are available as certified accessories.
What environmental conditions are recommended for optimal test repeatability?

Testing should be conducted in conditioned rooms per ISO 187 (23 ± 1 °C, 50 ± 2% RH) to minimize hygroscopic effects on fiberboard mechanical properties.
How is data integrity ensured for regulatory submissions?

The system supports ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available—with full audit trail export and electronic signature workflows in TestMaster software.
