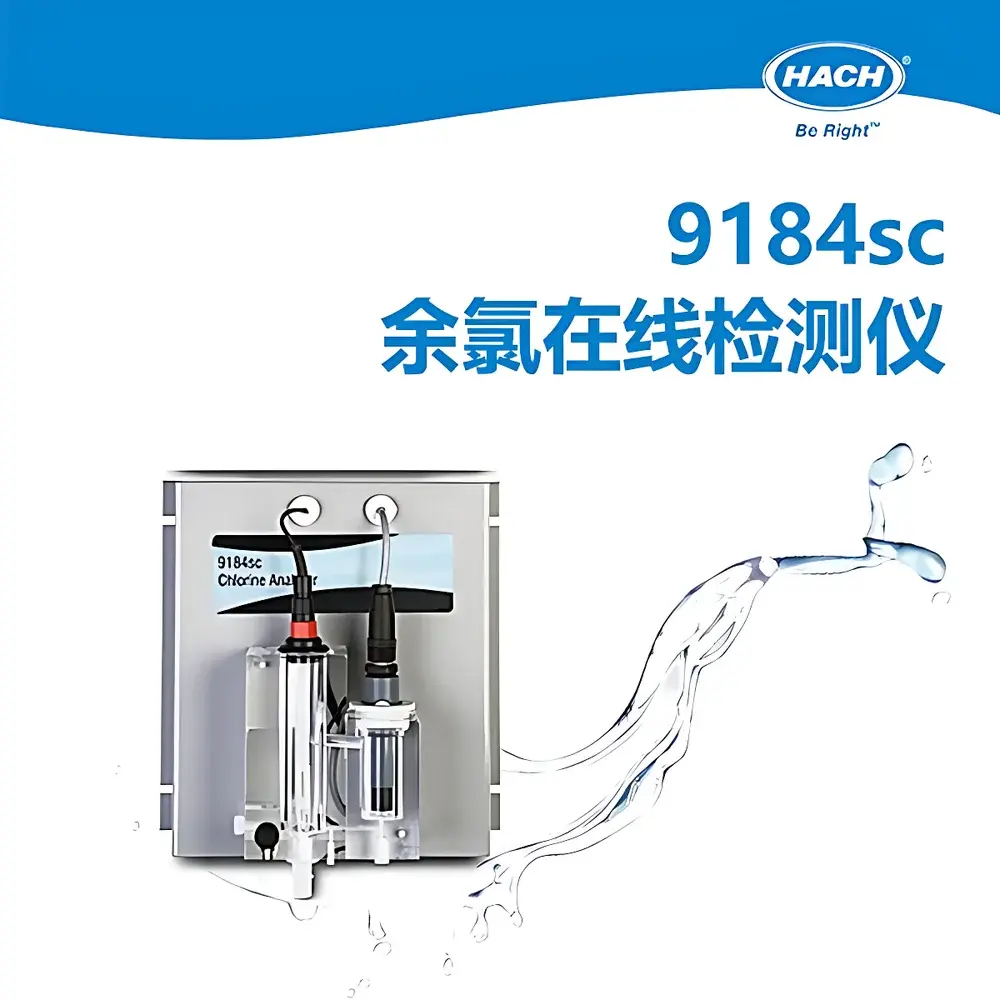

HACH 9184sc Online Free Chlorine Analyzer
| Brand | HACH |
|---|---|
| Origin | USA |
| Manufacturer | HACH Company (a Danaher subsidiary) |
| Product Type | Imported |
| Model | 9184sc |
| Pricing | Available upon Request |
Overview
The HACH 9184sc Online Free Chlorine Analyzer is an electrochemical amperometric sensor system engineered for continuous, real-time measurement of free chlorine—primarily hypochlorous acid (HOCl) and hypochlorite ion (ClO⁻)—in potable water, industrial process water, and pretreatment streams for membrane-based systems such as reverse osmosis (RO). It operates on a selective membrane-covered amperometric principle: a gas-permeable, ion-selective membrane separates the aqueous sample from an internal electrolyte-filled electrochemical cell. HOCl diffuses selectively through the membrane and undergoes a pH- and temperature-dependent equilibrium with ClO⁻; only the uncharged HOCl species permeates efficiently. At the cathode, HOCl is reduced: HOCl + H⁺ + 2e⁻ → Cl⁻ + H₂O. Simultaneously, silver oxidation at the anode (Ag → Ag⁺ + e⁻, followed by Ag⁺ + Cl⁻ → AgCl) maintains charge balance and stabilizes electrode potential. The resulting diffusion-limited current is linearly proportional to the HOCl concentration. Built-in pH and temperature sensors enable automatic compensation, ensuring accuracy across variable water quality conditions (pH 5.0–8.5; 0–45 °C).
Key Features
- Selective amperometric membrane electrode optimized for HOCl detection—minimizing interference from total chlorine, chloramines, and oxidants such as ozone or hydrogen peroxide
- Integrated pH and temperature compensation algorithms compliant with standard water chemistry models (e.g., EPA Method 334.0, ASTM D1253)
- Onboard flow control module maintaining consistent sample velocity (200–250 mL/min), critical for stable diffusion-layer formation and signal reproducibility
- Digital sensor interface with plug-and-play configuration via HACH IntelliCAL™ protocol—enabling automatic recognition, calibration history retention, and firmware updates without manual parameter entry
- Robust IP66/NEMA 4X-rated enclosure suitable for outdoor or wet industrial environments, including pump stations, clearwells, and RO feed lines
- Low-maintenance design: typical recalibration interval of 60 days; membrane and electrolyte replacement recommended every 6 months under continuous operation
Sample Compatibility & Compliance
The 9184sc is validated for use in clarified, filtered, low-turbidity (< 5 NTU) aqueous matrices with suspended solids < 10 mg/L. It meets performance criteria specified in US EPA Guidance Manual for Disinfection By-Products (DBP) Monitoring and is routinely deployed in facilities subject to Safe Drinking Water Act (SDWA) compliance reporting. Its output supports audit-ready data logging aligned with GLP and GMP requirements when integrated with HACH SC1000 or PLC-based SCADA systems. While not intrinsically certified for hazardous locations, it complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) standards.
Software & Data Management
The analyzer interfaces seamlessly with HACH’s SC1000 Universal Controller or third-party DCS/SCADA platforms via 4–20 mA analog output, Modbus RTU (RS-485), or optional Ethernet/IP. All calibration events, diagnostic logs (e.g., membrane integrity checks, electrode polarization status), and raw sensor readings are timestamped and stored locally for ≥30 days. When connected to HACH’s Asset Insight™ cloud platform, data is synchronized for remote monitoring, predictive maintenance alerts (e.g., low electrolyte level, drift detection), and automated report generation compliant with 21 CFR Part 11 audit-trail requirements.
Applications
- Real-time monitoring of free chlorine residual in drinking water distribution system entry points and storage reservoirs
- Pretreatment control for reverse osmosis and nanofiltration plants—preventing membrane oxidation damage while ensuring disinfectant efficacy
- Chlorination dosing feedback loop in municipal and industrial wastewater reuse applications
- Validation of chlorine contact time (CT) calculations per US EPA LT2ESWTR guidelines
- Process optimization in pharmaceutical purified water (PW) and water-for-injection (WFI) systems where chlorine must be removed prior to final polishing
FAQ
What is the difference between free chlorine and total chlorine measurement in this instrument?
The 9184sc measures only free chlorine (HOCl + ClO⁻) via selective membrane permeability. It does not detect combined chlorine (chloramines) due to their negligible diffusion rate through the membrane.
Can the 9184sc operate in seawater or high-salinity brackish water?
No. High chloride concentrations (>5,000 mg/L) cause accelerated silver anode depletion and membrane fouling. It is designed for freshwater applications only.
Is field calibration possible without laboratory reference standards?
Yes—using HACH’s DR3900 spectrophotometer with DPD method (Standard Method 4500-Cl G) as a field reference, though lab-grade DPD validation is recommended for regulatory submissions.
Does the analyzer support automatic temperature compensation below 0 °C?
No. The operational temperature range is strictly 0–45 °C. Sample cooling or heating loops must be installed upstream if ambient conditions fall outside this range.
How is sensor drift diagnosed and corrected?
Drift is identified via daily zero-checks using dechlorinated water and slope verification against a known standard. The SC1000 controller flags deviations >5% from baseline slope and triggers maintenance alerts.
