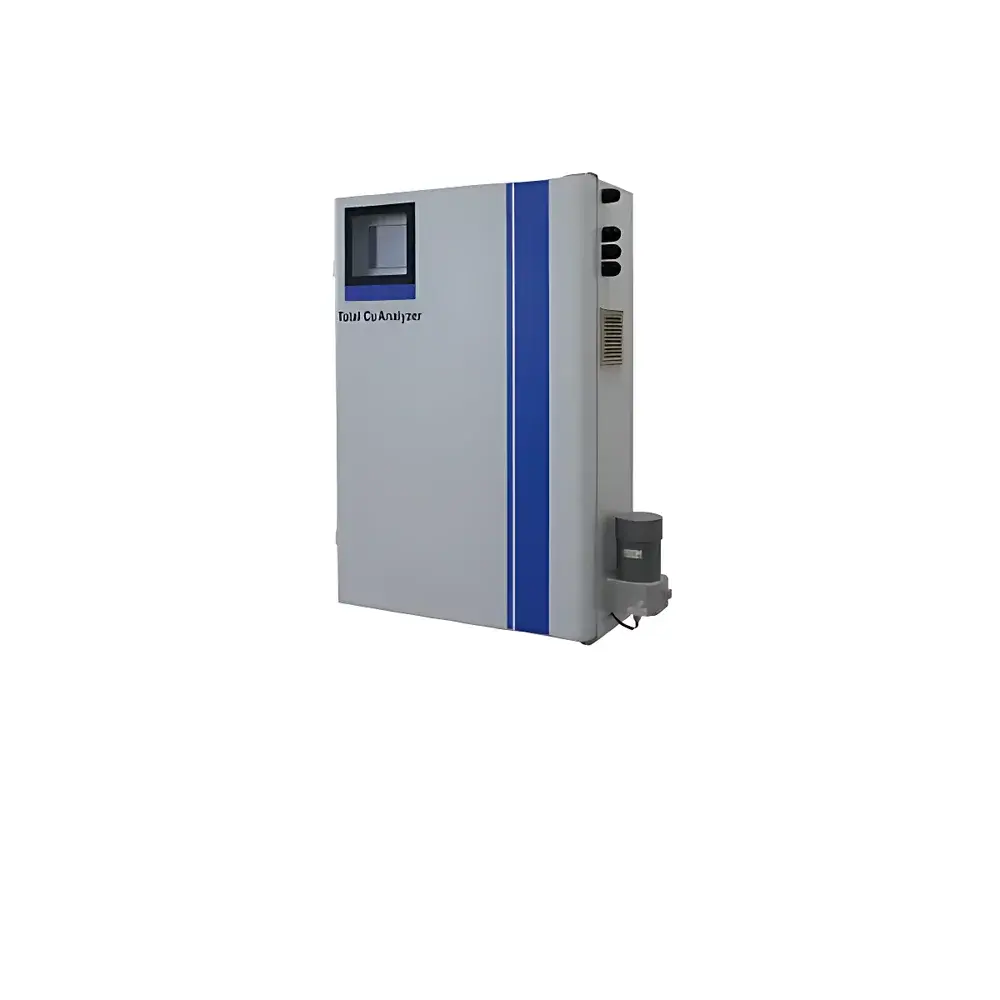

Hach HMA-TCU Total Copper Analyzer
| Brand | Hach |
|---|---|
| Origin | USA |
| Model | HMA-TCU |
| Measurement Principle | High-Temperature Acid Digestion + Bathocuproine Spectrophotometry at 470 nm |
| Range | 0.1–10 mg/L Cu |
| Reagent Consumption | ≤1 month per kit |
| Waste Volume | 1.4 L/month |
| Analog Output | 2 × 4–20 mA (≤600 Ω, isolated) |
| Digital Output | RS-485 MODBUS-RTU, RS-232C |
| Relay Outputs | 2 SPDT (AC200 V/3 A, DC24 V/3 A, resistive load) |
| Operating Environment | 10–40 °C, ≤85 % RH (non-condensing) |
| Power Supply | AC 200 V ±10 %, 50 Hz |
| Power Consumption | 380 VA (max), 130 VA (avg) |
| Dimensions (H×D×W) | 900 × 255 × 600 mm |
| Weight | ~50 kg |
Overview
The Hach HMA-TCU Total Copper Analyzer is a fully automated, online photometric analyzer engineered for continuous, unattended monitoring of total copper concentration in aqueous matrices. It implements a standardized wet-chemistry method compliant with EPA Method 200.7 and ISO 11885, combining high-temperature acid digestion (up to 120 °C) with selective colorimetric detection. The instrument first mineralizes organically bound and chelated copper species into soluble Cu²⁺ ions under acidic, thermally accelerated conditions. Subsequently, Cu²⁺ is reduced to Cu⁺ by hydroxylamine hydrochloride; the resulting cuprous ion forms a stable, stoichiometric complex with bathocuproine (2,9-dimethyl-4,7-diphenyl-1,10-phenanthroline), yielding an intense yellow-brown chromophore. Quantification occurs via fixed-wavelength spectrophotometry at 470 nm using a precision optical path and temperature-stabilized LED source. This dual-stage chemistry ensures accurate determination of total recoverable copper—not merely free or labile fractions—making the HMA-TCU suitable for regulatory compliance reporting under NPDES permits and industrial discharge monitoring requirements.
Key Features
- Integrated high-temperature digestion module (120 °C, programmable ramp/hold) enabling complete liberation of refractory copper complexes
- Automated back-flush filtration system with scheduled cleaning cycles to maintain sample integrity in suspended-solids-rich streams (e.g., wastewater influent)
- True dual-range operation with auto-dilution: seamless switching between low-range (0.1–2.0 mg/L) and high-range (2.0–10.0 mg/L) without manual intervention
- Low operational footprint: reagent kits designed for ≥30 days of continuous operation; total waste volume limited to 1.4 L per month
- Self-calibration functionality with built-in standard solution delivery and drift correction algorithms
- 5.7-inch full-color TFT touchscreen with intuitive icon-driven interface supporting multilingual navigation (including English and Chinese)
- Rugged industrial enclosure rated for continuous deployment in plant environments (IP54 equivalent, vibration-damped chassis)
Sample Compatibility & Compliance
The HMA-TCU is validated for direct analysis of raw and treated water samples containing up to 100 mg/L total suspended solids (TSS) and turbidity ≤400 NTU. It accommodates variable pH (4.0–9.5) and salinity (≤10 g/L NaCl). Method performance meets EPA-defined accuracy criteria (±10 % recovery for certified reference materials) and demonstrates linearity (R² ≥ 0.999) across the full 0.1–10 mg/L range. Data integrity is maintained in accordance with 21 CFR Part 11 requirements through audit-trail logging, electronic signature support, and secure user-access levels. The analyzer supports GLP/GMP-aligned workflows and is routinely deployed in facilities subject to ISO/IEC 17025 accreditation for environmental testing laboratories.
Software & Data Management
Embedded firmware provides real-time data visualization, trend plotting, and alarm threshold configuration (high/low, rate-of-change, calibration failure). All measurements, diagnostic logs, and maintenance events are timestamped and stored locally for ≥90 days. Data export is supported via MODBUS-RTU (RS-485) for SCADA integration or ASCII over RS-232C for legacy PLC systems. Optional Hach Insight™ software enables remote configuration, predictive maintenance alerts, and export to CSV or LIMS-compatible formats. Secure HTTPS-based web interface allows browser-based access for configuration and diagnostics without local software installation.
Applications
- Regulatory compliance monitoring at municipal wastewater treatment plant influent and effluent points
- Real-time control of copper removal processes in electroplating and printed circuit board (PCB) manufacturing effluents
- Source water surveillance for mining-impacted surface waters and tailings pond discharges
- Process optimization in hydrometallurgical leaching circuits where copper speciation impacts recovery efficiency
- QA/QC verification in drinking water distribution systems following copper pipe corrosion events
FAQ
What copper species does the HMA-TCU quantify?
It measures total recoverable copper—including dissolved, colloidal, organically complexed, and particulate-bound forms—after complete acid digestion.
Is field calibration required between reagent changes?
No. The system performs automatic multi-point calibration using onboard standards prior to each analytical cycle.
Can the HMA-TCU operate in outdoor enclosures?
Yes, provided ambient temperature remains within 10–40 °C and humidity is controlled to prevent condensation on optics and electronics.
Does it comply with ISO 11885 for total metal determination?
Yes—the digestion protocol and detection chemistry align with Clause 7 (total copper) of ISO 11885:2007.
How is data security ensured for regulatory reporting?
All measurement records include immutable timestamps, operator IDs, and change logs; electronic signatures and role-based access control satisfy 21 CFR Part 11 audit requirements.
