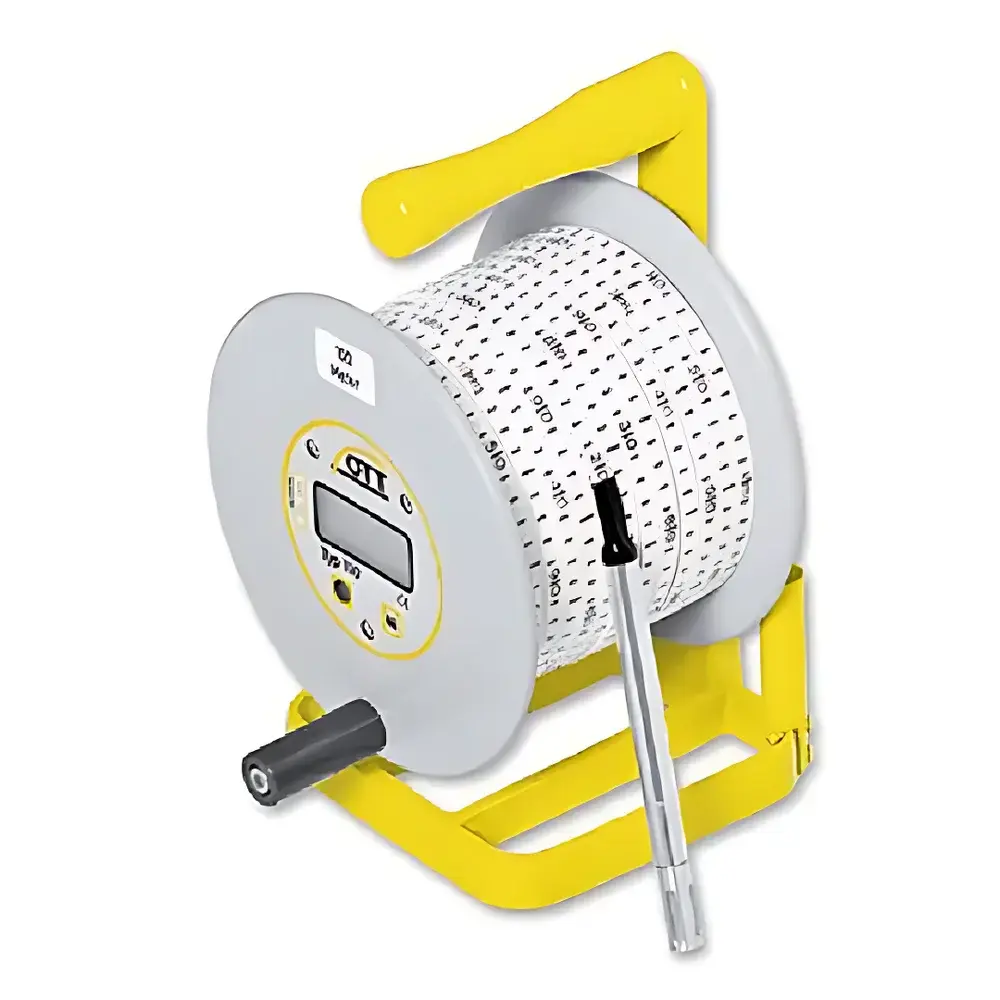

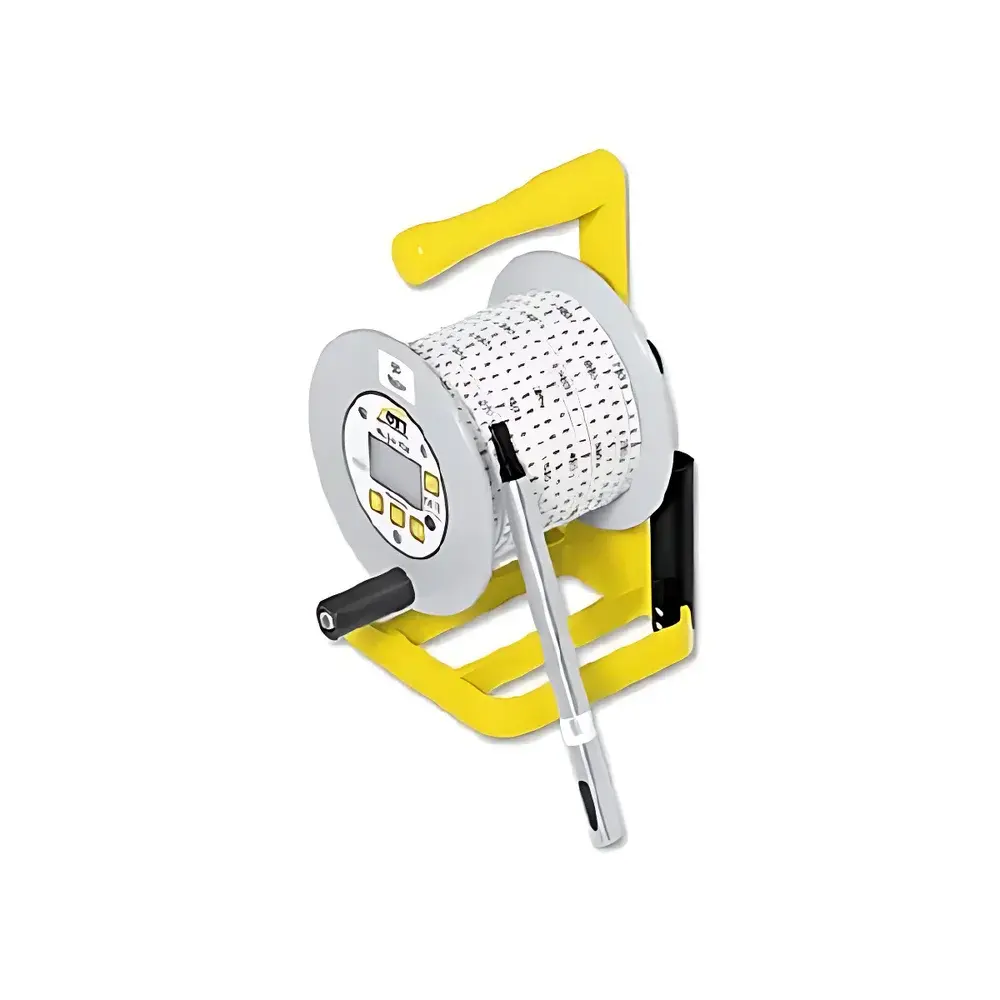

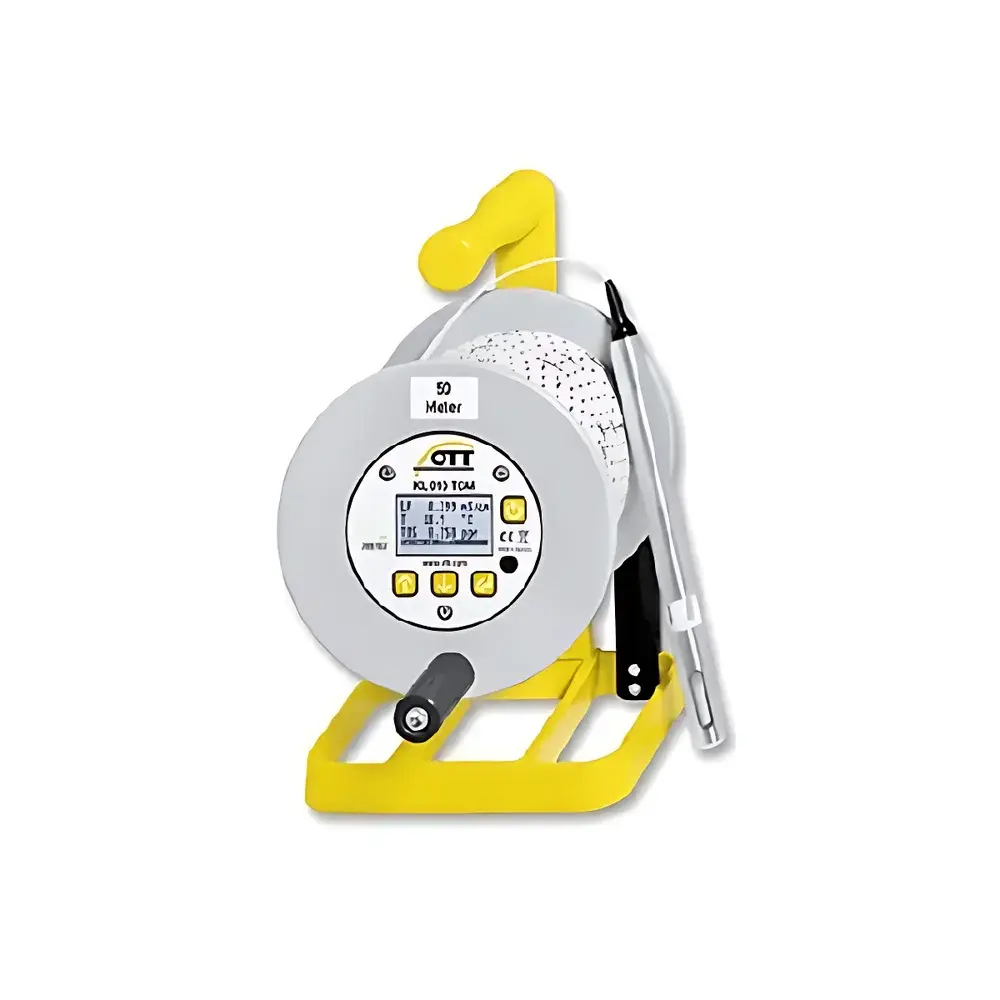

HACH OTT KL010 Portable Water Level Meter

Overview

The HACH OTT KL010 Portable Water Level Meter is a field-deployable, contact-based hydrostatic level measurement instrument engineered for precision, reliability, and operational simplicity in groundwater monitoring applications. It operates on the principle of electrical conductivity detection: when the stainless steel electrode at the tip of the measuring tape makes contact with water, a closed circuit is formed, triggering an audible beep and simultaneous LED illumination. This binary signal enables unambiguous identification of the water surface elevation relative to a fixed reference point—typically the top of a monitoring well, piezometer, or observation pipe. Designed for manual deployment in vertical or near-vertical boreholes, the KL010 eliminates reliance on pressure transducers or ultrasonic echo timing, thereby avoiding errors associated with temperature-induced density variations, air column interference, or sensor drift. Its robust mechanical architecture supports long-term use in harsh environmental conditions, including frozen ground, high-humidity subterranean enclosures, and chemically aggressive aquifer settings.

Key Features

• Manual, direct-contact water level sensing with immediate audio–visual feedback (6 kHz tone + LED activation).
• Modular tape length options from 15 m to 750 m—custom lengths available upon specification to match site-specific well depth requirements.
• Dual-conductor white polyethylene measuring tape with high-contrast scale markings: red meter increments, black centimeter and decimeter subdivisions for rapid visual interpolation.
• Corrosion-resistant electrode assembly fabricated from V2A stainless steel (1.4301/AISI 304) with copper plating to enhance conductivity stability in low-conductivity groundwater.
• Die-cast aluminum main housing with reinforced polymer overmolding ensures mechanical durability during repeated lowering/retrieval cycles and resistance to impact, UV exposure, and thermal cycling.
• Low-power 6 VDC operation using four standard alkaline C-cells (IEC R14), delivering >2,000 measurement cycles per battery set under typical field conditions.
• Extended operating temperature range (−30 °C to +75 °C) validated for year-round deployment across boreal, temperate, and arid climatic zones.

Sample Compatibility & Compliance

The KL010 is compatible with all standard groundwater monitoring infrastructure compliant with ASTM D5092, ISO 5840, and EN 13160 standards—including 2-inch (50.8 mm) and larger diameter PVC, stainless steel, or HDPE observation wells. Its electrode design meets IEC 60529 IP67 ingress protection when fully assembled, ensuring reliable performance in wet, muddy, or sediment-laden well environments. While the base KL010 model does not incorporate data logging or electronic calibration traceability, it supports GLP-aligned field documentation protocols when used with certified reference tapes and calibrated depth datum markers. For regulated monitoring programs requiring audit-ready records (e.g., EPA UCMR, EU WFD reporting), the KL010 serves as a primary verification tool alongside automated dataloggers.

Software & Data Management

The KL010 is a standalone analog measurement device with no embedded firmware, wireless connectivity, or proprietary software dependencies. All readings are recorded manually into field notebooks, digital logbooks, or LIMS-compatible spreadsheets. This architecture eliminates cybersecurity vulnerabilities, firmware update overhead, and battery-draining background processes—enhancing operational uptime and reducing total cost of ownership. Users may integrate KL010-derived depth values into GIS platforms (e.g., ArcGIS, QGIS) or hydrological modeling suites (e.g., MODFLOW, FEFLOW) via standardized CSV or shapefile import workflows. Calibration verification is performed using NIST-traceable depth standards or certified survey benchmarks, consistent with ISO/IEC 17025 metrological practices.

Applications

• Manual water level surveys in municipal, agricultural, and industrial monitoring wells.
• Verification and cross-checking of continuous-level transducer outputs (e.g., vented or absolute pressure sensors, bubbler systems).
• Construction dewatering control and excavation groundwater drawdown assessment.
• Long-term aquifer response analysis during pumping tests and recovery monitoring.
• Regulatory compliance sampling for state and federal groundwater protection programs (e.g., USGS NWIS, Environment Agency UK, BfG Germany).
• Academic hydrogeological field instruction and student-led monitoring campaigns.

FAQ

What is the minimum recommended well diameter for KL010 deployment?
The KL010 is designed for installation in observation wells with an internal diameter ≥2 inches (50.8 mm). Narrower casings may impede smooth tape passage and increase abrasion risk.
Can the KL010 be used in saline or brackish groundwater?
Yes—the V2A stainless steel electrode with copper plating maintains stable conductivity response across a wide range of specific conductance (10 µS/cm to >50,000 µS/cm), though extreme salinity may accelerate surface oxidation over extended service life.
Is the KL010 suitable for frozen ground conditions?
Yes—its −30 °C lower operating limit and non-electronic sensing mechanism allow reliable winter deployment where ice formation occurs at the water surface or within the well annulus.
How often should the tape be recalibrated?
The polyethylene tape exhibits minimal thermal expansion (<0.02%/°C) and creep under tension; annual verification against a certified master tape or laser-measured reference rod is recommended for regulatory-grade applications.
Does the KL010 meet FDA 21 CFR Part 11 requirements?
No—this is a manual readout instrument without electronic data capture, audit trails, or user authentication. It is intended for field verification, not GMP-compliant electronic recordkeeping.
